EN ISO 1576 Gate Valve, ASTM A182 F316, DN15, PN40, HandWheel
Key Specifications / Features
DN15 PN40 gate valve is made according to EN ISO 15761 standard. The valve body is made of ASTM A182 F316. It has the structural characteristics of rigid wedge, full bore, rising stem, and bolted cover. Its connection mode is EN 1092-1 B1. And it has hand wheel operation mode.
- Hits: 7
- Categories: Gate Valve
- Tags: ASTM A182 F316 Gate Valve , DN15 Gate Valve , PN40 Gate Valve
Detail Information
DN15 PN40 F316 Forged Steel Gate Valve HandWheel
Features
1. Can be used in the case of bidirectional flow of media, without directionality;
2. When fully open, the sealing surface is not eroded, sturdy, durable, and tightly reliable.

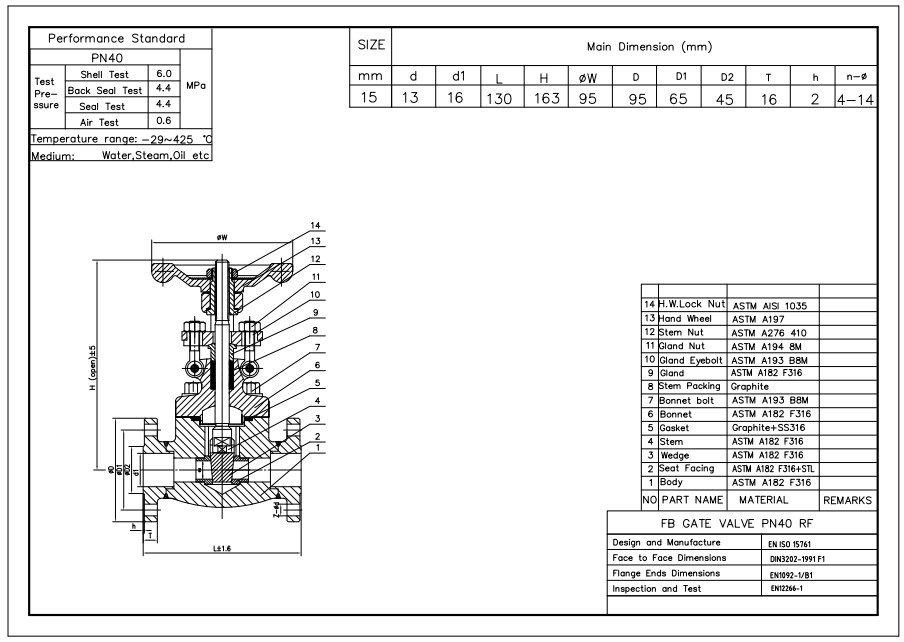

Technical Drawing

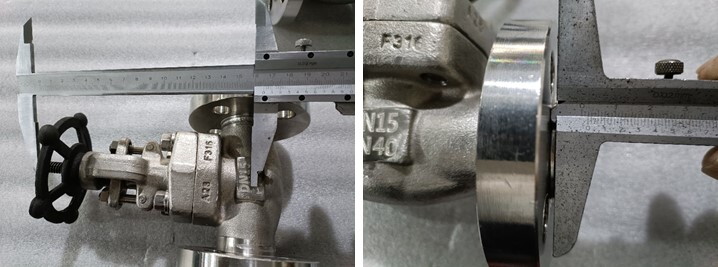

Dimension Checking

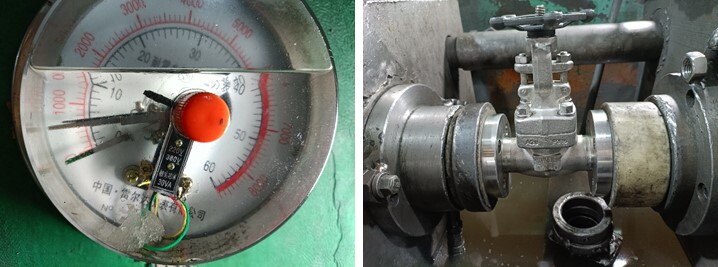

Pressure Testing

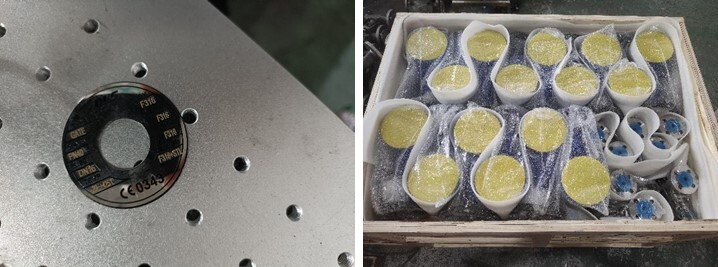

Nameplate & Packing

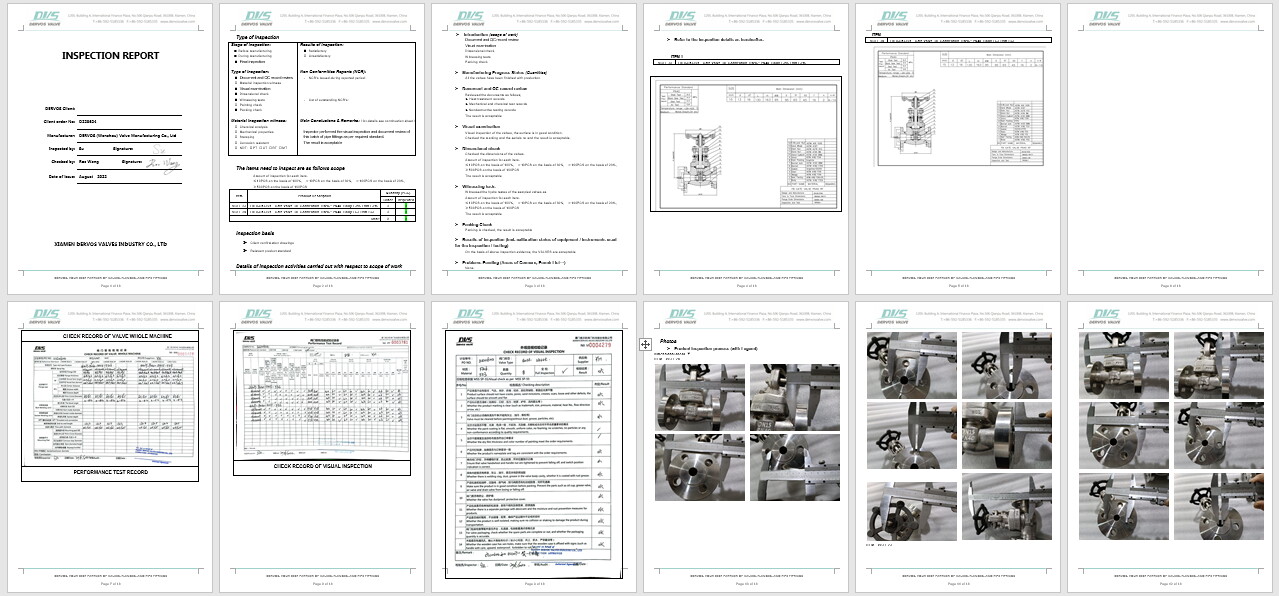

Inspection report
Features
1. Can be used in the case of bidirectional flow of media, without directionality;
2. When fully open, the sealing surface is not eroded, sturdy, durable, and tightly reliable.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing

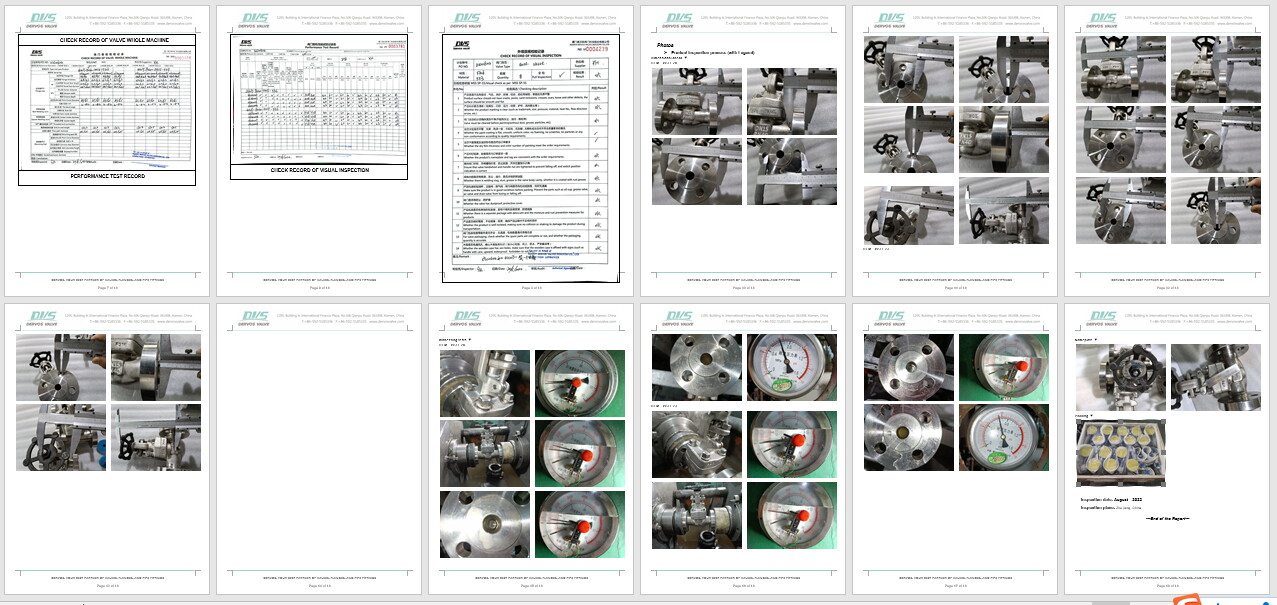

Inspection report
