Key Specifications / Features
DN100 PN40 gate valve is made according to EN 1984 standard. The valve body is made of 1.0619+STL. It has the structural characteristics of bolt cover, rising stem and bracket. Its connection mode is EN 1092-1 B1. And it has hand wheel operation mode.
- Hits: 1
- Categories: Gate Valve
- Tags: Cast Steel Gate Valve , EN 1984 Gate Valve , DN100 Gate Valve
Detail Information
DN100 PN40 Cast Steel Gate Valve EN 10213 1.0619 Hand Wheel EN 1984 EN 1092-1 B1
Features
1. Compact structure, reasonable design, good valve rigidity, smooth channel, and low flow resistance coefficient;
2. Reliable sealing, lightweight and flexible operation, and long service life.

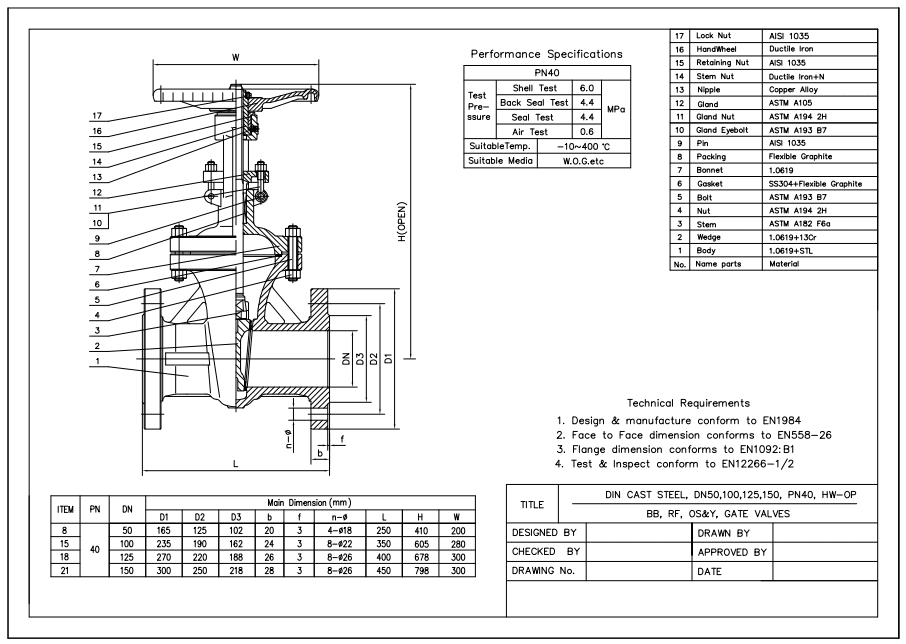

Technical Drawing

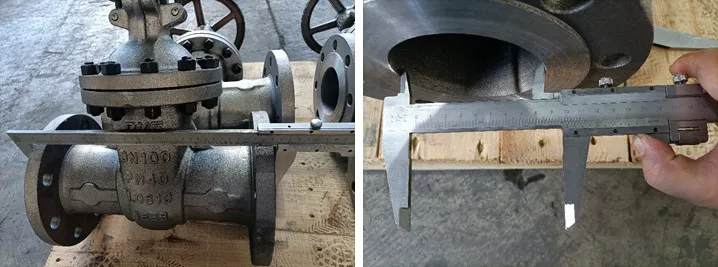

Dimension Checking

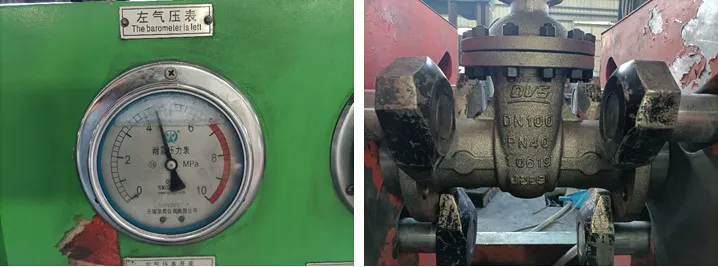

Pressure Testing

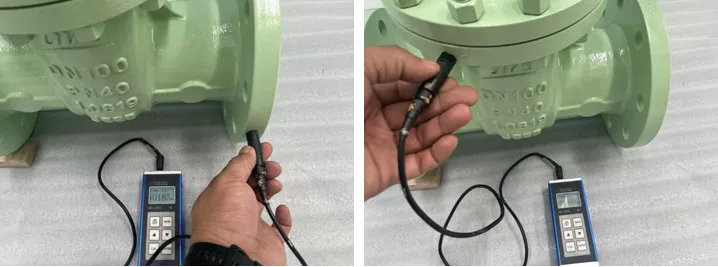

Painting
Nameplate & Packing

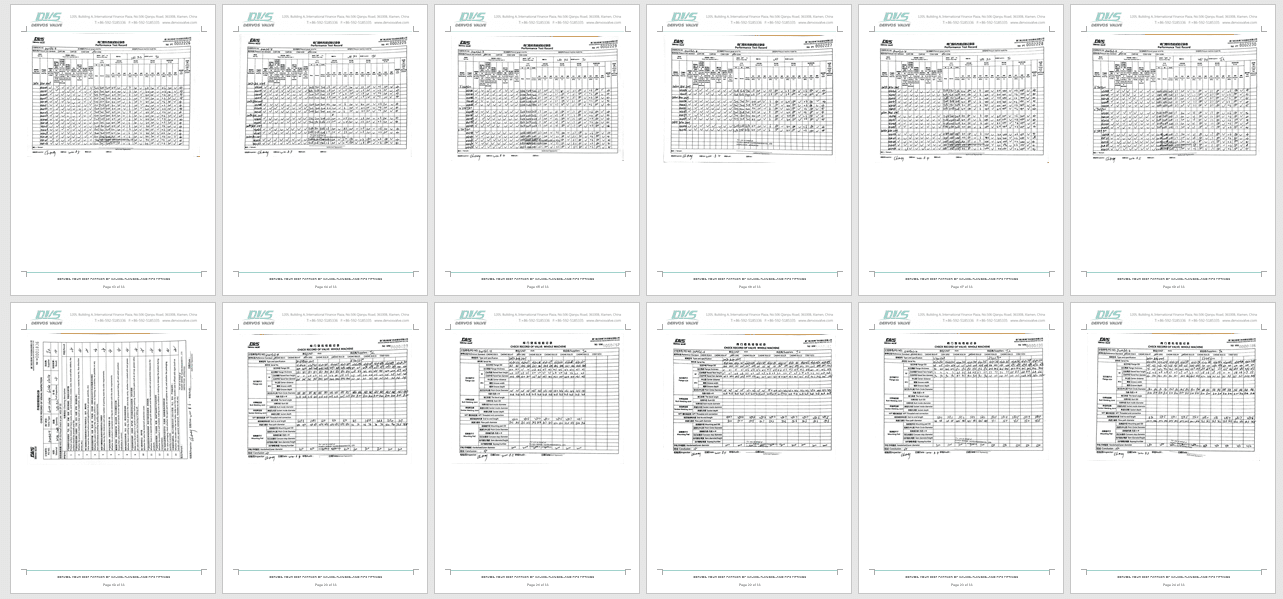

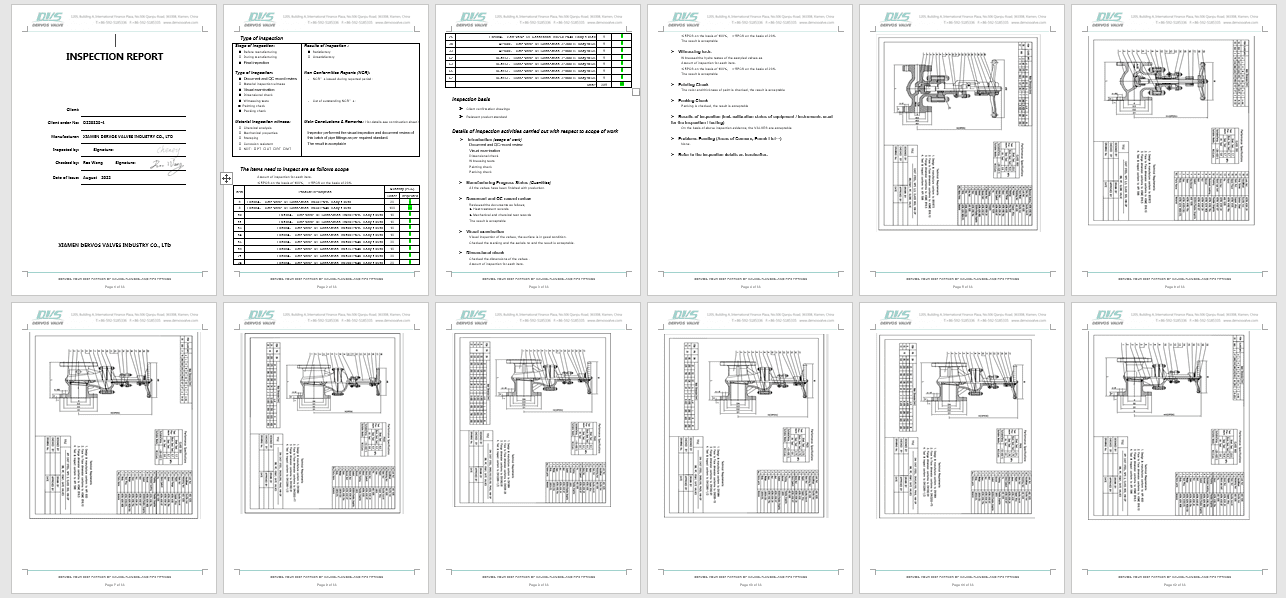

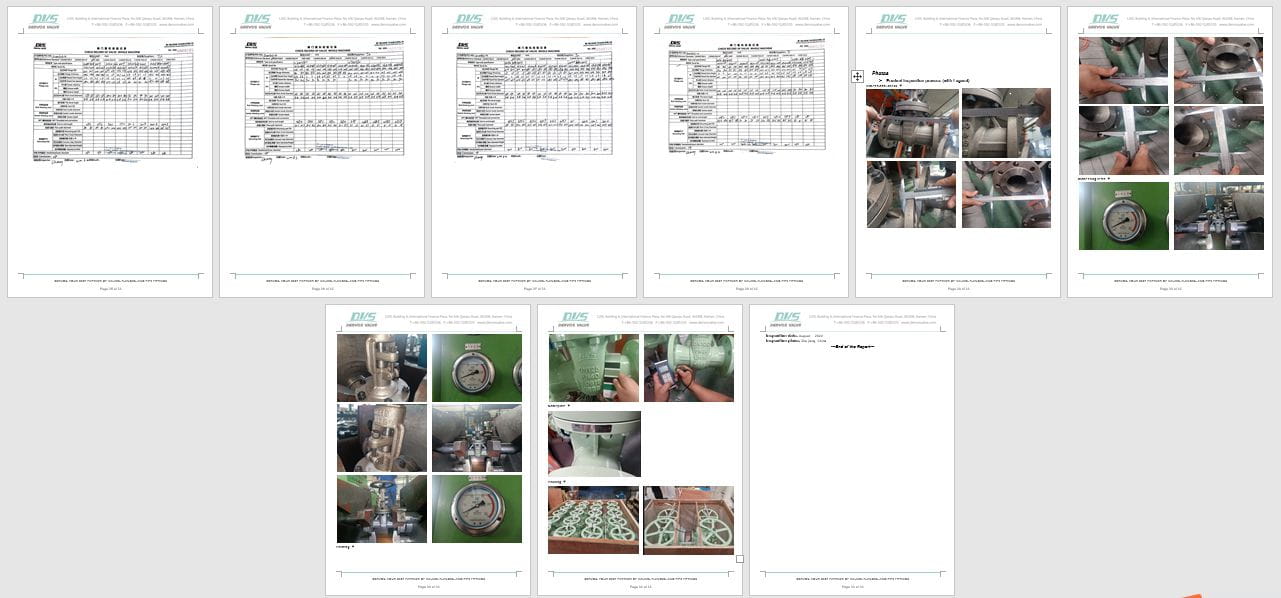

Inspection report
Features
1. Compact structure, reasonable design, good valve rigidity, smooth channel, and low flow resistance coefficient;
2. Reliable sealing, lightweight and flexible operation, and long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
