ASTM A182 F316 Gate Valve, API 602, ASME B16.34, 1 Inch, 300 LB
Key Specifications / Features
1 Inch 300 LB gate valve is made according to API 602 and ASME B16.34 standard. The valve body is made of ASTM A182 F316. It has the structural characteristics of a bolt cover, exposed rod, OS & Y, and full bore. Its connection mode is an RF integral flange. It has polished rod operation mode.
- Hits: 6
- Categories: Gate Valve
- Tags: API 602 Gate Valve , ASME B16.34 Gate Valve , 1 Inch Gate Valve
Detail Information
1 Inch 300 LB Forged Steel Gate Valve F316 API 602
Features
1. Simple structure, short structural length, and strong manufacturing process;
2. Compact structure, beautiful appearance, convenient assembly, and reliable operation.

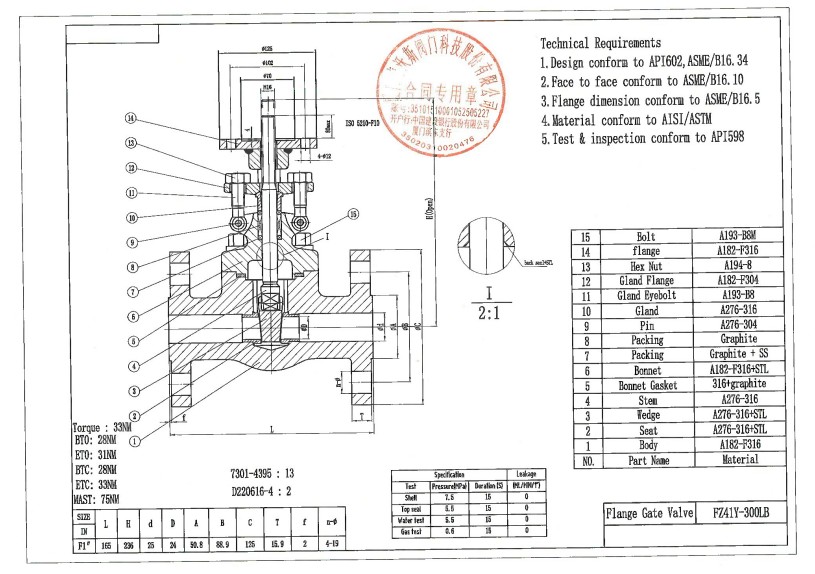

Technical Drawing

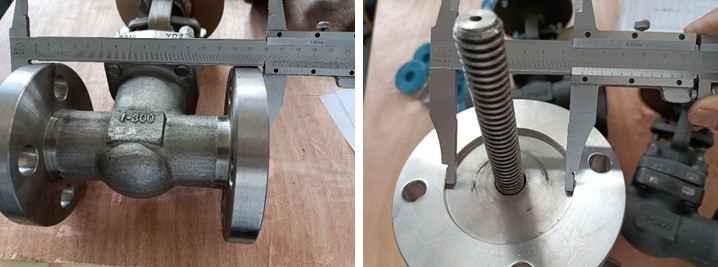

Dimension Checking
Pressure Testing

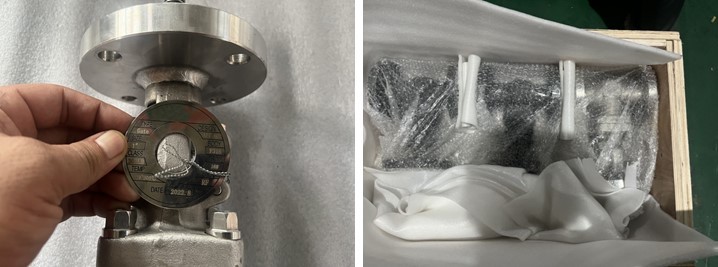

Nameplate & Packing

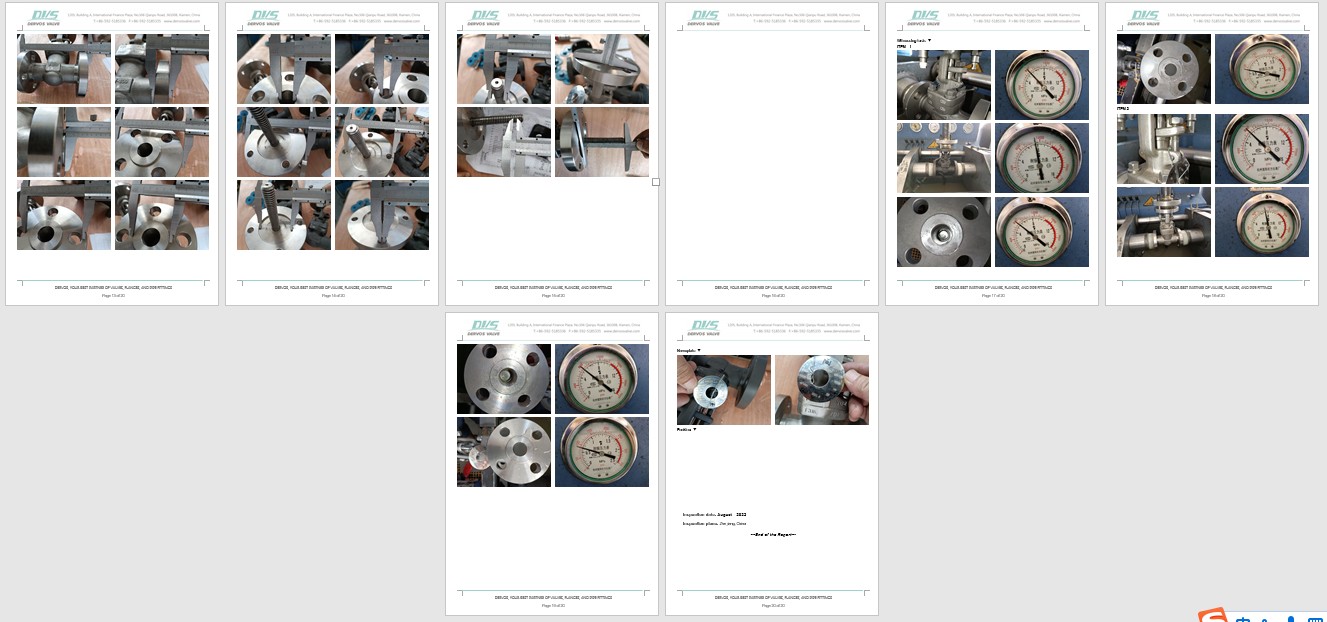

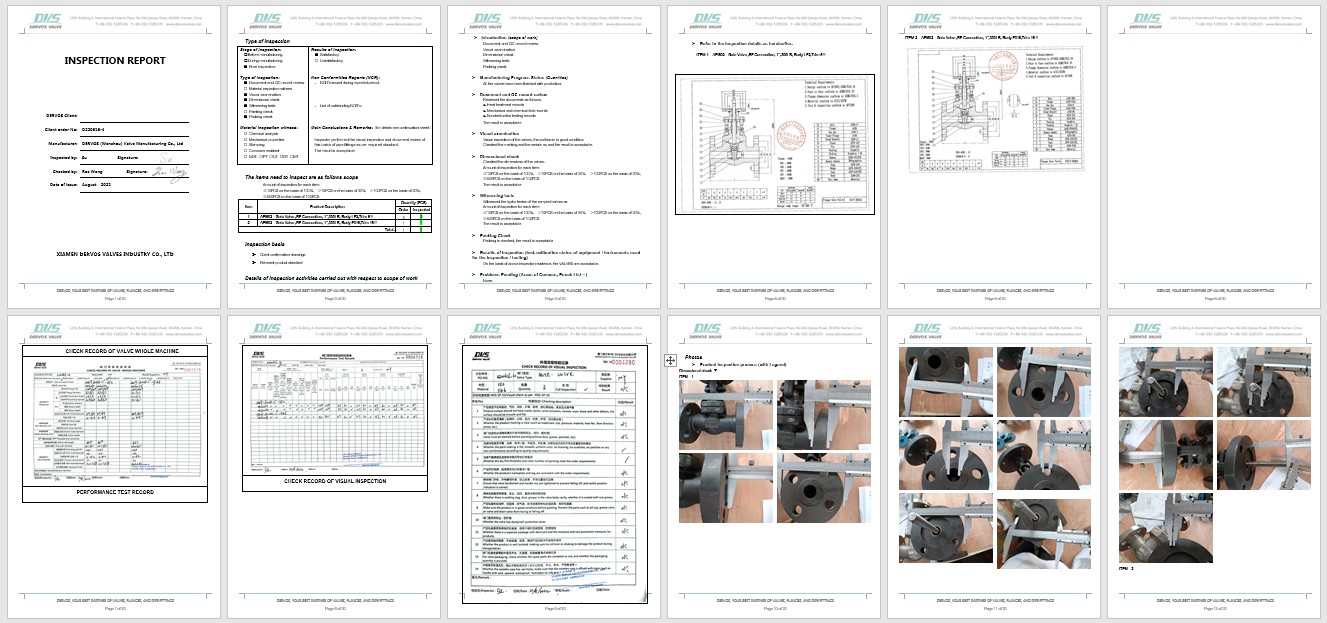

Inspection report
Features
1. Simple structure, short structural length, and strong manufacturing process;
2. Compact structure, beautiful appearance, convenient assembly, and reliable operation.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
