Key Specifications / Features
1 Inch 150 LB gate valve is made according to API 602 standard. The valve body is made of A350-LF2. It has the structural characteristics of a bolt cover, rising stem, rigid gate, full bore, replaceable valve seat, and extended valve stem. Its connection mode is RF (integral flange 125-250 AARH). And it has hand wheel operation mode.
- Hits: 0
- Categories: Gate Valve
- Tags: API 602 Gate Valve , 1 Inch Gate Valve , 150 LB Gate Valve
Detail Information
1 Inch 150 LB Forged Steel Gate Valve RF LF2 API 602 Hand Wheel
Features
1. It has good mechanical properties, making forged steel gate valves have high strength and pressure resistance, suitable for high-pressure working environments;
2. Can be used for high-temperature working conditions, as forged steel materials maintain good mechanical properties and stability at high temperatures.

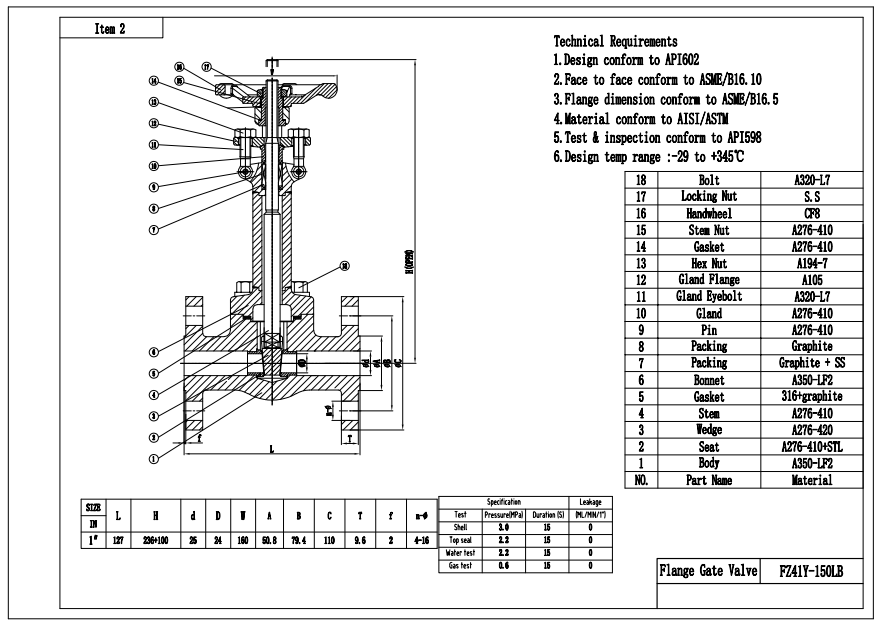

Technical Drawing

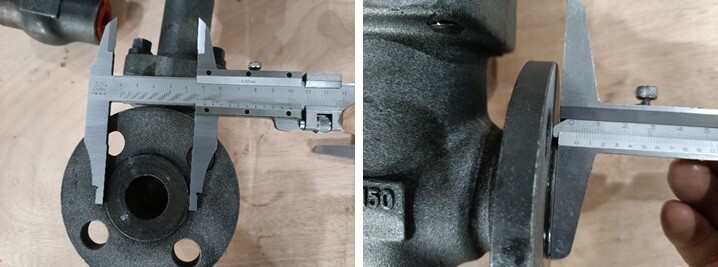

Dimension Checking

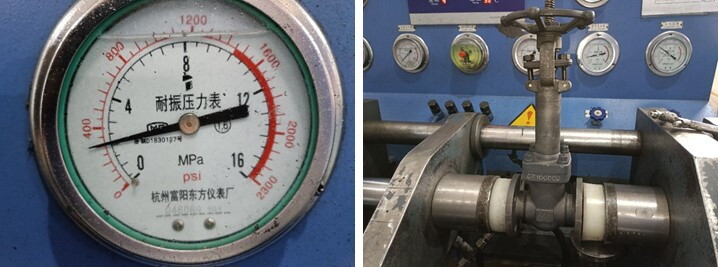

Pressure Testing

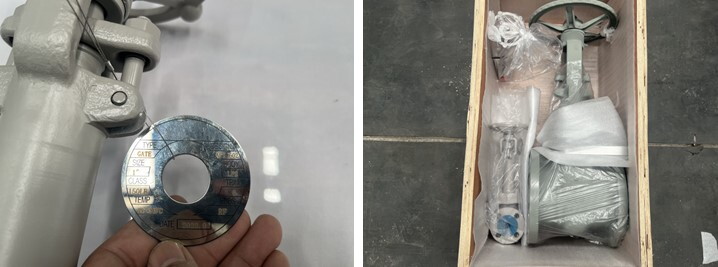

Nameplate & Packing

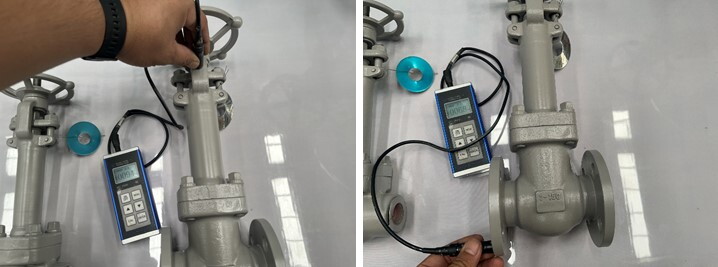

Painting

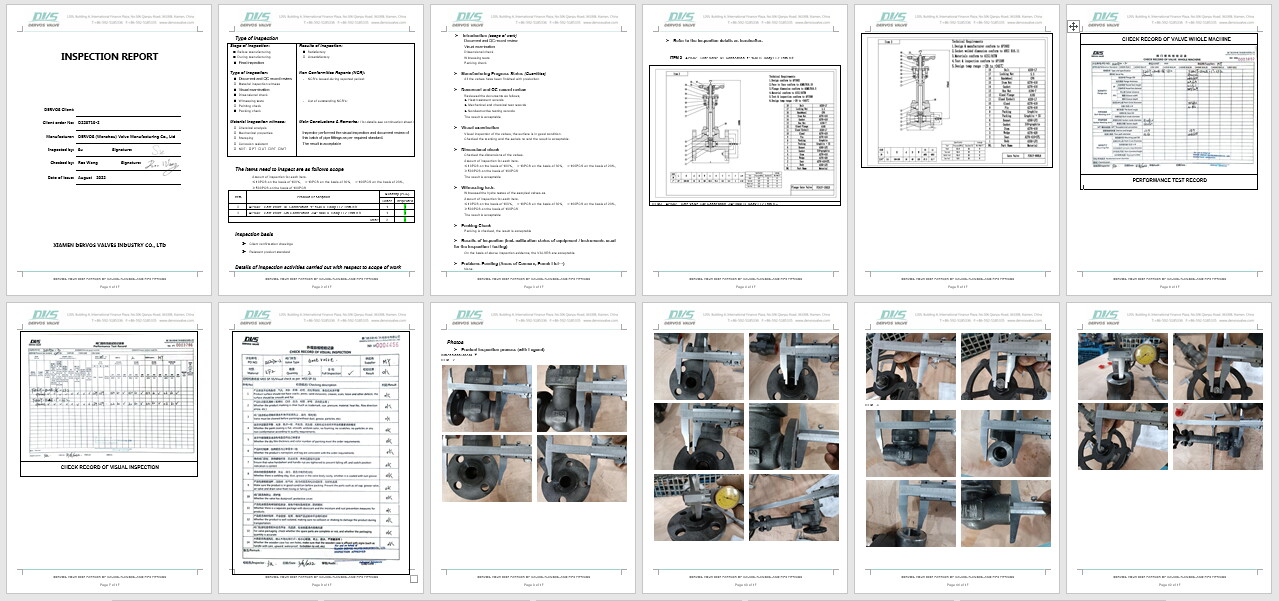

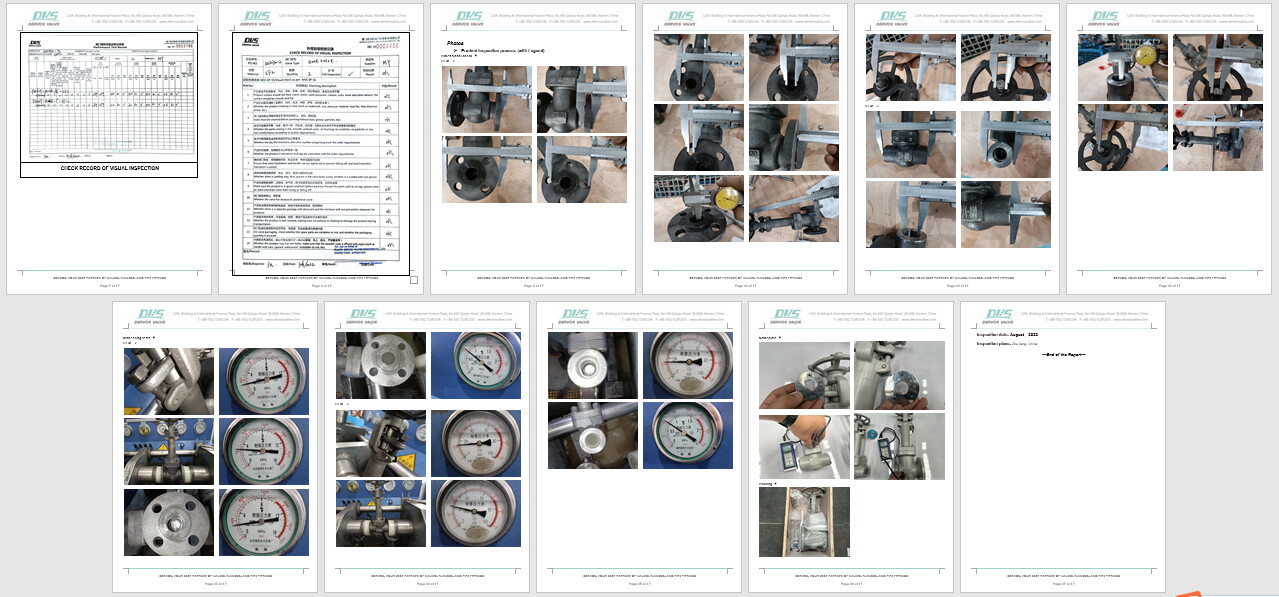

Inspection report
Features
1. It has good mechanical properties, making forged steel gate valves have high strength and pressure resistance, suitable for high-pressure working environments;
2. Can be used for high-temperature working conditions, as forged steel materials maintain good mechanical properties and stability at high temperatures.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Painting
Inspection report
