ASTM A182 F316L Gate Valve, API 602, 1/2 Inch, 150 LB, RF
Key Specifications / Features
1/2 Inch 150 LB gate valve is made according to API 602 standard. The valve body is made of ASTM A182 F316L. It has the structural characteristics of bolt cover, rising stem and rigid wedge. Its connection mode is RF integral flange. And it has hand wheel operation mode.
- Hits: 6
- Categories: Gate Valve
- Tags: ASTM A182 F316L Gate Valve , API 602 Gate Valve , 1/2 Inch Gate Valve
Detail Information
API 602 1/2 Inch 150 LB Forged Steel Gate Valve RF F316L Handwheel
Features
1. Low fluid resistance, sealing surface not subject to erosion when fully open;
2. Durable and sturdy, suitable not only for making small valves, but also for making large valves.

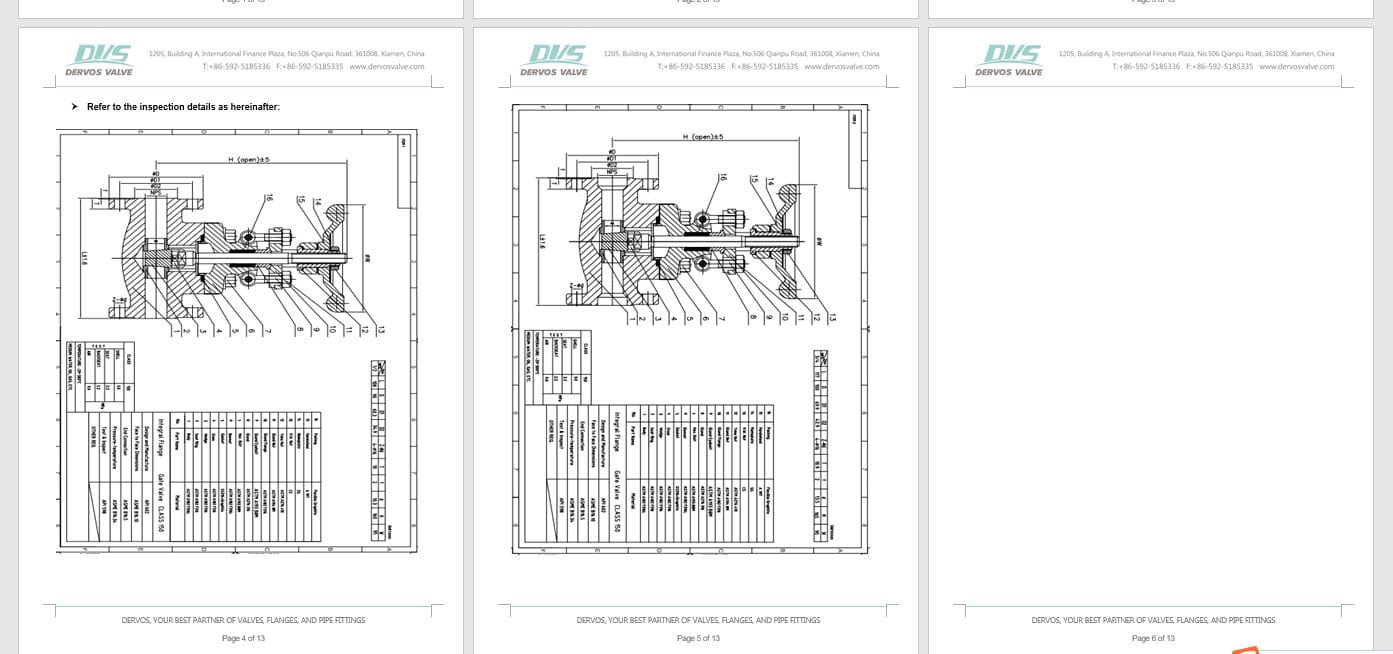

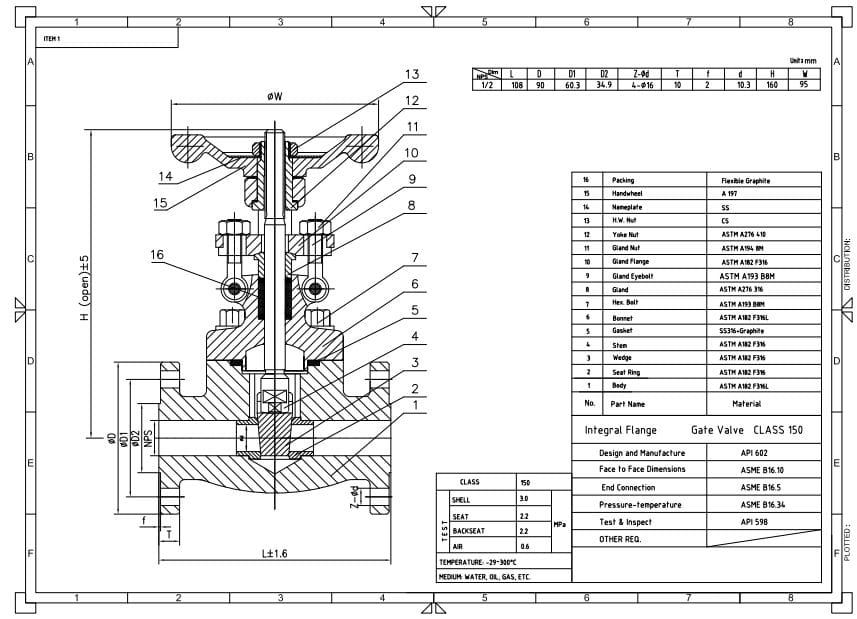

Technical Drawing

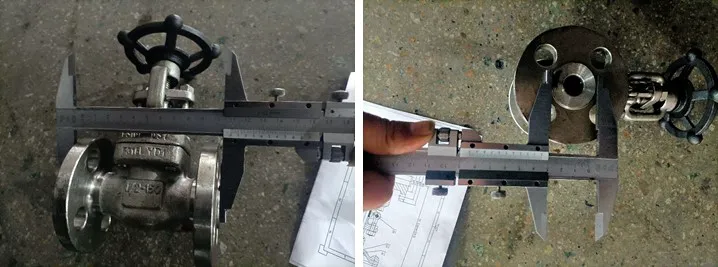

Dimension Checking

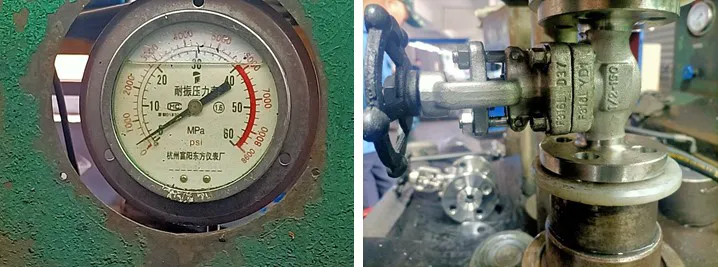

Pressure Testing

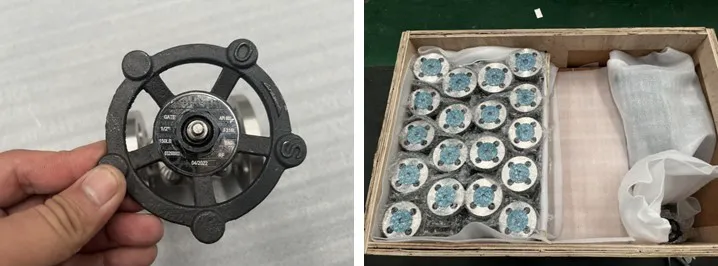

Nameplate & Packing

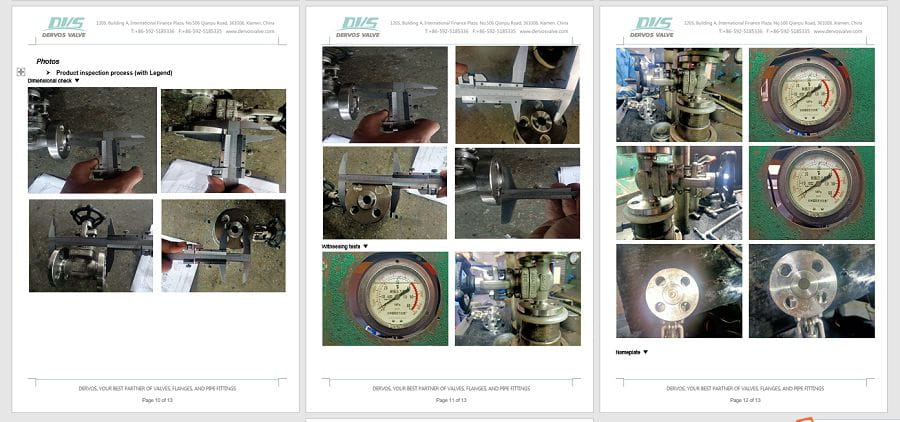

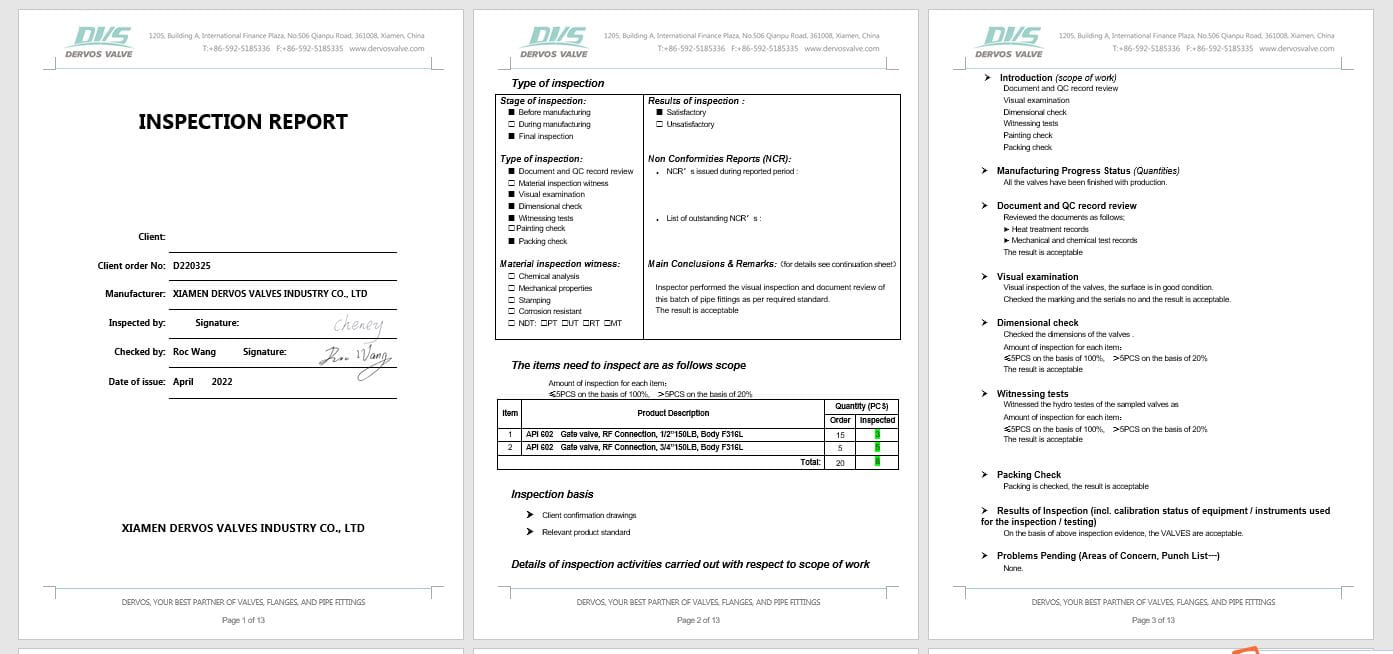

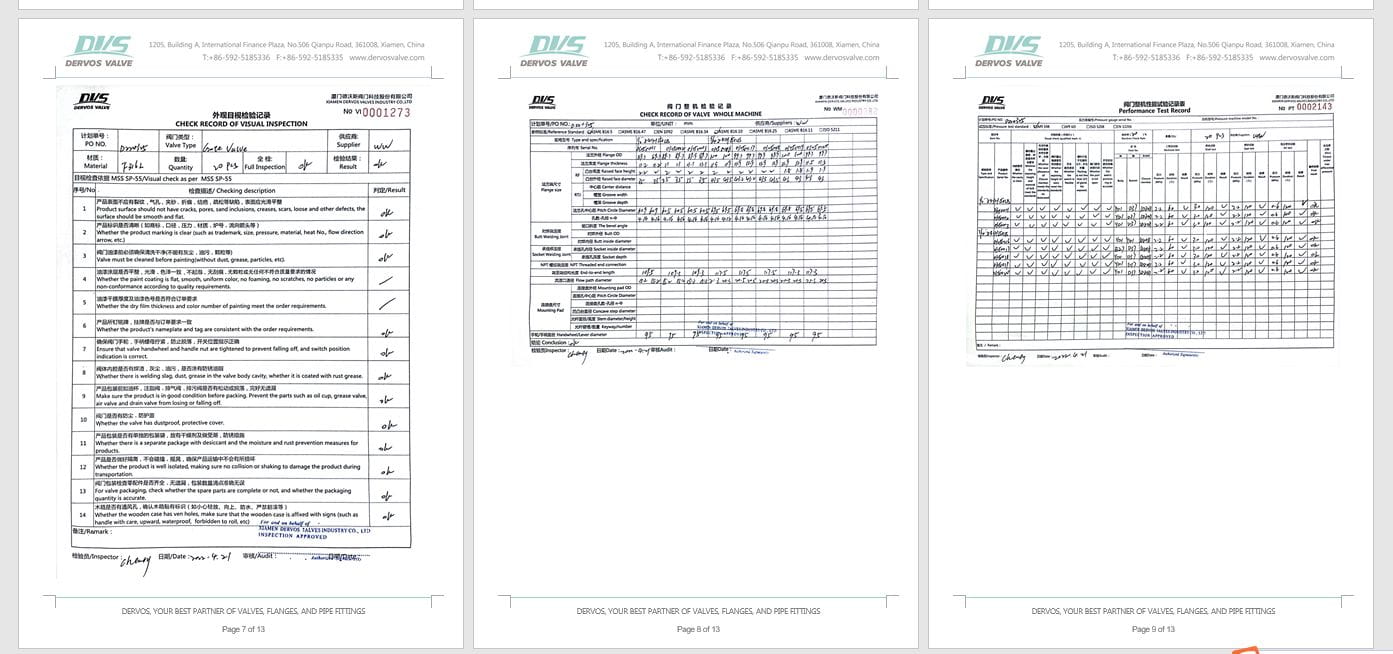

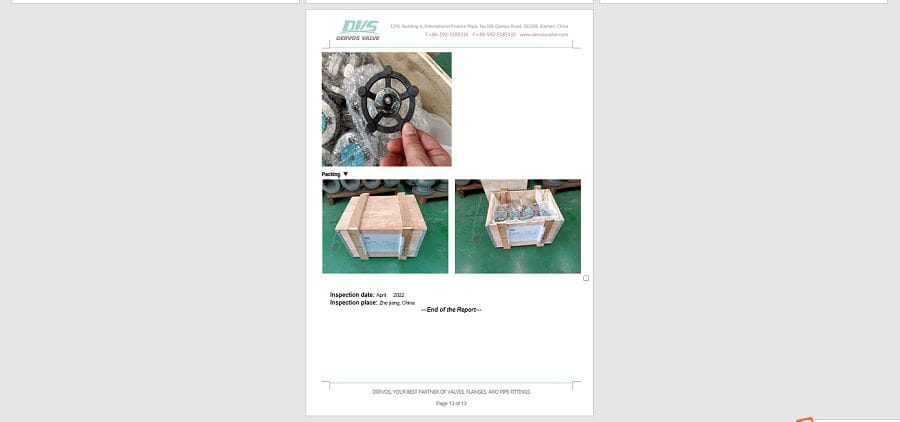

Inspection report
Features
1. Low fluid resistance, sealing surface not subject to erosion when fully open;
2. Durable and sturdy, suitable not only for making small valves, but also for making large valves.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
