3/4 Inch 300 LB Forging Gate Valve, ASTM A105N, API 602
Key Specifications / Features
3/4 Inch 300 LB Forging Gate Valve Manufacturer: Forged Gate Valves, BB, OSY, Solid Wedge, Full Bore, ASTM A105N, 3/4 Inch, 300 LB, API 602, Flanged End.
- Hits: 9
- Categories: Gate Valve
- Tags: 3/4 Inch Gate Valve , Class 300 LB Gate Valve , ASTM A105N Gate Valve
Detail Information
| Type | Gate Valve |
| Size | 3/4 Inch |
| Design Pressure | 300LB |
| Construction | BBV, OSY, Solid Wedge; Full Bore |
| Connection | Flanged |
| Design & Manufacture | API602 |
| End to End | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection | API598 |
| Body Material | A105N |
| Media | W.O.G. |
Design Features
-Outside Screw and Yoke(OS&Y)
-Two-Piece self-aligning packing gland
-Bolted bonnet with spiral-wound gasket
-Integral backseat

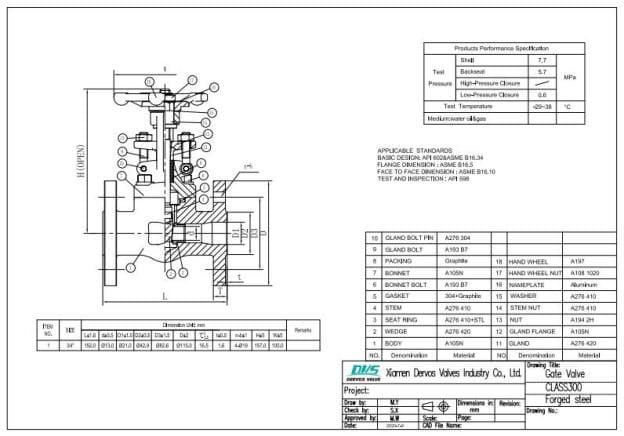

Technical Drawing

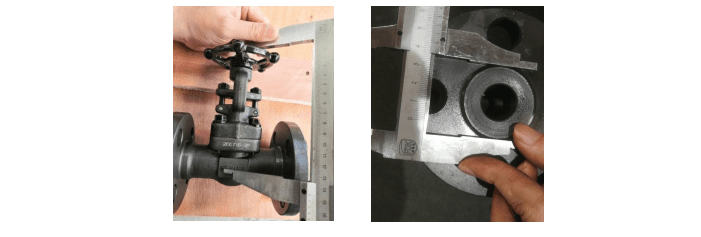

Dimension Check

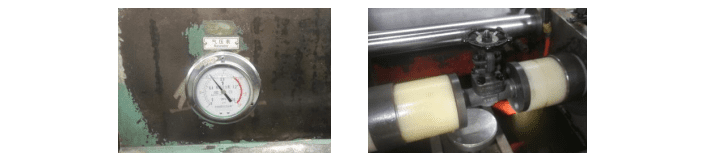

Witnessing Tests
