Key Specifications / Features
DN40 PN40 ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of floating ball and full bore. Its connection mode is EN 1092-1 B1. And it has lever operation mode.
- Hits: 0
- Categories: Floating Ball Valve
- Tags: ASTM A105 Ball Valve , DN40 Ball Valve , PN40 Ball Valve
Detail Information
ISO 17292 DN40 PN40 Floating Ball Valve A105 Lever EN 1092-1 B1
Features
1. Small size, light weight, and simple structure;
2. Compact structure, reliable sealing, convenient maintenance, not easily eroded by media, easy to operate and maintain.

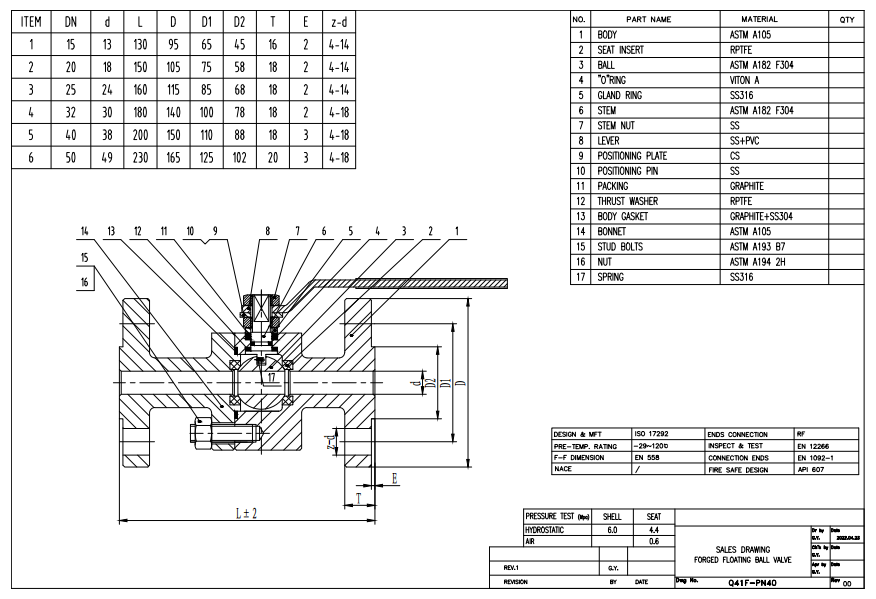

Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing

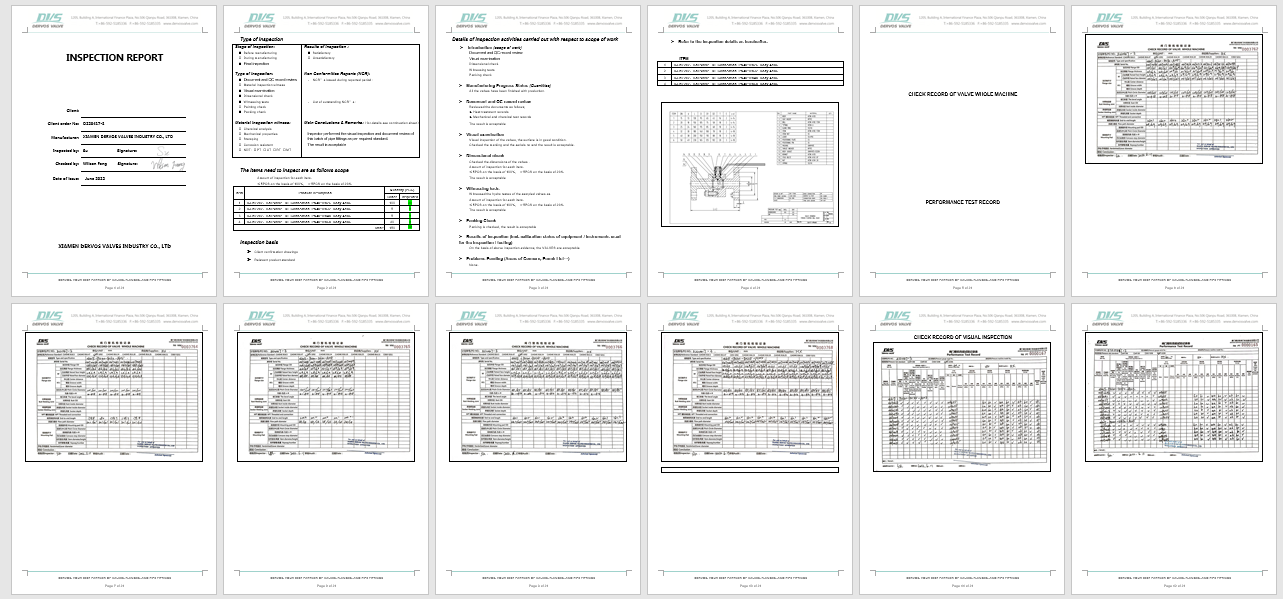

Inspection report
Features
1. Small size, light weight, and simple structure;
2. Compact structure, reliable sealing, convenient maintenance, not easily eroded by media, easy to operate and maintain.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
