ASTM A216 WCB Floating Ball Valve, 2 Inch, 300 LB, API 6D
Key Specifications / Features
2-inch 300-LB ball valve is made according to API 6D standard. The valve body is made of A216-WCB. It has the structural characteristics of a split type, floating ball, full bore, anti-fire, anti-static and anti-flying valve stem. Its connection mode is RF.
- Hits: 12
- Categories: Floating Ball Valve
- Tags: ASTM A216 WCB Ball Valve , 2 Inch Ball Valve , Class 300 LB Ball Valve
Detail Information
2 Inch 300 LB Floating Ball Valve RF WCB API 6D
Features
1. Small size, lightweight, and convenient for pipeline installation;
2. Simple structure, good sealing performance, multiple valve seat materials, and wide applicability.

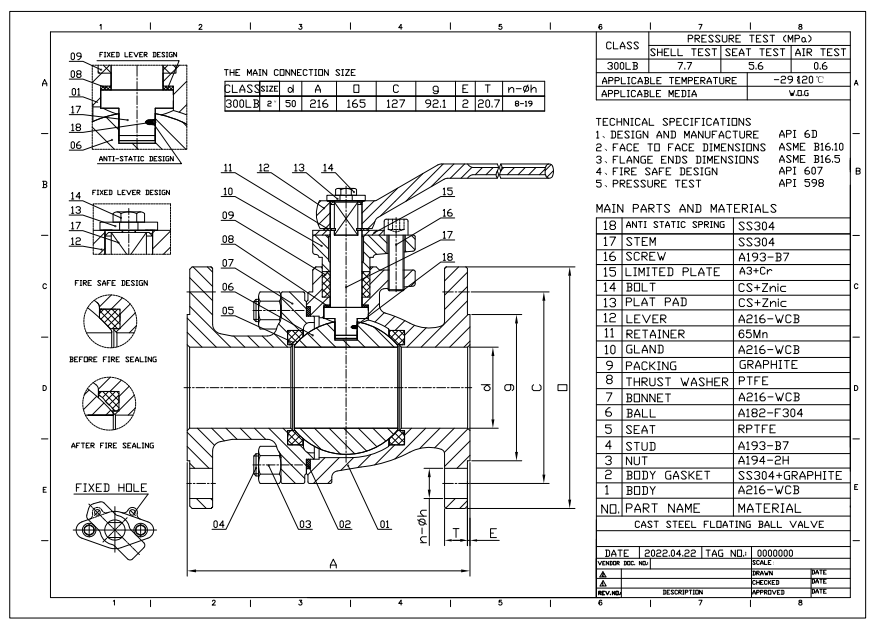

Technical Drawing

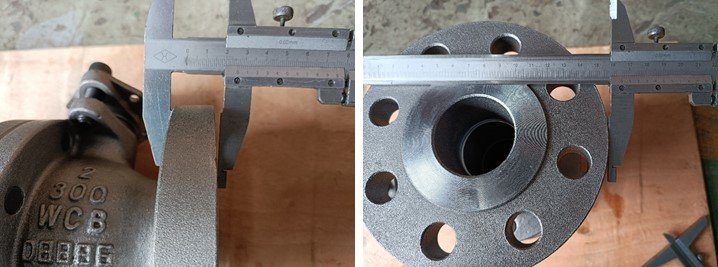

Dimension Checking

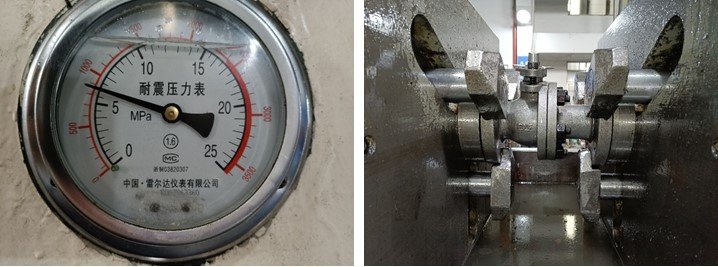

Pressure Testing

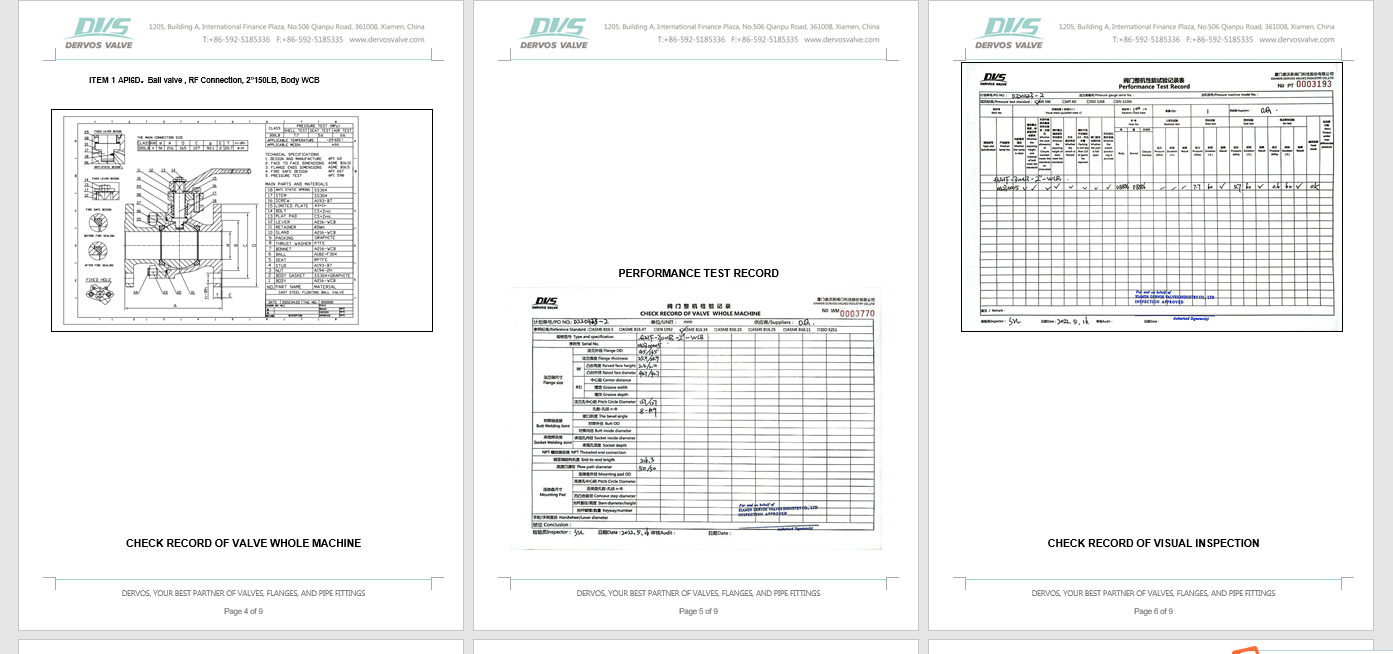

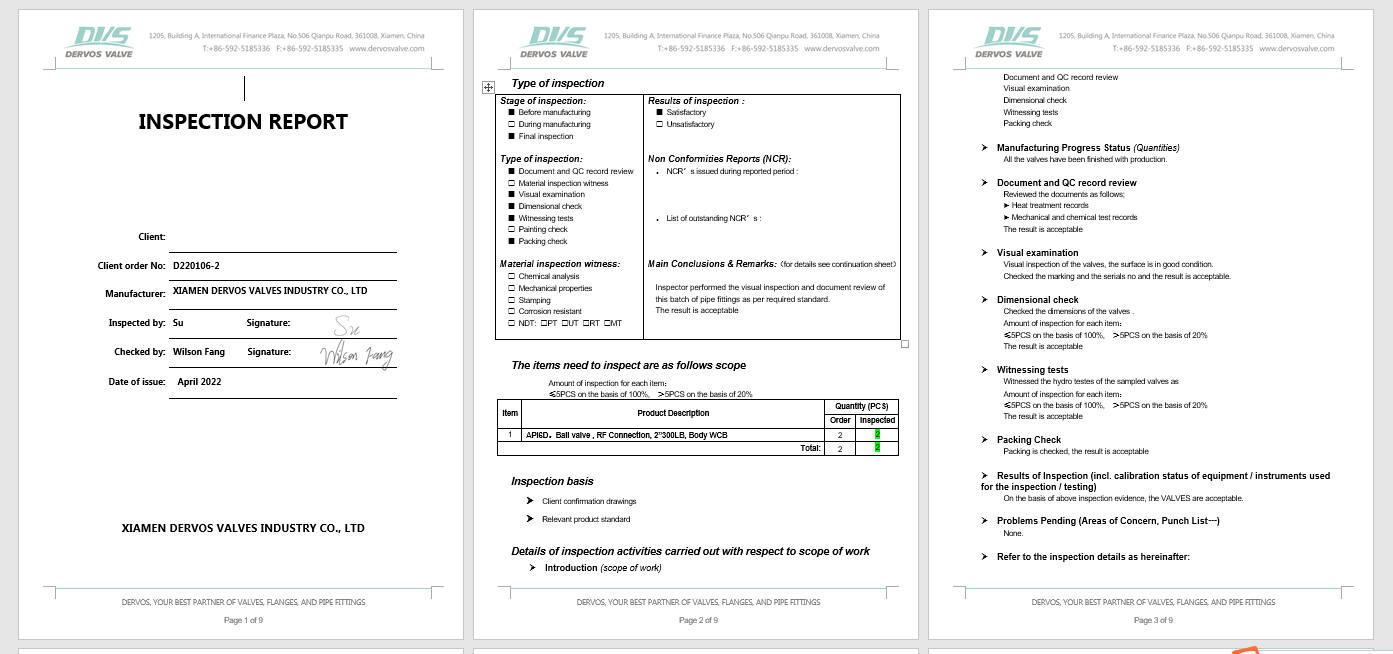

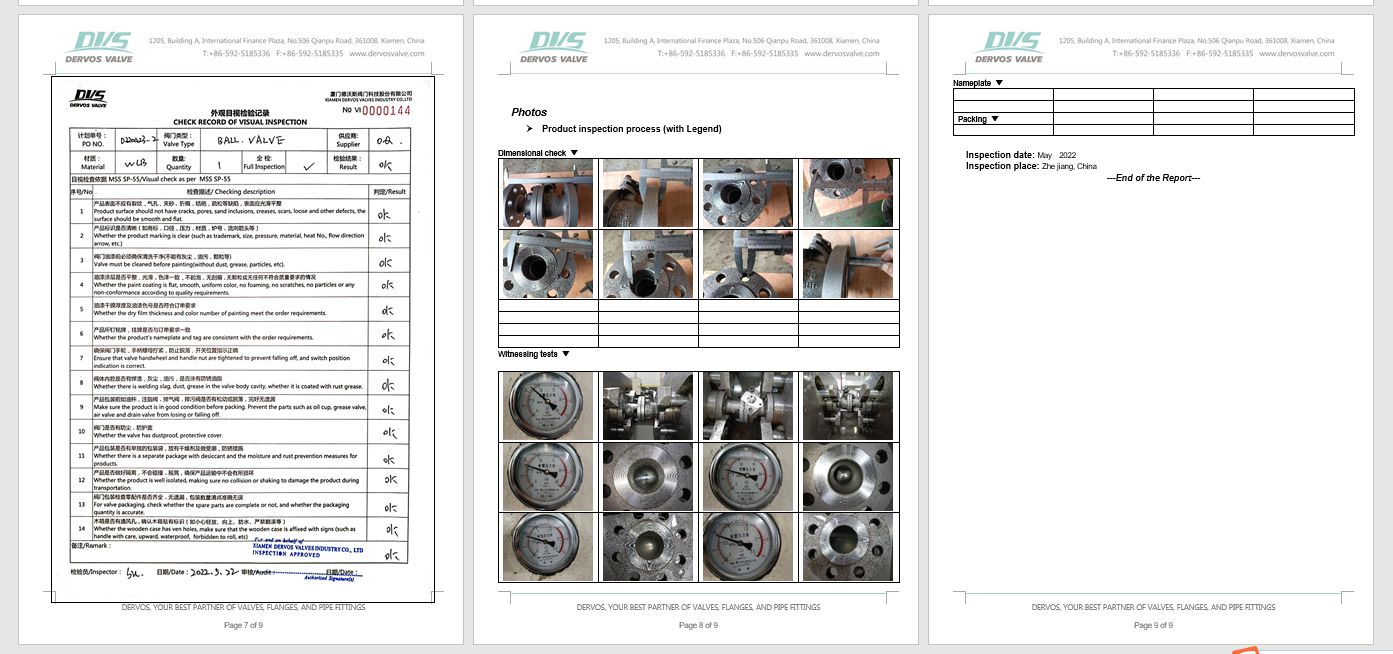

Inspection report
Features
1. Small size, lightweight, and convenient for pipeline installation;
2. Simple structure, good sealing performance, multiple valve seat materials, and wide applicability.
Technical Drawing
Dimension Checking
Pressure Testing
Inspection report
