Key Specifications / Features
We Provide Two-piece Floating Ball Valves, 1-1/2 Inch, Class 600 LB, API 6D, DN40, PN100, UNS N10276, RF End, Lever Operation, Full Bore, and Fireproof.
- Hits: 0
- Categories: Forged Steel Ball Valve
- Tags: 2PC Ball Valve , Floating Ball Valve , DN40 Ball Valve
Detail Information
1-1/2" 600LB Two-piece Floating Ball Valve RF API 6D
Introduction
1-1/2" 600LB ball valve is made according to API 6D standard. The valve body is made of UNS N10276. It has the structural characteristics of a full bore, floating ball, two-piece, fireproof design, anti-flying valve rod, and anti-static design. Its connection mode is RF. And it has a lever operation mode.
Features
1. The valve has a good sealing effect, low friction coefficient, small operating torque, various seat materials and a wide application range;
2. It has the characteristics of a compact structure and fast switching. It can close the valve and cut off the pipeline medium by turning 90 degrees.

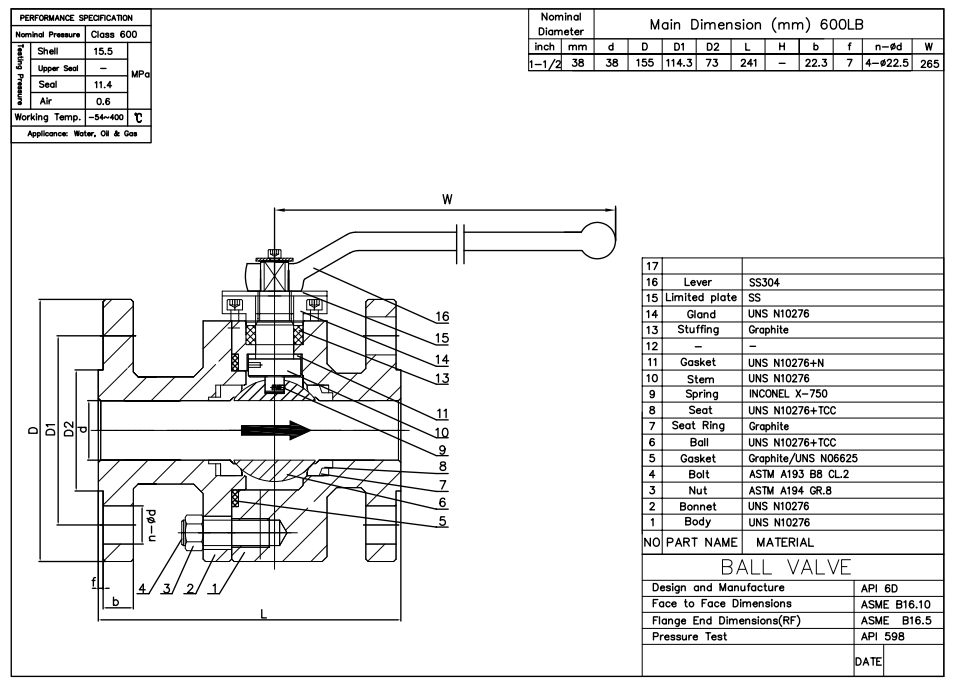

Technical Drawing

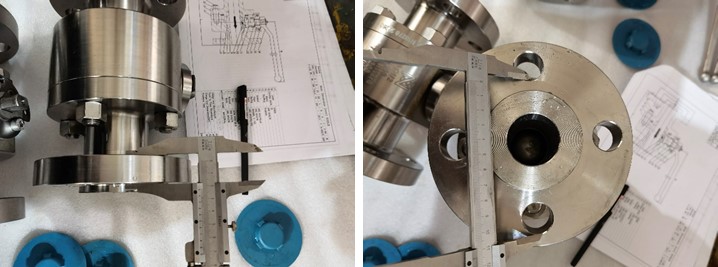

Dimension Checking

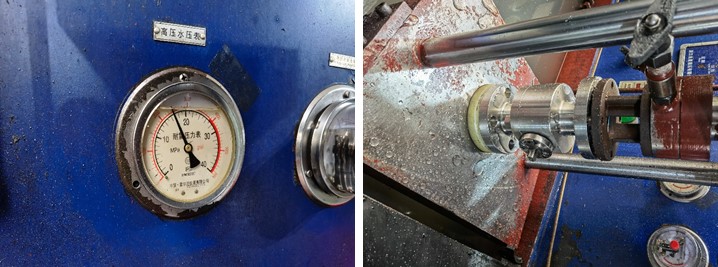

Pressure Testing

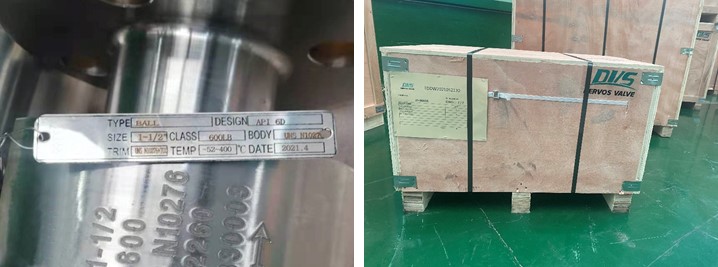

Nameplate & Packing

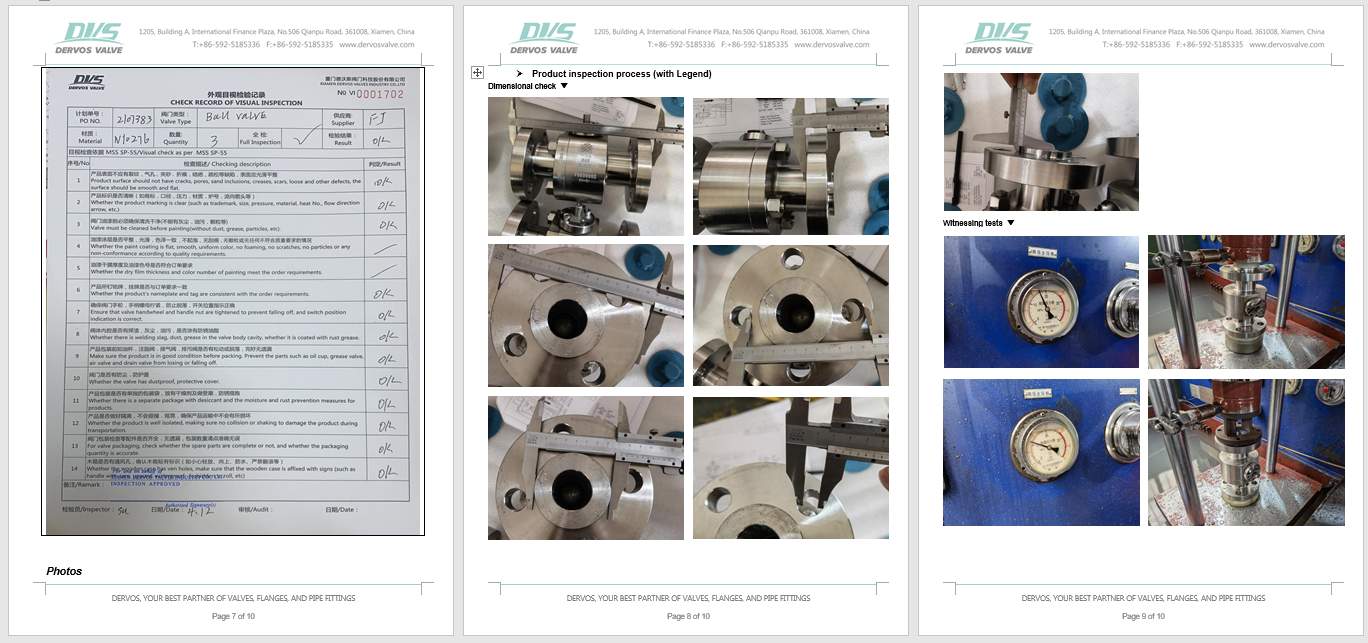

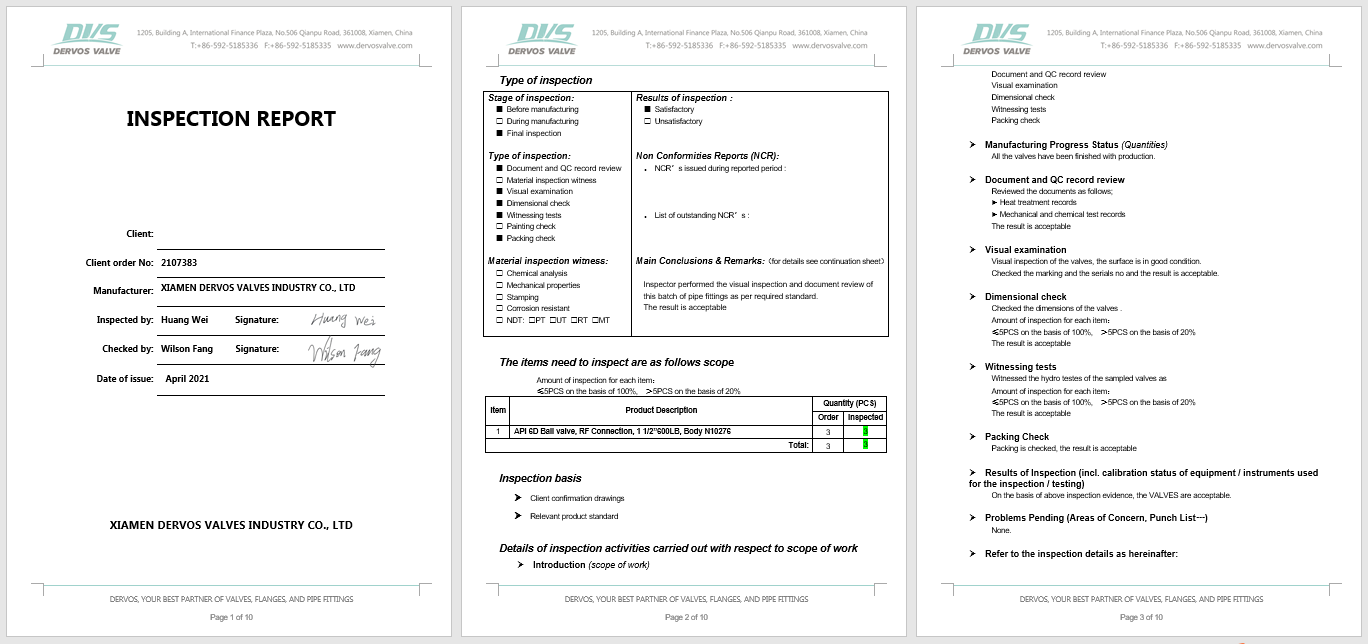

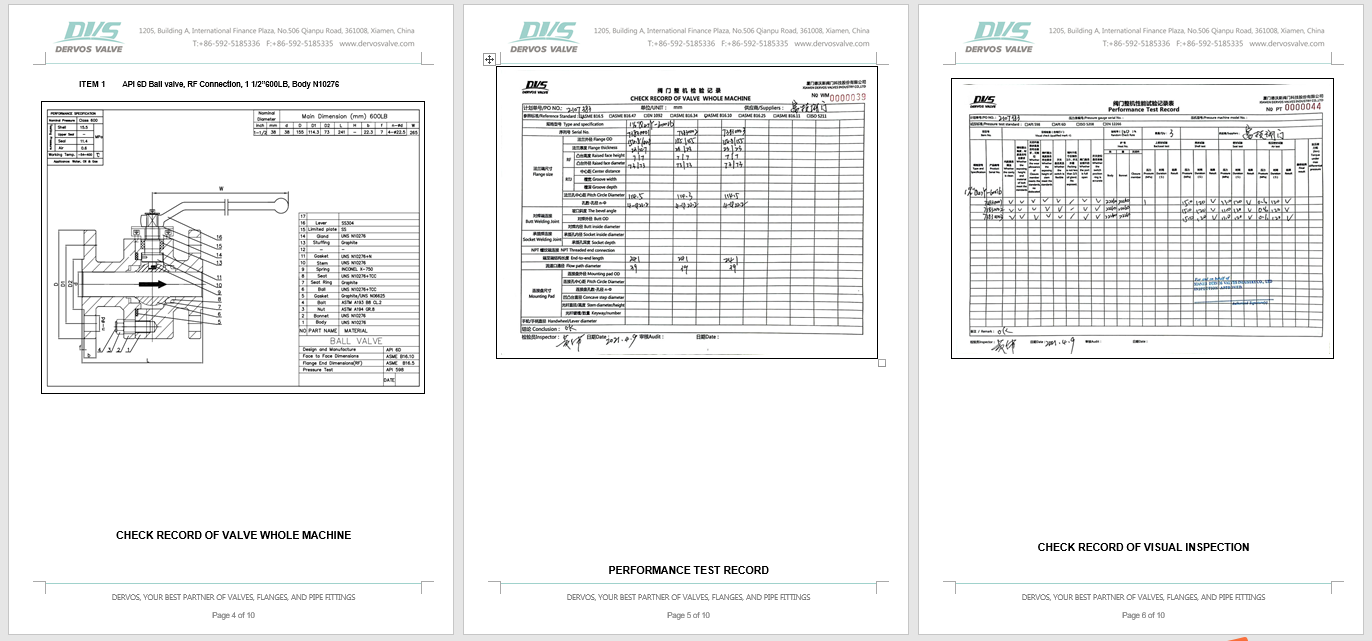

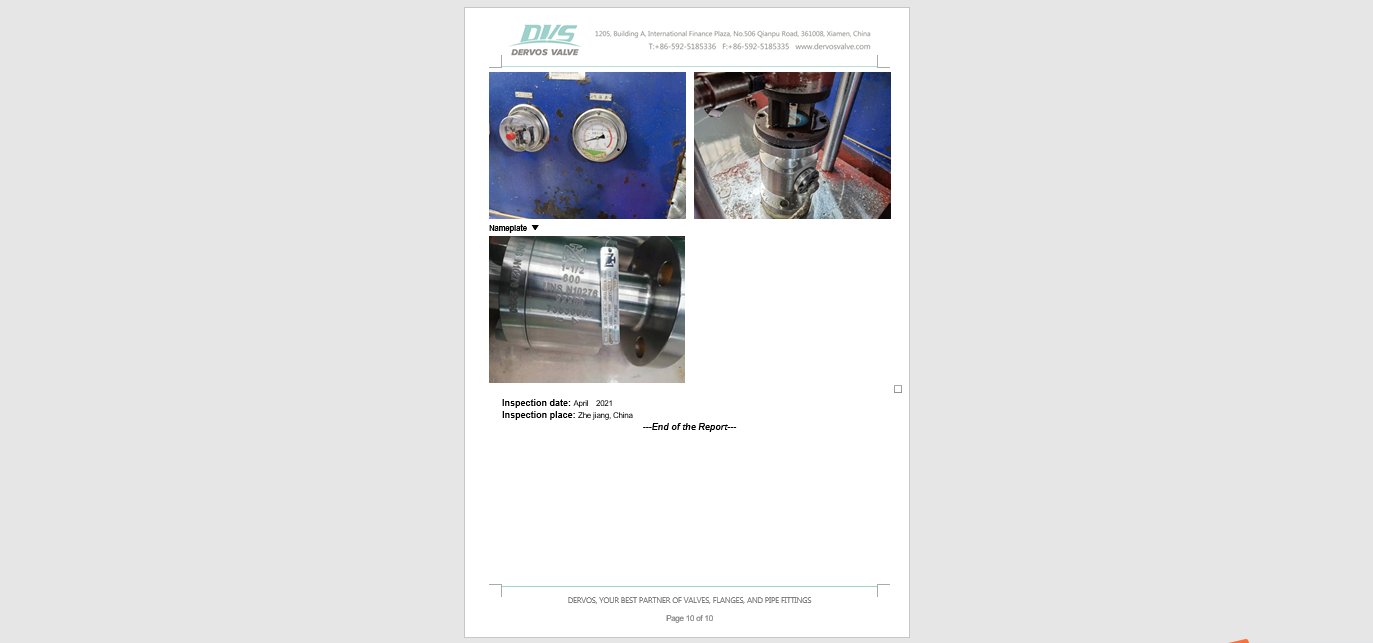

Inspection report
Introduction
1-1/2" 600LB ball valve is made according to API 6D standard. The valve body is made of UNS N10276. It has the structural characteristics of a full bore, floating ball, two-piece, fireproof design, anti-flying valve rod, and anti-static design. Its connection mode is RF. And it has a lever operation mode.
Features
1. The valve has a good sealing effect, low friction coefficient, small operating torque, various seat materials and a wide application range;
2. It has the characteristics of a compact structure and fast switching. It can close the valve and cut off the pipeline medium by turning 90 degrees.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
