Key Specifications / Features
2-Piece Solid Floating Ball Valve Manufacturer: ASTM A350 LF2 Ball Valve, 2-Piece, Solid Floating, 1 Inch, 300 LB, API 6D, Full Port, RPTFE seat, RF, Lever.
- Hits: 0
- Categories: Forged Steel Ball Valve
- Tags: Two-Piece Body Ball Valve , Floating Ball Valve , Solid Ball Ball Valve
Detail Information
Name: 1 inch 2-piece type Solid Floating Ball Valve Full Port Lever.
The 1 inch 300LB ball valve, made according to API 6D, has a 2-piece type, full port and a handle lever. Out of its ASTM A350 LF2 valve body and RPTFE seat ring, the valve could be put in condition under -29 to 150 Celsius degree.
Quick Detail
Features:
-Full Bore.
-Floating Ball Design.
-Solid Ball.
-Blow-out proof stem.
-Anti-static grounding device.
-Fire safe design.
Technical Drawing

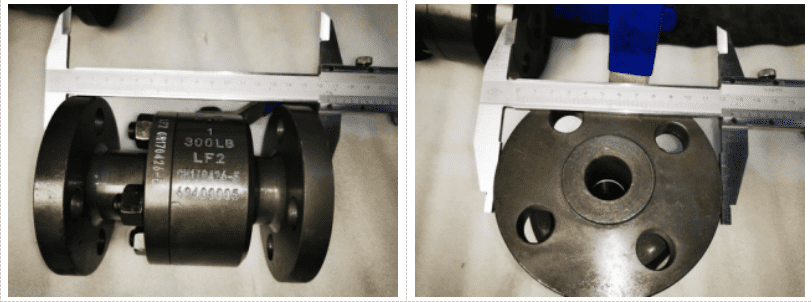

Dimension Check

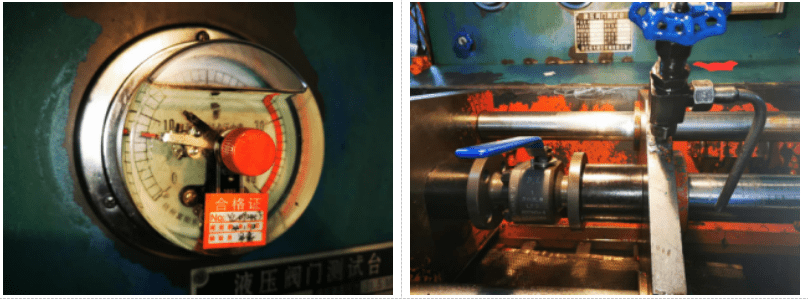

Witness Testing

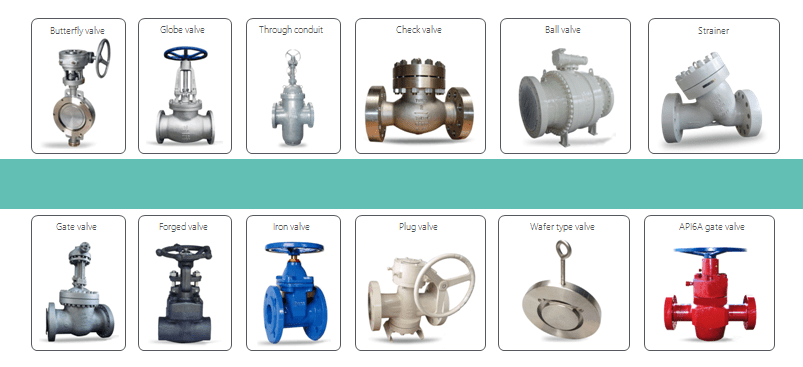

Our Main Product Range
With a complete product range, Kelly product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve, wellhead valve and so on.
The 1 inch 300LB ball valve, made according to API 6D, has a 2-piece type, full port and a handle lever. Out of its ASTM A350 LF2 valve body and RPTFE seat ring, the valve could be put in condition under -29 to 150 Celsius degree.
Quick Detail
| Type | Ball Valve |
| Nominal Diameter | 1 Inch |
| Nominal Pressure | 300LB |
| Construction | 2-Piece type; Floating Ball; Full Bore |
| Connection | RF |
| Design & Manufacture | API 6D |
| End to End Dimension | ASME B16.10 |
| Flange End | ASME B16.5 |
| Test & Inspection | API 598 |
| Fire Safe Test | API 607 |
| Body Material | LF2 |
| Ball Material | F304 |
| Temp. Range | -29～150°C |
| Media | Water, Oil, Gas, etc |
Features:
-Full Bore.
-Floating Ball Design.
-Solid Ball.
-Blow-out proof stem.
-Anti-static grounding device.
-Fire safe design.
Technical Drawing
Dimension Check
Witness Testing
Our Main Product Range
With a complete product range, Kelly product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve, wellhead valve and so on.
