ASTM A182 F316 Trunnion Ball Valve, 3 Inch, 300 LB, API 6D
Key Specifications / Features
DN80 PN40 ball valve is made according to API6D standards. The valve body is made of ASTM A182 F316. It has the structural characteristics of a fixed ball, full bore, fireproof, anti-static and anti-flying valve stem. Its connection mode is RF. And it has turbine operation mode.
- Hits: 5
- Categories: Trunnion Ball Valve
- Tags: ASTM A182 F316 Ball Valve , 3 Inch Ball Valve , Class 300 LB Ball Valve
Detail Information
DN80 PN40 Trunnion Mounted Ball Valve RF F316 API 6D Turbine
Features
1. Low fluid resistance, simple structure, small volume, and lightweight;
2. Tight and reliable, easy to operate, quick to open and close.
Technical Drawing

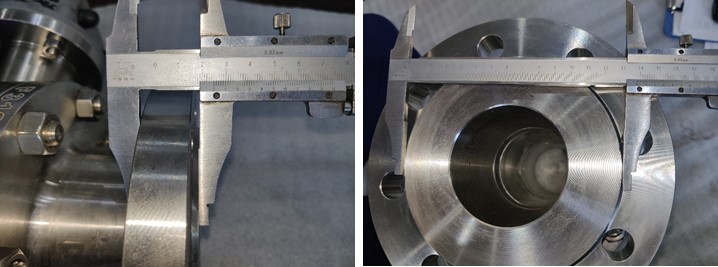

Dimension Checking
Pressure Testing

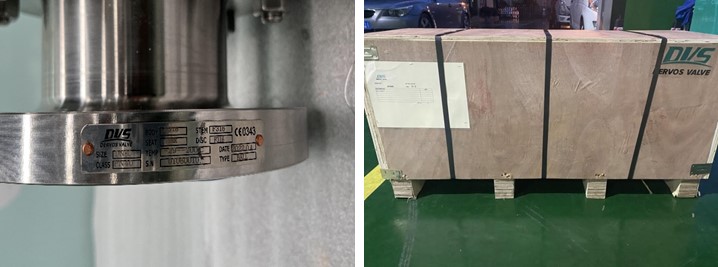

Nameplate & Packing

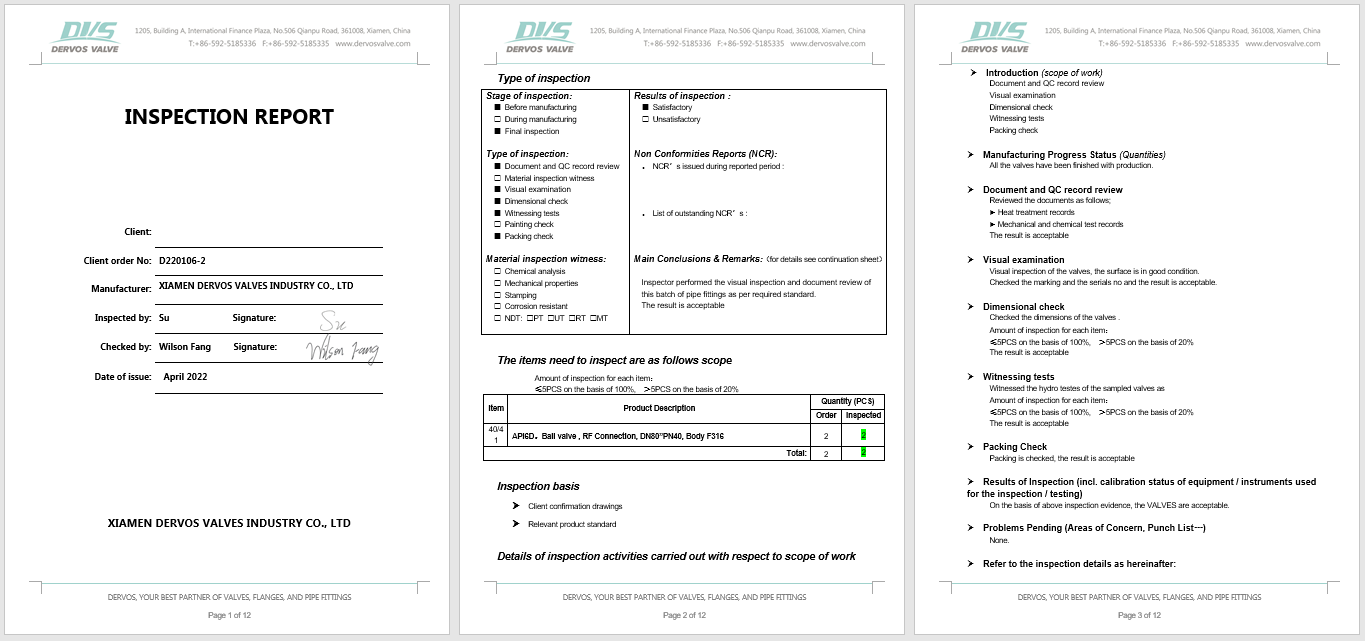

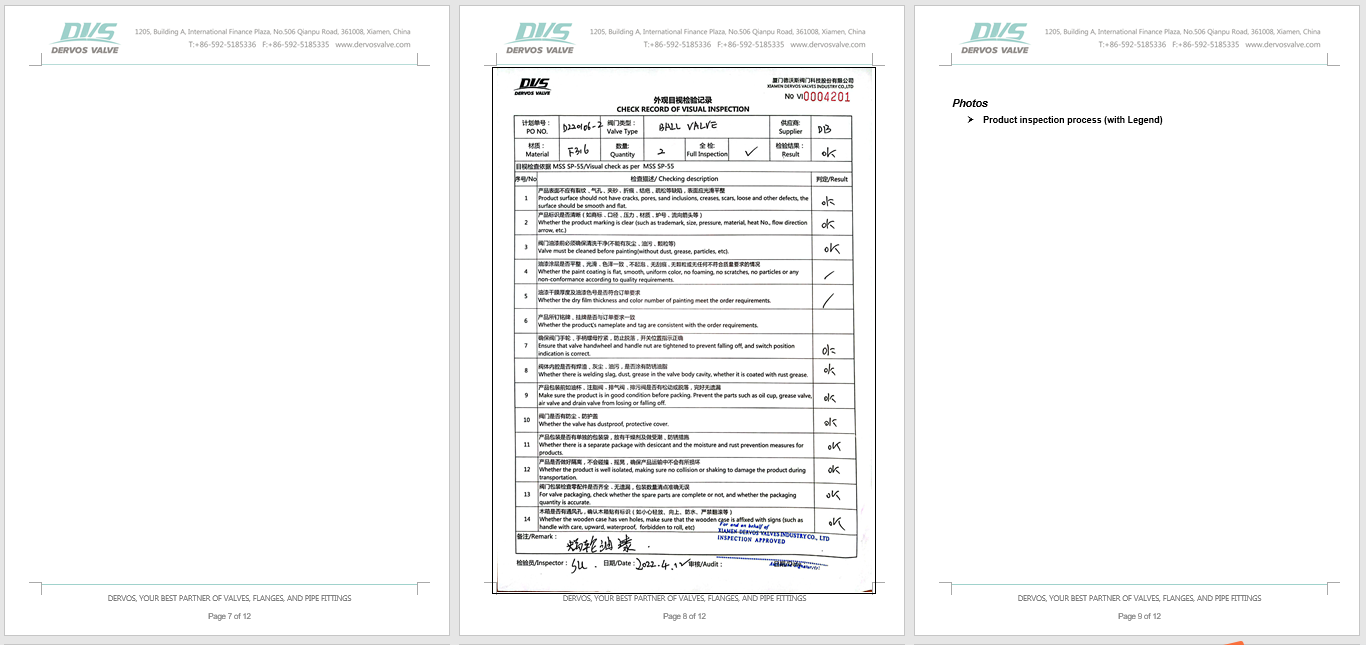

Inspection report
Features
1. Low fluid resistance, simple structure, small volume, and lightweight;
2. Tight and reliable, easy to operate, quick to open and close.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
