ISO 17292 Floating Ball Valve, DN32, PN64, ASTM A105, RF
Key Specifications / Features
ISO 17292 Floating Ball Valve Fabricator: Forged Steel ASTM A105 Floating Ball Valves, DN32, PN64, ISO 17292, RF, Lever Operated, Full Bore.
- Hits: 7
- Categories: Forged Steel Ball Valve
- Tags: Floating Ball Valve , ASTM A105 Ball Valve , RF Ball Valve
Detail Information
DN32 PN64 Forged Floating Ball Valve RF Lever ISO 17292
Introduction
DN32 PN64 floating ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. Its operation mode is Lever. The forged floating ball valve with a structural length of 229mm has the structural characteristics of a full bore.
Features
1. Small flow resistance and quick opening and closing.;
2. Small size, lightweight, convenient for pipeline installation.

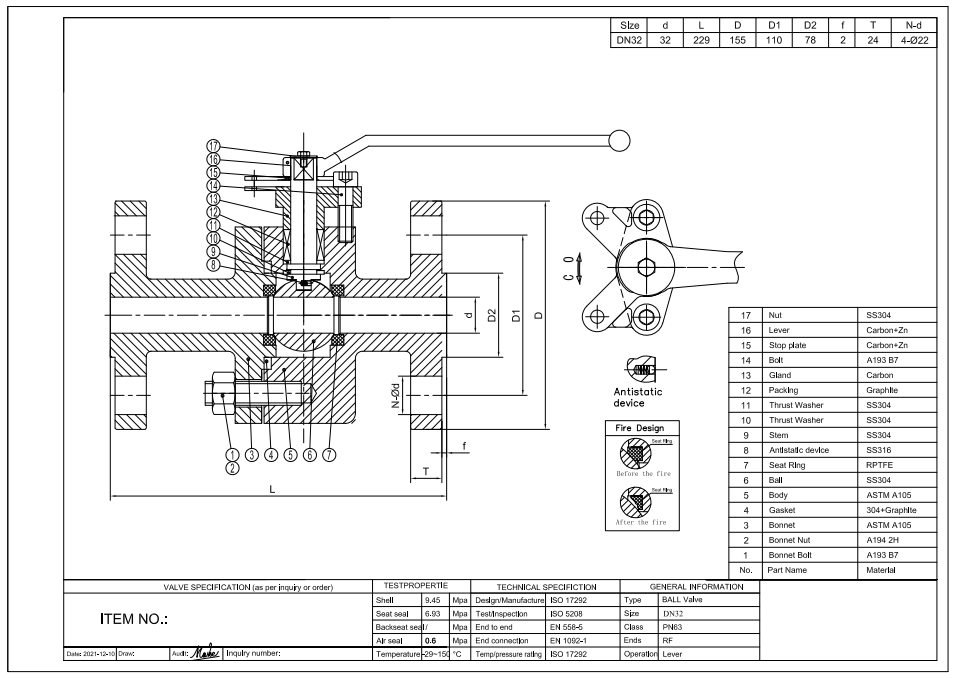

Technical Drawing

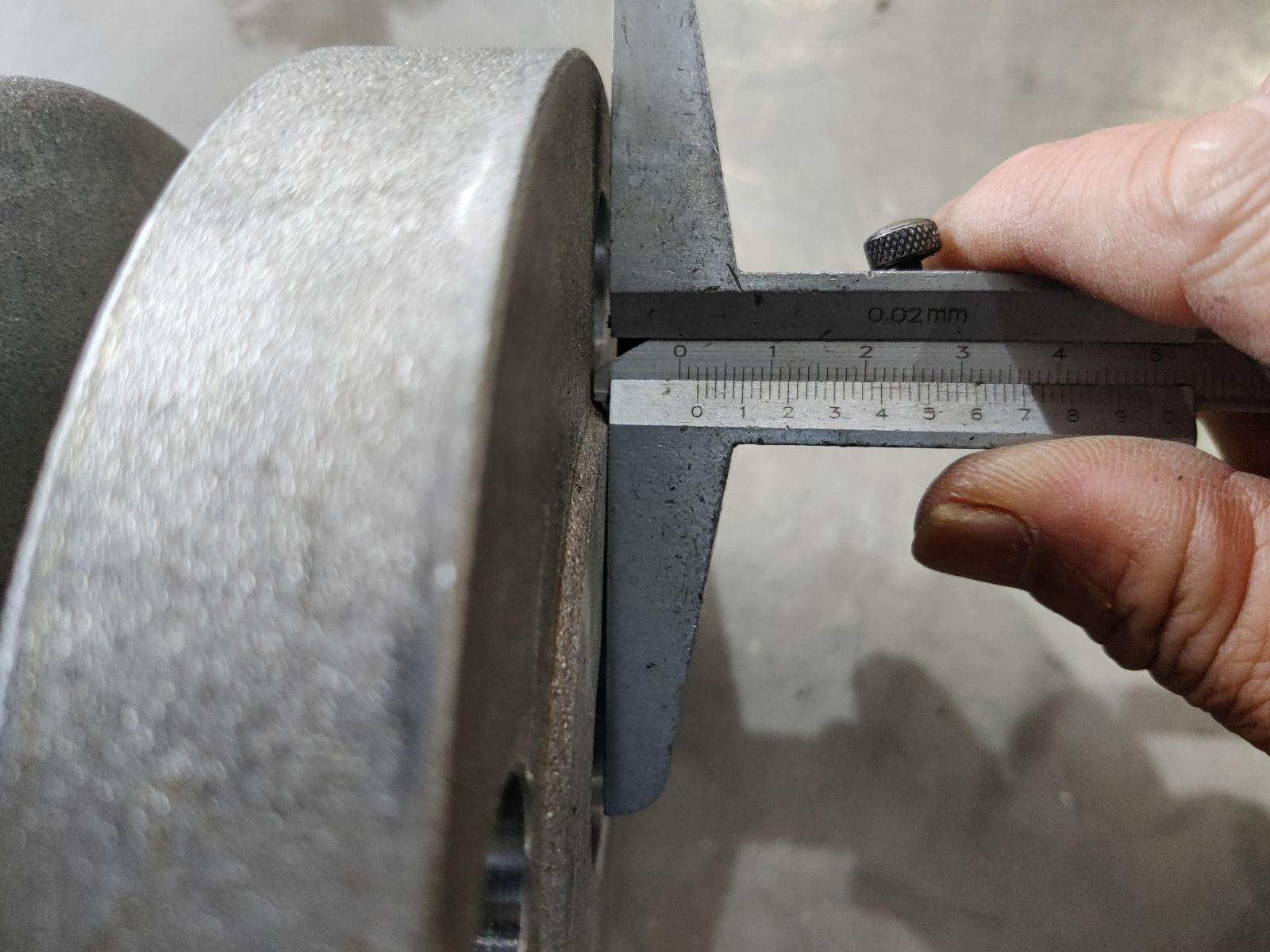

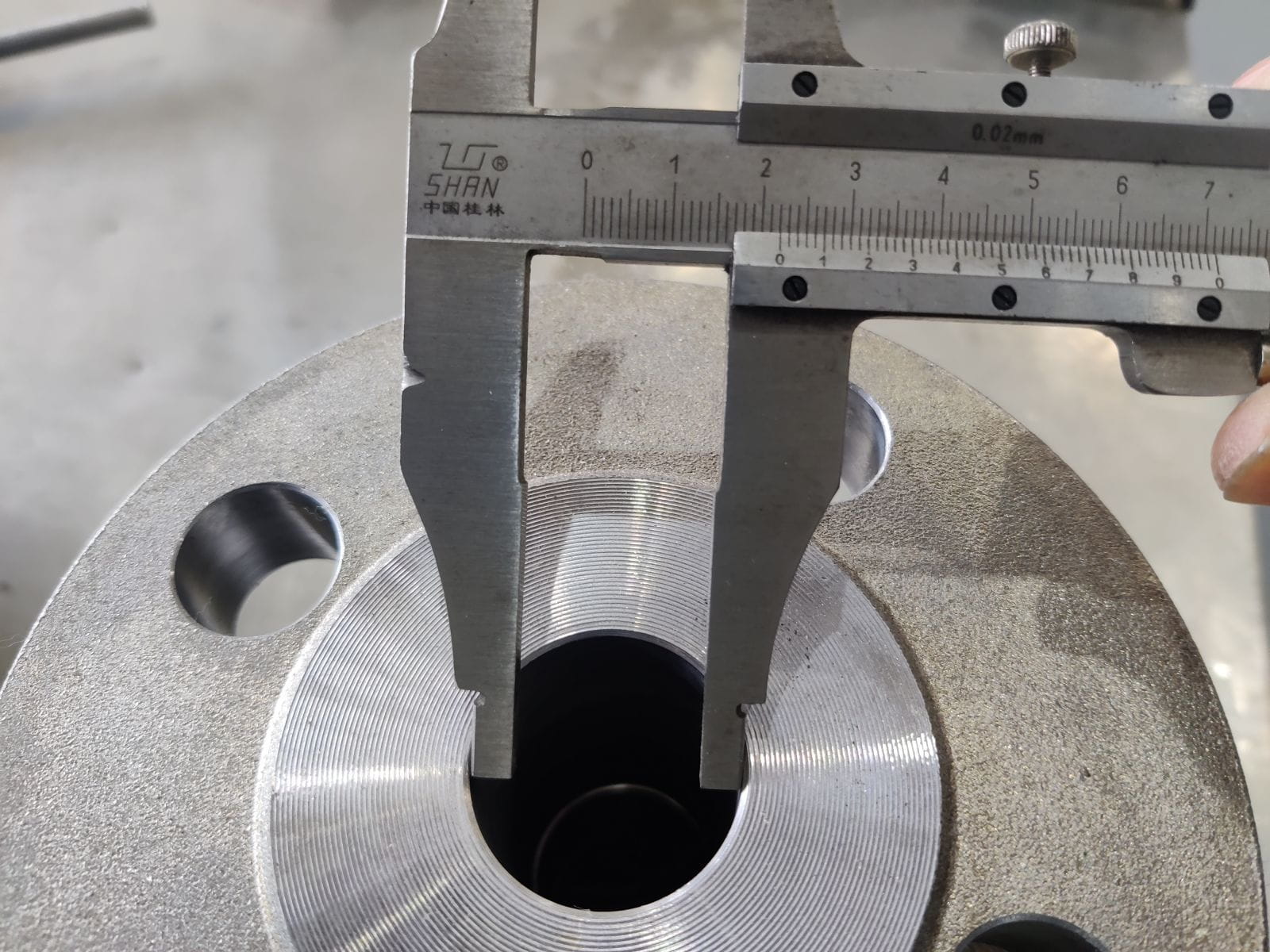

Dimension Checking

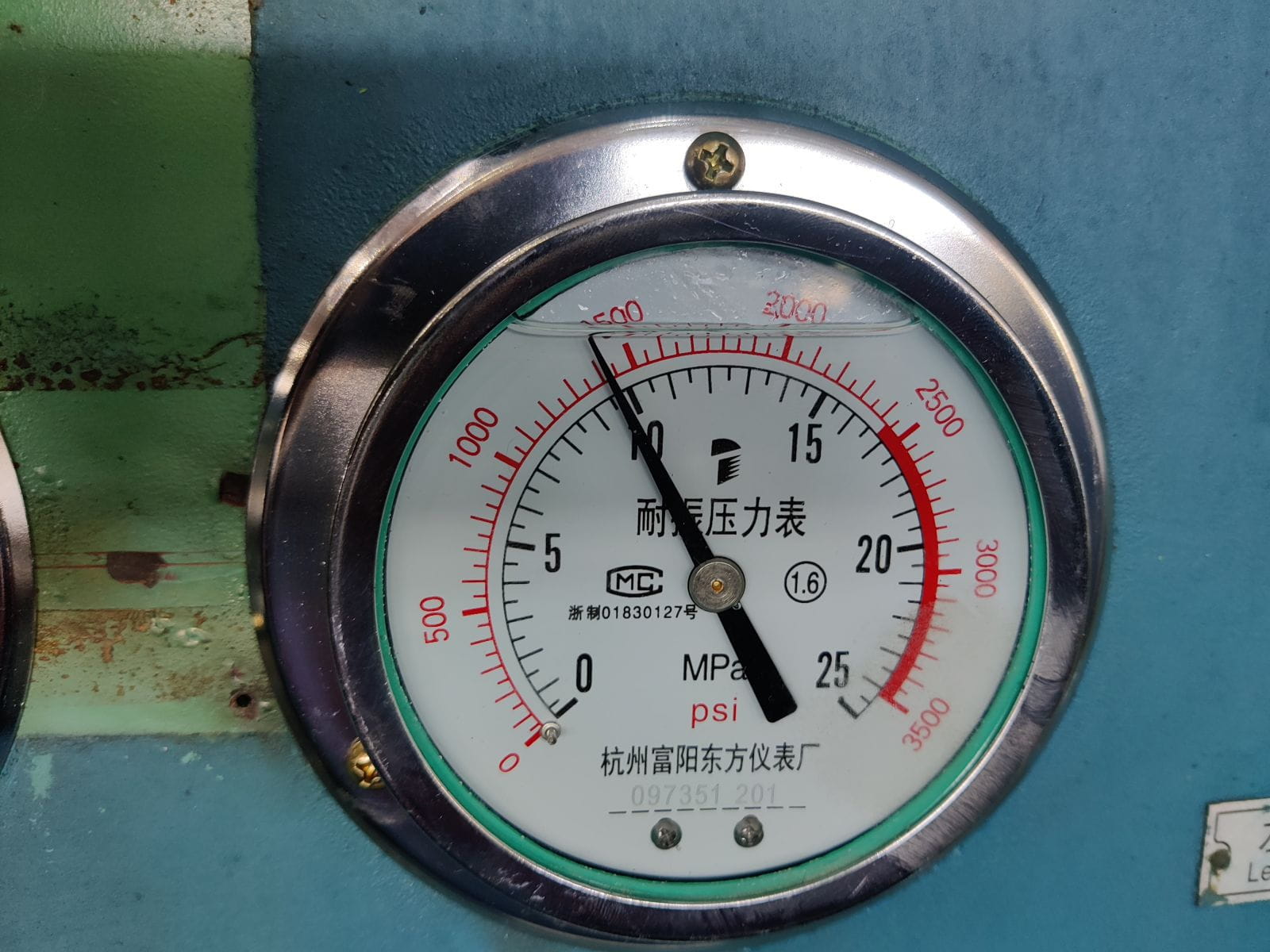

Pressure Testing
Nameplate & Packing
Introduction
DN32 PN64 floating ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. Its operation mode is Lever. The forged floating ball valve with a structural length of 229mm has the structural characteristics of a full bore.
Features
1. Small flow resistance and quick opening and closing.;
2. Small size, lightweight, convenient for pipeline installation.
Technical Drawing
Dimension Checking
 |
 |
Pressure Testing
 |
 |
Nameplate & Packing
 |
 |
