Key Specifications / Features
1/2 Inch 600 LB forged steel gate valve is made according to API 602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of BB, OS&Y, rigid gate, NACE MR0175, corrosion allowance 3mm, leakage level ISO 5208 A, and packing gland SS 304. Its connection mode is RF. And it has hand wheel operation mode.
- Hits: 0
- Categories: Gate Valve
- Tags: 1/2 Inch Gate Valve , Class 600 LB Gate Valve , ASTM A105N Gate Valve
Detail Information
1/2 Inch 600 LB Forged Steel Gate Valve RF A105N API 602 Handwheel
Features
1. The sealing performance is good, which can effectively prevent medium leakage and ensure the safe operation of the pipeline system;
2. Simple structure, convenient opening and closing operation, fast response speed, suitable for situations that require frequent adjustment.

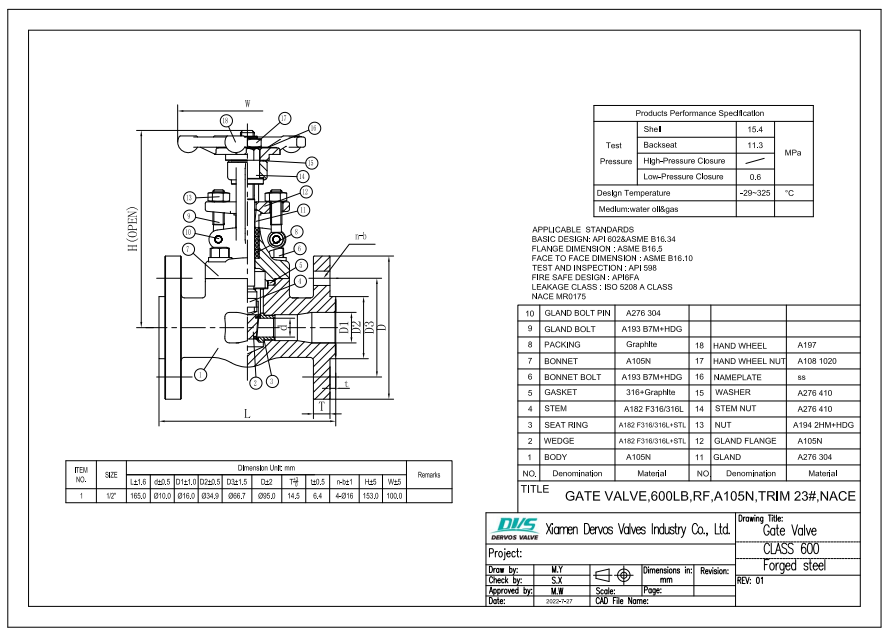

Technical Drawing

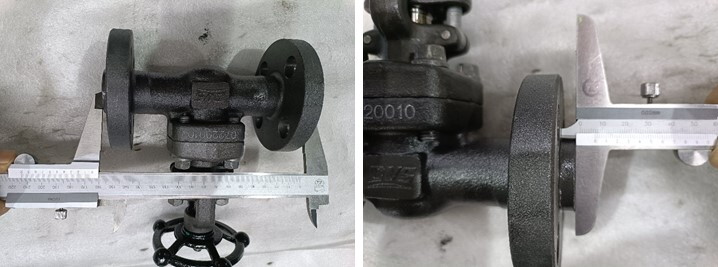

Dimension Checking

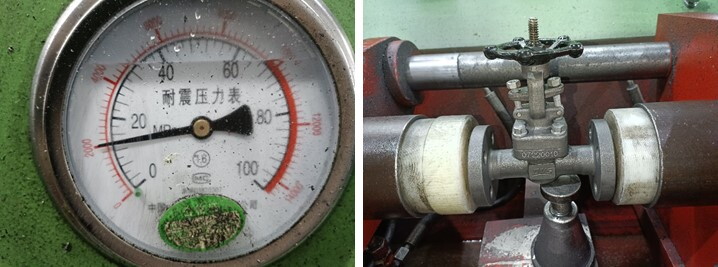

Pressure Testing

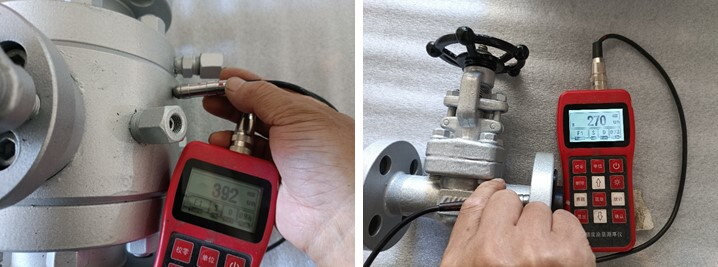

Painting

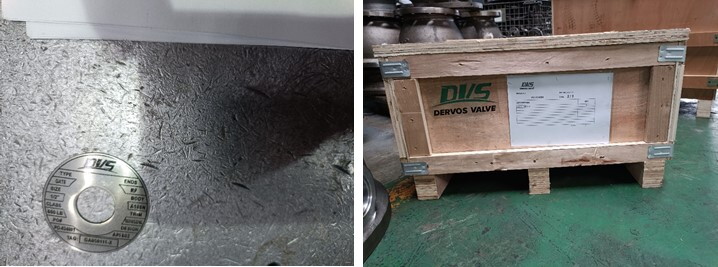

Nameplate & Packing

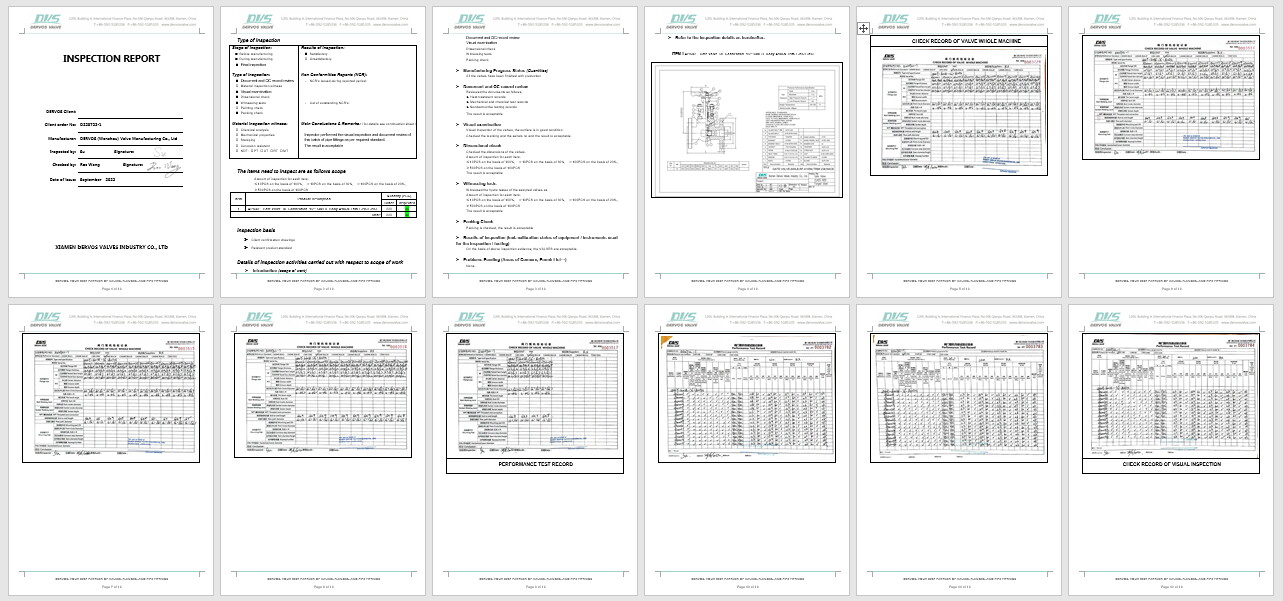

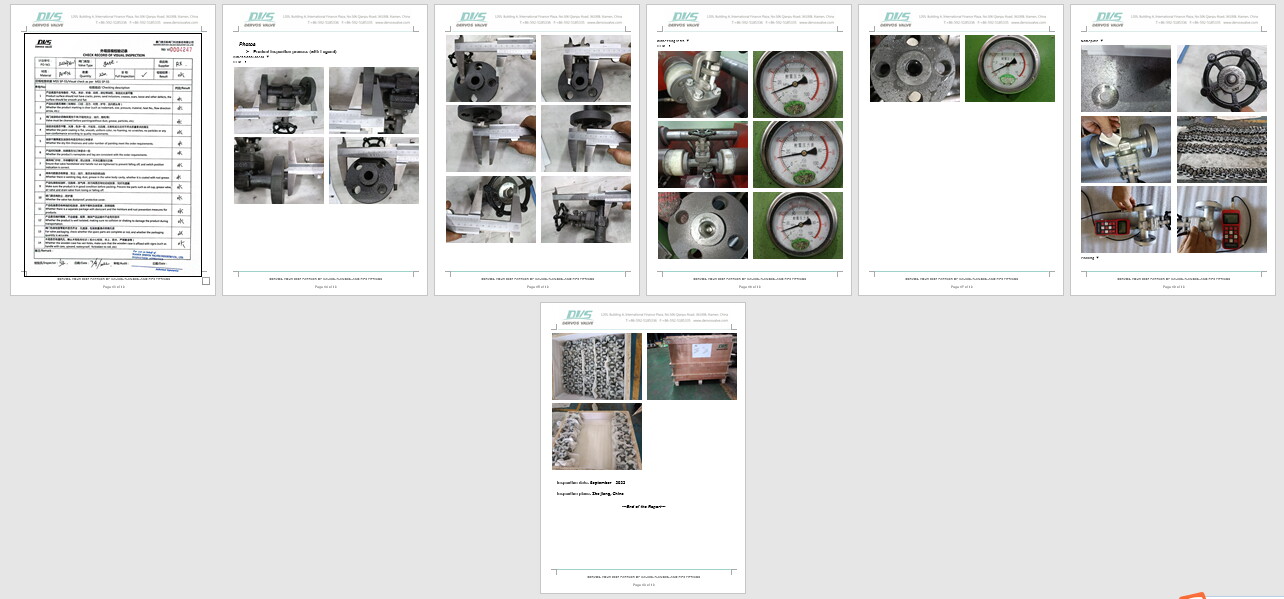

Inspection report
Features
1. The sealing performance is good, which can effectively prevent medium leakage and ensure the safe operation of the pipeline system;
2. Simple structure, convenient opening and closing operation, fast response speed, suitable for situations that require frequent adjustment.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
