API 600 Gate Valve, ASTM A216 WCB, 150 LB, 16 Inch, RF
Key Specifications / Features
16 Inch 150 LB gate valve is made according to API 600 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of elastic wedge. Its connection mode is RF. And it has gear operation mode.
- Hits: 6
- Categories: Gate Valve
- Tags: 16 Inch Gate Valve , Cast Steel Gate Valve , RF Gate Valve
Detail Information
ASTM A216 WCB Cast Steel Gate Valve API 600
Product Description
Features
1. It has good high-temperature and corrosion resistance, and can adapt to harsh working environments;
2. It has excellent sealing performance and can completely cut off the passage of fluid, avoiding leakage and leakage problems;
3. Simple structure, convenient operation, and long service life.

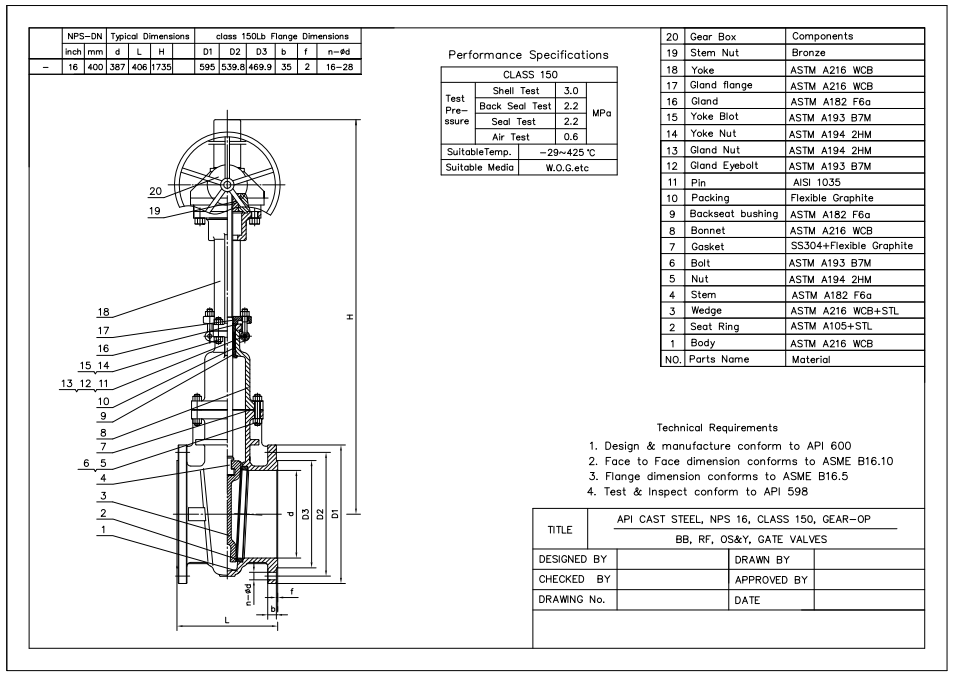

Technical Drawing

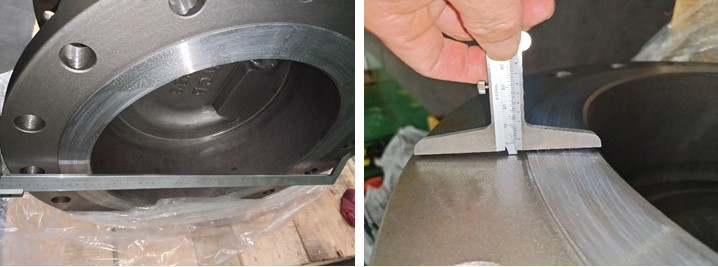

Dimension Checking

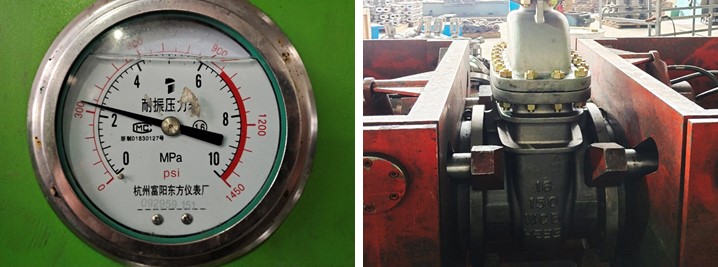

Pressure Testing

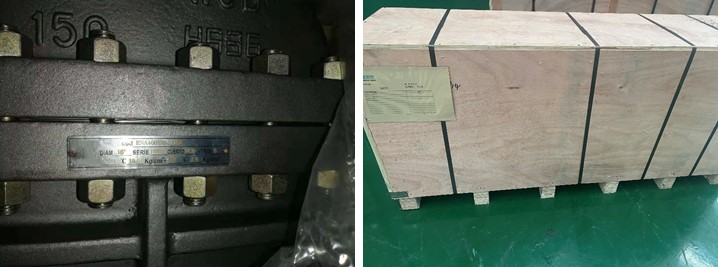

Nameplate & Packing

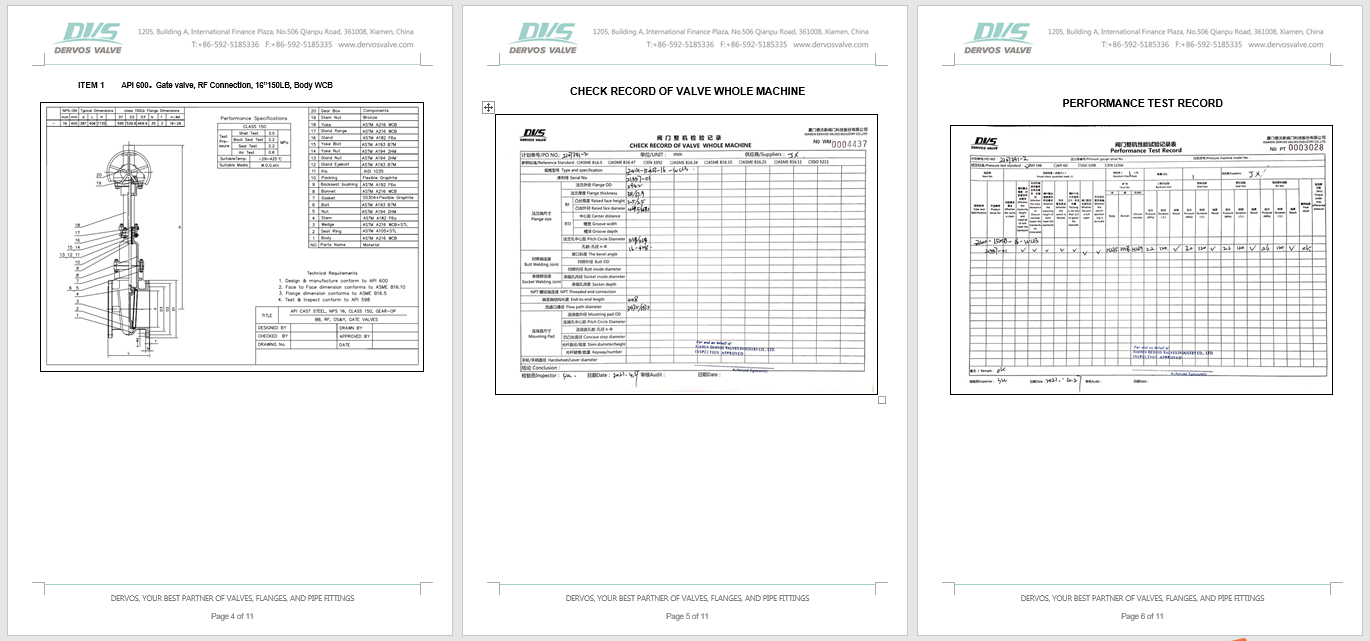

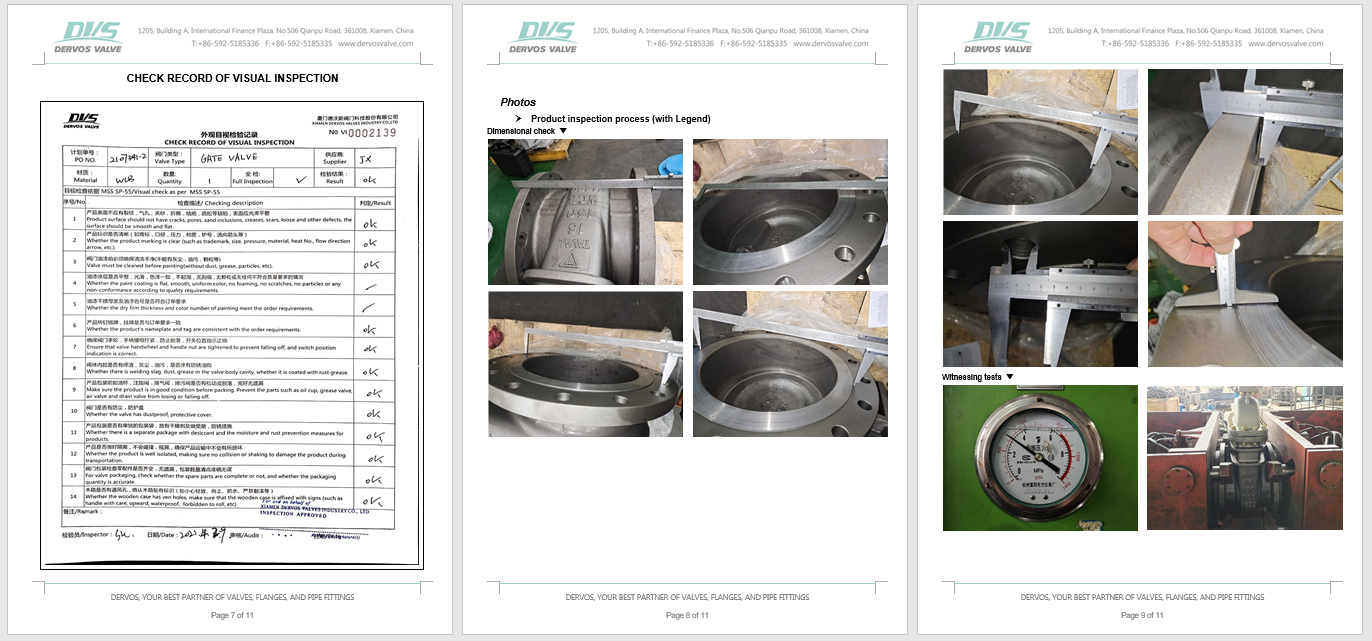

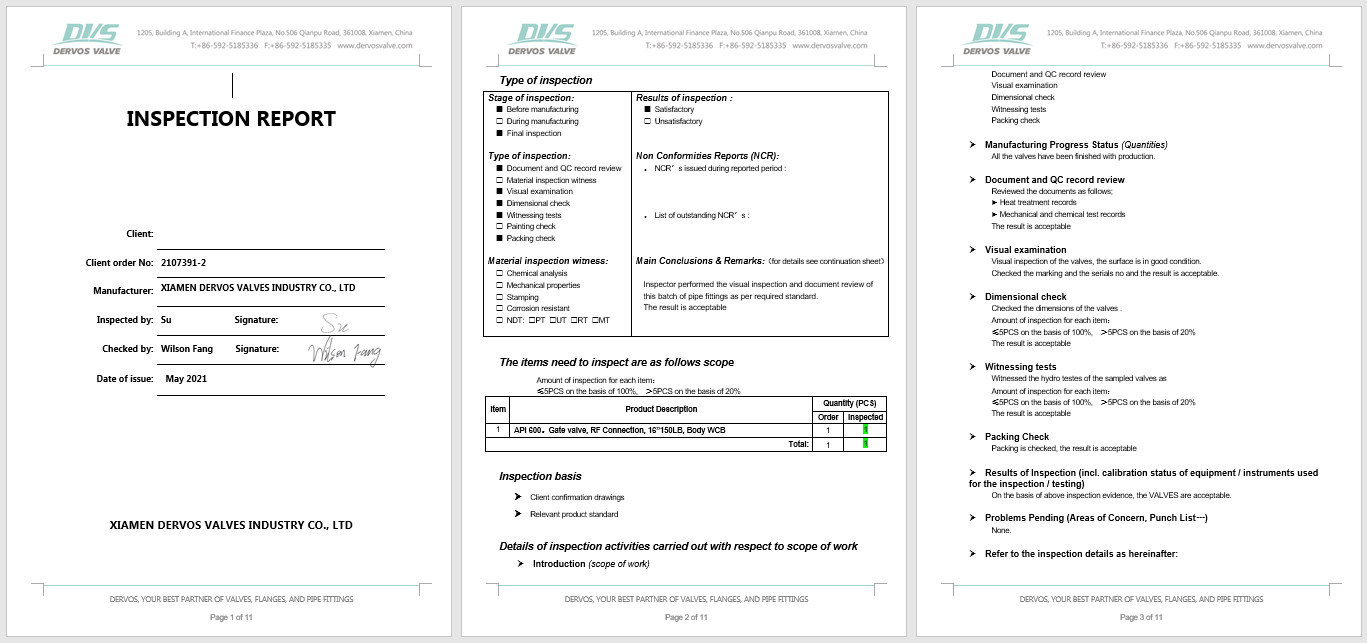

Inspection report
Product Description
| Type | Gate Valve |
| Size | 16 Inch |
| Pressure | 150 LB |
| Connection | RF |
| Operation | Gear Operation |
| Body Material | ASTM A216 WCB |
| Design Norm | API 600 |
| Face to Face Dimensions | ASME B16.10 |
| Flange Dimensions | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. It has good high-temperature and corrosion resistance, and can adapt to harsh working environments;
2. It has excellent sealing performance and can completely cut off the passage of fluid, avoiding leakage and leakage problems;
3. Simple structure, convenient operation, and long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
