Triple Eccentric Jacketed Butterfly Valves, EN 593, Q235B
Key Specifications / Features
This DN65 x 100 PN25 triple eccentric jacketed metal-seated butterfly valve is engineered to EN 593 standards, with a Q235B body for enhanced durability. Featuring an insulation jacket and triple eccentric design, it undergoes a two-way 1:1 pressure test to ensure reliability. The valve connects according to EN 1092-1 B1 specifications and operates with a turbine for precise control in high-pressure applications.
- Model No.: Kelly-BTV-20241114-02
- Hits: 26
- Categories: Butterfly Valve
- Tags: Triple Eccentric Butterfly Valve , EN 593 Butterfly Valve , Q235B Butterfly Valve
Detail Information
Triple Eccentric Butterfly Valve, EN 593, DN65 X 100, PN25, Metal Seated.
Features
1. Bidirectional Sealing: Offers reliable sealing in both flow directions, ensuring high sealing performance even in complex operating conditions.
2. Enhanced Operability: Designed for ease of use in large-diameter pipelines, it facilitates frequent switching operations, reduces operating torque, and enhances overall control efficiency.
1. Bidirectional Sealing: Offers reliable sealing in both flow directions, ensuring high sealing performance even in complex operating conditions.
2. Enhanced Operability: Designed for ease of use in large-diameter pipelines, it facilitates frequent switching operations, reduces operating torque, and enhances overall control efficiency.

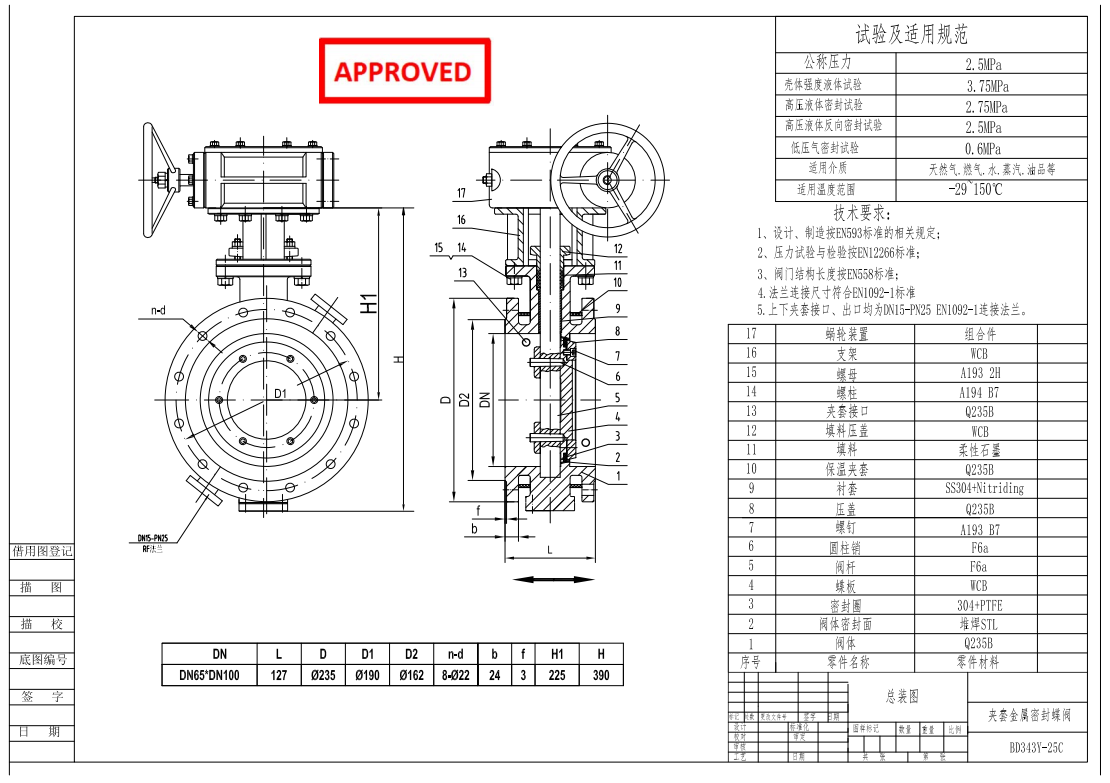

Technical Drawing

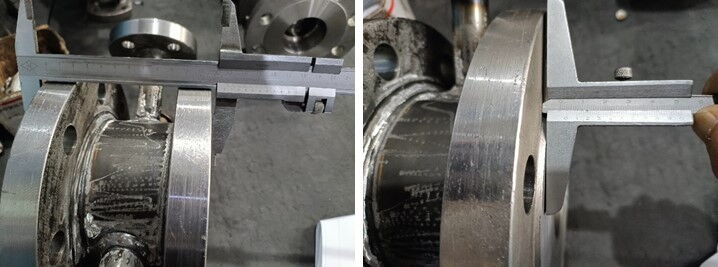

Dimension Checking

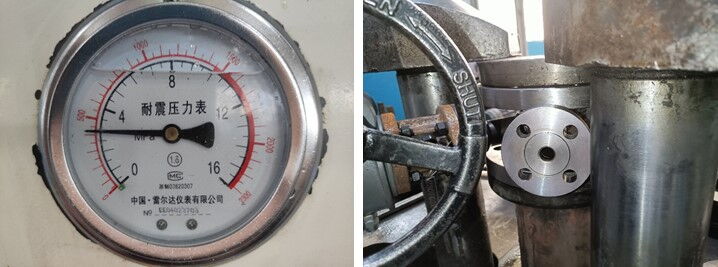

Pressure Testing

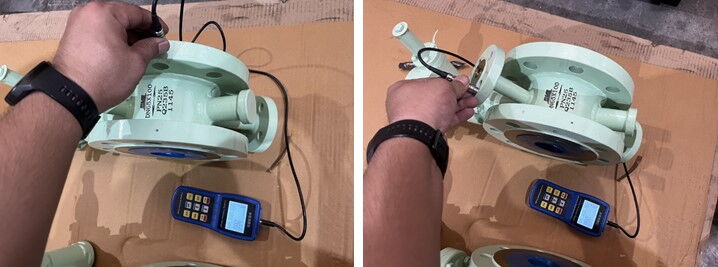

Painting

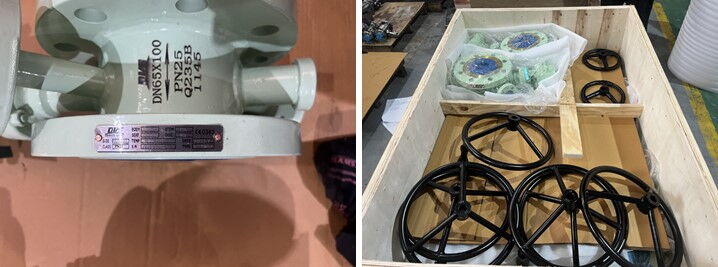

Nameplate & Packing

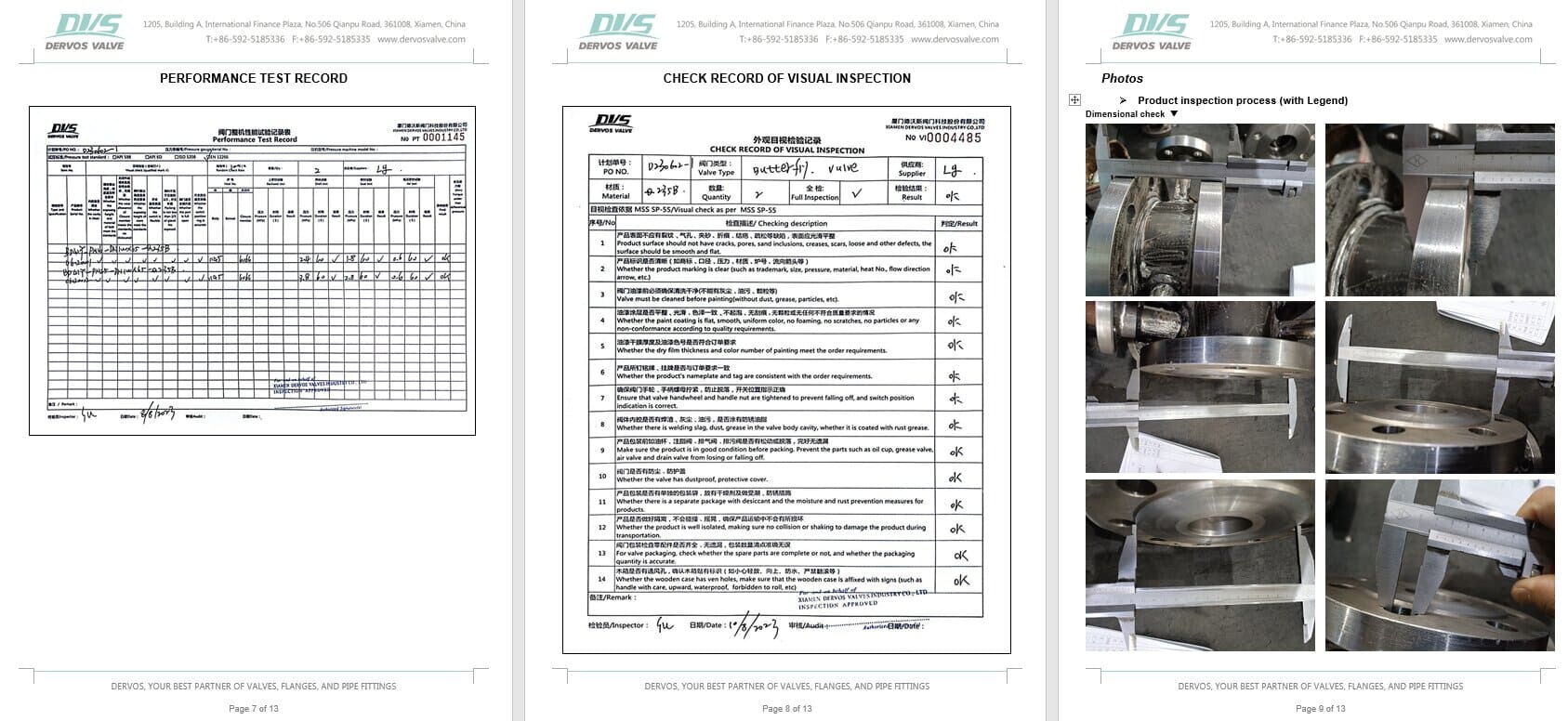

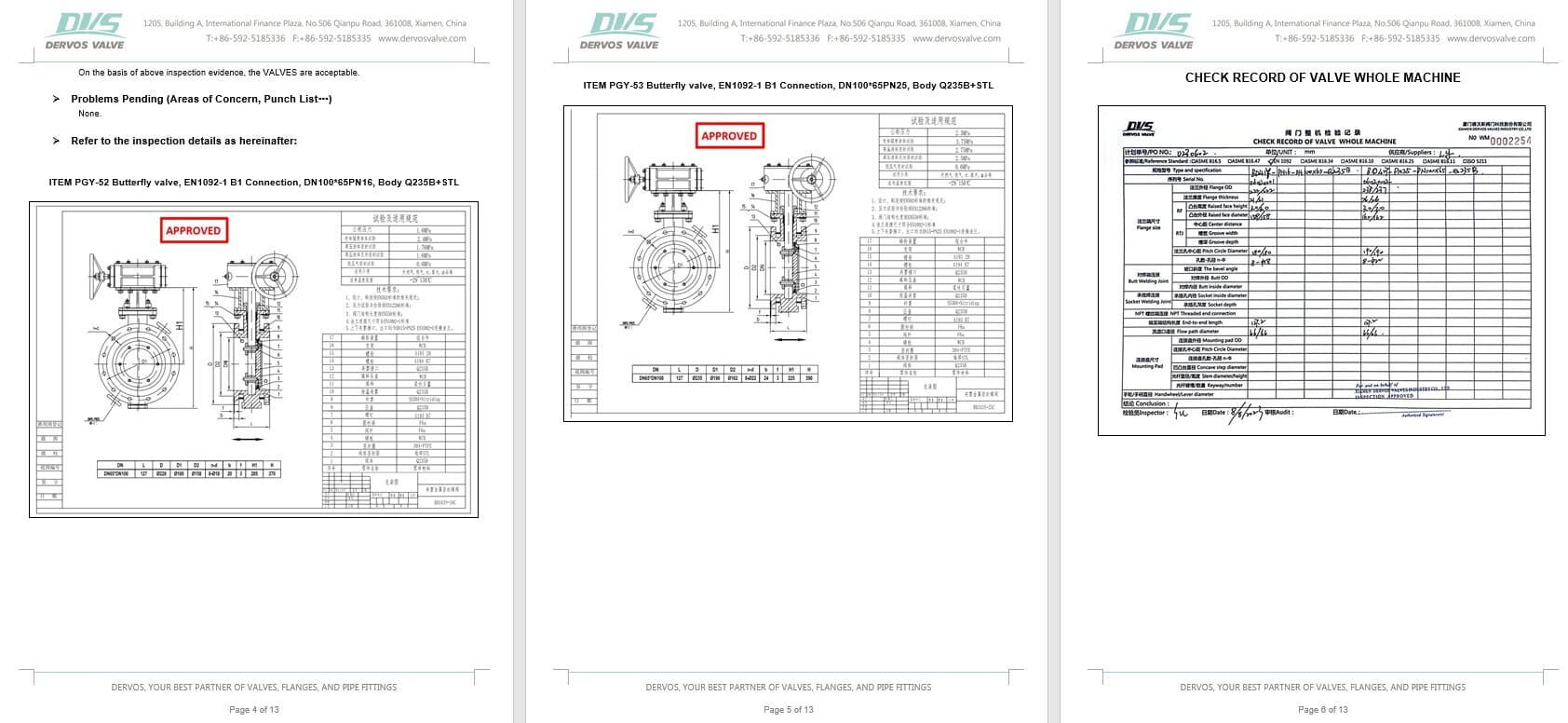

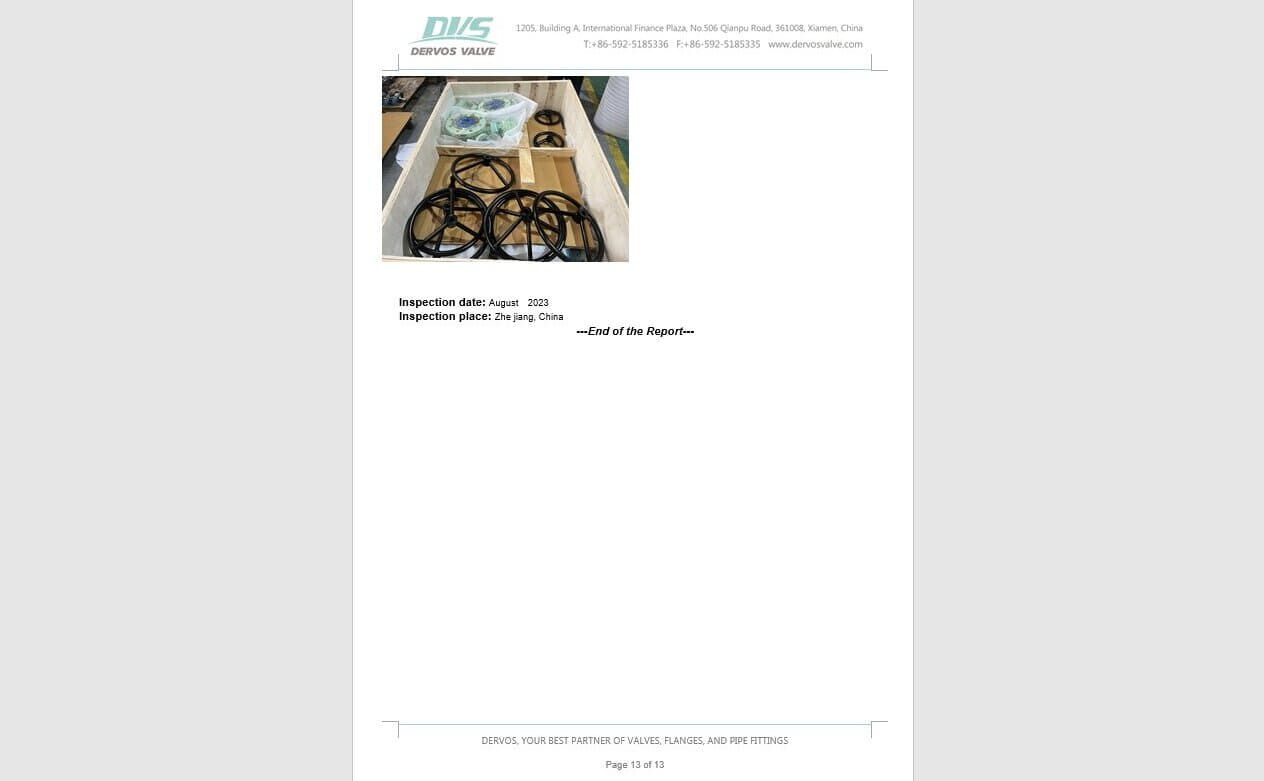

Inspection Report
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection Report
