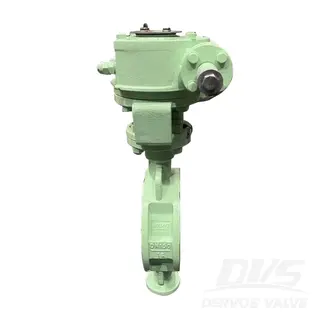

EN 593 Triple Offset Butterfly Valve, A216 WCB, DN400, PN25, RF
Key Specifications / Features
Triple Offset Butterfly Valve Manufacturer: EN 593 Triple Eccentric Offset Butterfly Valve, DN400, PN25, RF Flange Ends, ASTM A216 WCB, Gearbox Operated.
- Hits: 6
- Categories: Butterfly Valve
- Tags: EN 593 Butterfly Valve , Triple Offset Butterfly Valve , DN400 Butterfly Valve
Detail Information
EN593 triple offset butterfly valve, DN400, PN25, RF.
Quick Details
The DN400 PN25 offset valves perform better than traditional valves out of increased durability, reliability and lower ownership cost. And the seat of the triple eccentric valve is designed to minimize wear, providing lower maintenance cost and extend service life.
Feature:
Low opening&closing torque.
Zero leakage.
Fire safe design.
Anti-blowout Shaft.
Compact Design.
Available Product Range:
Norminal Size: 2 Inch ~150 Inch.
Design Pressure: 150LB~900LB.
Valve Connection: Flanged, Lug, Wafer, Butt Weld (BW).
Valve Operation: :Lever/Wrench, Gearbox, Motorized, Pneumatic.
Body Material: Carbon Steel WCB, Stainless Steel CF8/CF8M/CF3/CF3M, Low Temperature Steel LCB/LCC
Seat Material: Fully metal seat, SS+Graphite Seat.
Quick Details
| Type | Butterfly Valve |
| Size | DN400 |
| Design Pressure | PN25 |
| Construction | Triple Eccentric; Triple Offset; |
| Connection Type | RF Double Flange Type |
| Operation | Gearbox Operated |
| Design Code | EN 593 |
| Face to Face | EN 558 |
| End Connection | EN1092-1 |
| Test & Inspection | EN 12266-1 |
| Body Material | WCB |
| Temperature Range | -29℃~+150℃ |
| Application | Gasoline |
The DN400 PN25 offset valves perform better than traditional valves out of increased durability, reliability and lower ownership cost. And the seat of the triple eccentric valve is designed to minimize wear, providing lower maintenance cost and extend service life.
Feature:
Low opening&closing torque.
Zero leakage.
Fire safe design.
Anti-blowout Shaft.
Compact Design.
Available Product Range:
Norminal Size: 2 Inch ~150 Inch.
Design Pressure: 150LB~900LB.
Valve Connection: Flanged, Lug, Wafer, Butt Weld (BW).
Valve Operation: :Lever/Wrench, Gearbox, Motorized, Pneumatic.
Body Material: Carbon Steel WCB, Stainless Steel CF8/CF8M/CF3/CF3M, Low Temperature Steel LCB/LCC
Seat Material: Fully metal seat, SS+Graphite Seat.
