EN 593 Triple Eccentric Butterfly Valve, WCB, DN100, PN40
Key Specifications / Features
The DN100 PN40 triple eccentric butterfly valve is manufactured to EN 593 standards, featuring a robust ASTM A216 WCB body. Its triple-eccentric design enables precise control, and it undergoes a two-way, one-to-one pressure test for reliability. The valve connects via EN 1092-1 B flanges and operates with a turbine mechanism.
- Model No.: Kelly-BTV-20242031-02
- Hits: 9
- Categories: Butterfly Valve
- Tags: EN 593 Butterfly Valve , Triple Eccentric Butterfly Valve , ASTM A216 WCB Butterfly Valve
Detail Information
Triple Eccentric Butterfly Valves, EN 593, ASTM A216 WCB Body, Turbine Operation.
Features
1. The three-eccentric design enables metal-to-metal sealing, with the valve disc and seat in full contact upon closure, ensuring zero leakage for stringent sealing needs and eliminating friction.
2. This design minimizes friction and wear during operation, reducing opening and closing torque, simplifying operation, and extending valve service life.
Technical Drawing

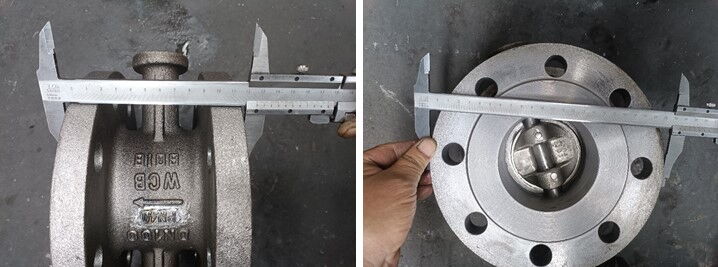

Dimension Checking

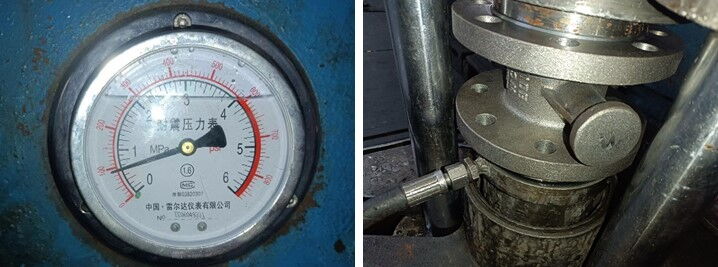

Pressure Testing

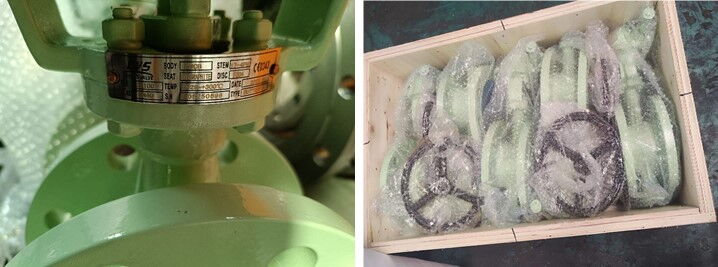

Nameplate & Packing

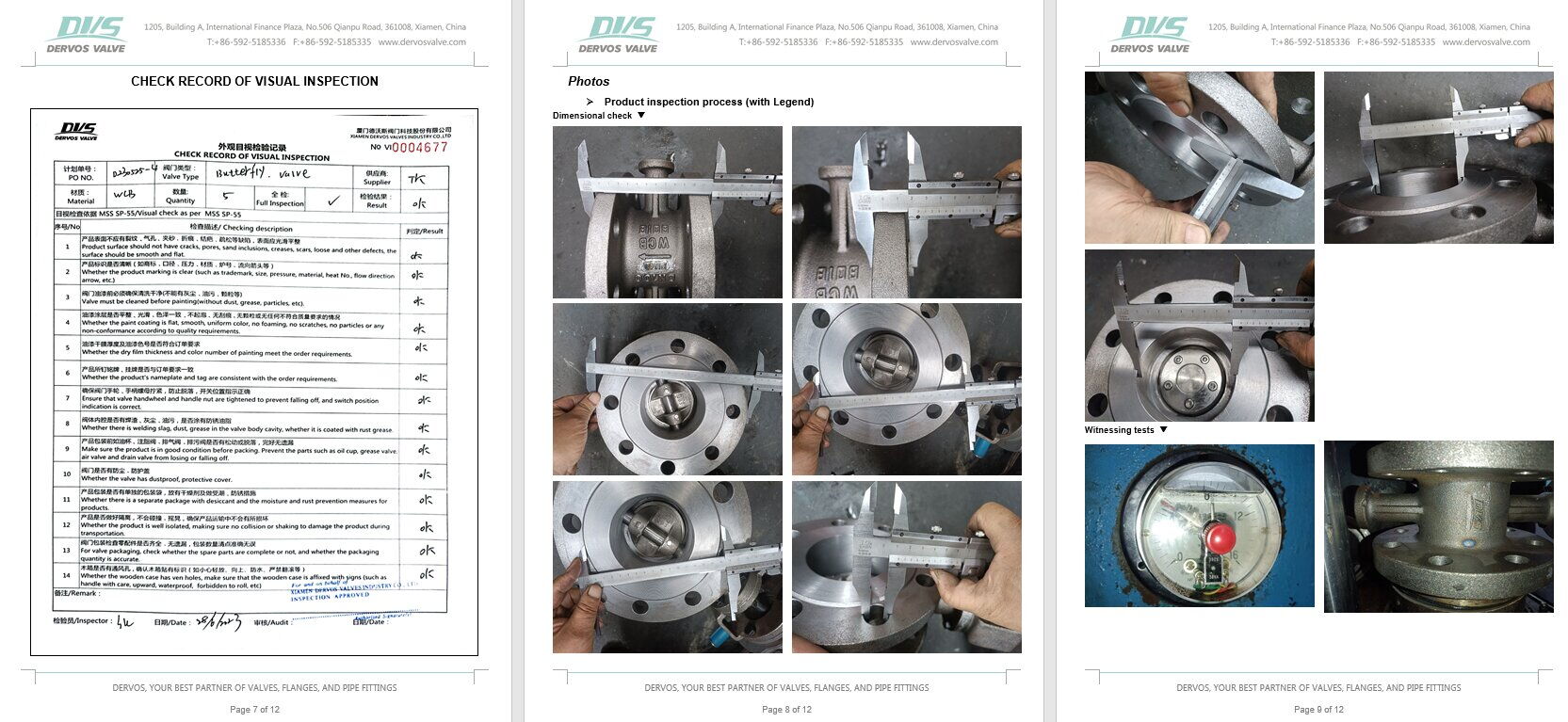

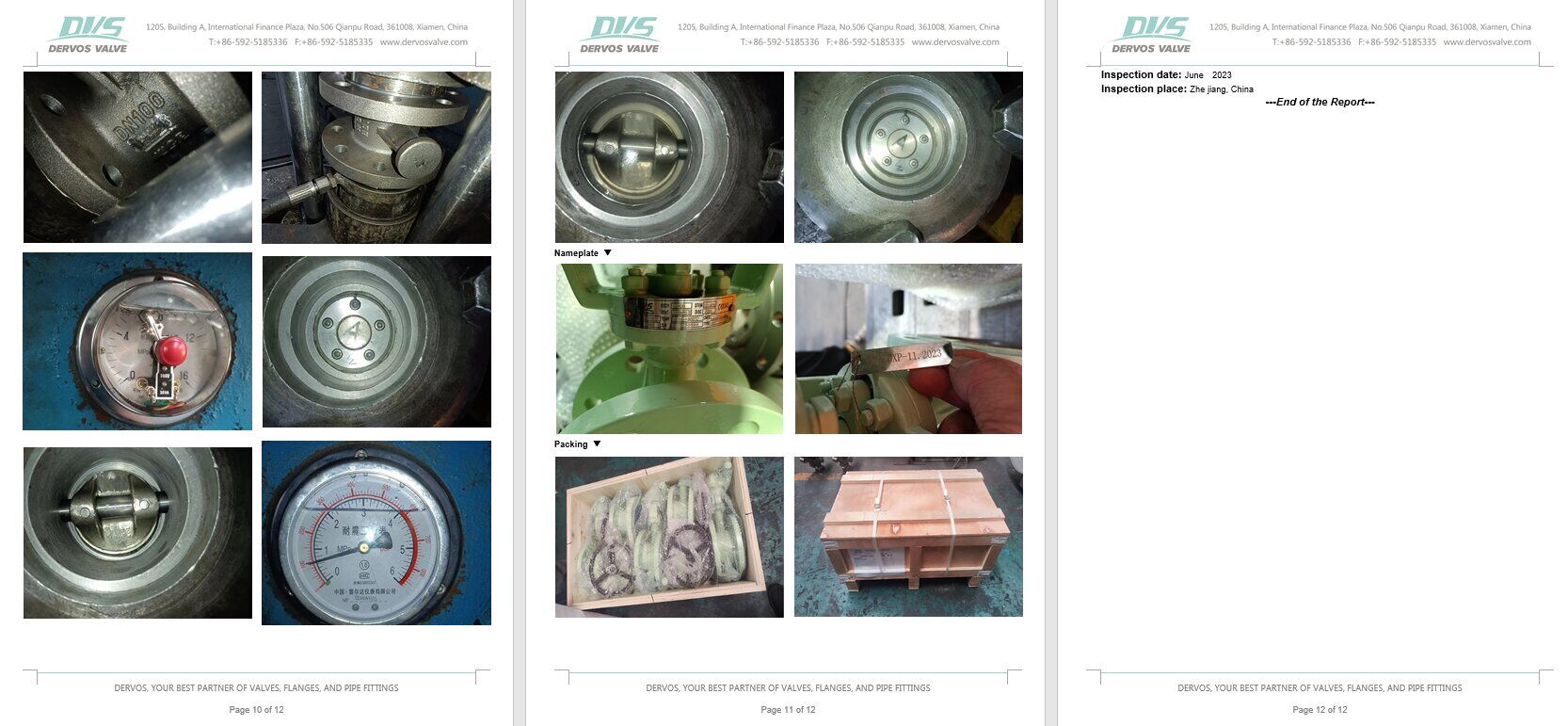

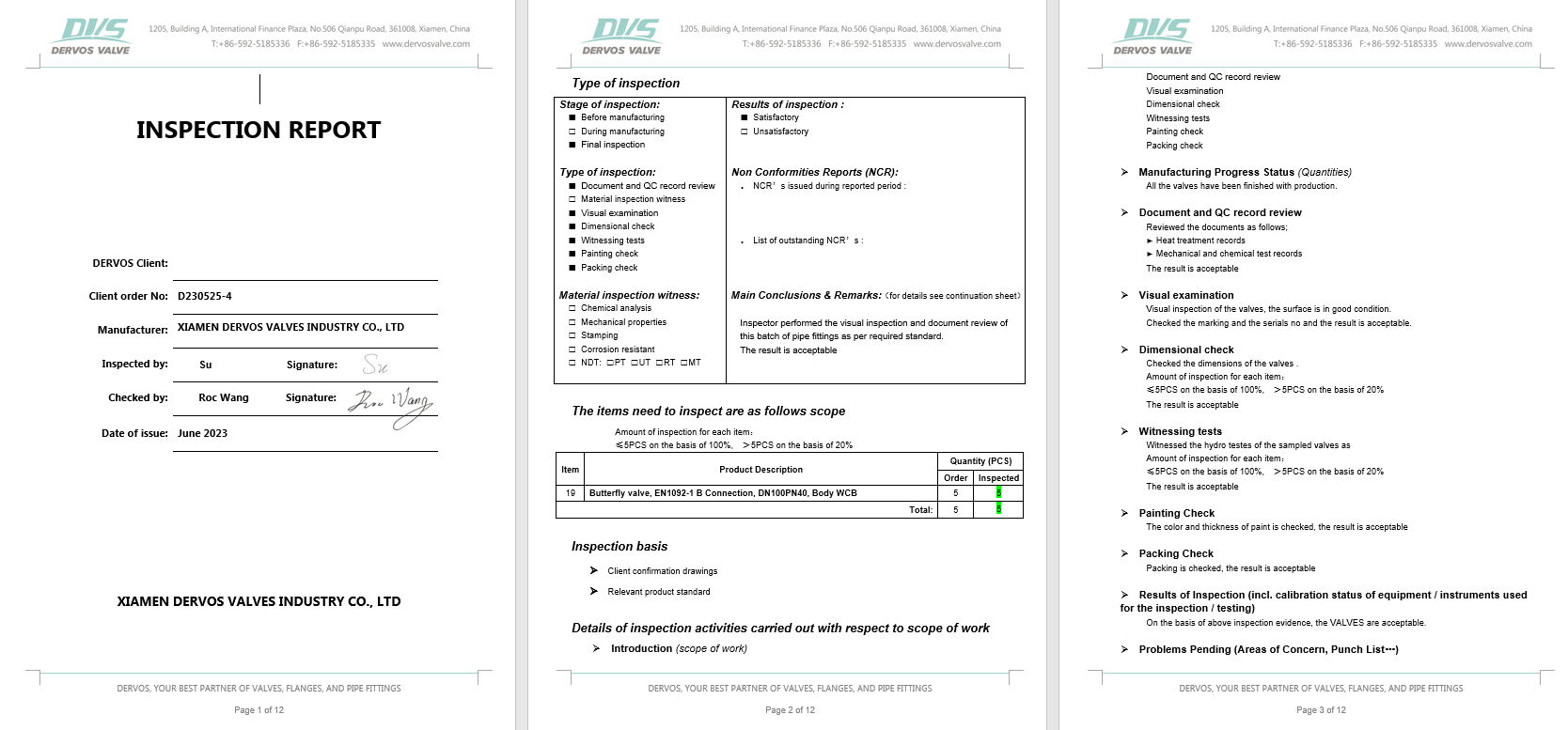

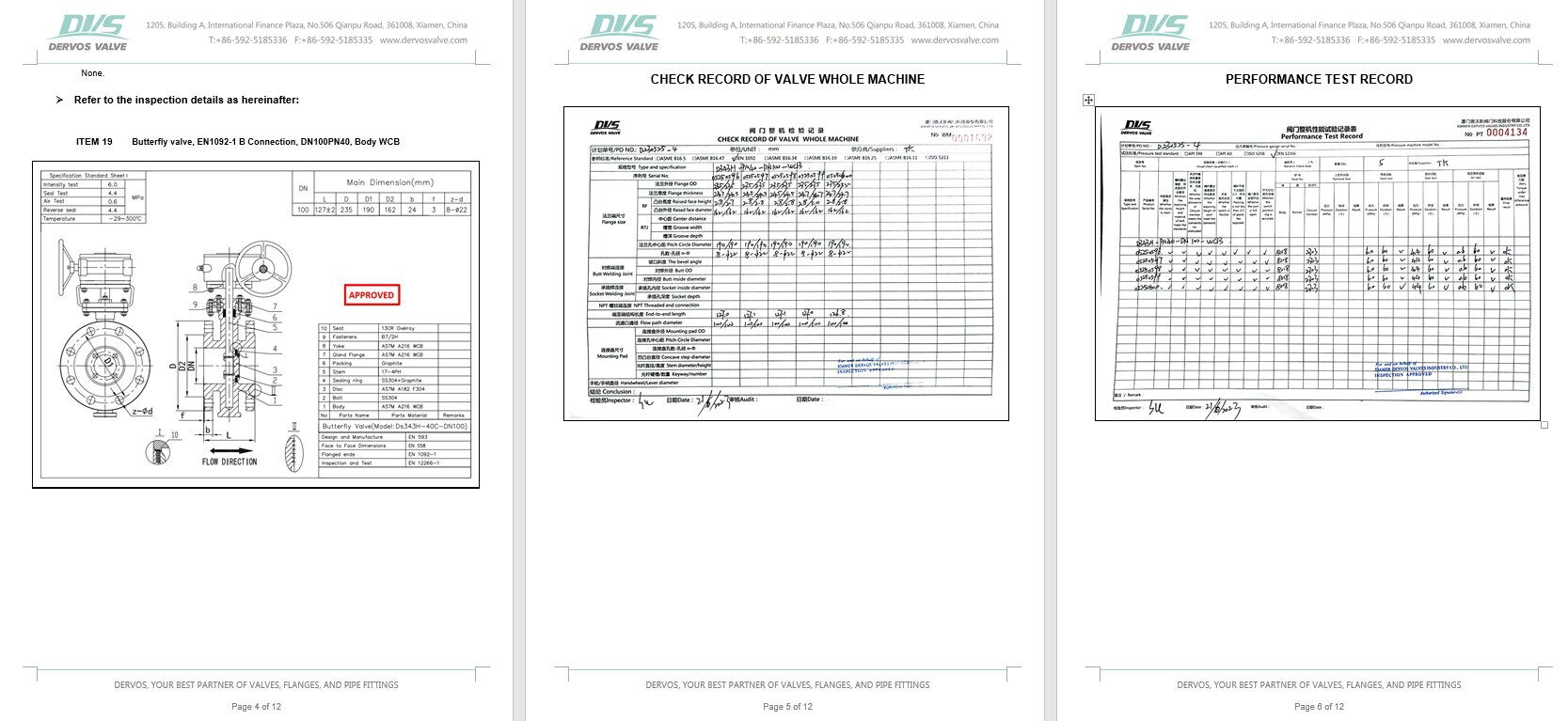

Inspection Report
Features
1. The three-eccentric design enables metal-to-metal sealing, with the valve disc and seat in full contact upon closure, ensuring zero leakage for stringent sealing needs and eliminating friction.
2. This design minimizes friction and wear during operation, reducing opening and closing torque, simplifying operation, and extending valve service life.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection Report
