Double Eccentric Butterfly Valve, API 609, WCB, 20 IN, 300 LB
Key Specifications / Features
The 20-inch Class 300 LB double eccentric butterfly valve twins are designed per API 609 Category B standards. Constructed with a durable ASTM A216 WCB body, these valves feature a high-performance, dual-eccentric design for reliable operation. Both valves are equipped with a shared worm gear actuator for synchronized control. The wafer-style connection ensures easy installation, while the turbine operation mode provides smooth and efficient functionality, making it a robust choice for demanding industrial applications.
- Model No.: Kelly-BTV-20241206-01
- Hits: 53
- Categories: Butterfly Valve
- Tags: Double Eccentric Butterfly Valve , API 609 Butterfly Valve , ASTM A216 WCB Butterfly Valve
Detail Information
Double Eccentric Butterfly Valve Twins, API 609 Category B, ASTM A216 WCB.

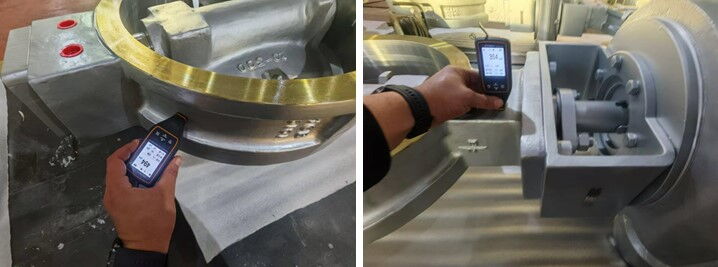

Painting

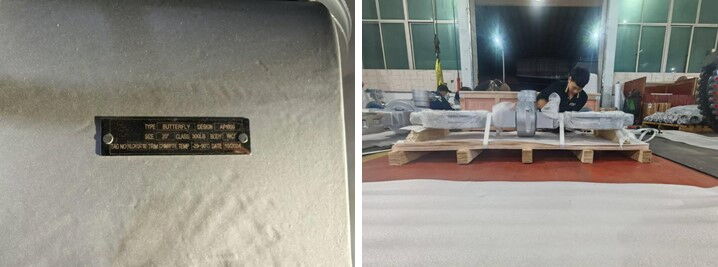

Nameplate & Packing

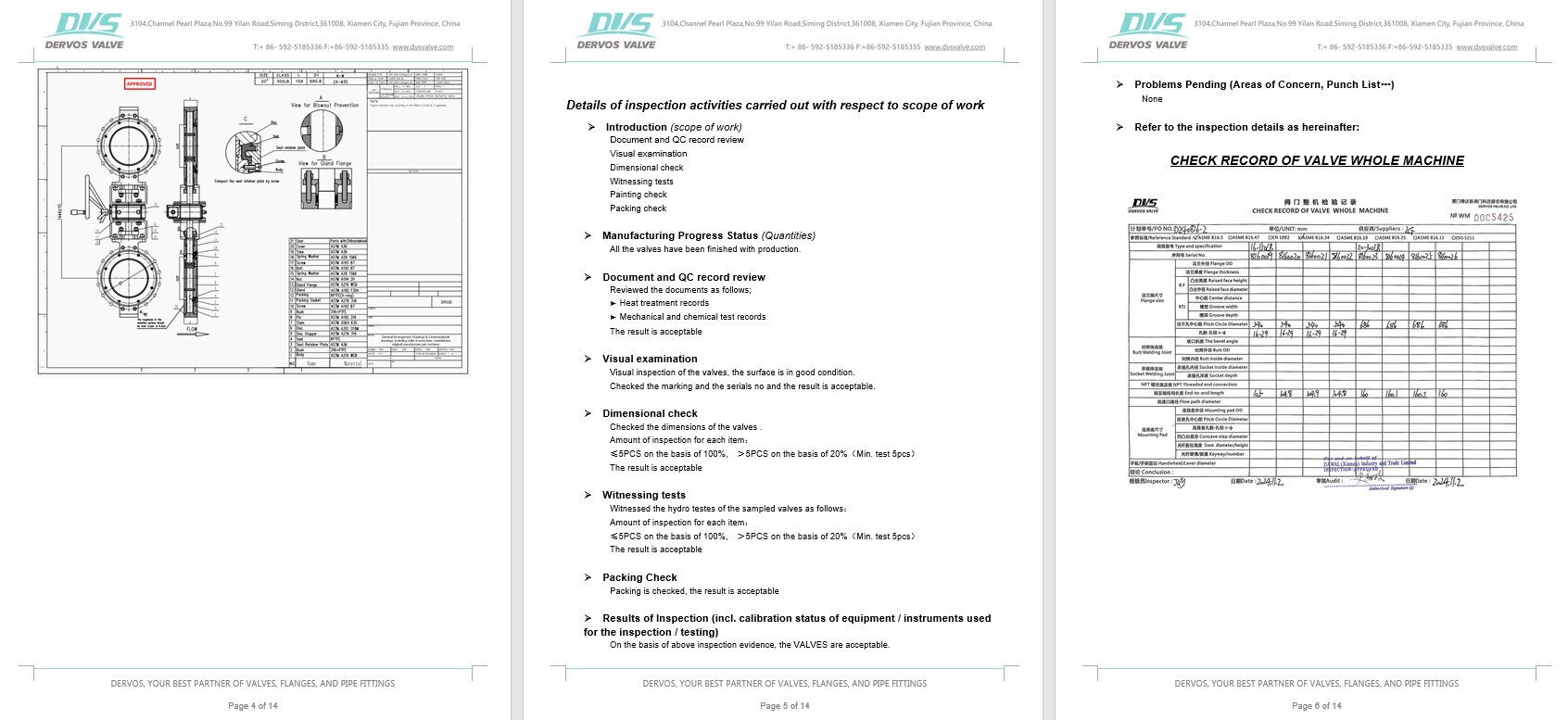

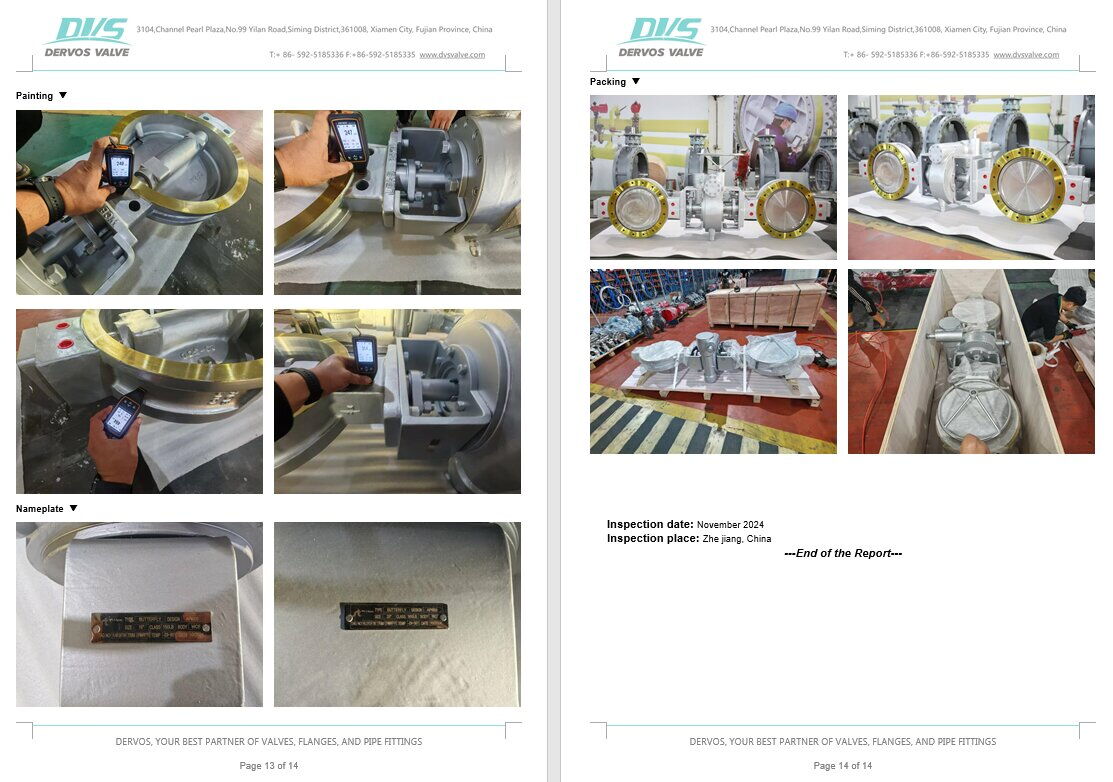

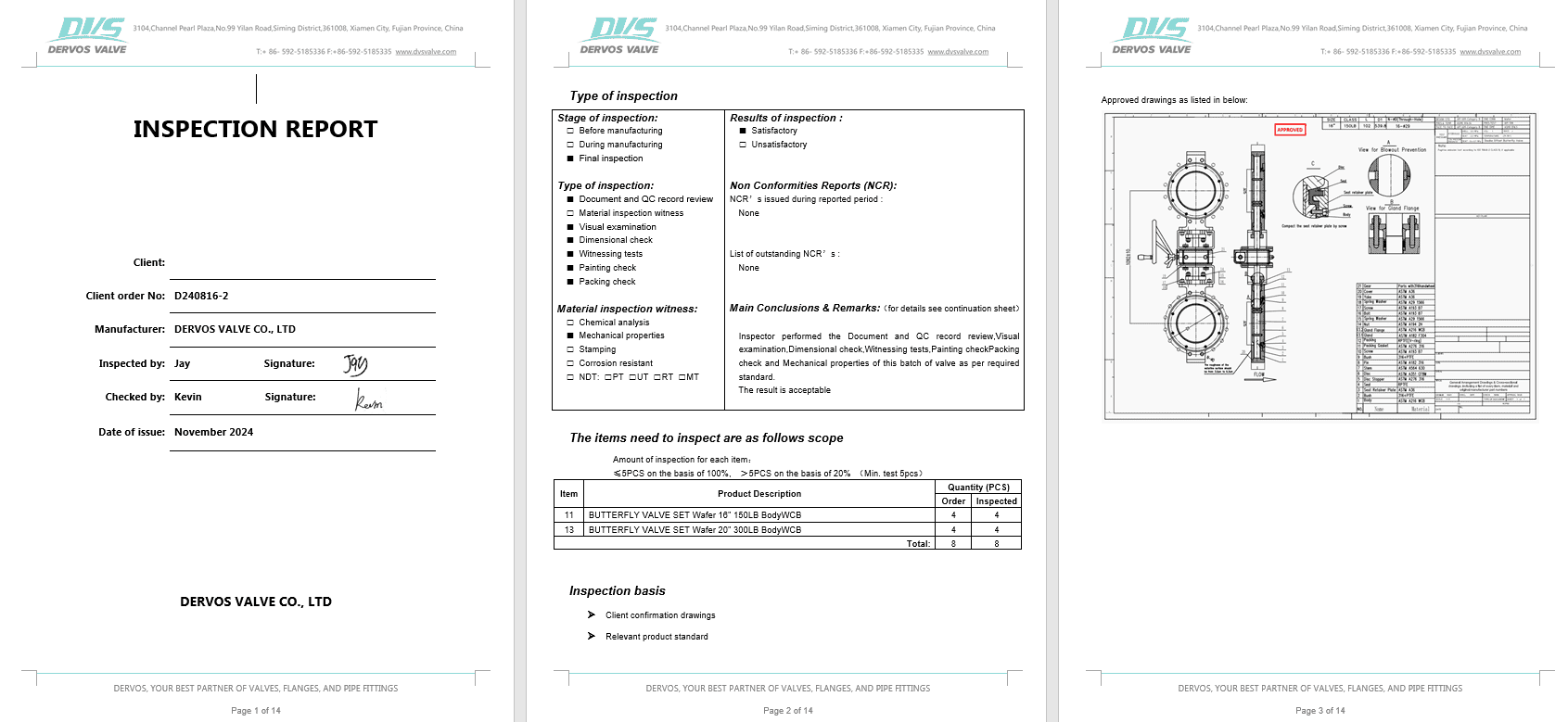

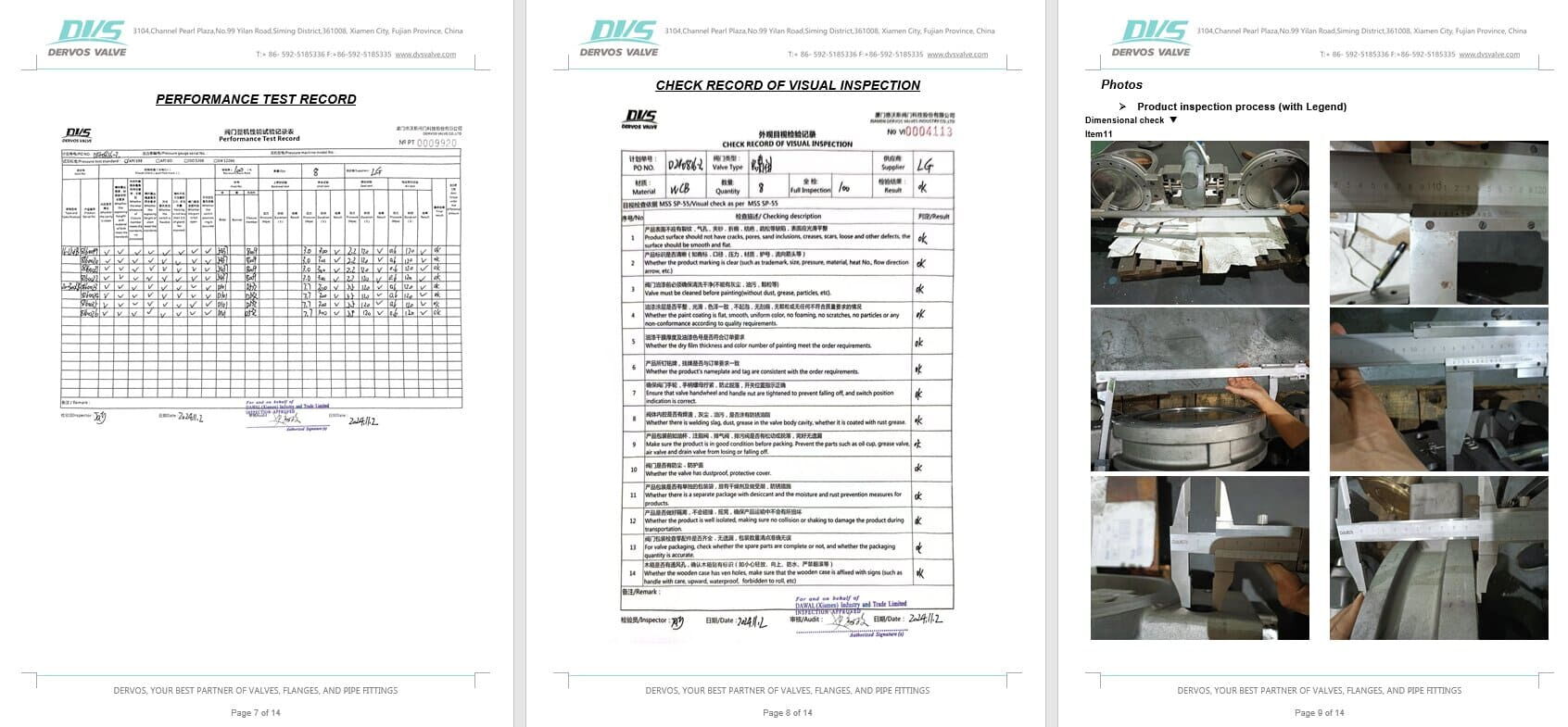

Inspection Report
Features
1. Integrated "Duplex" Filtering System:
The butterfly valve sets are designed to work seamlessly with duplex strainers and piping, forming a cohesive "Duplex" filtering system for enhanced efficiency.
2. Synchronized Operation:
When paired butterfly valves are installed with a shared gearbox, they enable simultaneous opening and closing. This design streamlines operations, saving time and reducing manual effort.

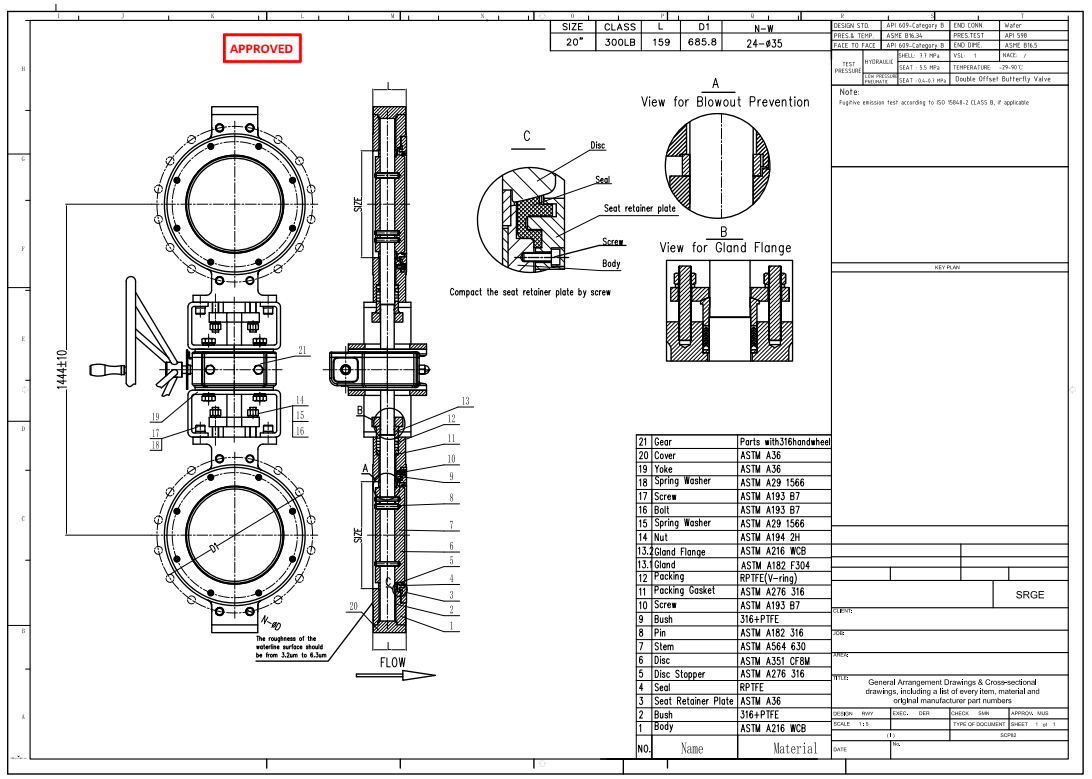

Technical Drawing

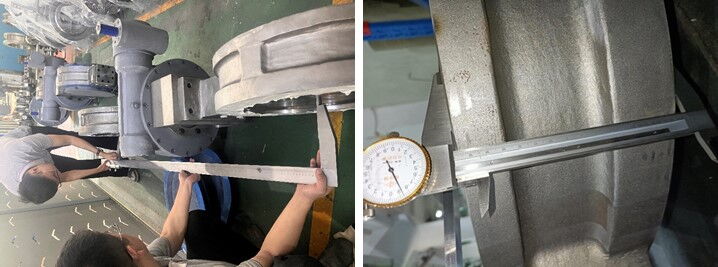

Dimension Checking

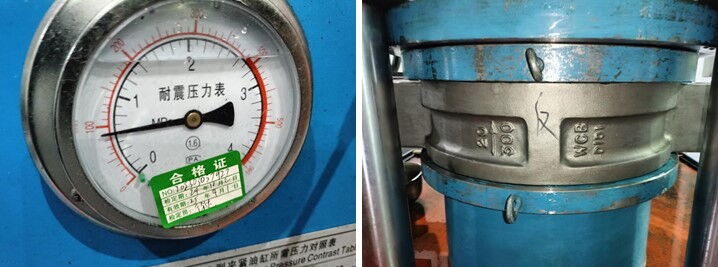

Pressure Testing
1. Integrated "Duplex" Filtering System:
The butterfly valve sets are designed to work seamlessly with duplex strainers and piping, forming a cohesive "Duplex" filtering system for enhanced efficiency.
2. Synchronized Operation:
When paired butterfly valves are installed with a shared gearbox, they enable simultaneous opening and closing. This design streamlines operations, saving time and reducing manual effort.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection Report
