EN 1984 Gate Valve, WCB, DN200, PN63, 8 Inch, 400 LB, BB, RF
Key Specifications / Features
We Provide EN 1984 Gate Valves, Cast Steel Gate Valves, ASTM A216 WCB+STL, DN200, PN63, 8 Inch, 400 LB, BB, OS & Y, Rising Stem, RF, and Hand Wheel Operation.
- Hits: 11
- Categories: Gate Valve
- Tags: EN 1984 Gate Valve , ASTM A216 WCB Gate Valve , DN200 Gate Valve
Detail Information
DN200 PN63 Cast Steel Gate Valve HW-OP OS&Y BB RF
Introduction
DN200 PN63 gate valve is made according to EN 1984 standards. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of Bolt cover, rising stem and support. Its connection mode is RF. And it has hand wheel operation mode.
Features
1. The fluid resistance is small, and the sealing surface is little scoured and eroded by the medium;
2. The flow direction of the medium is not restricted, the flow is not disturbed, and the pressure is not reduced;
3. Simple structure, short structure length, good manufacturing process, high temperature and high-pressure resistance, many optional materials, wide application range.

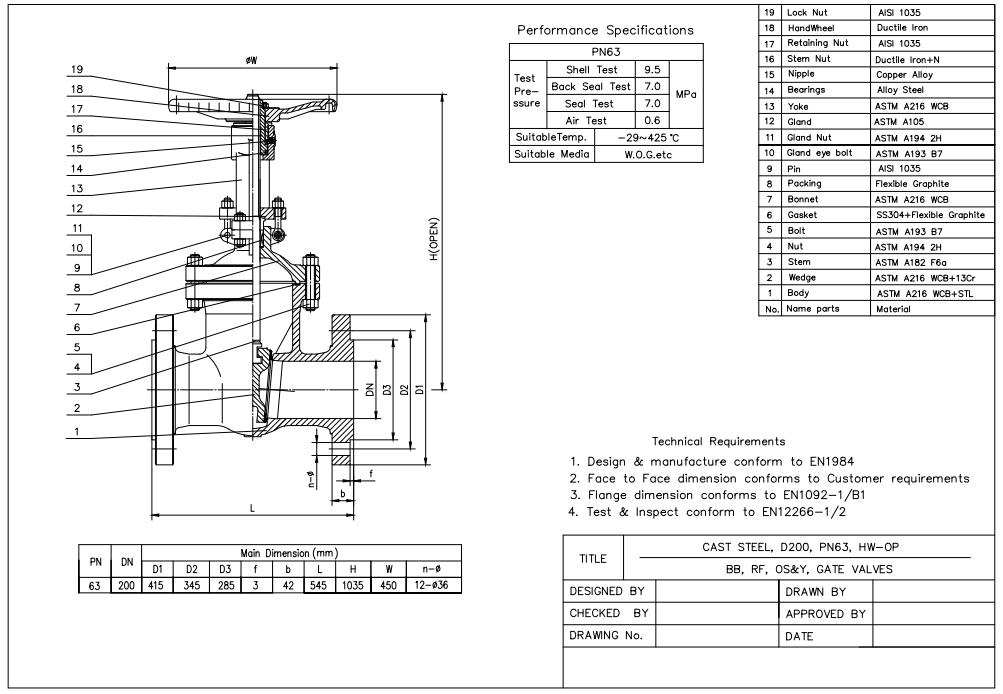

Technical Drawing

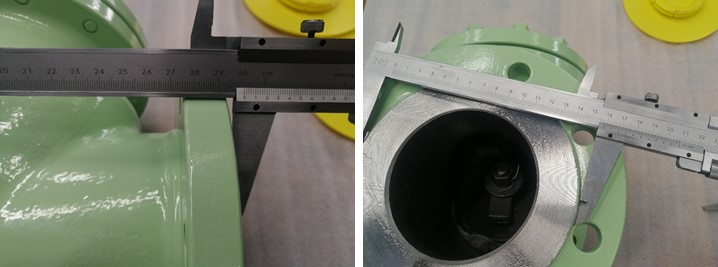

Dimension Checking

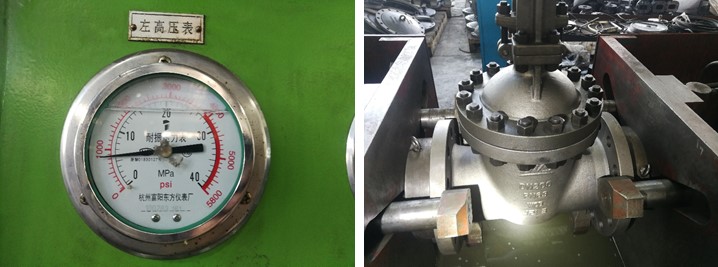

Pressure Testing

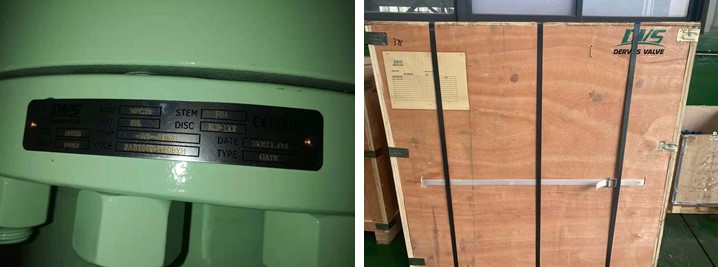

Nameplate & Packing

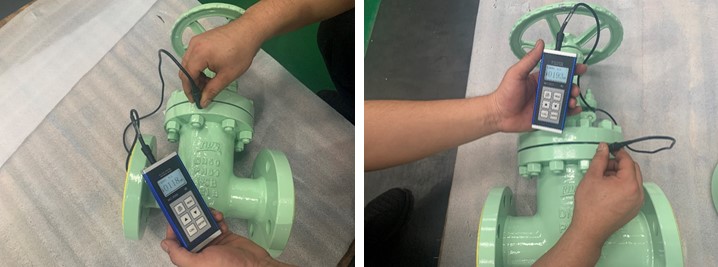

Painting

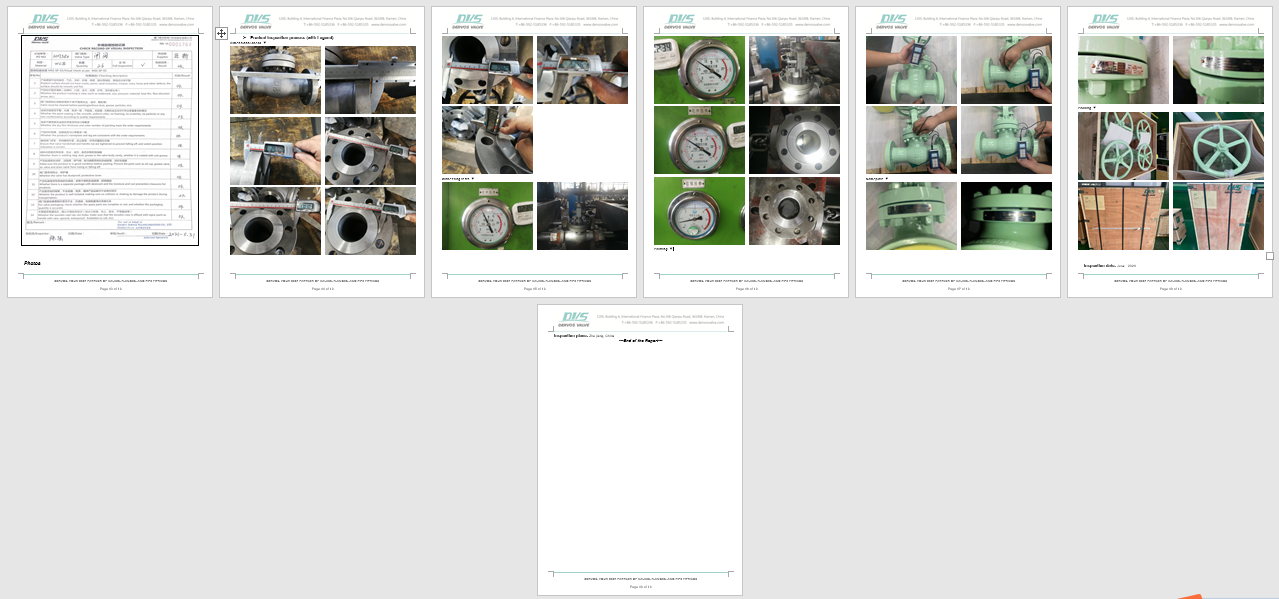

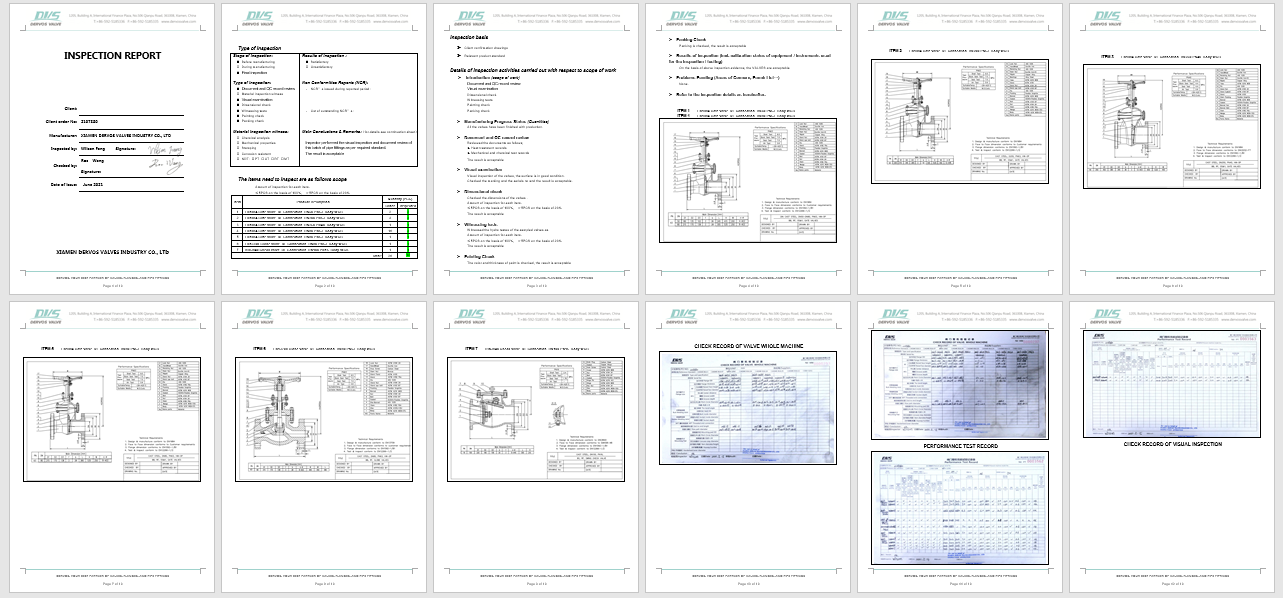

Inspection report
Introduction
DN200 PN63 gate valve is made according to EN 1984 standards. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of Bolt cover, rising stem and support. Its connection mode is RF. And it has hand wheel operation mode.
Features
1. The fluid resistance is small, and the sealing surface is little scoured and eroded by the medium;
2. The flow direction of the medium is not restricted, the flow is not disturbed, and the pressure is not reduced;
3. Simple structure, short structure length, good manufacturing process, high temperature and high-pressure resistance, many optional materials, wide application range.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Painting
Inspection report
