ASTM A216 WCB Gate Valve, API 600, 6 Inch, 300 LB, BW
Key Specifications / Features
We Provide ASTM A216 WCB Gate Valves, API 600 Gate Valves, Rising Stem, OS&Y, ASTM A216 WCB, 6 Inch, Class 300 LB, BW, Hand-wheel Operation, and API 600.
- Hits: 9
- Categories: Gate Valve
- Tags: ASTM A216 WCB Gate Valve , API 600 Gate Valve , 6 Inch Gate Valve
Detail Information
6" 300 LB API Cast Steel Gate Valve HW-OP WCB OS&Y BW
Introduction
6" 300 LB gate valve is made according to API 600 standards. The valve body is made of WCB. It has the structural characteristics of a bolt cover, rising stem, elastic wedge, full flow, and replaceable valve seat. Its connection mode is BW. And it has hand wheel operation mode.
Features
1. The fluid resistance is small, and the sealing surface is less scoured and eroded by the medium;
2. Simple structure, short structure length, good manufacturing process, wide application range, and many high-temperature and high-pressure resistant materials can be selected.

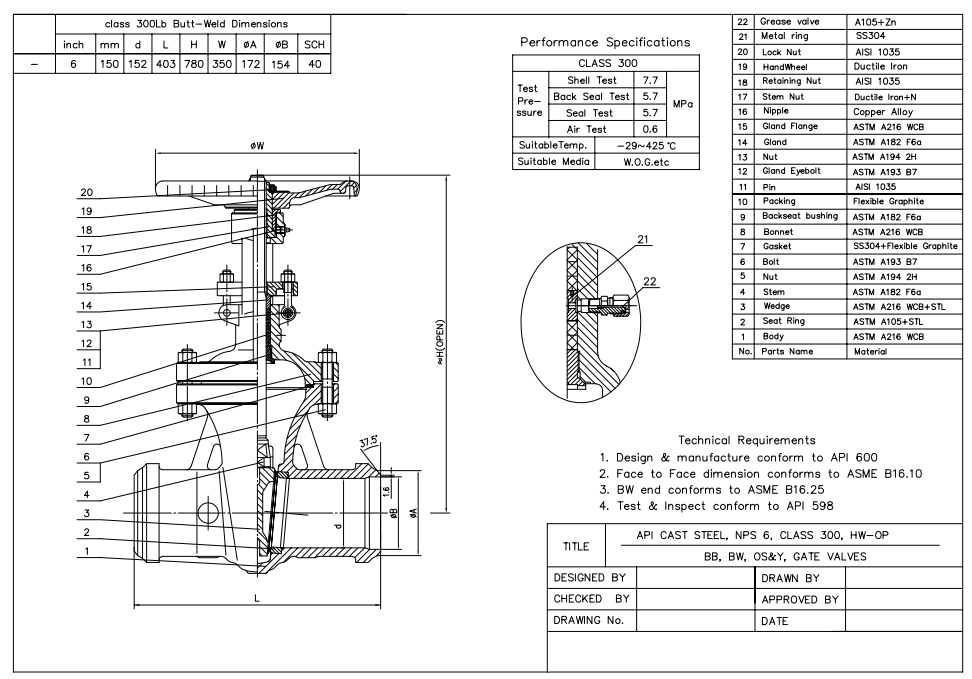

Technical Drawing

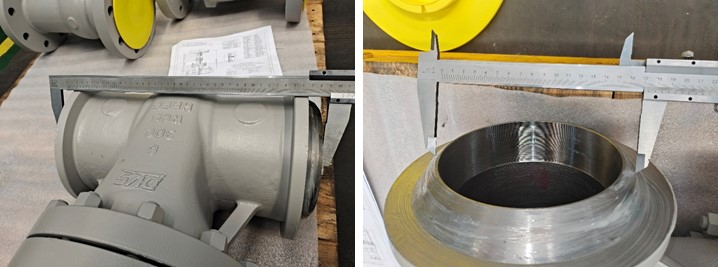

Dimension Checking

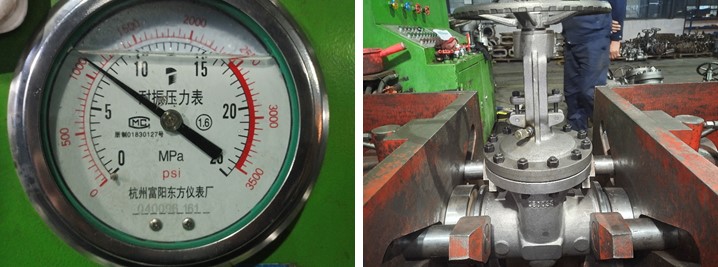

Pressure Testing

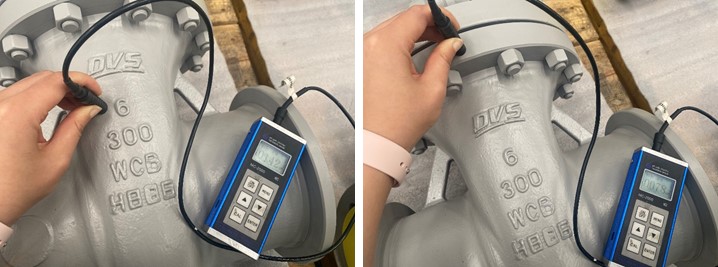

Painting
Packing

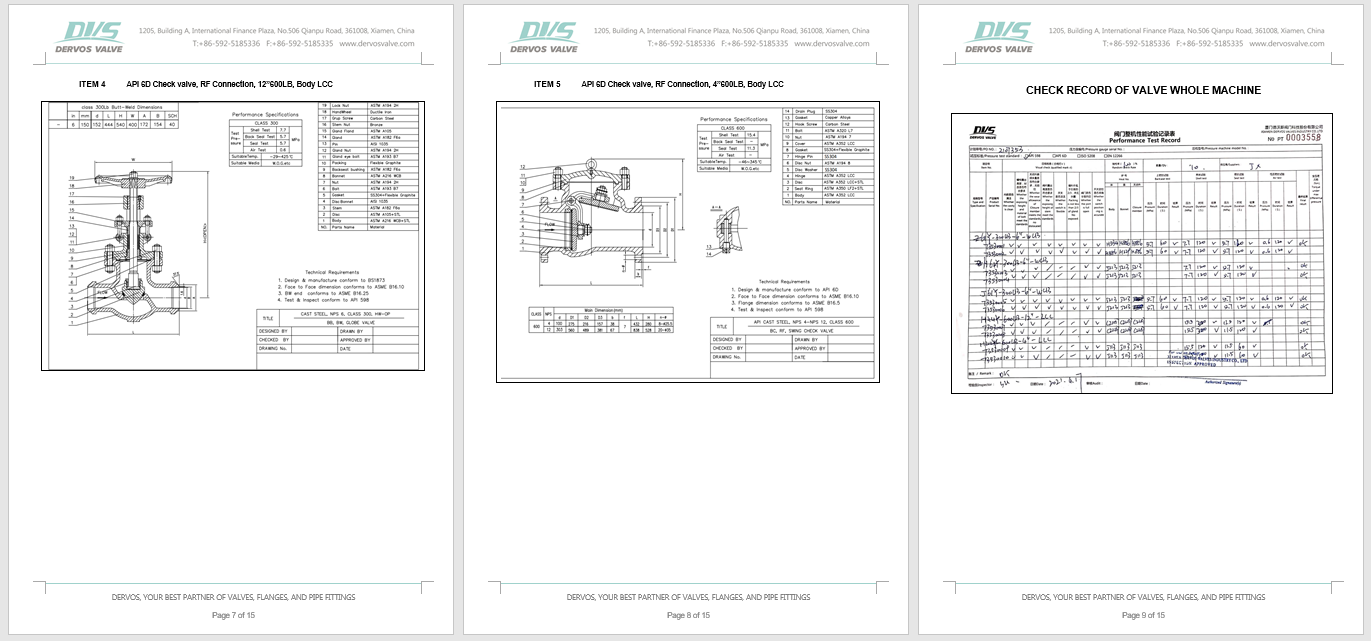

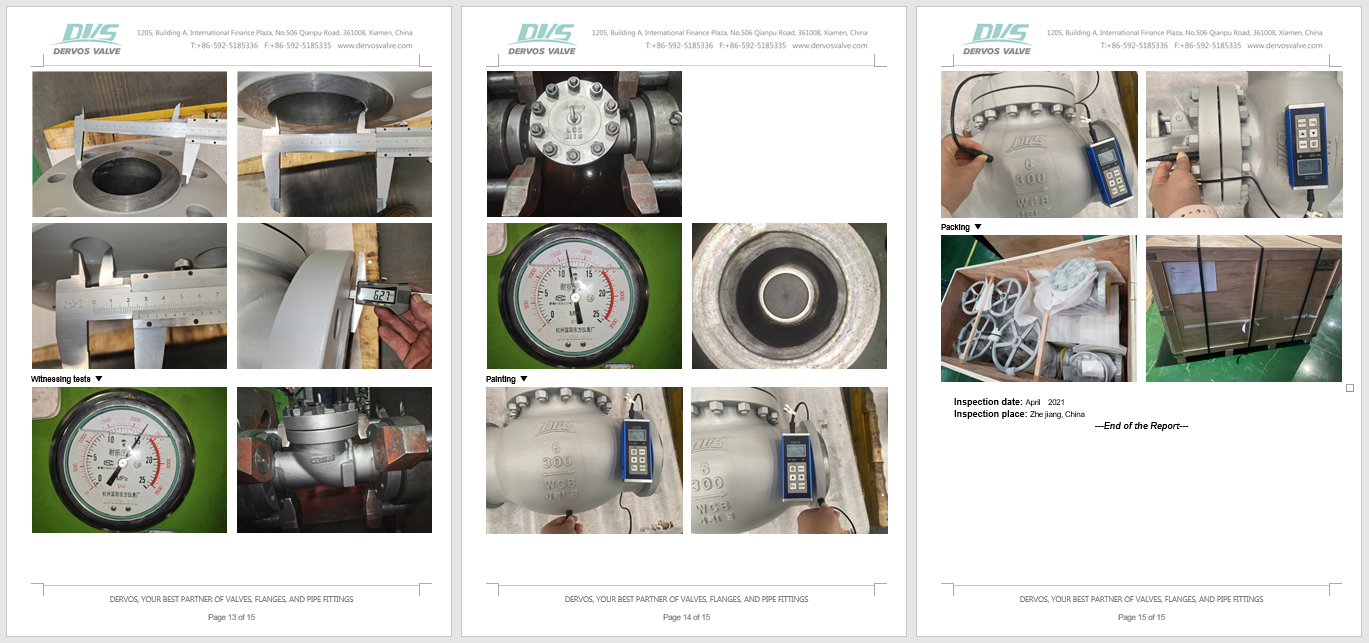

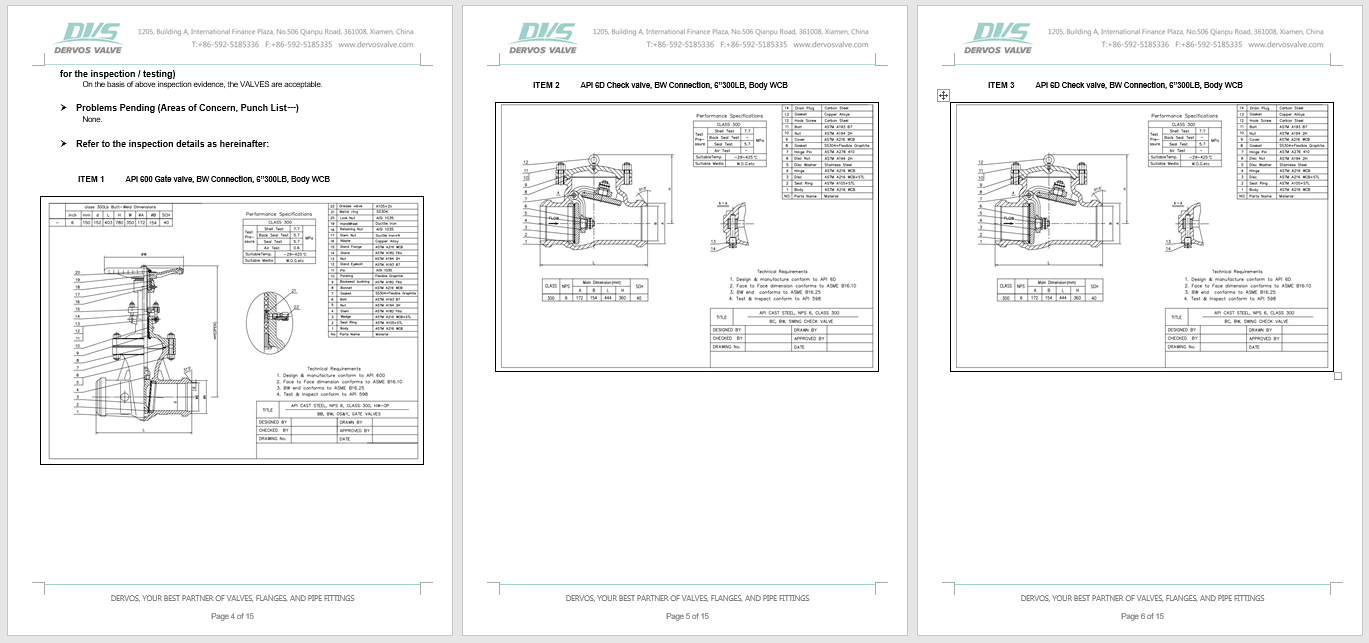

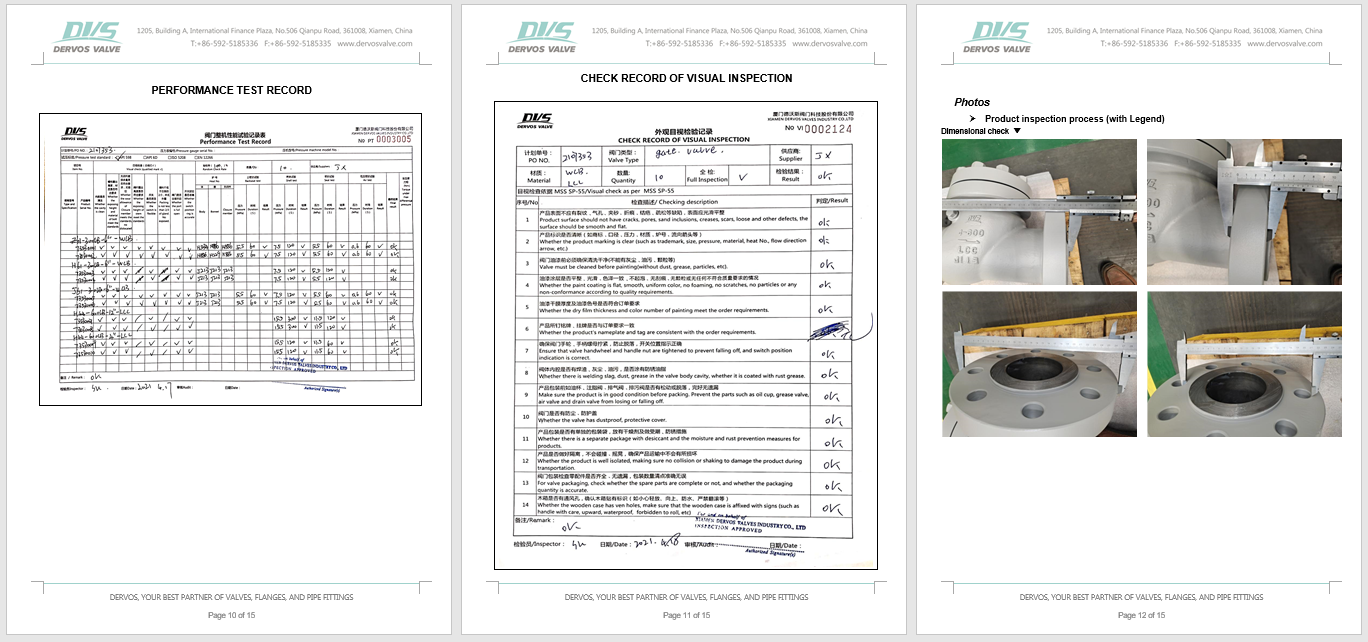

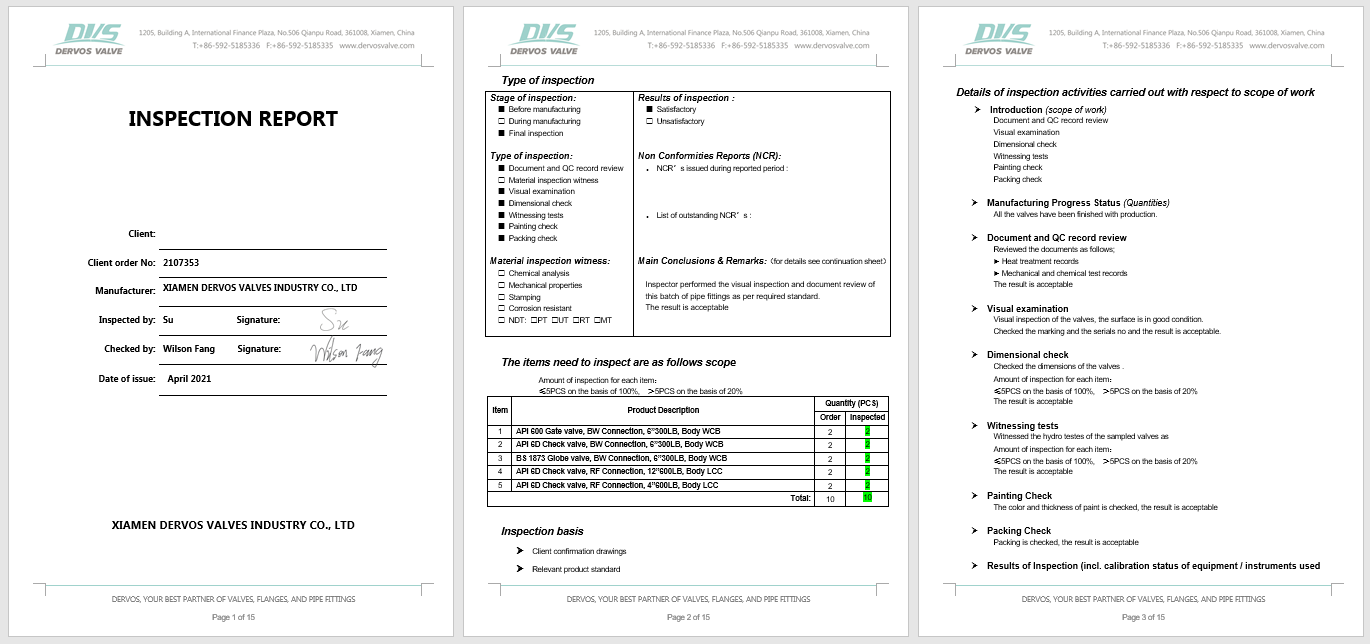

Inspection report
Introduction
6" 300 LB gate valve is made according to API 600 standards. The valve body is made of WCB. It has the structural characteristics of a bolt cover, rising stem, elastic wedge, full flow, and replaceable valve seat. Its connection mode is BW. And it has hand wheel operation mode.
Features
1. The fluid resistance is small, and the sealing surface is less scoured and eroded by the medium;
2. Simple structure, short structure length, good manufacturing process, wide application range, and many high-temperature and high-pressure resistant materials can be selected.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Packing
Inspection report
