Dual Plate Wafer Check Valve, API 594, CF8M, DN350, PN16
Key Specifications / Features
DN350 PN16 wafer check valve is made according to API 594 standard. The valve body is made of DI+NBR. It has the structural characteristics of double disc. Its connection mode is wafer.
- Hits: 6
- Categories: Wafer Check Valve
- Tags: Wafer Check Valve , Dual Plate Check Valves , API 594 Check Valve
Detail Information
API 594 Dual Plate Wafer Check Valve PN16 DN350 CF8M
Product Description
Features
1. Short structural length, small volume, light weight, fast valve closure, and low water hammer pressure;
2. Easy installation, unobstructed flow channel, low fluid resistance, sensitive action, and good sealing performance.

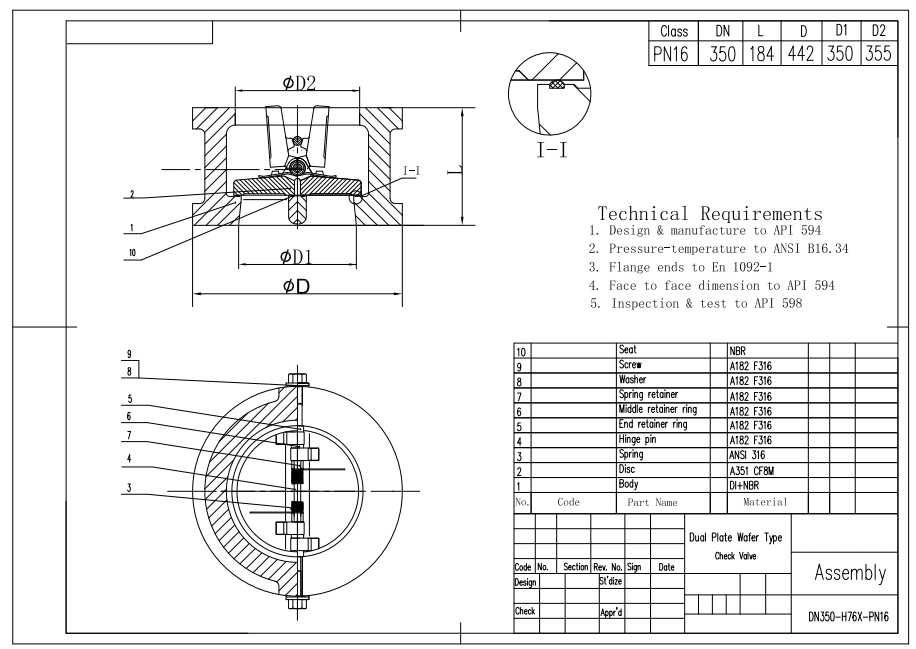

Technical Drawing

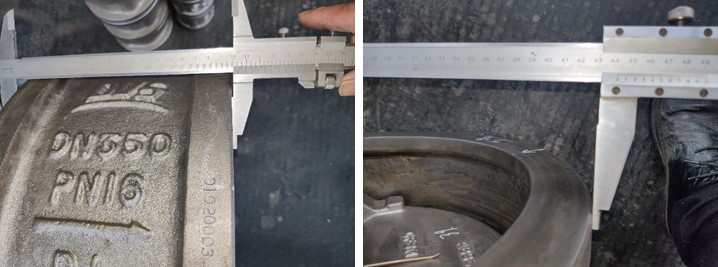

Dimension Checking

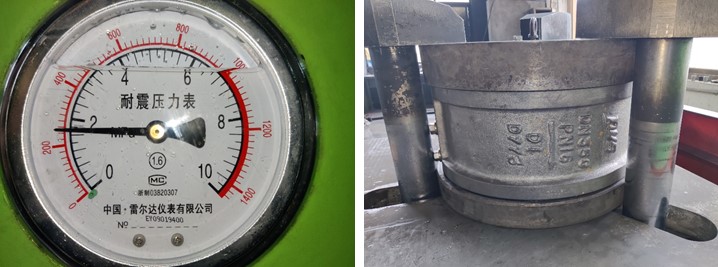

Pressure Testing

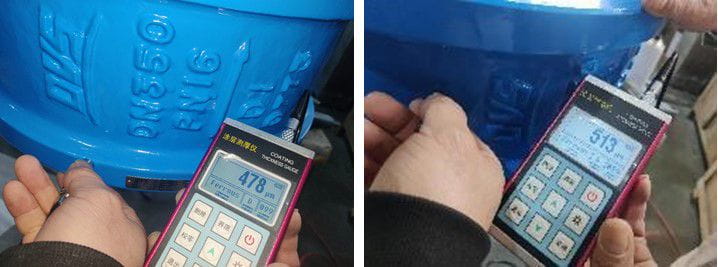

Painting

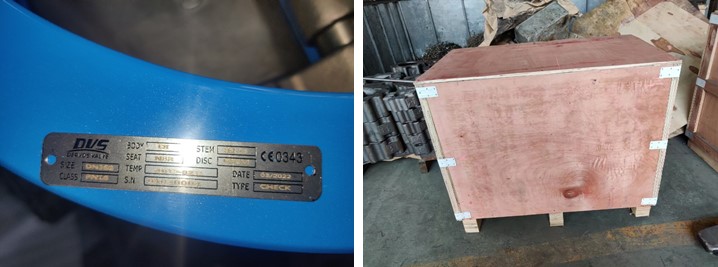

Nameplate & Packing

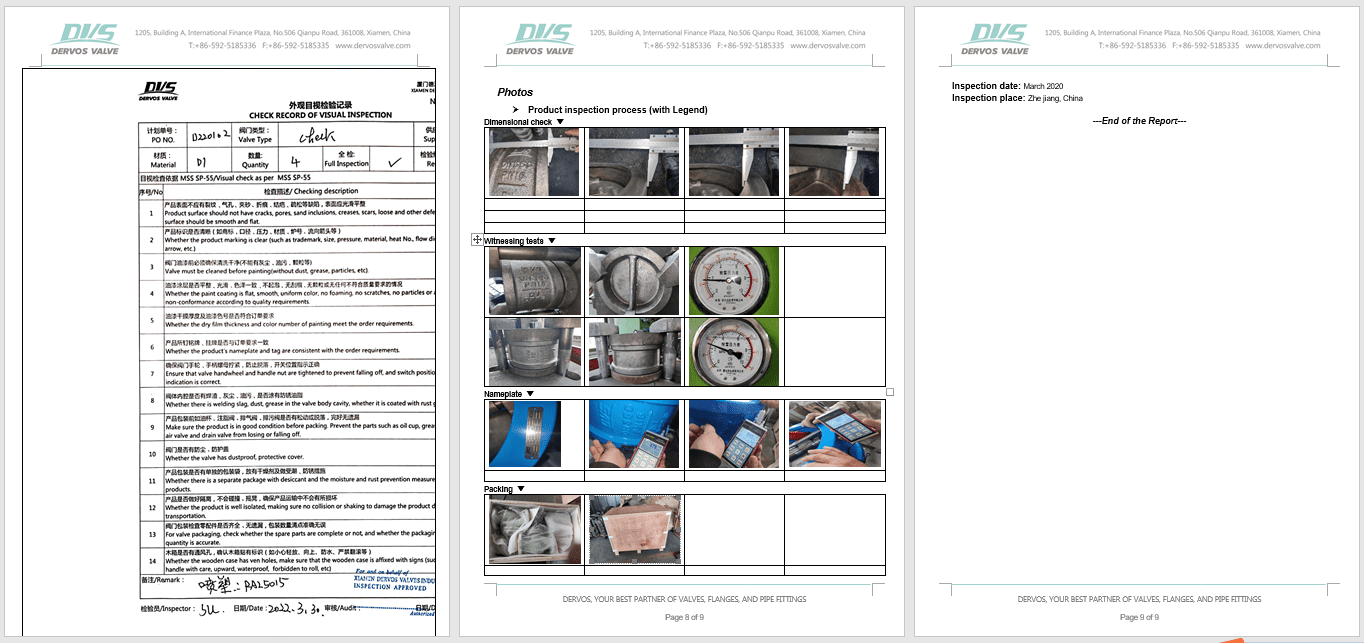

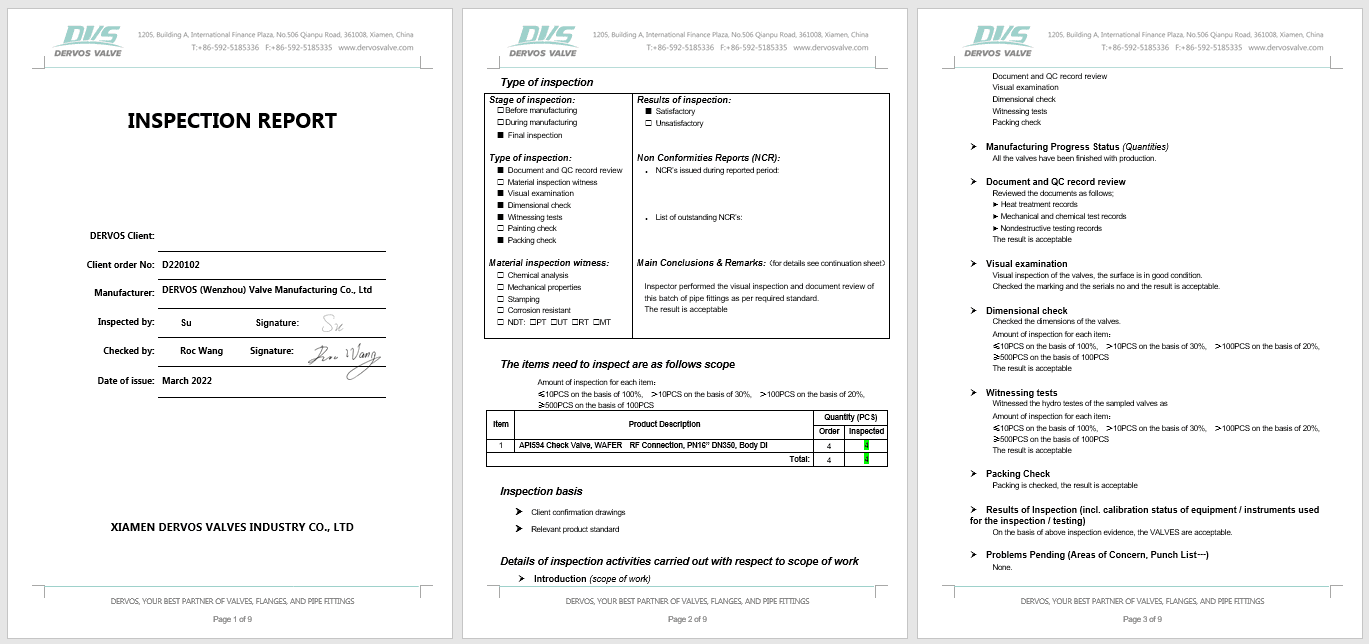

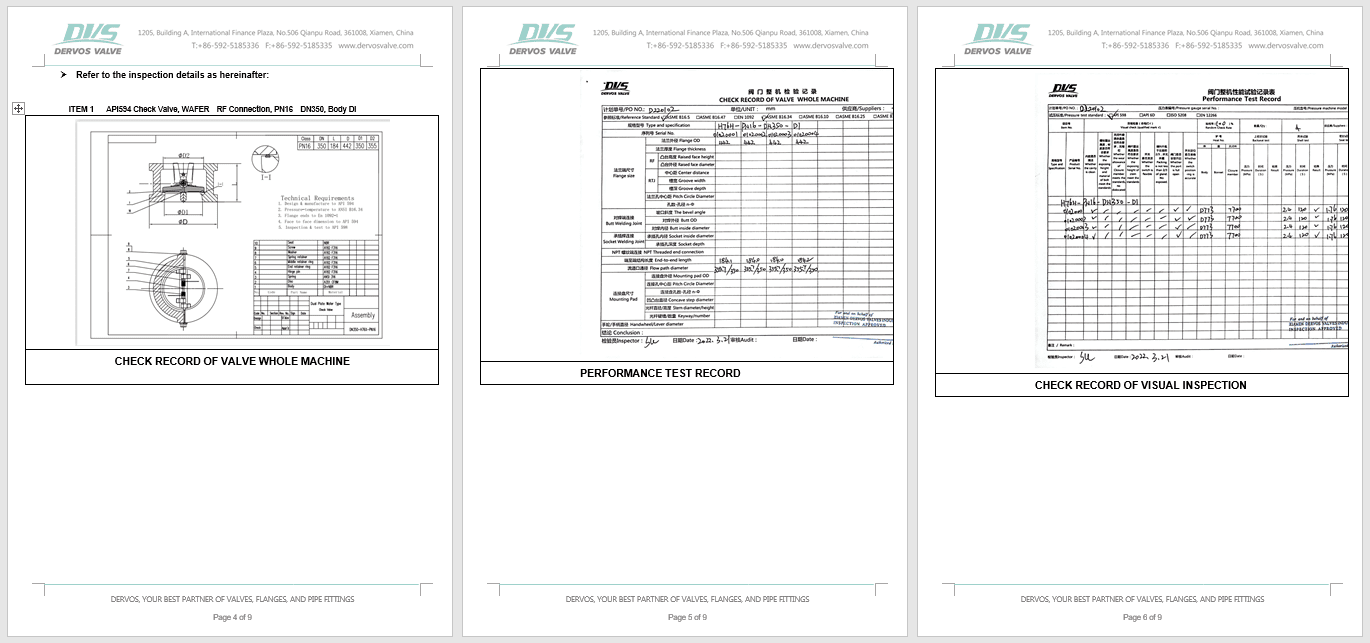

Inspection report
Product Description
| Type | Wafer Check Valve |
| Size | DN350 |
| Pressure | PN16 |
| Connection | Wafer |
| Body Material | DI+NBR |
| Design Norm | API594 |
| Pressure-temperature | ANSI B16.34 |
| Flange ends | En 1092-1 |
| Face to face dimension | API594 |
| Test & Inspection Code | API598 |
| Applicable Medium | Water, Oil and Gas |
Features
1. Short structural length, small volume, light weight, fast valve closure, and low water hammer pressure;
2. Easy installation, unobstructed flow channel, low fluid resistance, sensitive action, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
