ASTM A351 CF8M Wafer Check Valve, API 594, 10 Inch, 150 LB
Key Specifications / Features
We Provide ASTM A351 CF8M Wafer Check Valves, ASTM A351 CF8M Dual Plate Wafer Check Valves, 10 Inch, DN250, CLass 150 LB, API 594, Wafer RF Type.
- Hits: 11
- Categories: Wafer Check Valve
- Tags: ASTM A351 CF8M Check Valve , Wafer Check Valve , API 594 Check Valve
Detail Information
CF8M 10" 150 LB Dual Plate Wafer Check Valve API 594
Introduction
10 Inch 1500 LB gate valve is made according to API 594 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of a dual plate and built-in type. Its connection mode is wafer RF type.
Features
1. Small size, lightweight, compact structure and convenient maintenance;
2. Good check performance, safety and reliability, small flow resistance coefficient, reliable sealing performance and long service life.

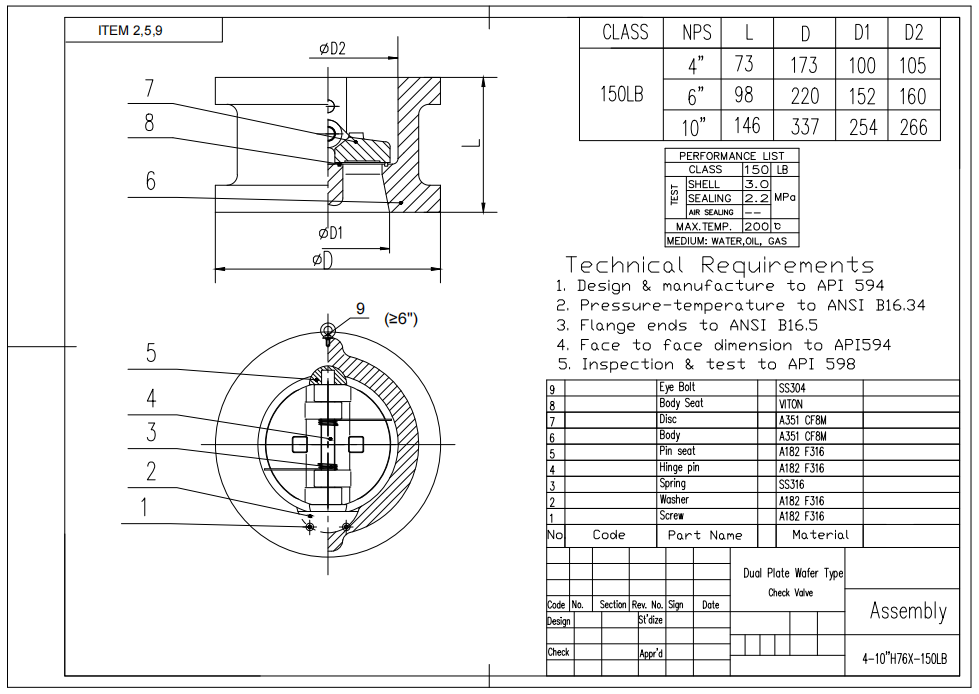

Technical Drawing

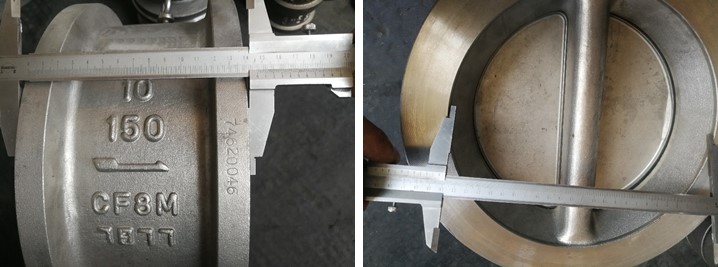

Dimension Checking

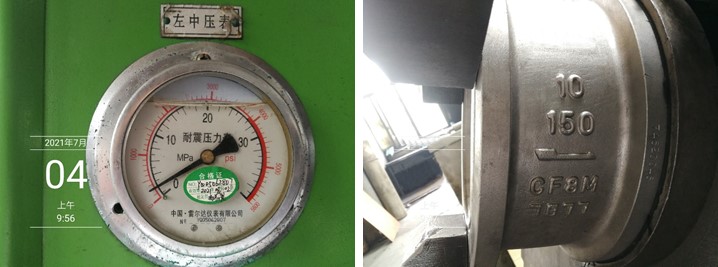

Pressure Testing

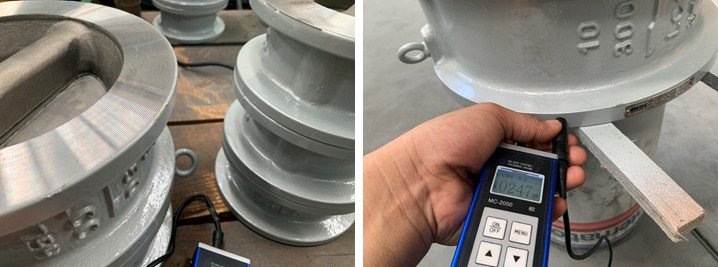

Painting

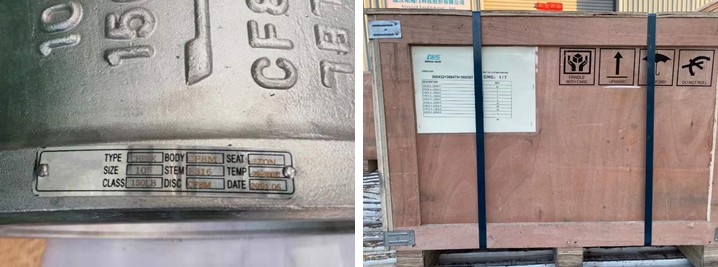

Nameplate & Packing

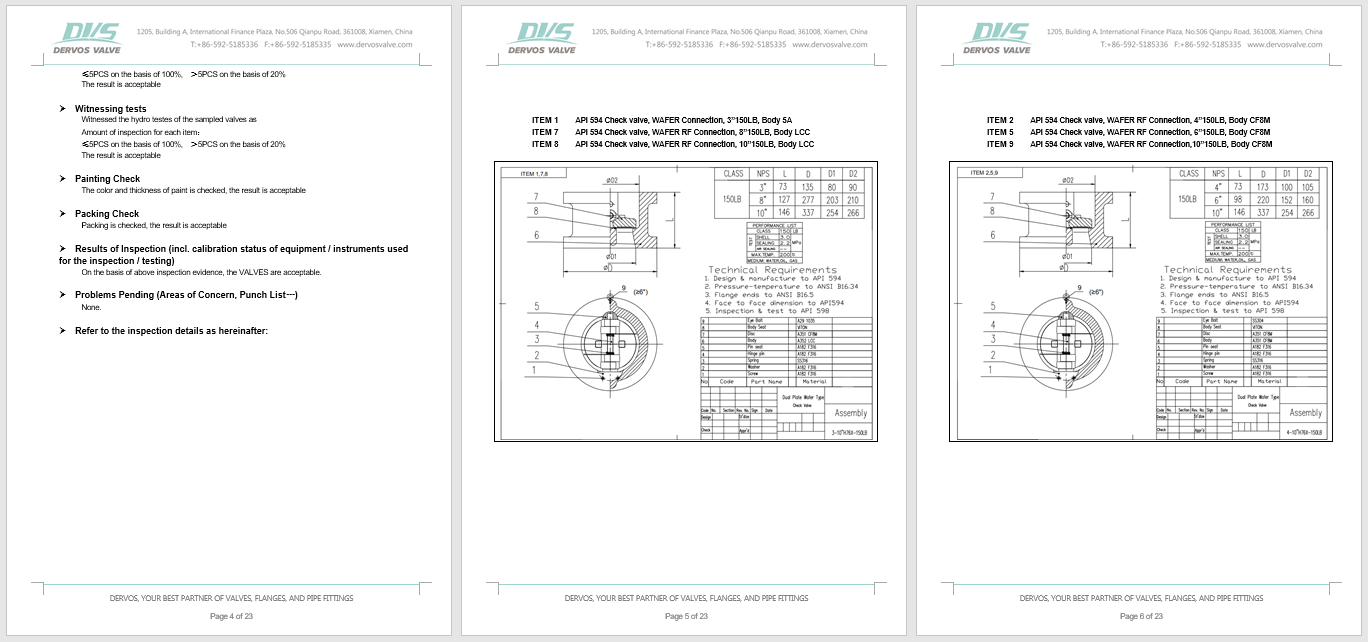

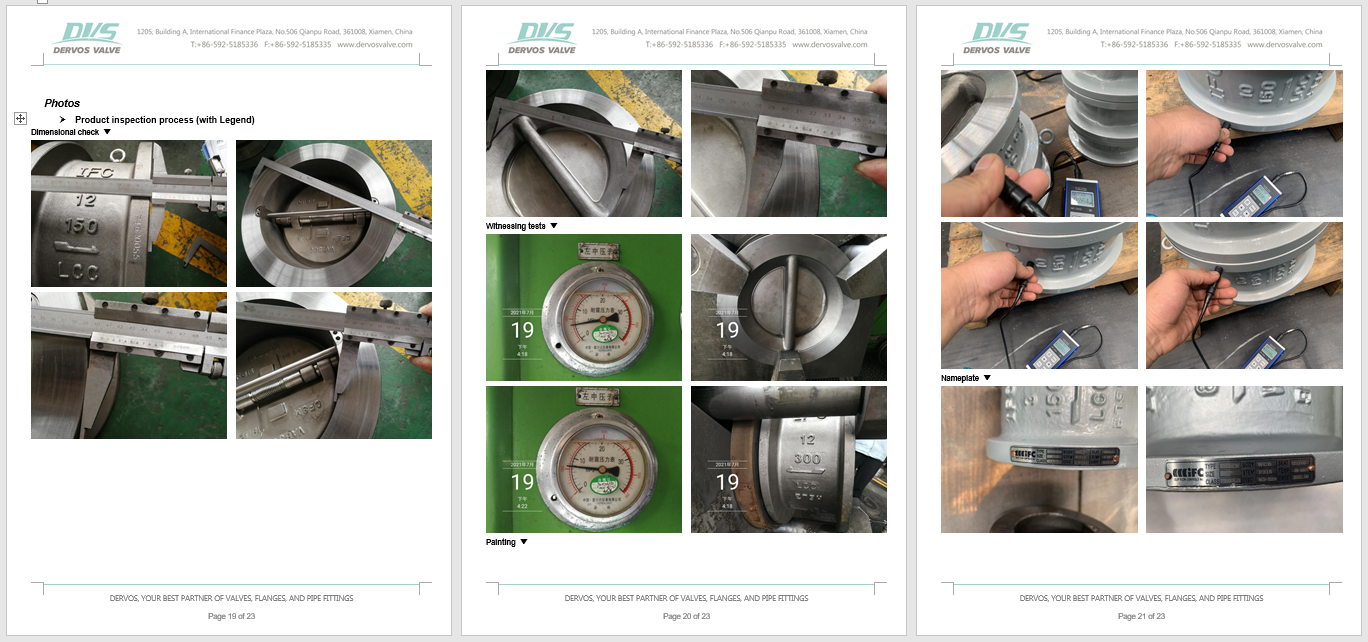

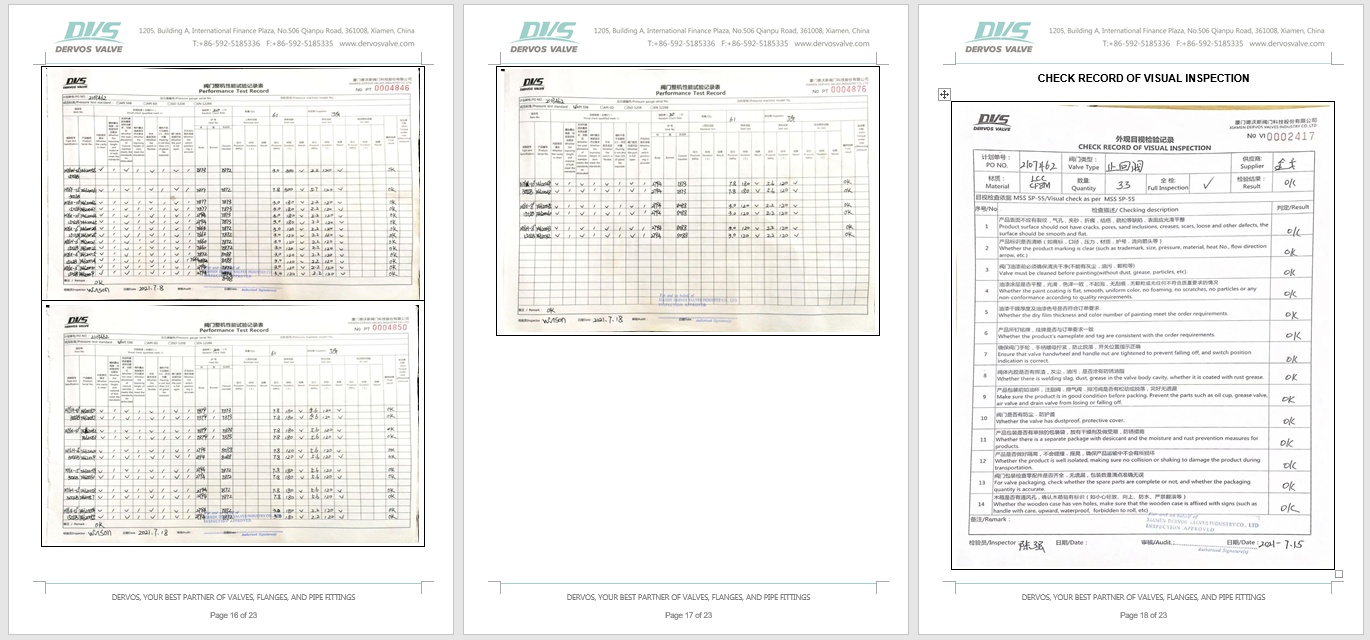

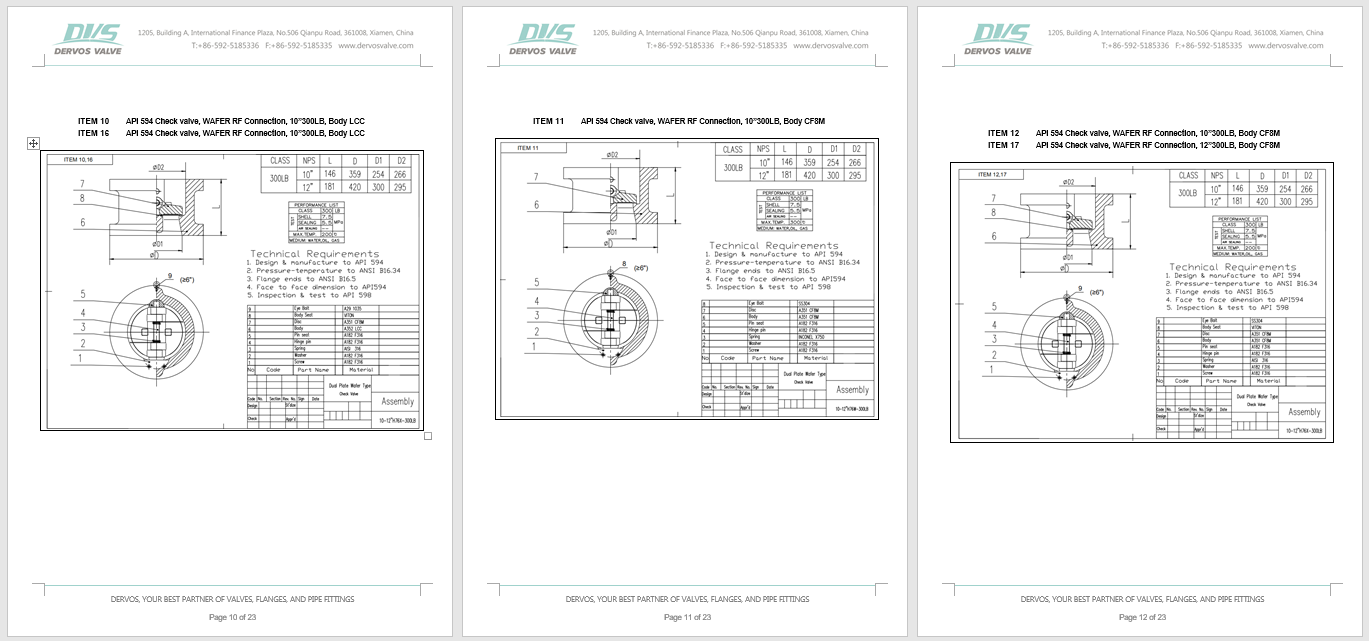

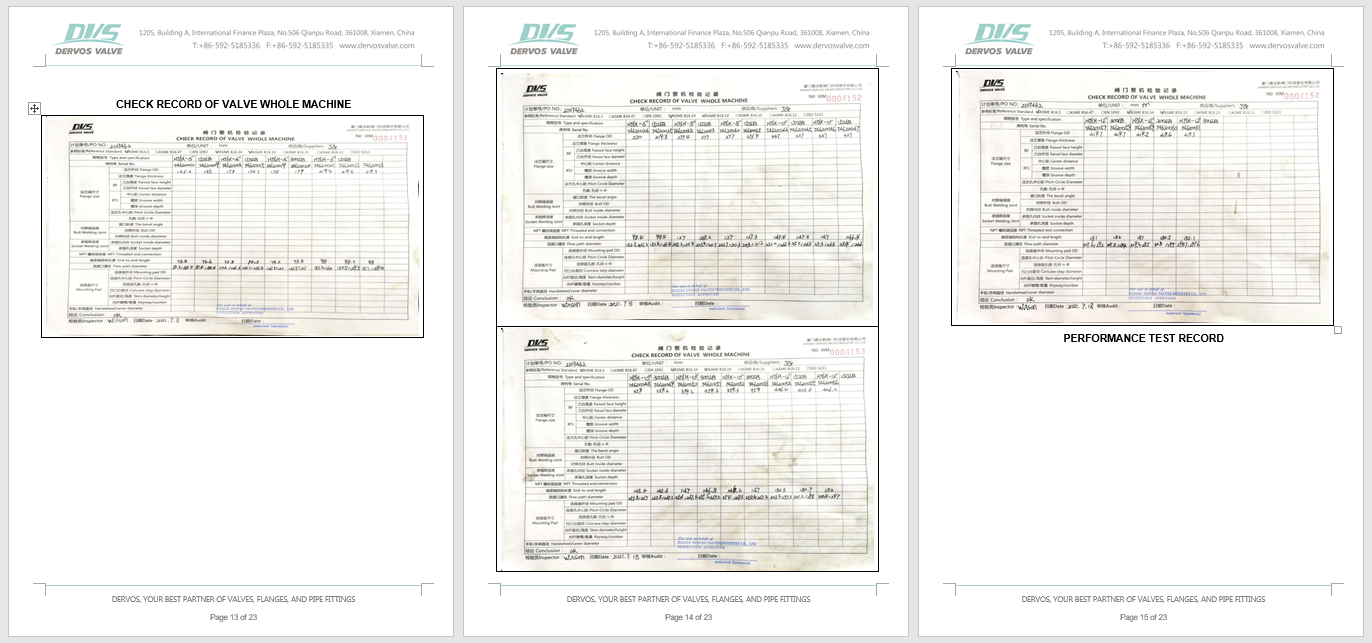

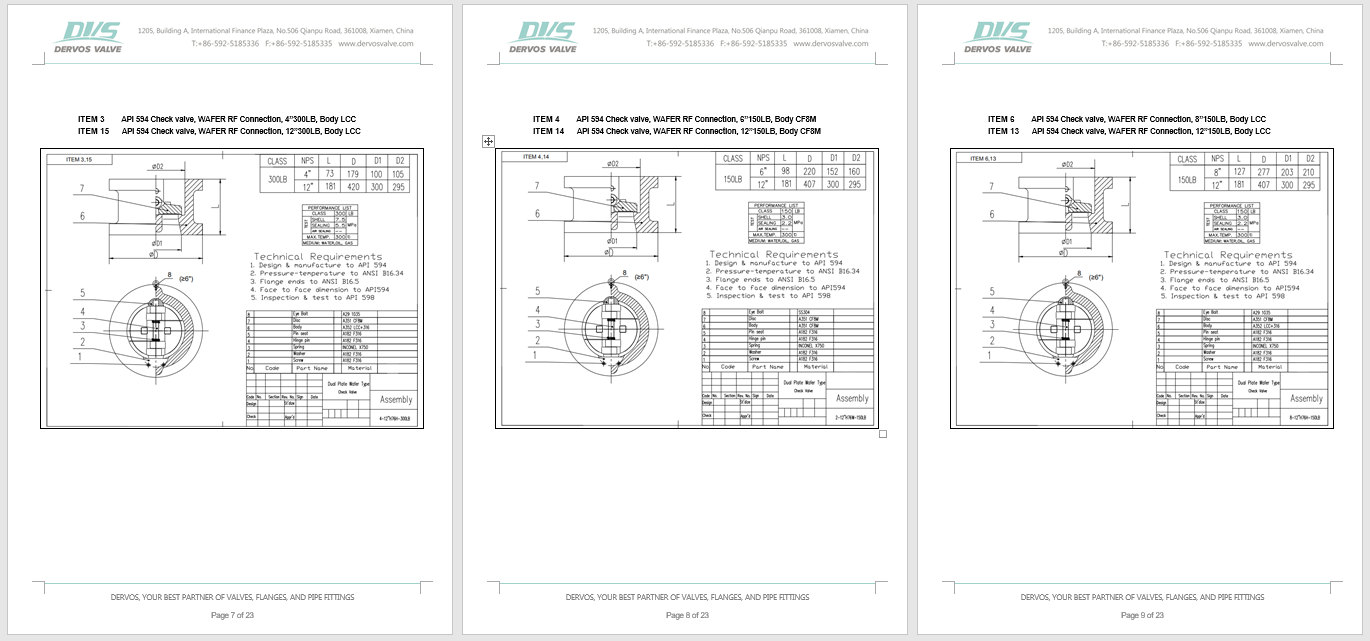

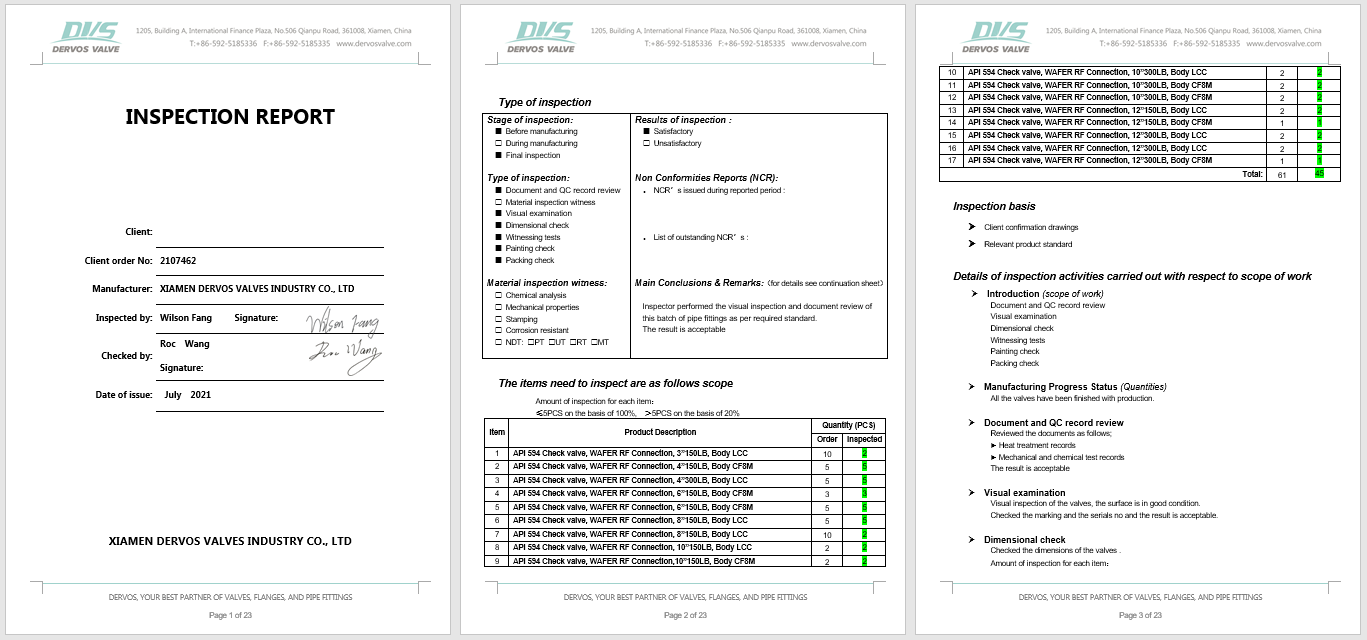

Inspection report
Introduction
10 Inch 1500 LB gate valve is made according to API 594 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of a dual plate and built-in type. Its connection mode is wafer RF type.
Features
1. Small size, lightweight, compact structure and convenient maintenance;
2. Good check performance, safety and reliability, small flow resistance coefficient, reliable sealing performance and long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
