ASTM A351 CF8M Dual Plate Check Valve, API 594, 10IN, CL150
Key Specifications / Features
We Provide ASTM A351 CF8M Dual Plate Check Valves, ASTM A351 CF8M Wafer Check Valves, Dual Plate API 594, 10 Inch, DN250, Class 150 LB, PN20, RF End.
- Hits: 7
- Categories: Wafer Check Valve
- Tags: Dual Plate Check Valves , ASTM A351 CF8M Check Valve , API 594 Check Valve
Detail Information
API 594 10" 150 LB Dual Plate Check Valve ASTM A351 CF8M Wafer RF
Introduction
10" 150LB wafer check valve is made according to API 594 standards. The valve body is made of A351 CF8M. It has the structural characteristics of a double plate and built-in type. Its connection mode is wafer RF.
Features
1. Wafer check valve belongs to the automatic valve category and is mainly used on the pipeline with a one-way flow of medium;
2. Wafer structure, short length, small volume, lightweight, convenient installation.

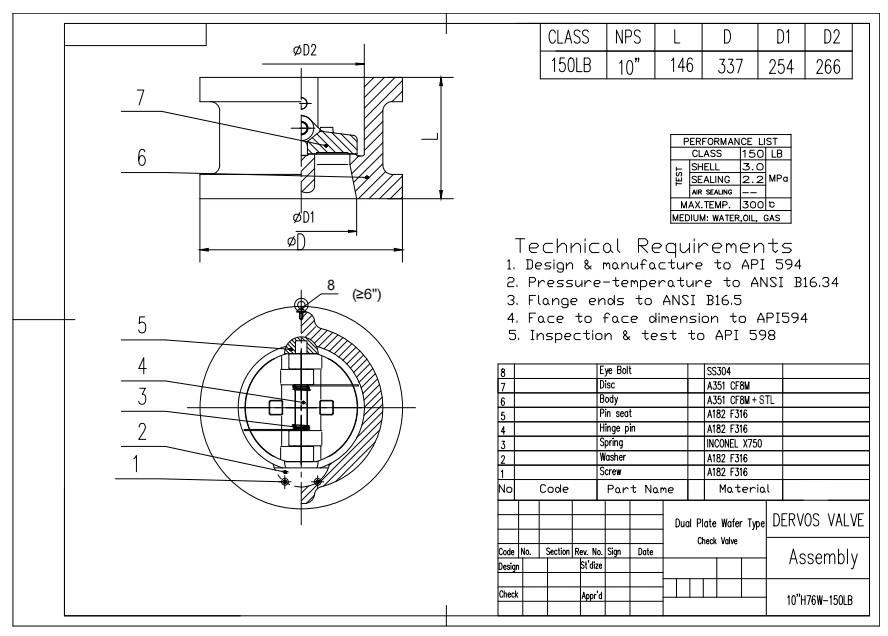

Technical Drawing

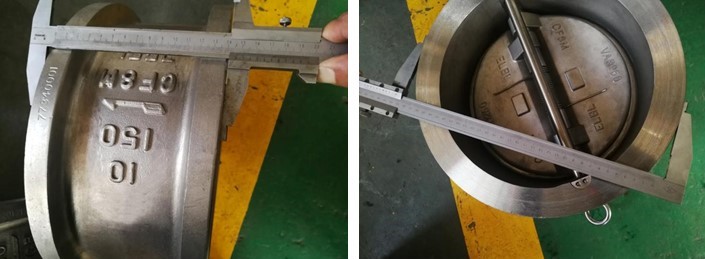

Dimension Checking

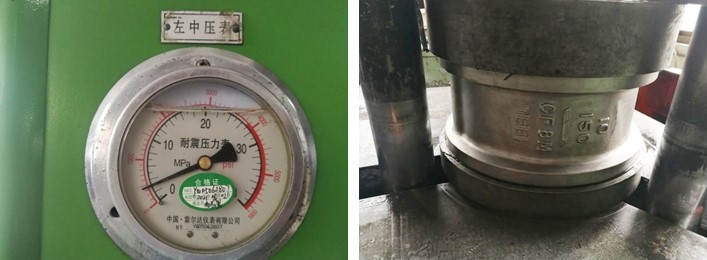

Pressure Testing

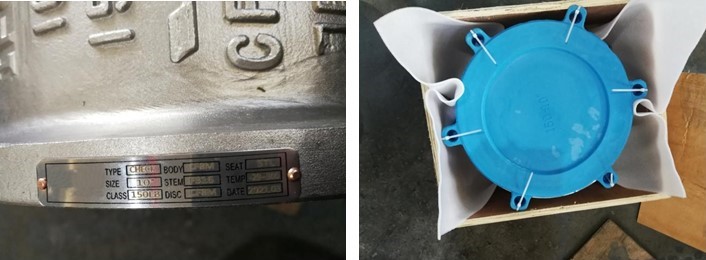

Nameplate & Packing

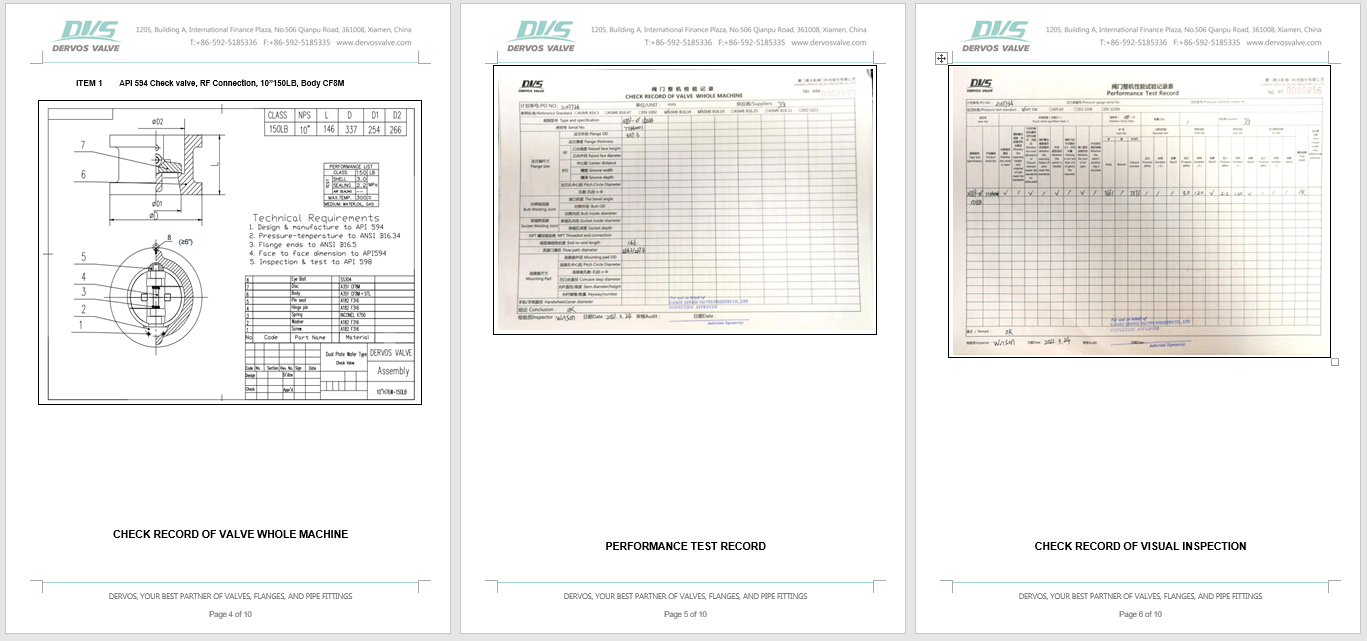

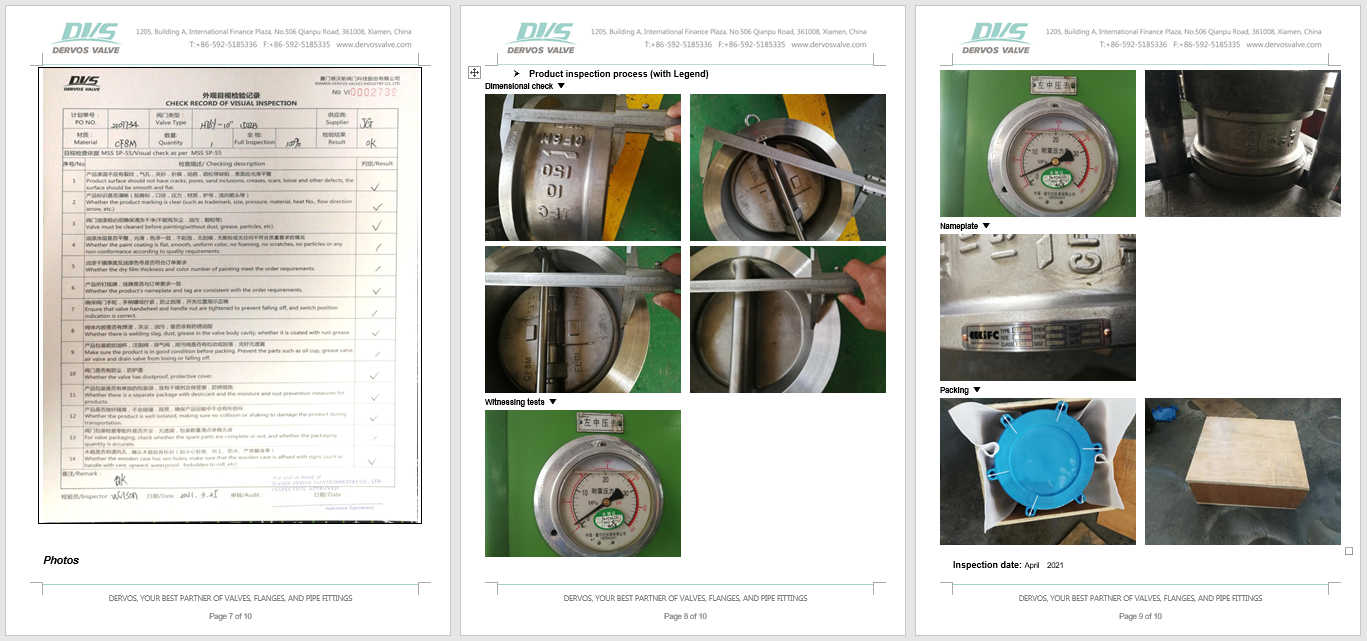

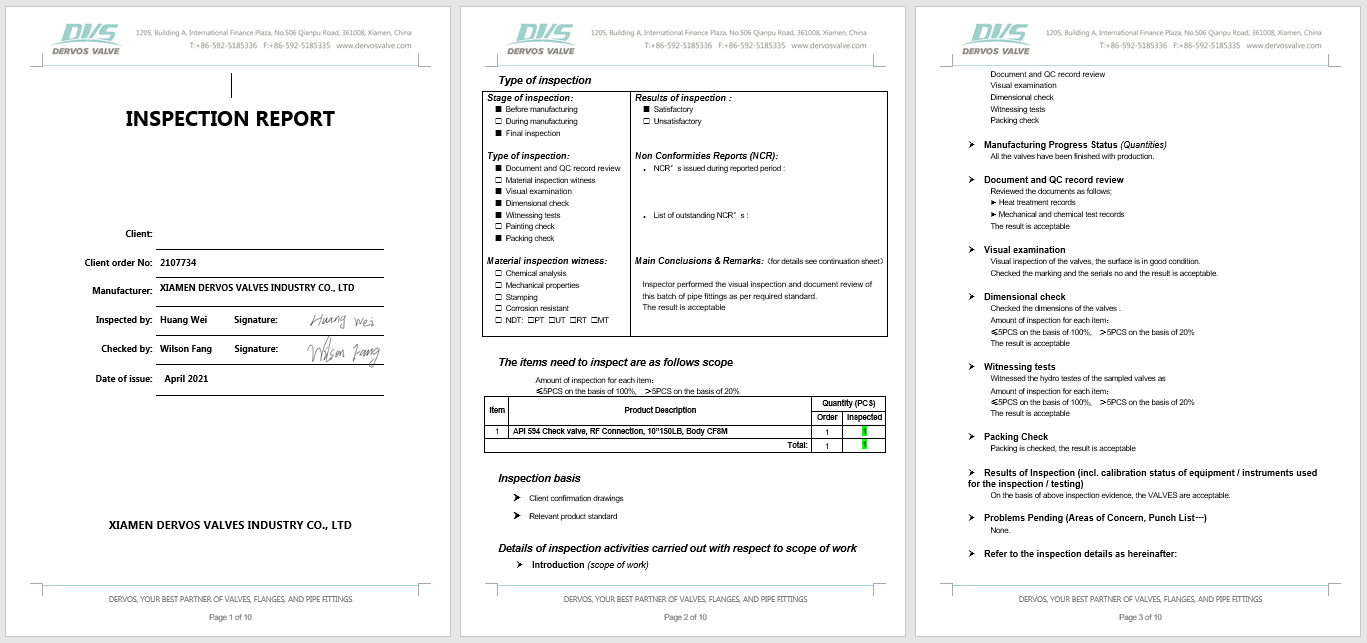

Inspection report
Introduction
10" 150LB wafer check valve is made according to API 594 standards. The valve body is made of A351 CF8M. It has the structural characteristics of a double plate and built-in type. Its connection mode is wafer RF.
Features
1. Wafer check valve belongs to the automatic valve category and is mainly used on the pipeline with a one-way flow of medium;
2. Wafer structure, short length, small volume, lightweight, convenient installation.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
