ASTM A216 WCB Wafer Check Valve, 10 Inch, 150 LB, API 594
Key Specifications / Features
We Provide ASTM A216 WCB Wafer Check Valves, ASTM A216 WCB Dual Plate Check Valves, 10 Inch, DN250, 150 LB, API 594, Double Plate Built-in Type, Wafer RF Ends.
- Hits: 9
- Categories: Wafer Check Valve
- Tags: ASTM A216 WCB Check Valve , Wafer Check Valve , 10 Inch Check Valve
Detail Information
API 594 10" 150 LB Dual Plate Wafer Check Valve WCB
Introduction
10" 150 LB wafer check valve is made according to API 594 standard. The valve body is made of WCB. It has the structural characteristics of a double plate and built-in type. Its connection mode is wafer RF type.
Features
1. It can be installed horizontally or vertically on medium pipelines such as water to prevent medium backflow;
2. Wide application range, high-temperature resistance, sensitive opening and closing, and good sealing performance.

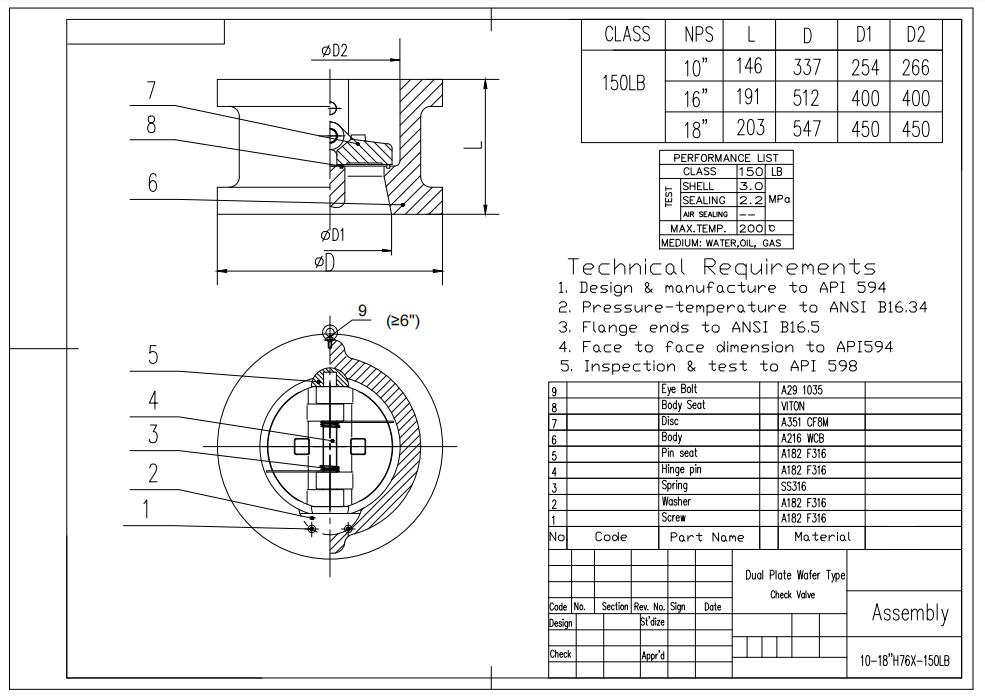

Technical Drawing

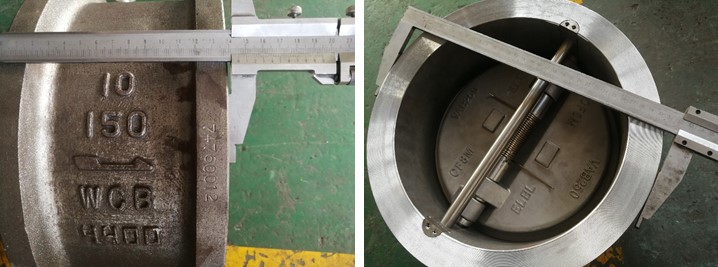

Dimension Checking

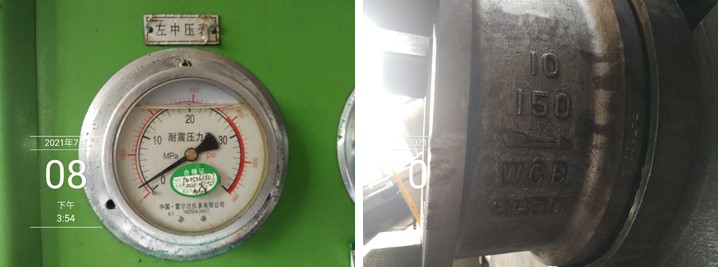

Pressure Testing

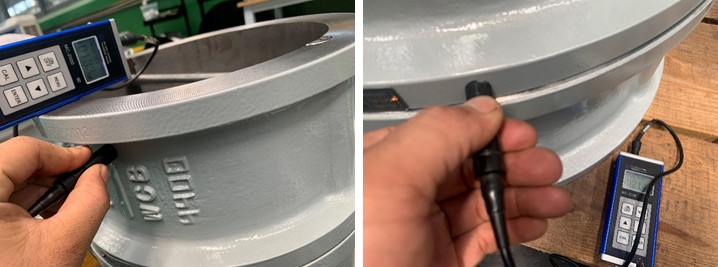

Painting

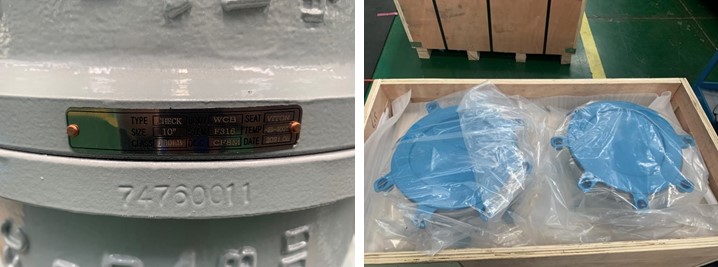

Nameplate &Packing

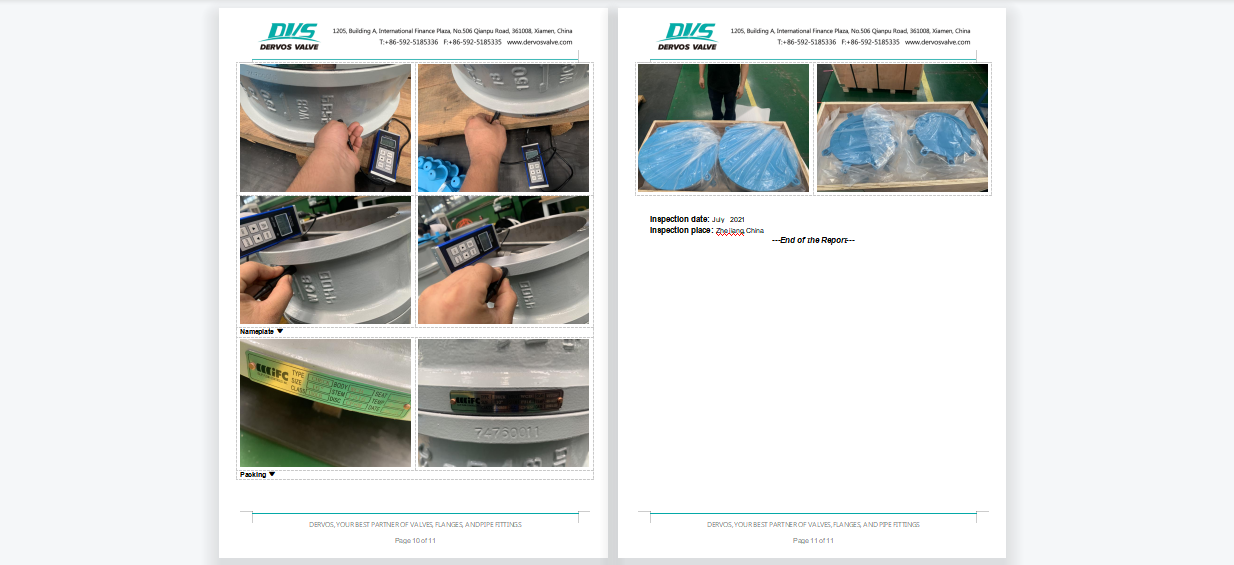

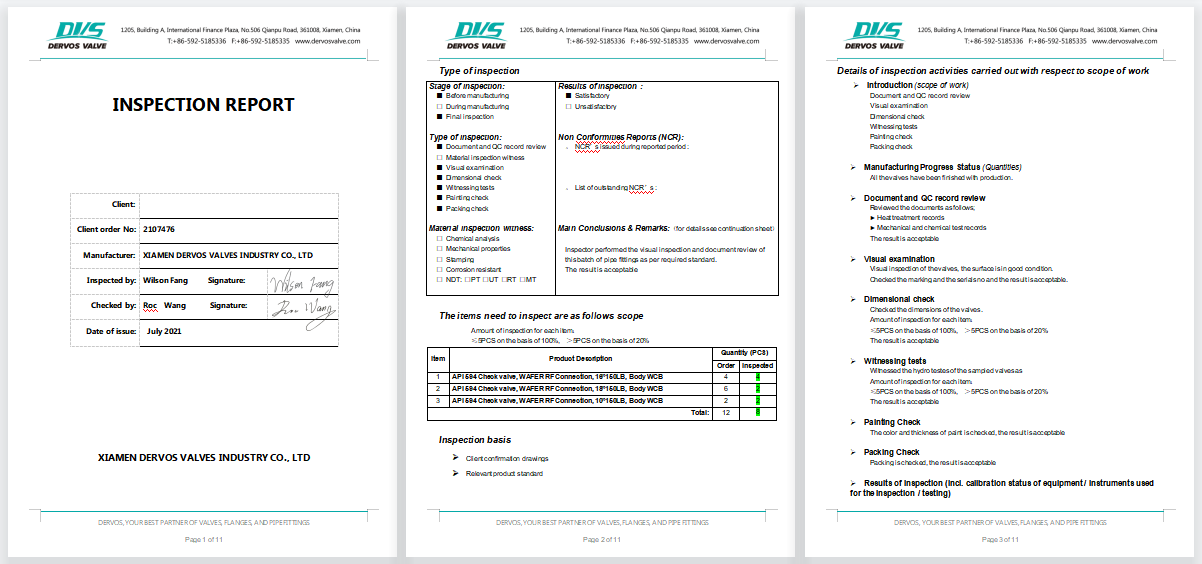

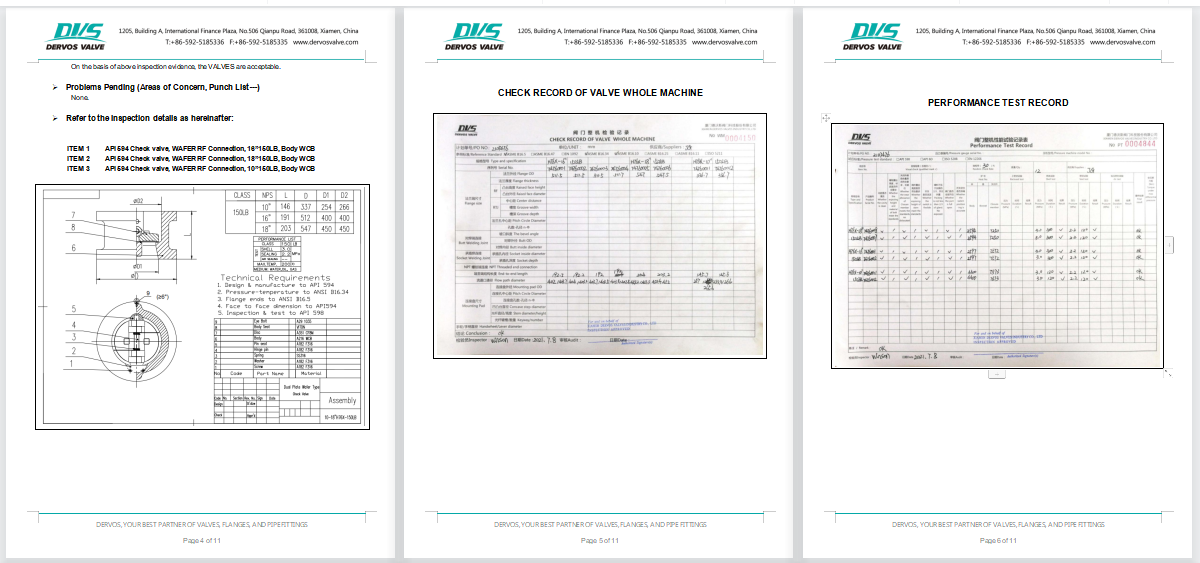

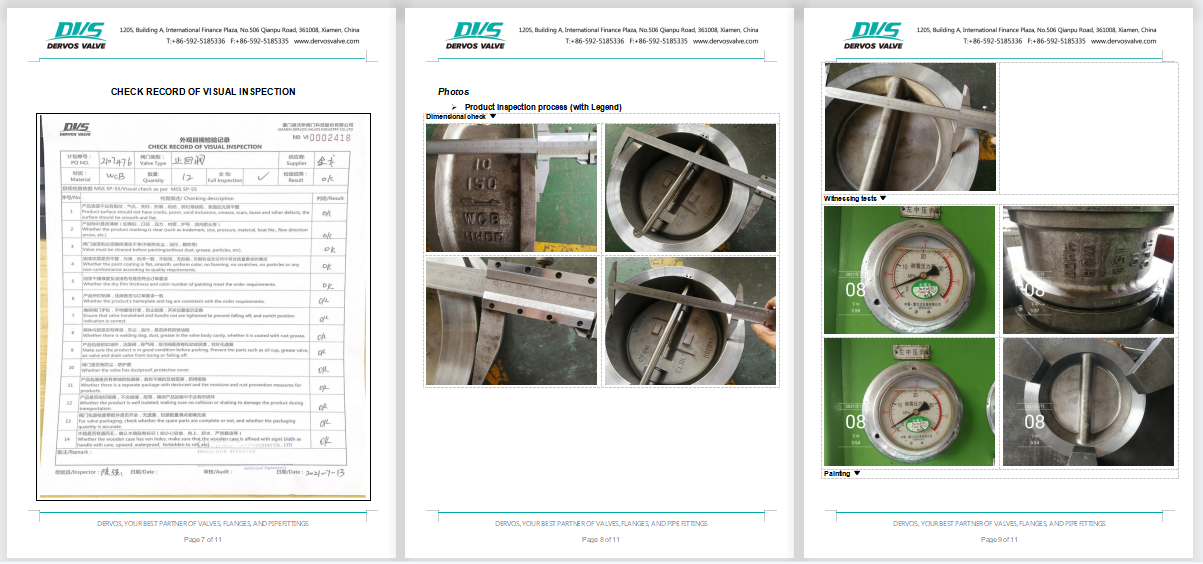

Inspection report
Introduction
10" 150 LB wafer check valve is made according to API 594 standard. The valve body is made of WCB. It has the structural characteristics of a double plate and built-in type. Its connection mode is wafer RF type.
Features
1. It can be installed horizontally or vertically on medium pipelines such as water to prevent medium backflow;
2. Wide application range, high-temperature resistance, sensitive opening and closing, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate &Packing
Inspection report
