Dual Plate Wafer Check Valve, API 594, 16 Inch, 150 LB, RF
Key Specifications / Features
16 Inch 150LB check valve is made according to API 594 standards. The valve body is made of A216 WCB+316. It has the structural characteristics of a double plate. Its connection mode is Wafer (RF)
- Hits: 7
- Categories: Wafer Check Valve
- Tags: Dual Plate Check Valves , API 594 Check Valve , 16 Inch Check Valve
Detail Information
16 Inch DN400 150 LB Dual Plate Wafer Type Check Valve WCB API 594
Features
1. Sensitive action, good sealing performance, short valve disc stroke, and low closing impact force;
2. Overall structure, simple and compact, beautiful appearance, long service life, and high reliability.

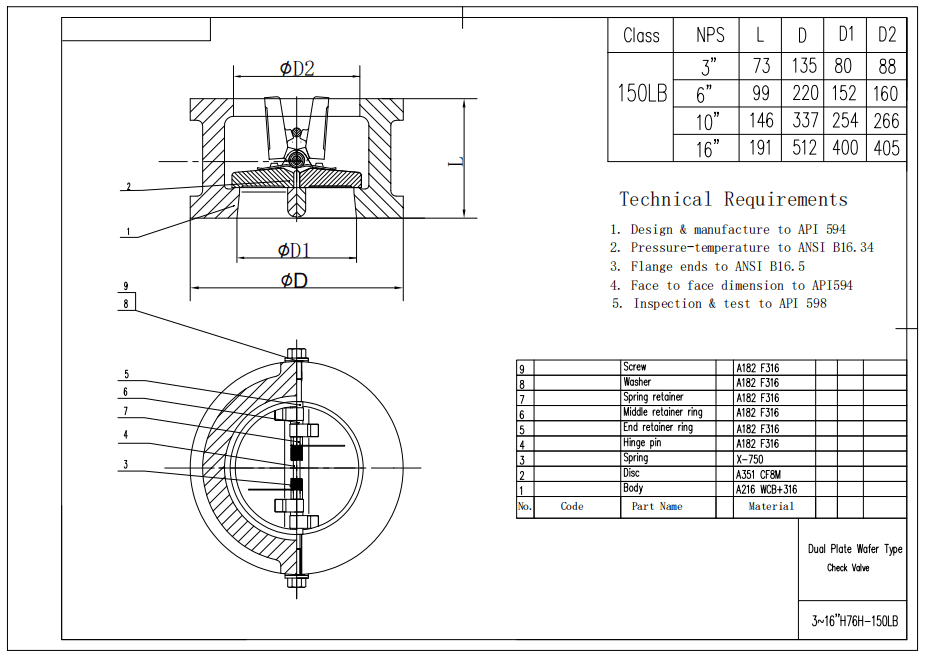

Technical Drawing

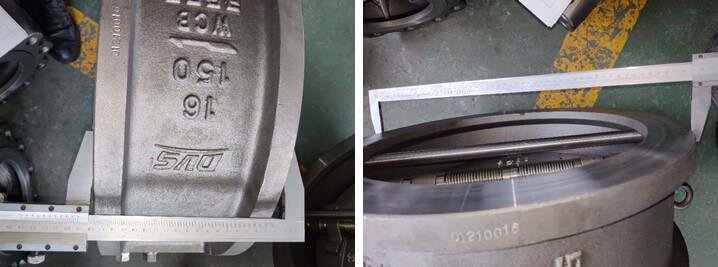

Dimension Checking

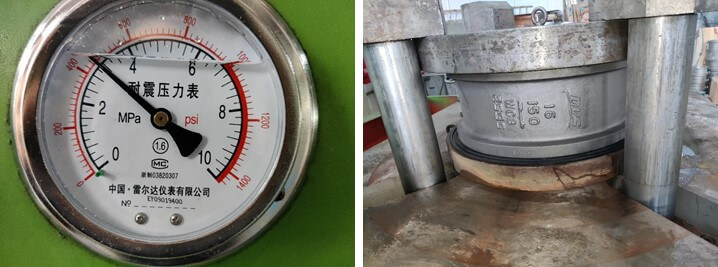

Pressure Testing

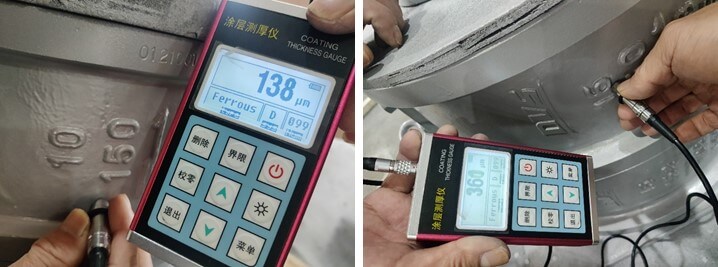

Painting

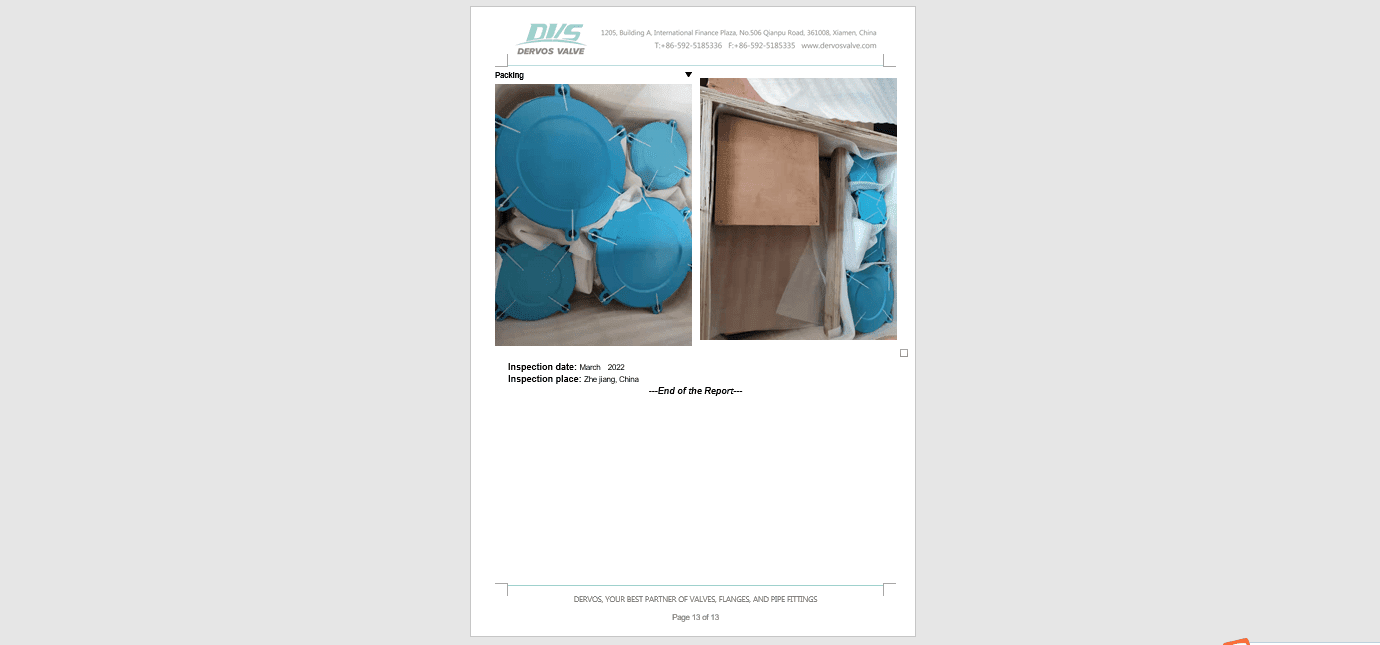

Nameplate & Packing

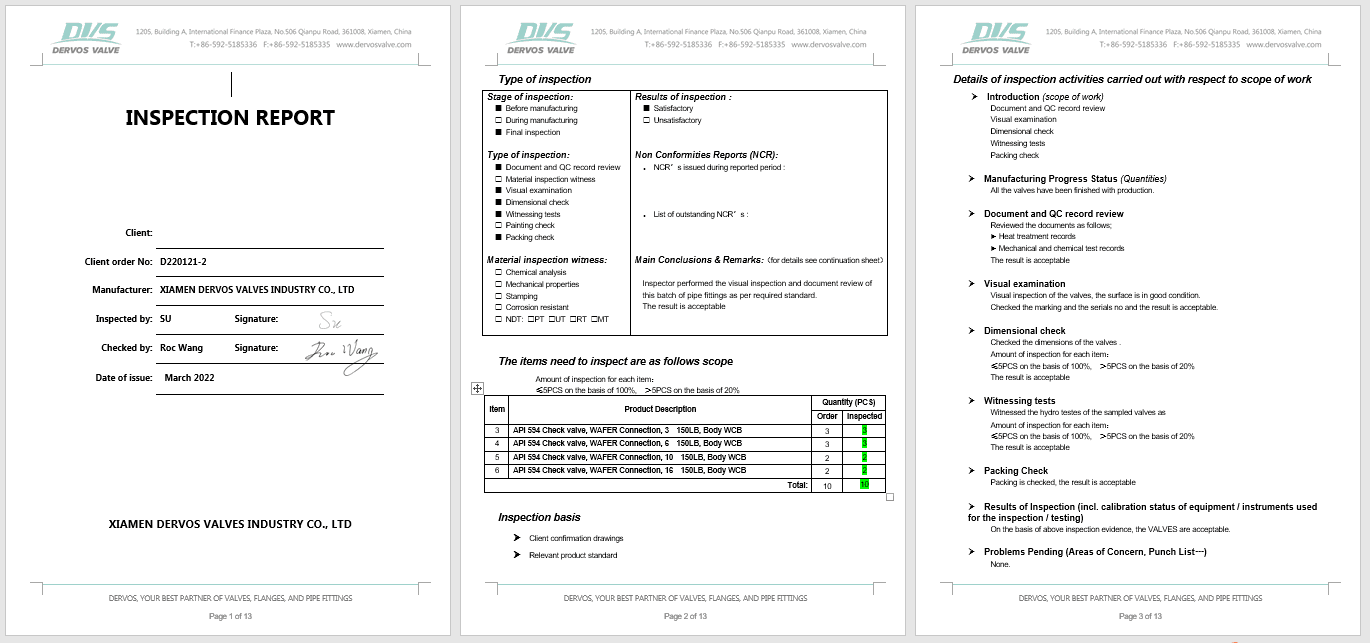

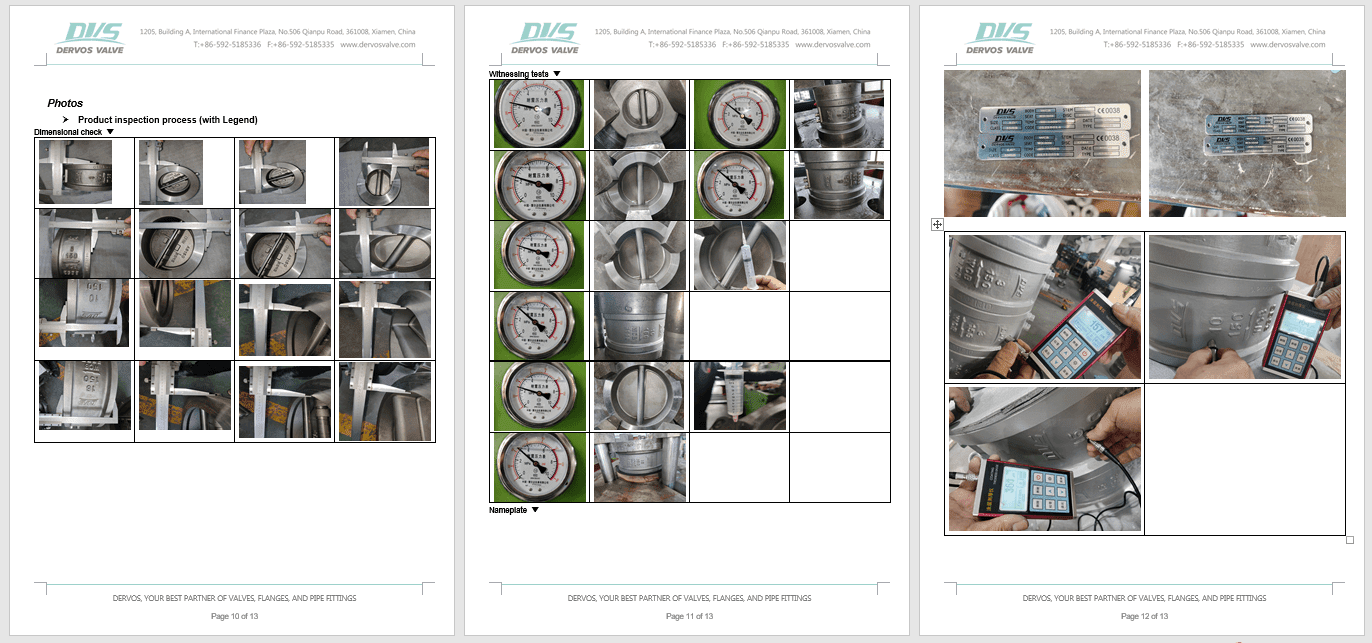

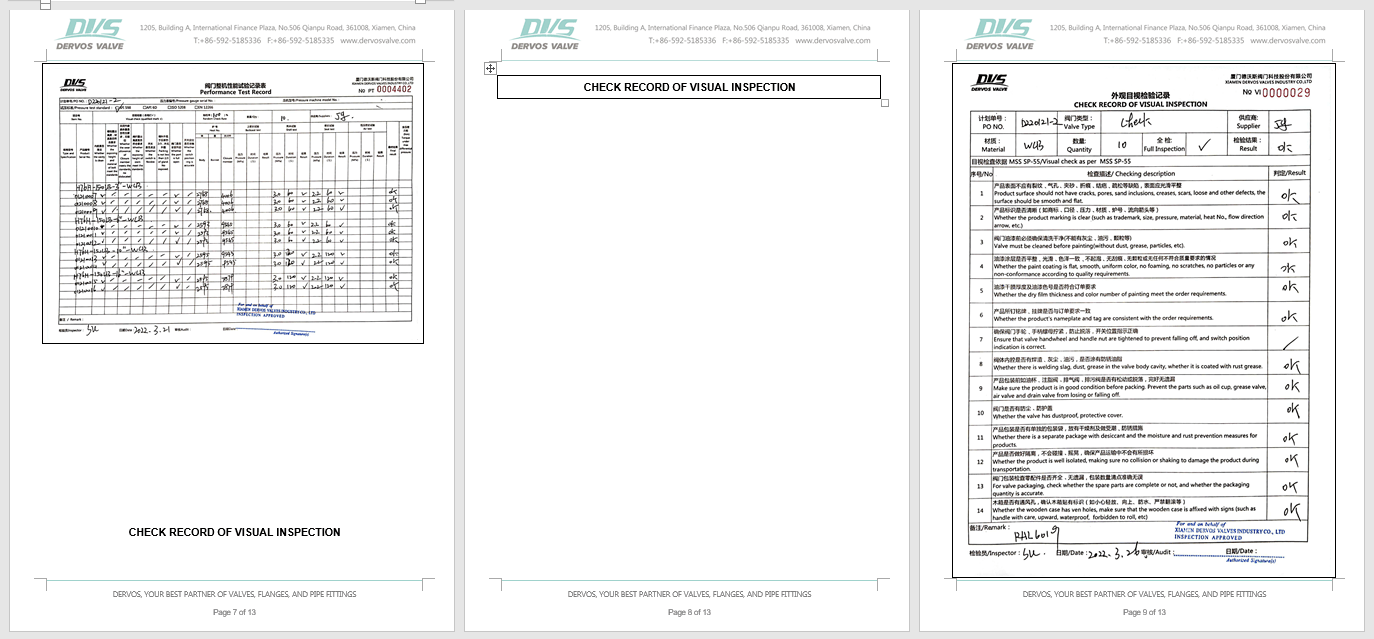

Inspection report
Features
1. Sensitive action, good sealing performance, short valve disc stroke, and low closing impact force;
2. Overall structure, simple and compact, beautiful appearance, long service life, and high reliability.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
