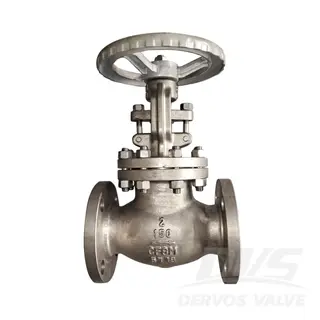

BS 1873 Cast Steel Globe Valve, A216 WCB, 10 Inch, CL150, RF
Key Specifications / Features
The 10-inch, 150-lb cast steel globe valve is manufactured in compliance with the BS 1873 standard. The valve body is made from ASTM A216 WCB with a Stellite (STL) overlay for enhanced durability. Featuring a straight-through design with a rising stem and plug-type valve disc, it ensures reliable flow control. The valve has an RF (raised face) connection and operates manually using a handwheel.
- Model No.: Kelly-GLV-20241018-01
- Hits: 10
- Categories: Globe Valve
- Tags: Cast Steel Globe Valve , ASTM A216 WCB Globe Valve , 10 Inch Globe Valve
Detail Information
BS 1873 Cast Steel Globe Valve, ASTM A216 WCB Body, RF Flanged Ends.
Features:
1. Made from cast steel, offering excellent wear and corrosion resistance, making it suitable for various media such as mildly corrosive fluids, steam, and petroleum, which extends the valve's service life.
2. With a simple structure, the valve seat and disc are easily detachable and replaceable, making maintenance straightforward, and ideal for environments requiring frequent servicing or overhauls.

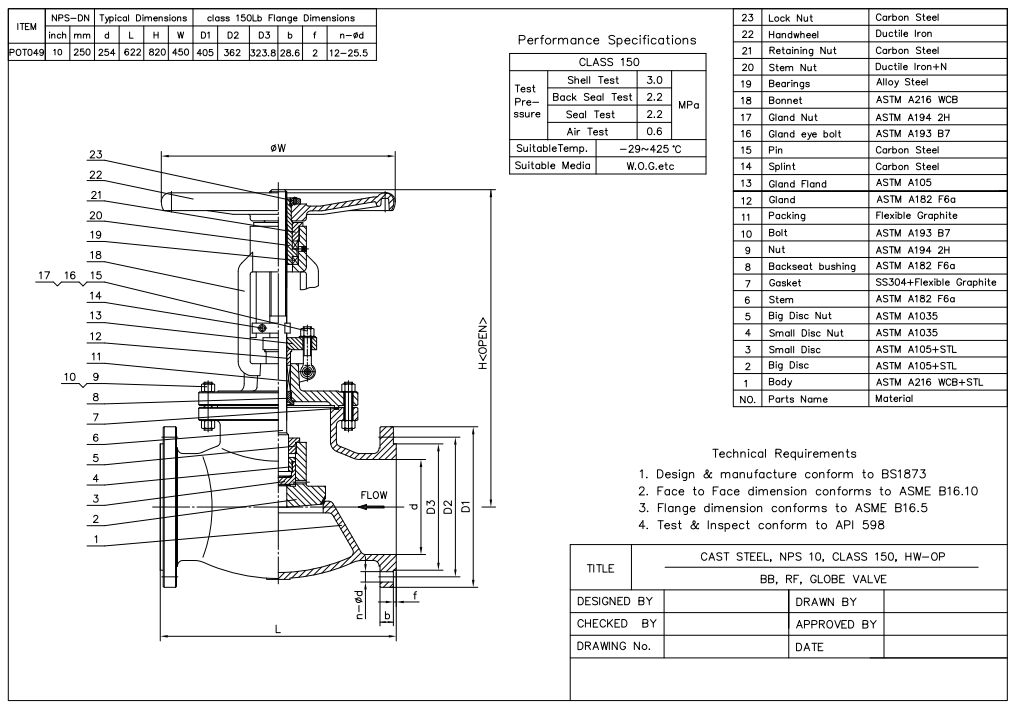

Technical Drawing

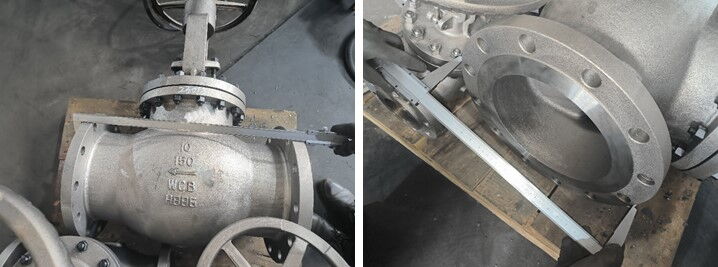

Dimension Checking

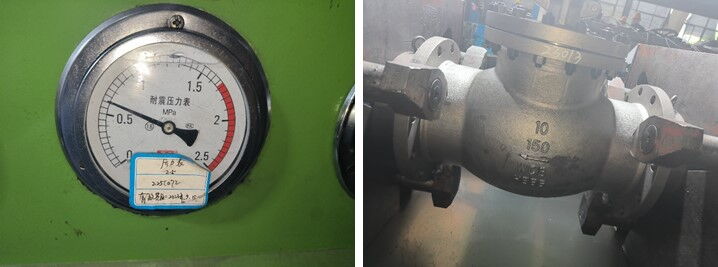

Pressure Testing

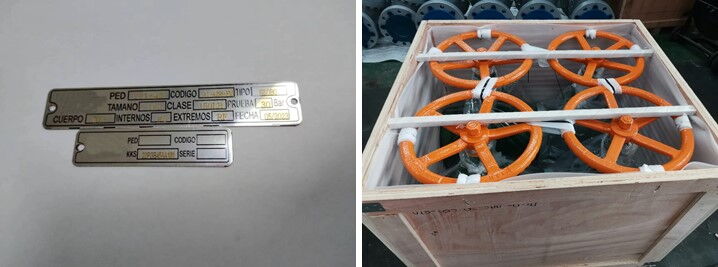

Nameplate & Packing

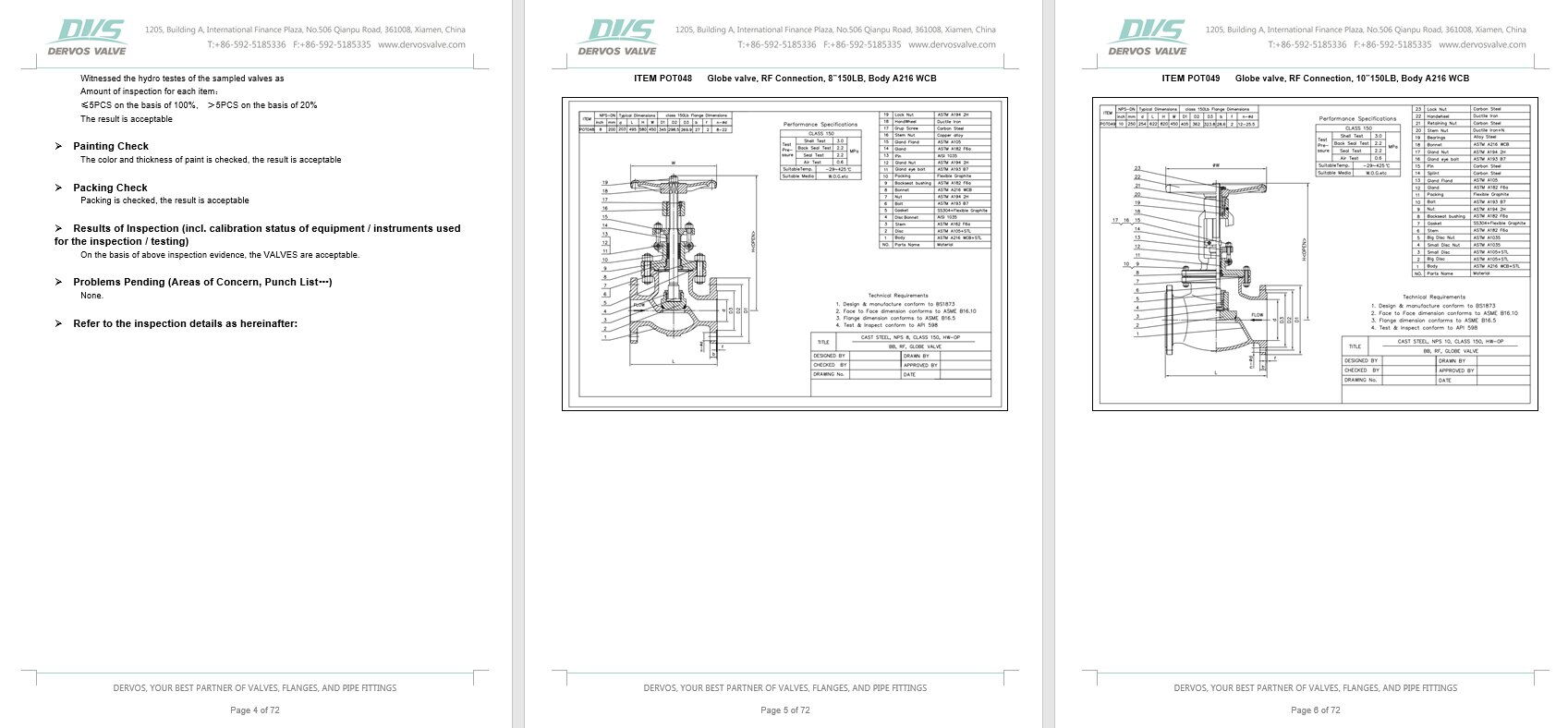

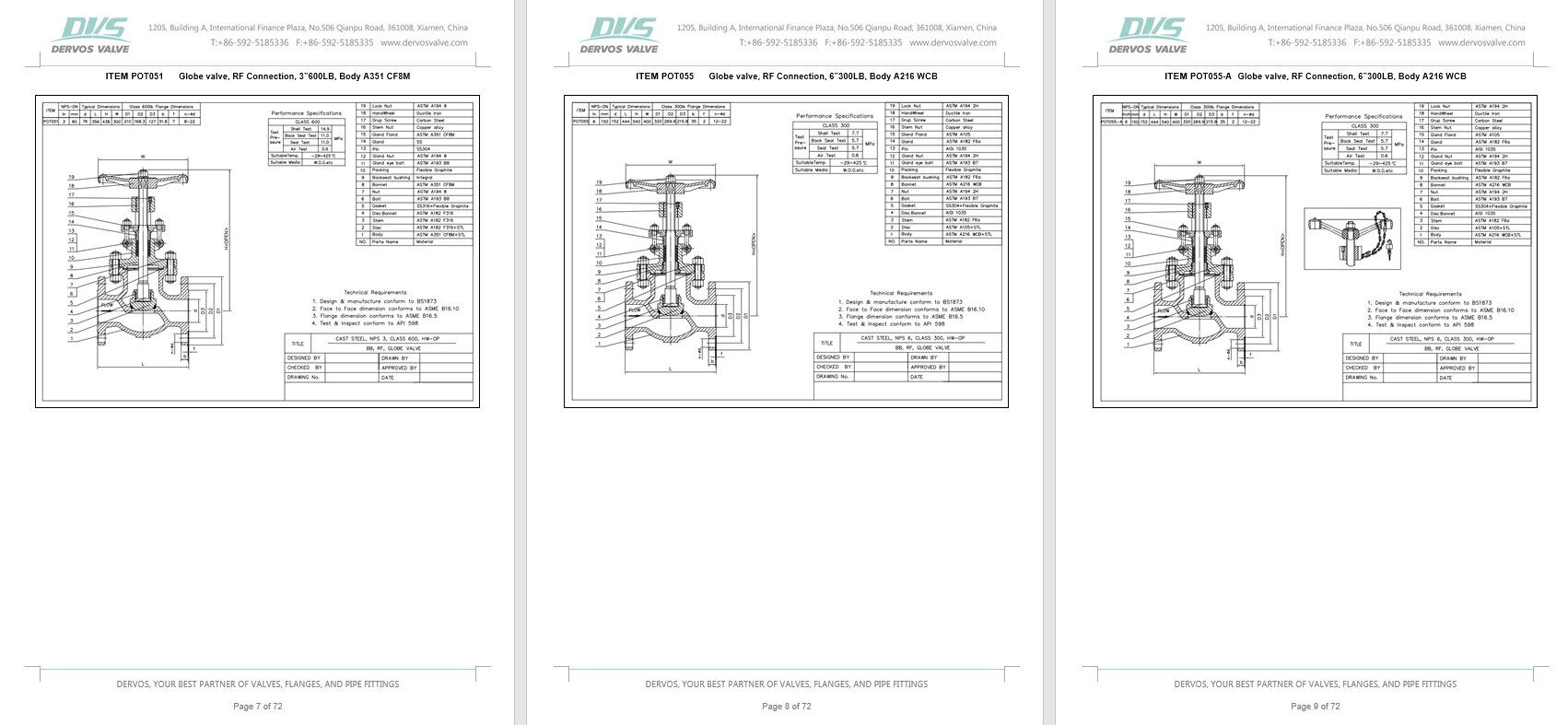

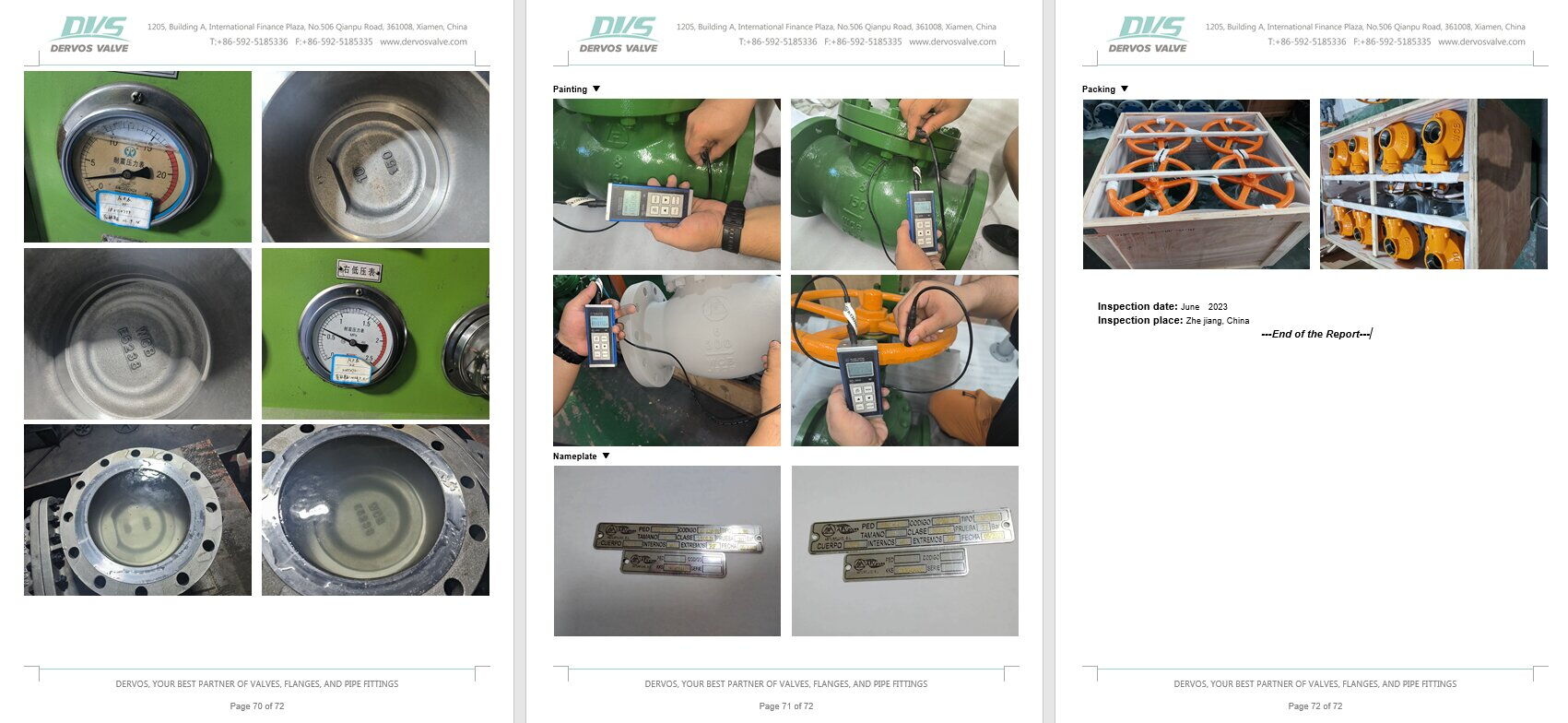

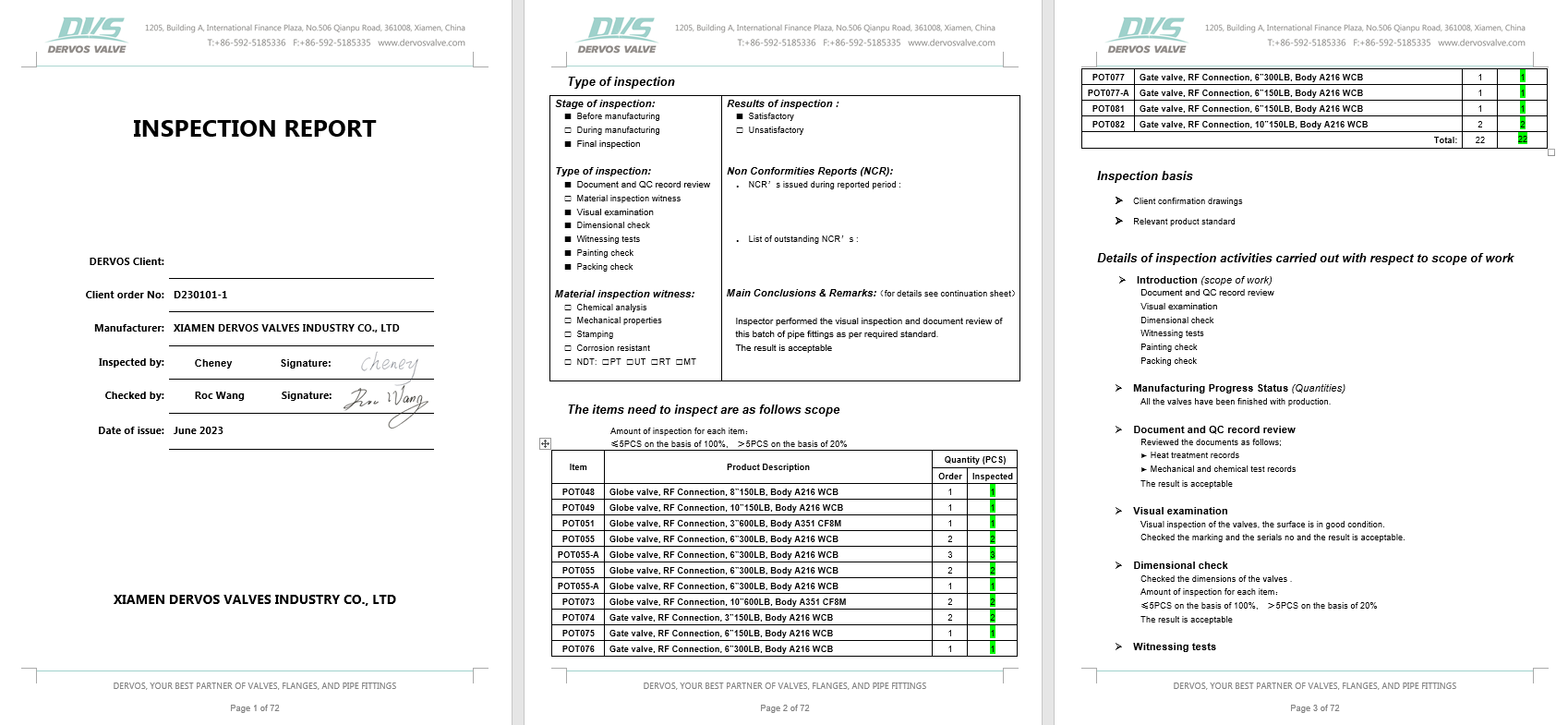

Inspection Report
