BS 1873 Stainless Steel Globe Valve, A351 CF8M, 6 IN, CL300
Key Specifications / Features
The 6-inch, class 300 LB stainless steel globe valve is built to BS 1873 standards, featuring a durable ASTM A351 CF8M body. Designed with the structural characteristics of an ammonia shut-off valve, it connects via RF ends and is operated with a handwheel.
- Model No.: Kelly-GLV-20241031-01
- Hits: 8
- Categories: Globe Valve
- Tags: BS 1873 Globe Valve , Stainless Steel Globe Valve , ASTM A351 CF8M Globe Valve
Detail Information
Stainless Steel Globe Valves, BS 1873, ASTM A351 CF8M Body, Handwheel.

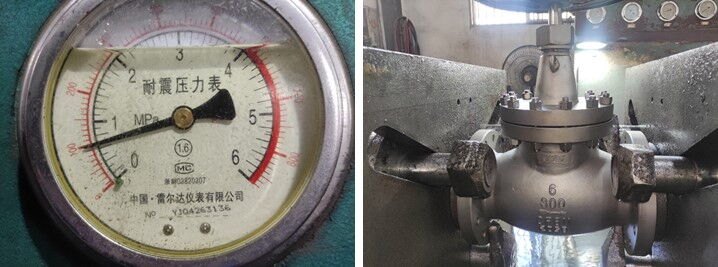

Pressure Testing

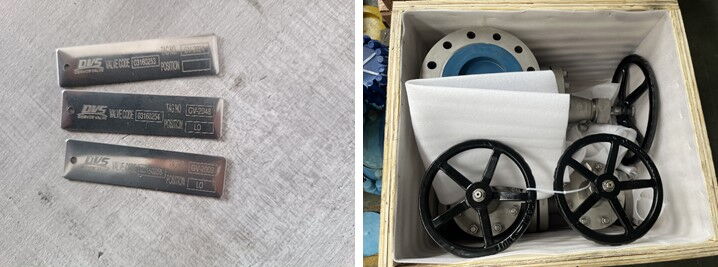

Nameplate & Packing

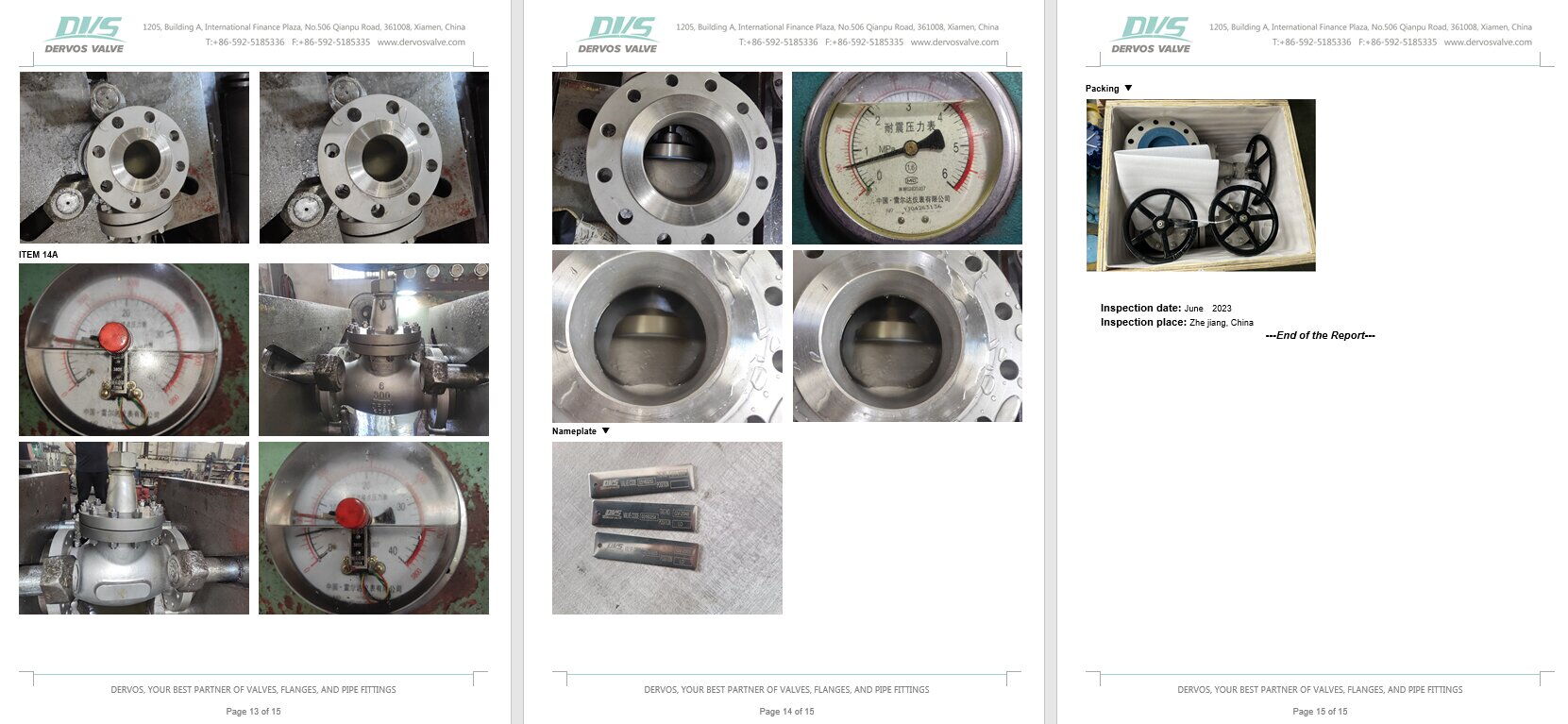

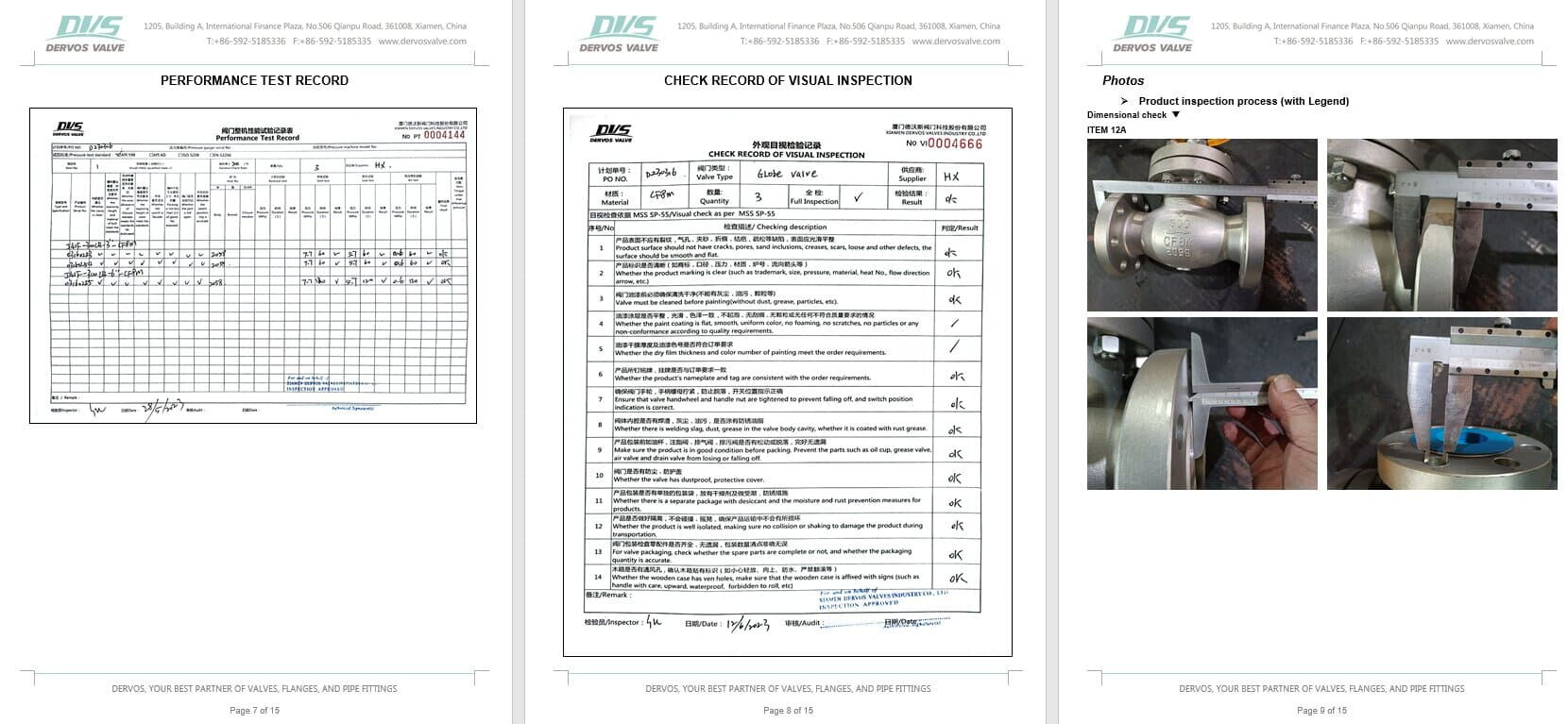

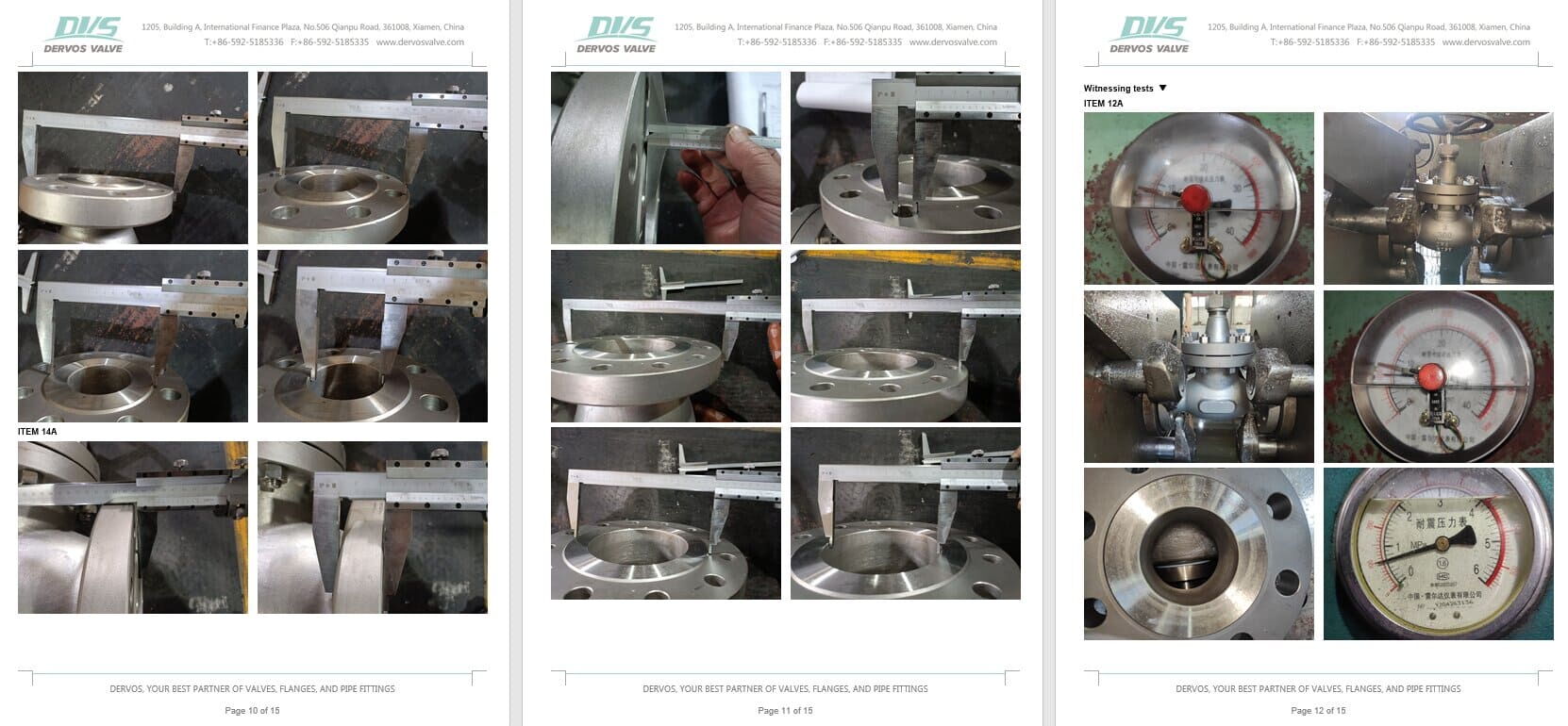

Inspection Report
Features
1. Short opening and closing stroke for rapid fluid cutoff, ideal for applications requiring frequent operation.
2. Simple structure and easy maintenance, suitable for systems needing regular inspection and upkeep.

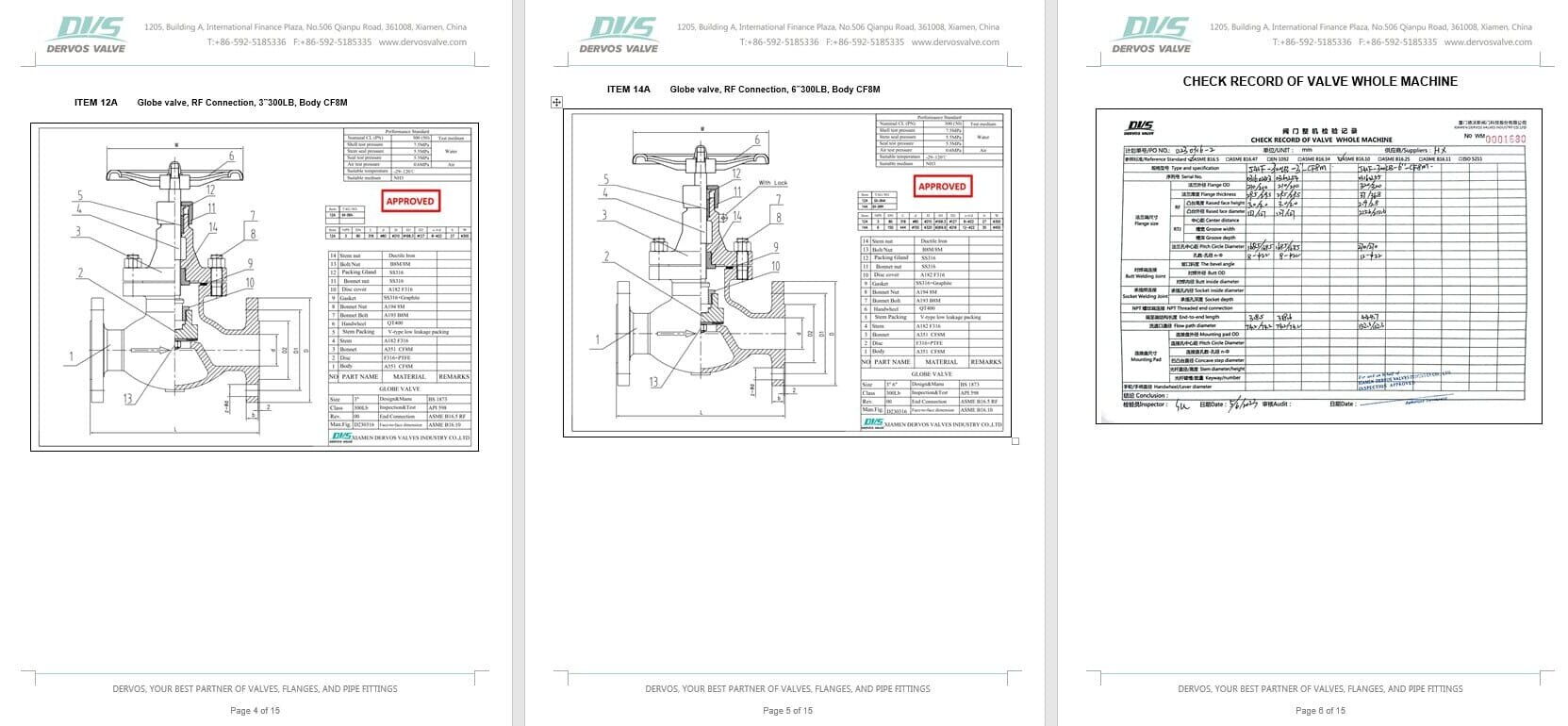

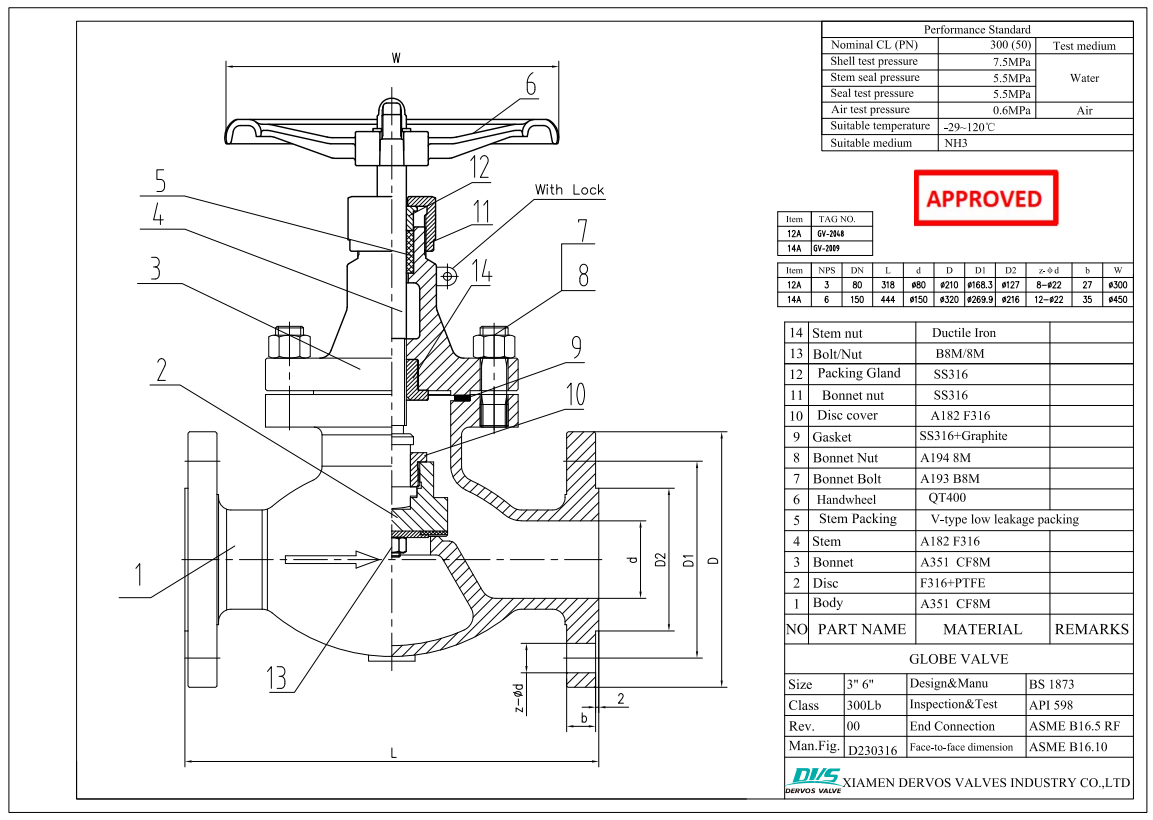

Technical Drawing
1. Short opening and closing stroke for rapid fluid cutoff, ideal for applications requiring frequent operation.
2. Simple structure and easy maintenance, suitable for systems needing regular inspection and upkeep.
Technical Drawing

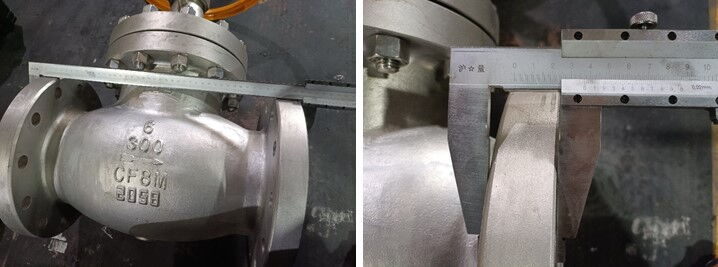

Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection Report
