BS 1873 Cast Steel Globe Valve, WCB, 8 Inch, 150 LB, DN200
Key Specifications / Features
8 Inch CL150 globe valve is made according to BS 1873 standard. The valve body is made of ASTM A216 WCB+13Cr. It has the structural characteristics of bolt cover, rising stem, low inlet and high outlet, plug valve disc. Its connection mode is RF. And it has turbine operation mode.
- Hits: 13
- Categories: Globe Valve
- Tags: Cast Steel Globe Valve , BS 1873 Globe Valve , ASTM A216 WCB Globe Valve
Detail Information
8 Inch CL150 Cast Steel Globe Valve RF WCB BS 1873 Turbine
Features
1. Wear resistance, high-temperature resistance, corrosion resistance, good scratch resistance, and long service life;
2. Compact structure with obvious features in appearance.

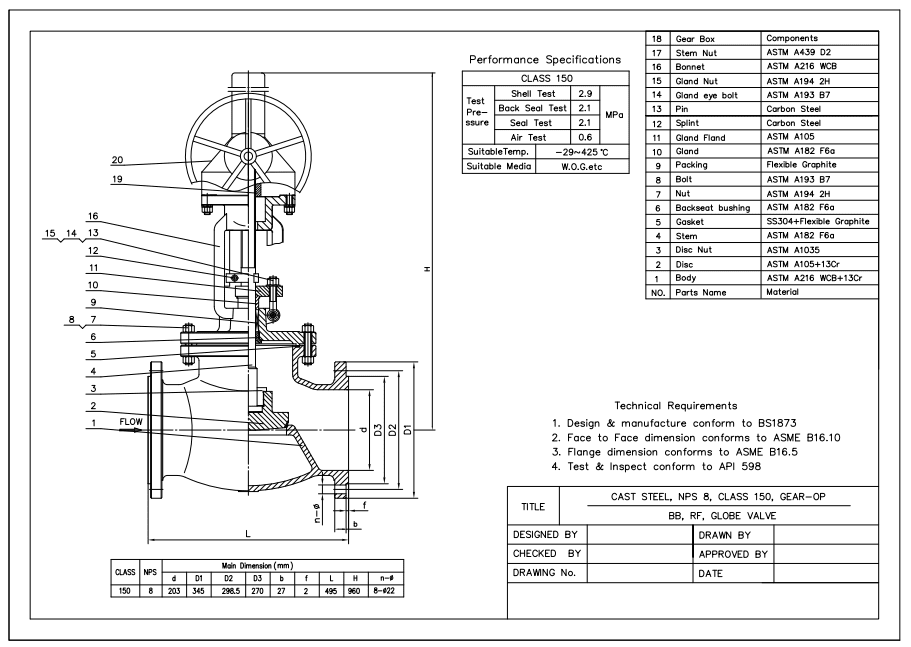

Technical Drawing

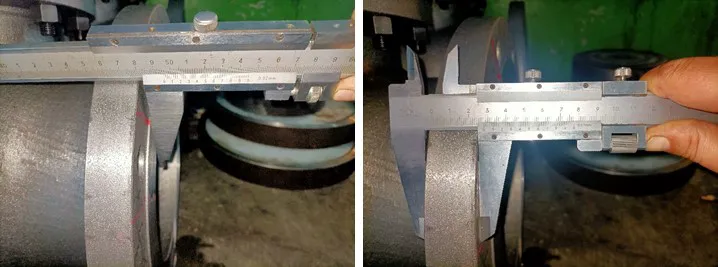

Dimension Checking

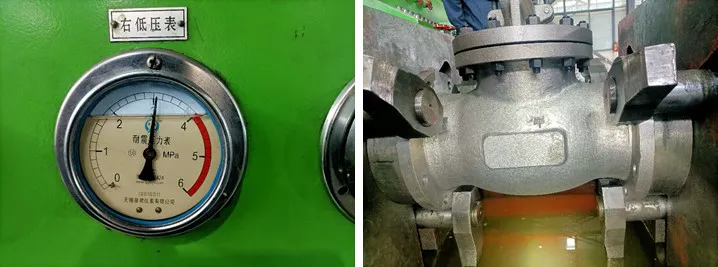

Pressure Testing
Painting

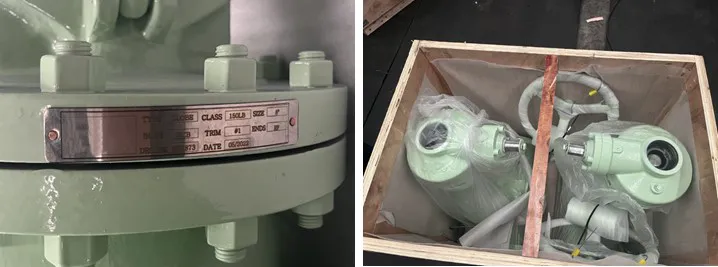

Nameplate & Packing

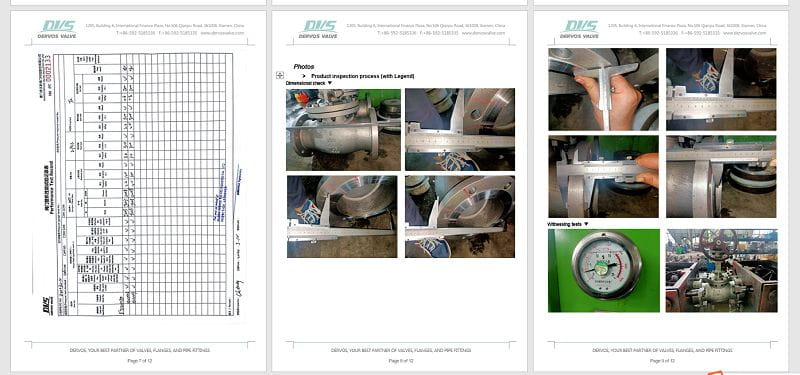

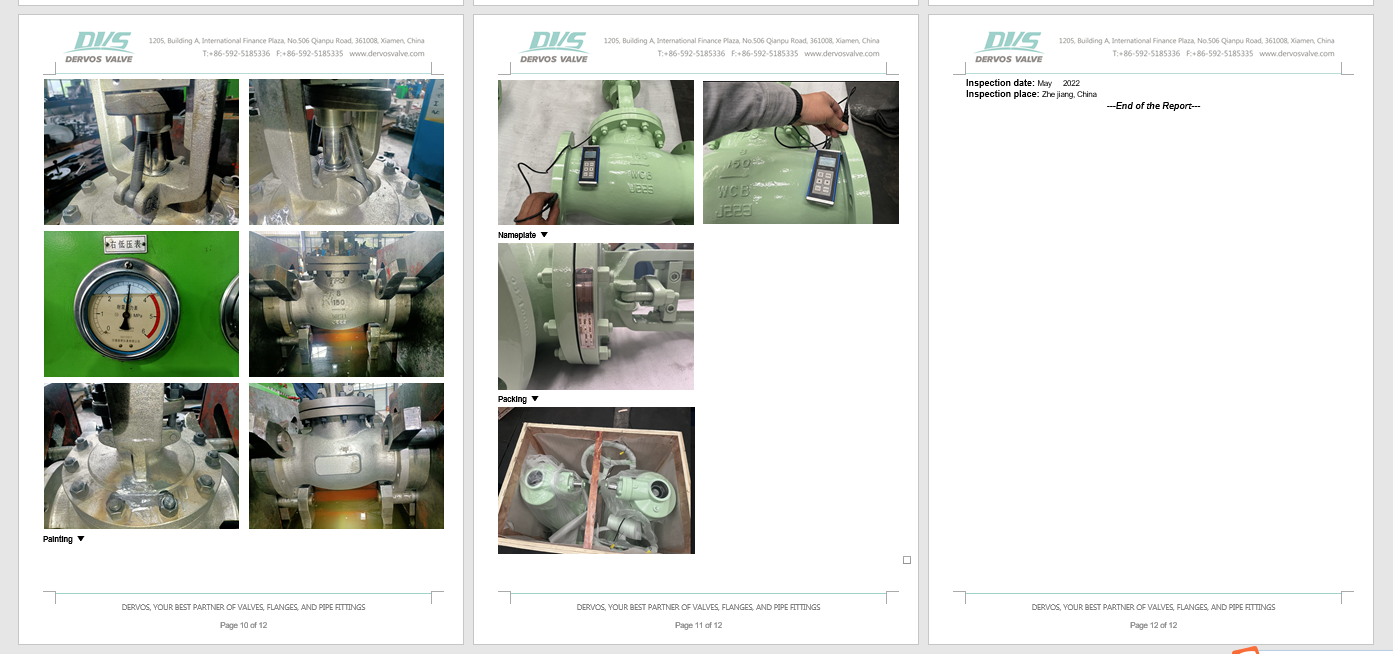

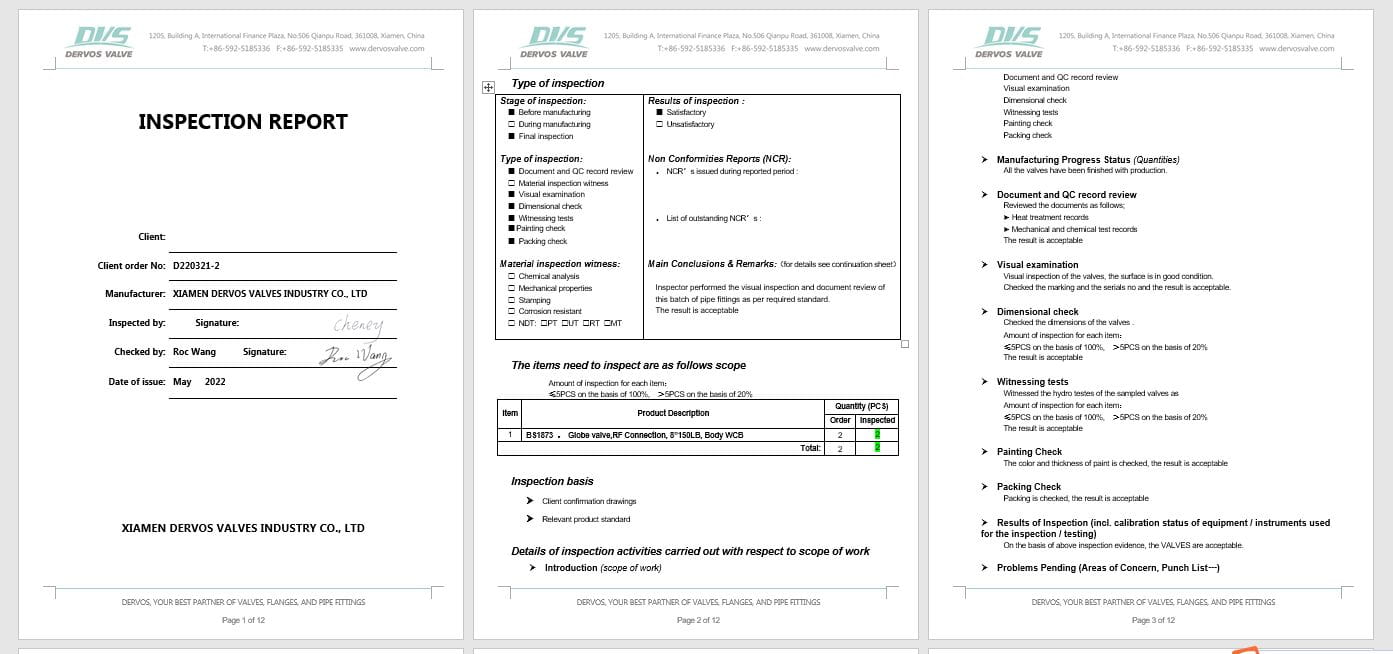

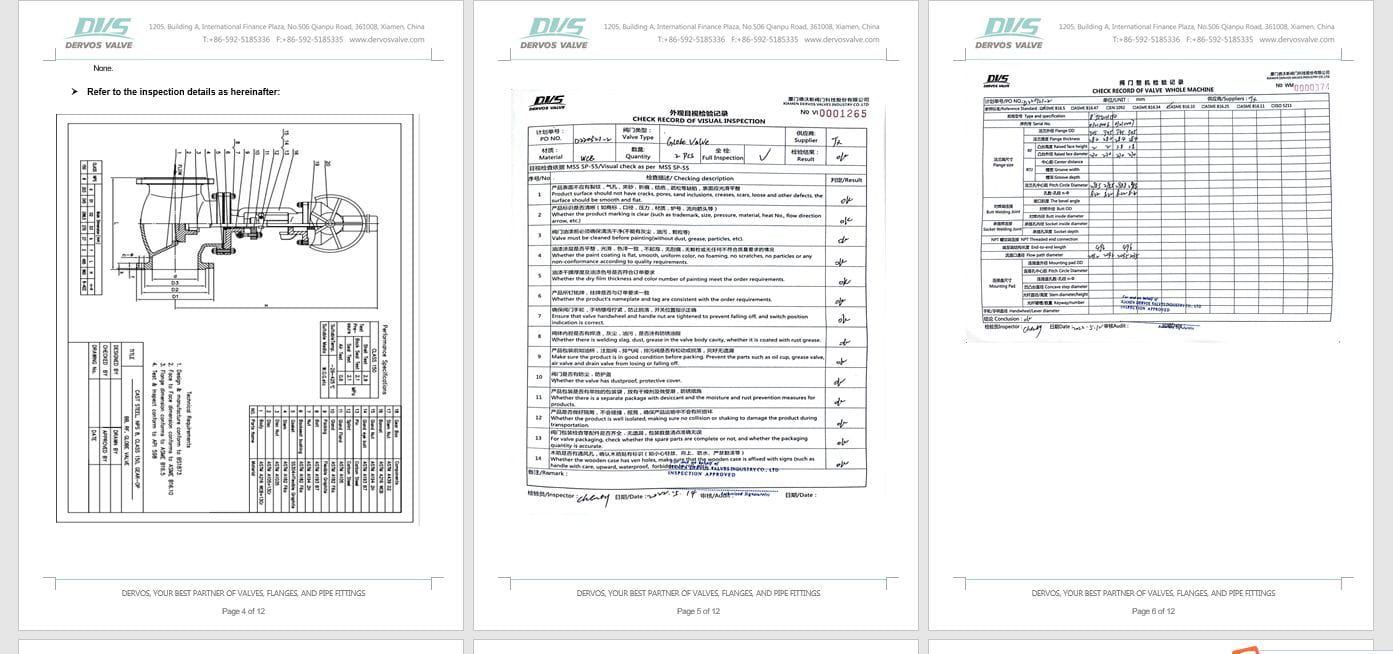

Inspection report
Features
1. Wear resistance, high-temperature resistance, corrosion resistance, good scratch resistance, and long service life;
2. Compact structure with obvious features in appearance.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
