ASTM A216 WCB Double Eccentric Butterfly Valve, 3 IN, 150 LB
Key Specifications / Features
3 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of double eccentric. Its connection mode is lug. It has a lever operation mode.
- Hits: 8
- Categories: Butterfly Valve
- Tags: ASTM A216 WCB Butterfly Valve , 3 Inch Butterfly Valve , Class 150 LB Butterfly Valve
Detail Information
3 Inch 150 LB Double Eccentric Butterfly Valve WCB Lever API 609
Features
1. The structure is simple, the volume is small, and the installation is convenient, reducing the space occupation of the pipeline system;
2. Widely used in industries such as chemical, petroleum, power, and metallurgy. It can be used to regulate and intercept flow media, suitable for pipeline systems with high flow rates and low-pressure differences.

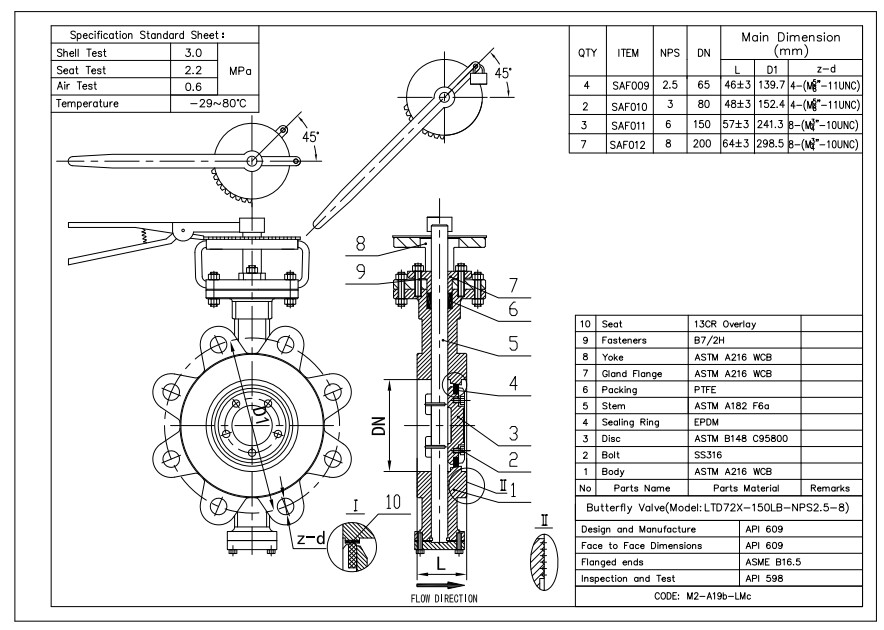

Technical Drawing

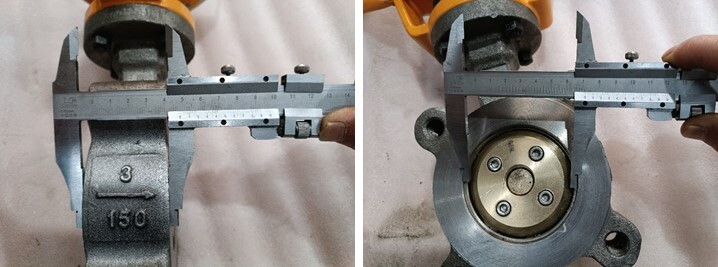

Dimension Checking

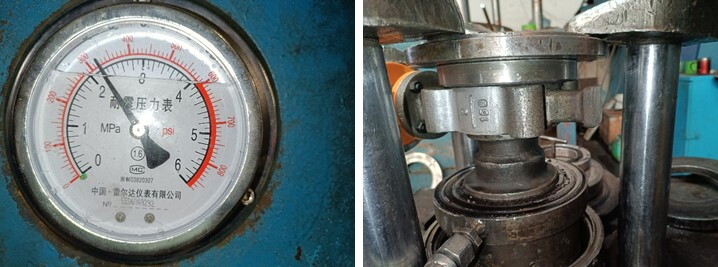

Pressure Testing

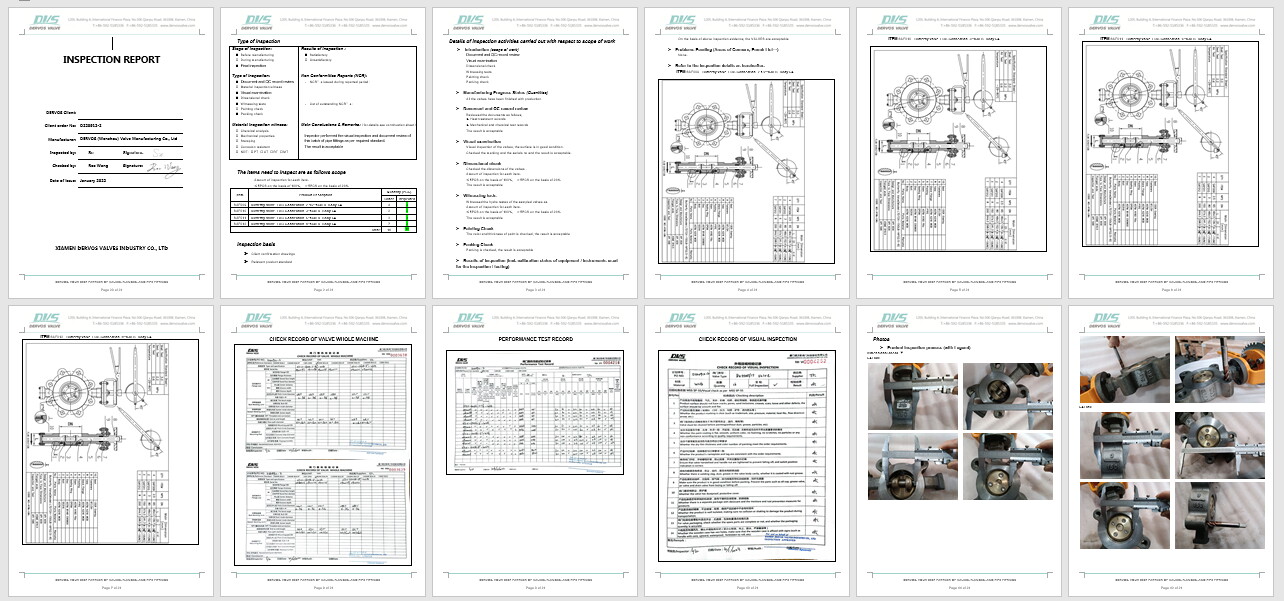

Inspection report
Features
1. The structure is simple, the volume is small, and the installation is convenient, reducing the space occupation of the pipeline system;
2. Widely used in industries such as chemical, petroleum, power, and metallurgy. It can be used to regulate and intercept flow media, suitable for pipeline systems with high flow rates and low-pressure differences.
Technical Drawing
Dimension Checking
Pressure Testing
Inspection report
