Key Specifications / Features
2 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of double eccentricity, high performance. Its connection mode is LUG. It has a lever operation mode.
- Hits: 1
- Categories: Butterfly Valve
- Tags: Lug Butterfly Valve , ASTM A351 CF8M Butterfly Valve , 2 Inch Butterfly Valve
Detail Information
2 Inch 150 LB Double Eccentric Butterfly Valve Lug CF8M Lever API 609
Features
1. The structure is relatively simple, the volume is compact, and installation, maintenance, and replacement are relatively convenient;
2. Using elastic materials for sealing, it can provide good sealing performance and effectively prevent fluid leakage.

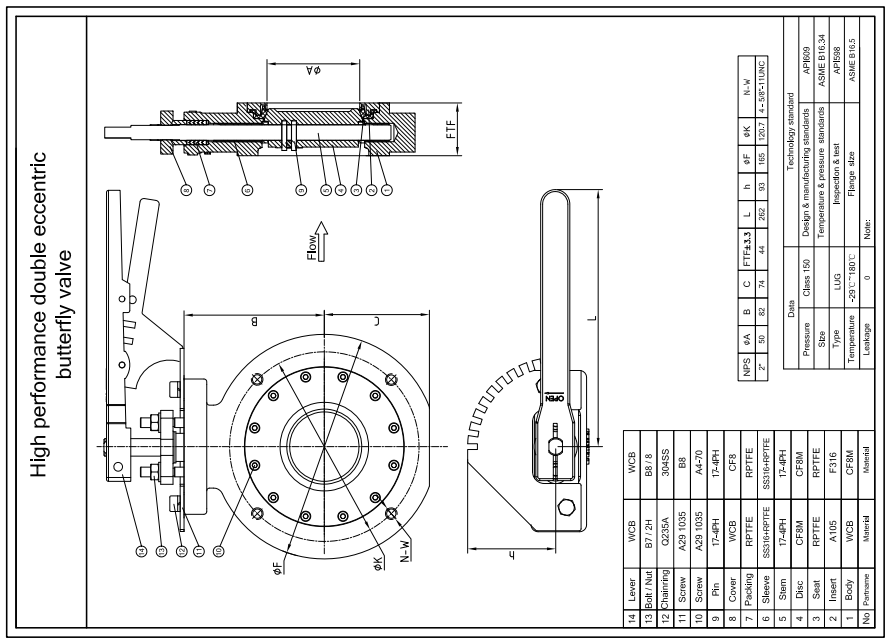

Technical Drawing

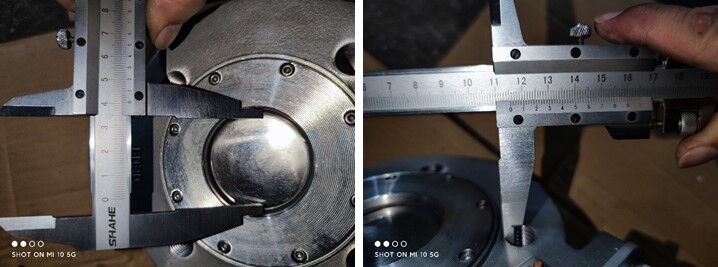

Dimension Checking

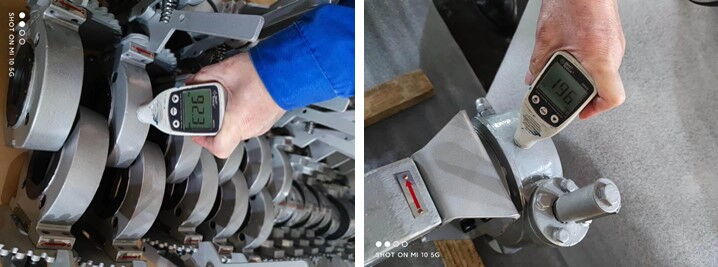

Painting

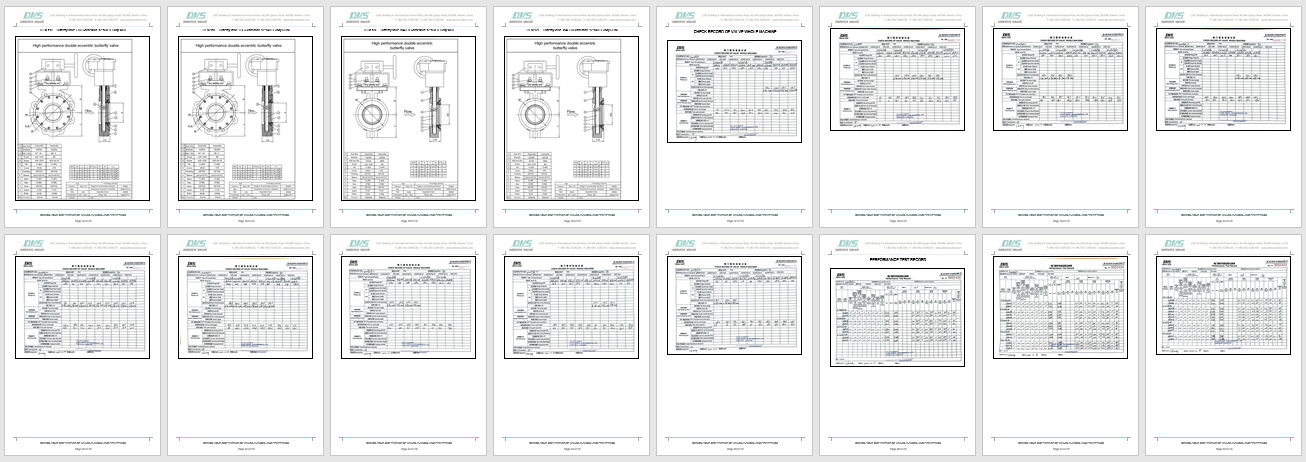

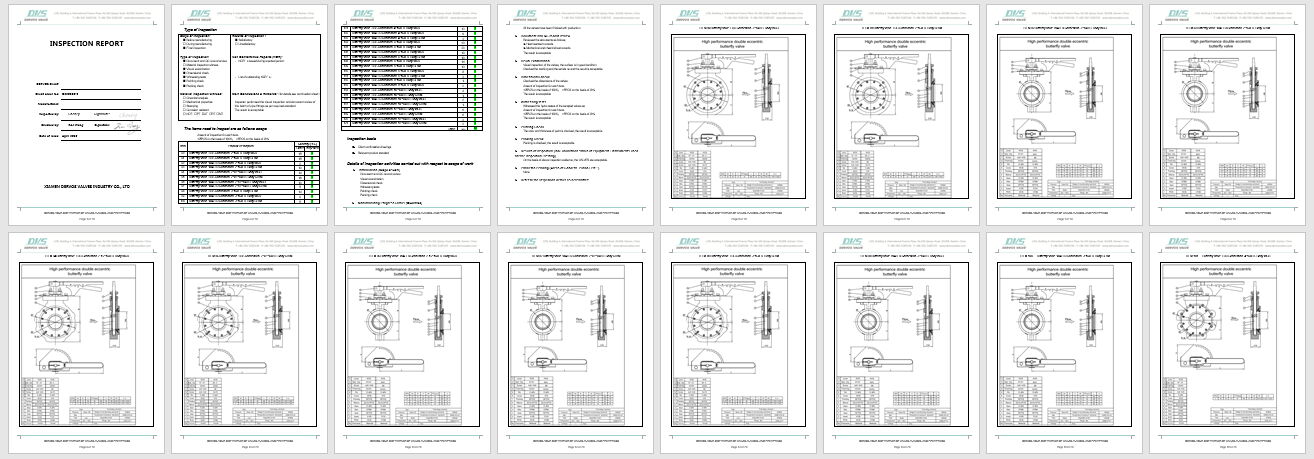

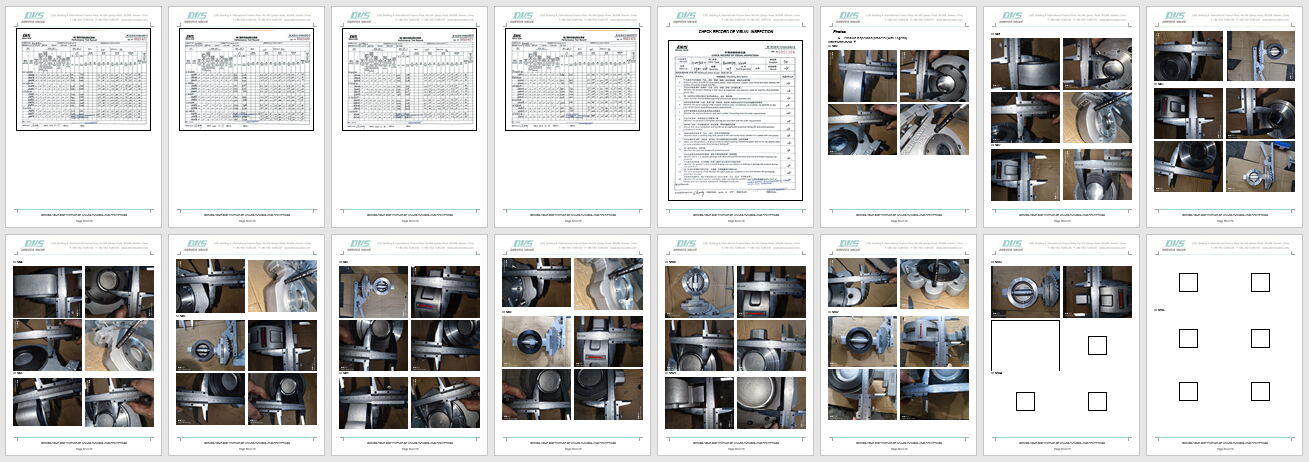

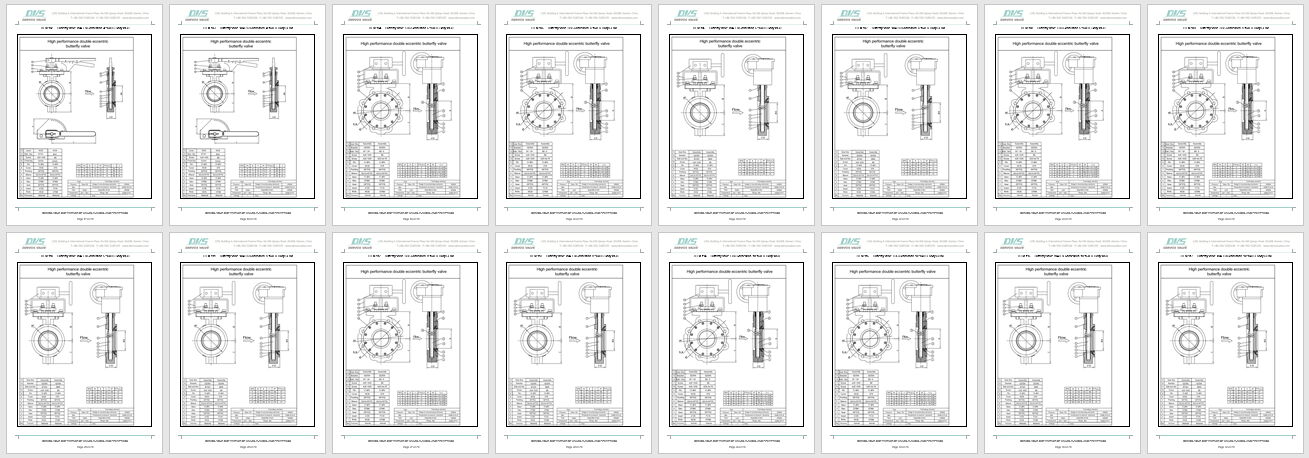

Inspection report
Features
1. The structure is relatively simple, the volume is compact, and installation, maintenance, and replacement are relatively convenient;
2. Using elastic materials for sealing, it can provide good sealing performance and effectively prevent fluid leakage.
Technical Drawing
Dimension Checking
Painting
Inspection report
