GGG40 Concentric Butterfly Valve, DN80, PN16, API 609, Wafer
Key Specifications / Features
DN80 PN16 butterfly valve is made according to API609 standard. The valve body is made of GGG40. It has the structural characteristics of medium line type. Its connection mode is wafer. And it has lever operation mode.
- Hits: 9
- Categories: Butterfly Valve
- Tags: Concentric Butterfly Valve , GGG40 Butterfly Valve , DN80 Butterfly Valve
Detail Information
DN80 PN16 Concentric Butterfly Valve GGG40 Wafer API609 Lever
Features
1. The channel design is a full bore structure, ensuring the flow area of the valve and reducing the flow resistance when the fluid passes through the valve;
2. Small and lightweight, with a simple structure, easy to disassemble and repair.
Technical Drawing

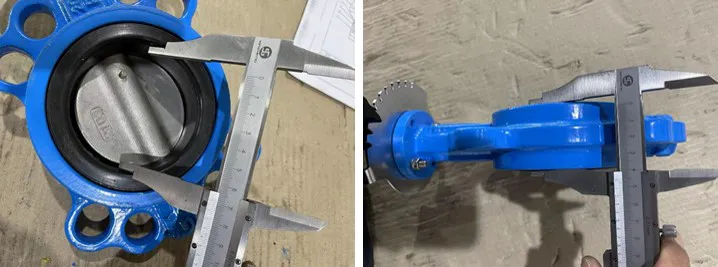

Dimension Checking
Pressure Testing

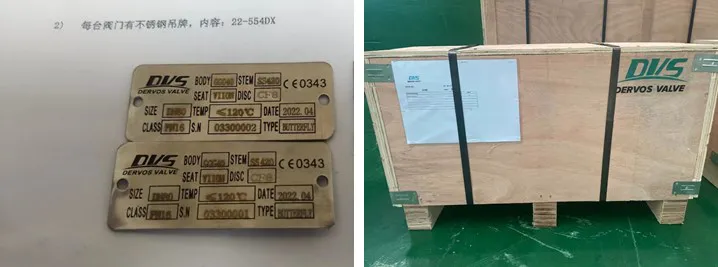

Nameplate & Packing

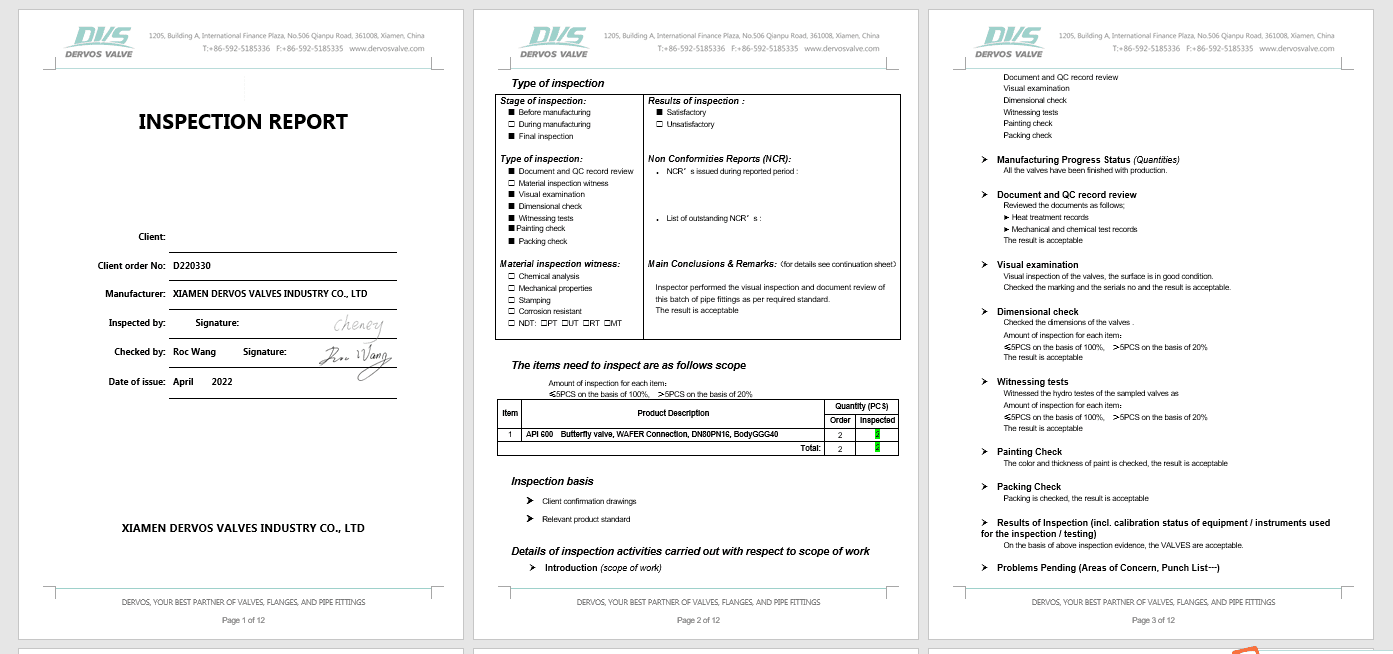

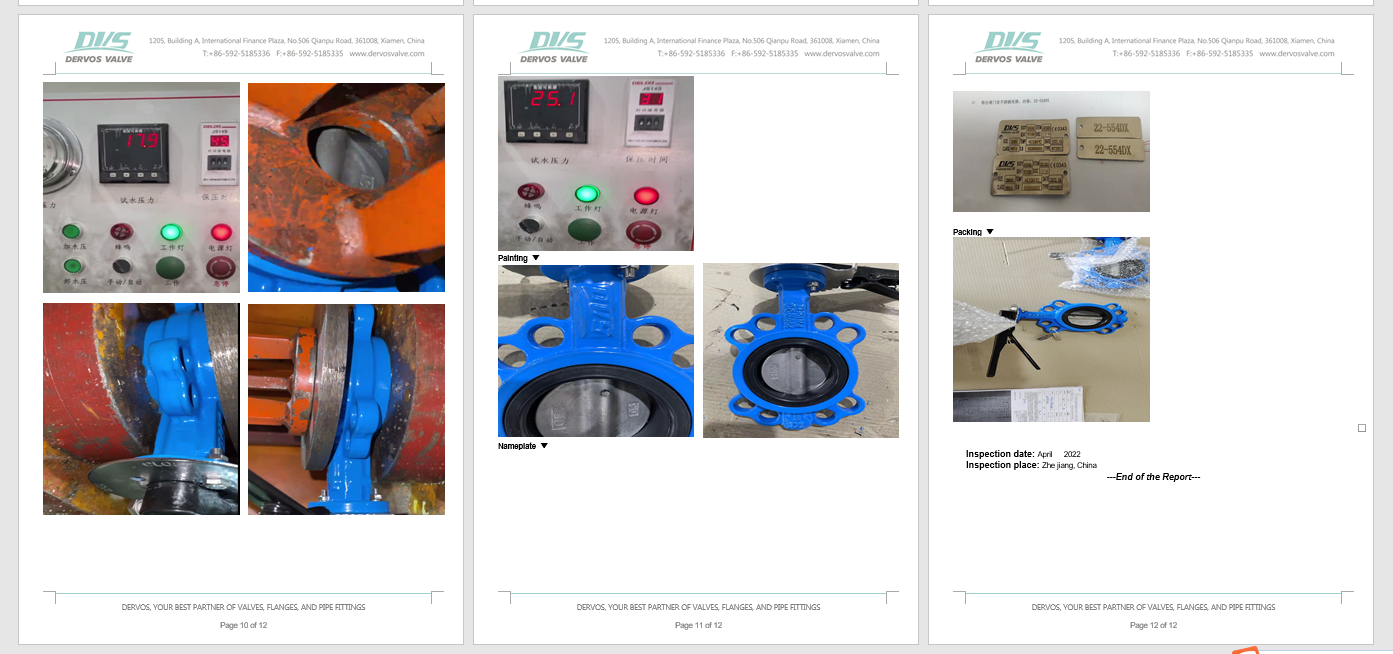

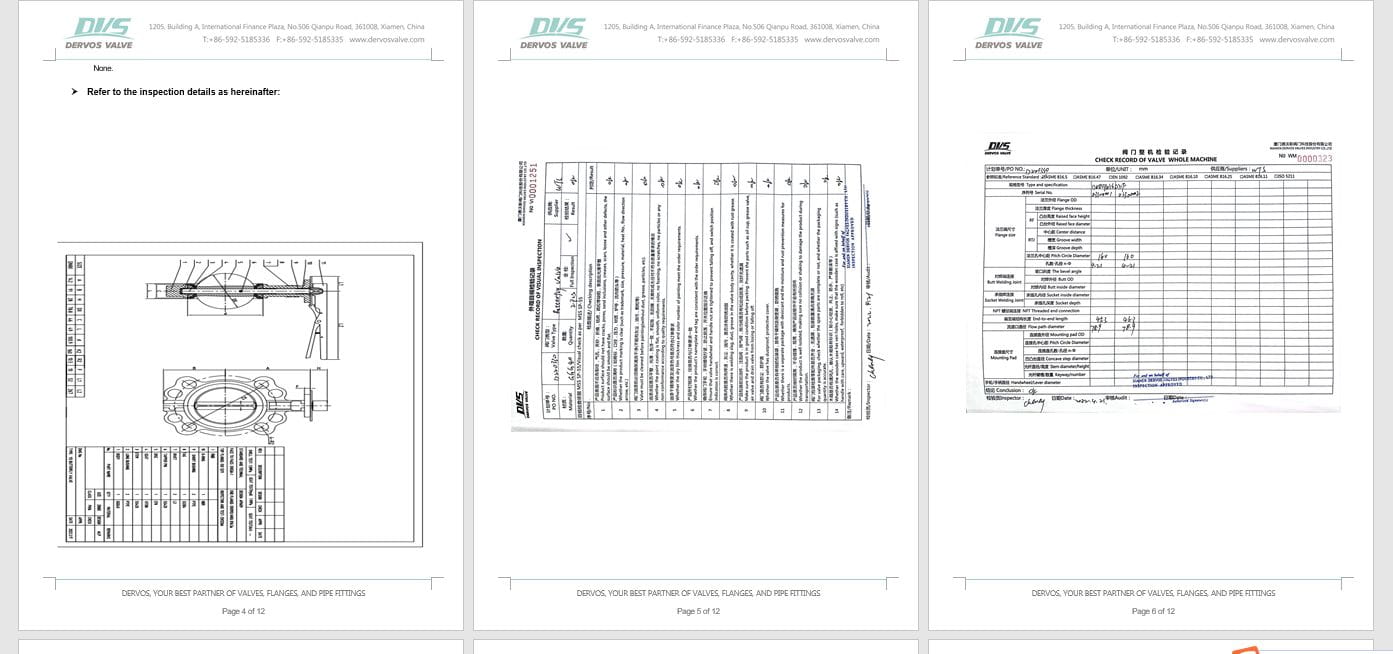

Inspection report
Features
1. The channel design is a full bore structure, ensuring the flow area of the valve and reducing the flow resistance when the fluid passes through the valve;
2. Small and lightweight, with a simple structure, easy to disassemble and repair.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
