ASTM A216 WCB Gate Valve, 10 Inch, 1500 LB, API 600, RTJ
Key Specifications / Features
10 Inch 1500 LB gate valve is made according to API 600 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of bolt cover, elastic wedge. Its connection mode is RTJ. And it has gear operation mode.
- Hits: 7
- Categories: Gate Valve
- Tags: 10 Inch Gate Valve , Class 1500 LB Gate Valve , API 600 Gate Valve
Detail Information
10 Inch 1500 LB Cast Steel Gate Valve RTJ WCB API 600 Gear
Features
1. Compact structure, reasonable design, smooth channel, and low flow resistance coefficient;
2. Reliable sealing, lightweight and flexible operation, and long service life.

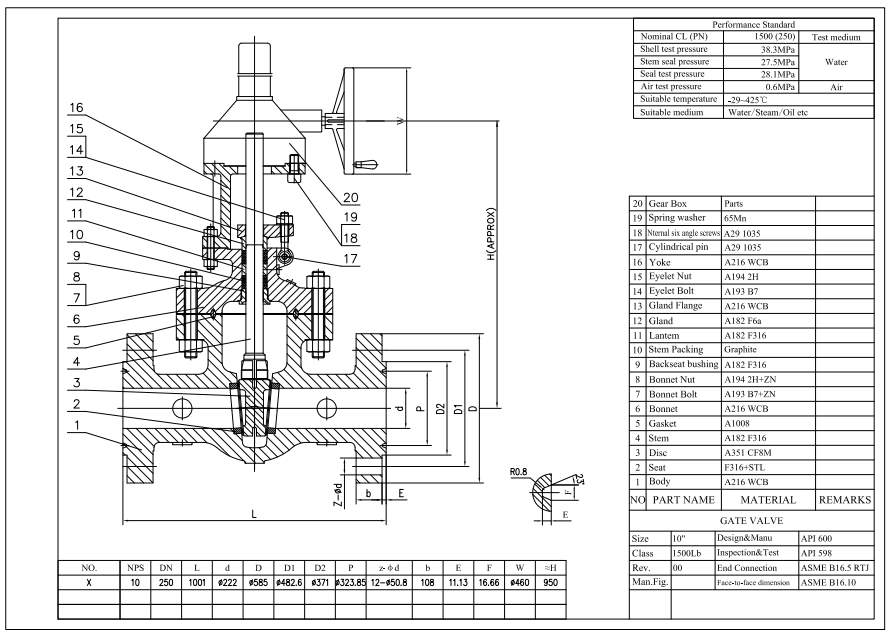

Technical Drawing

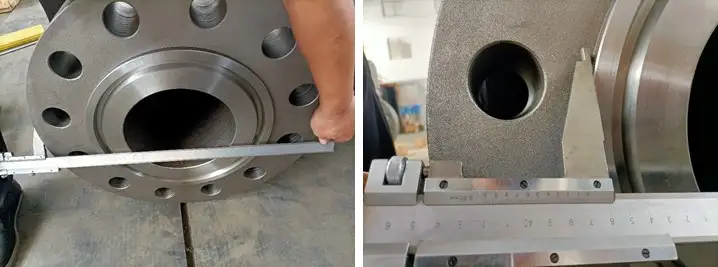

Dimension Checking

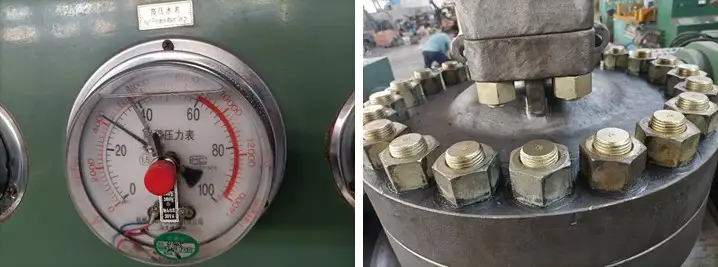

Pressure Testing

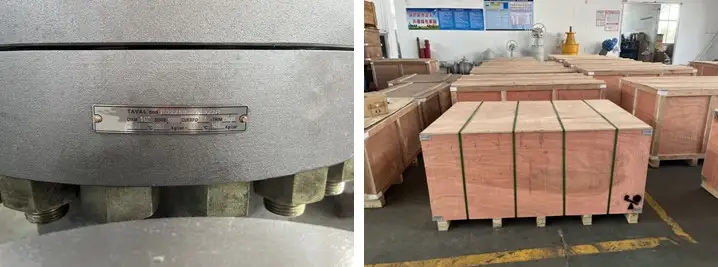

Nameplate & Packing

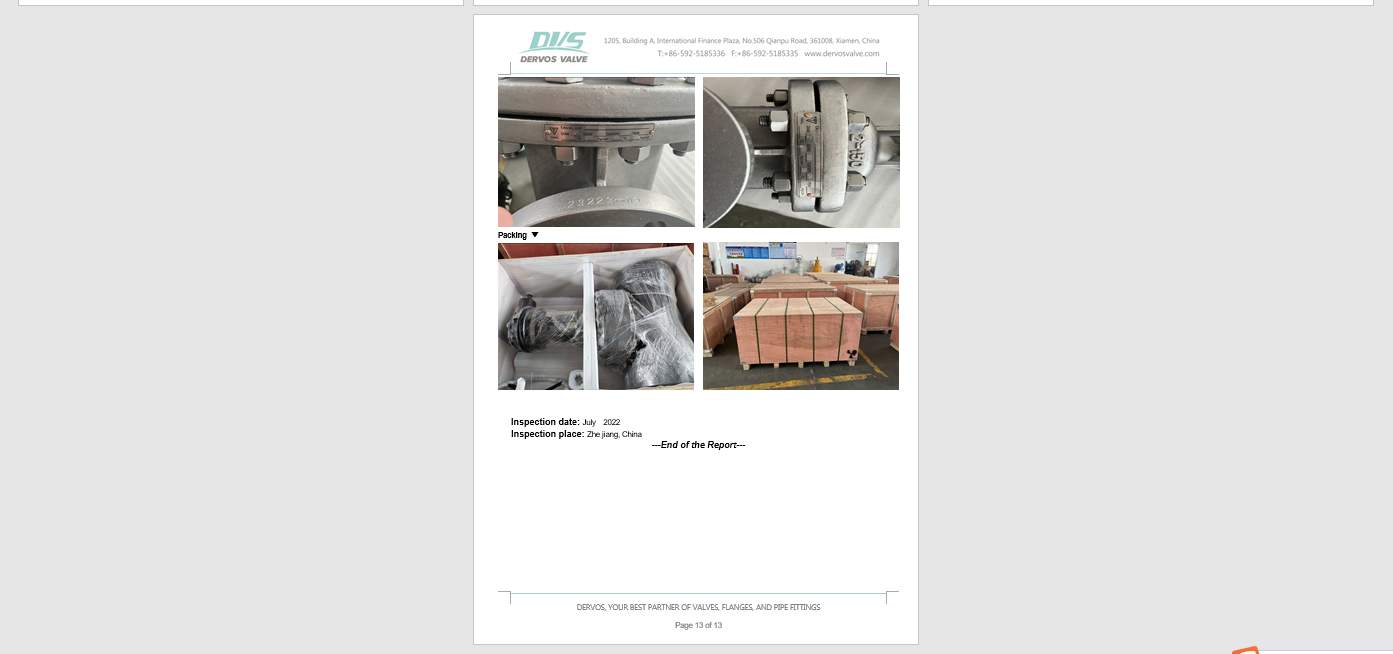

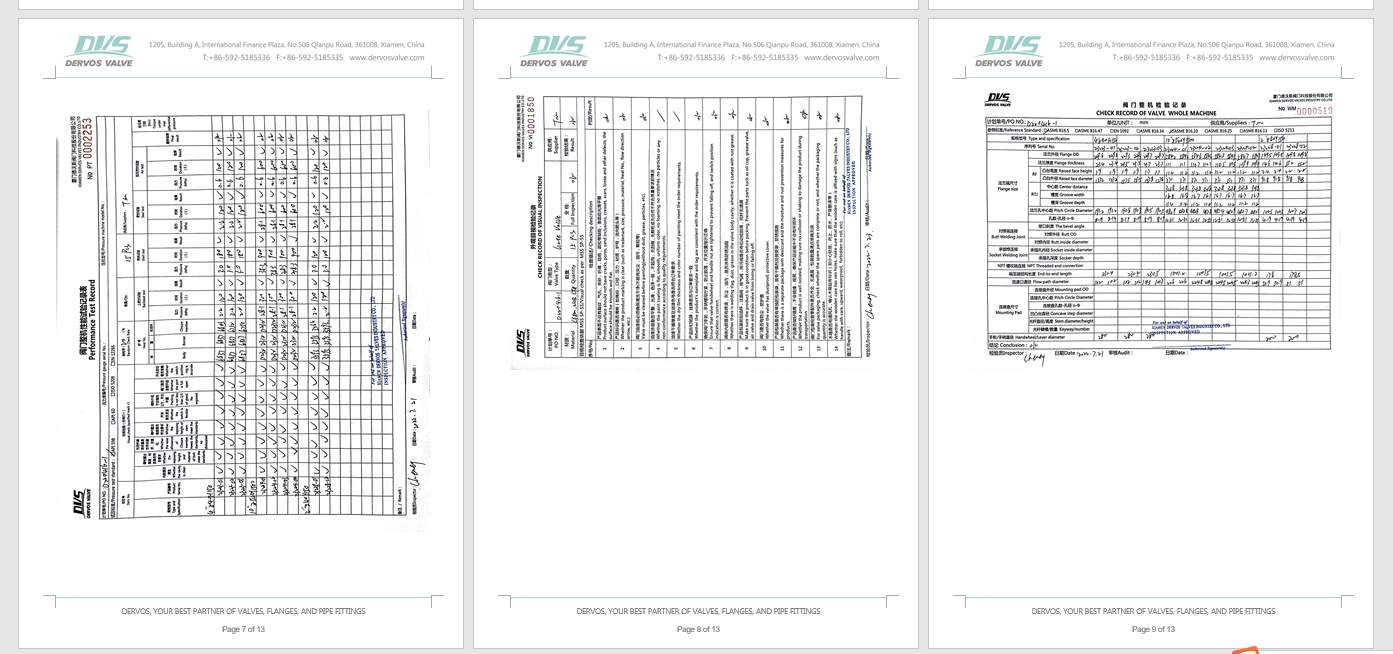

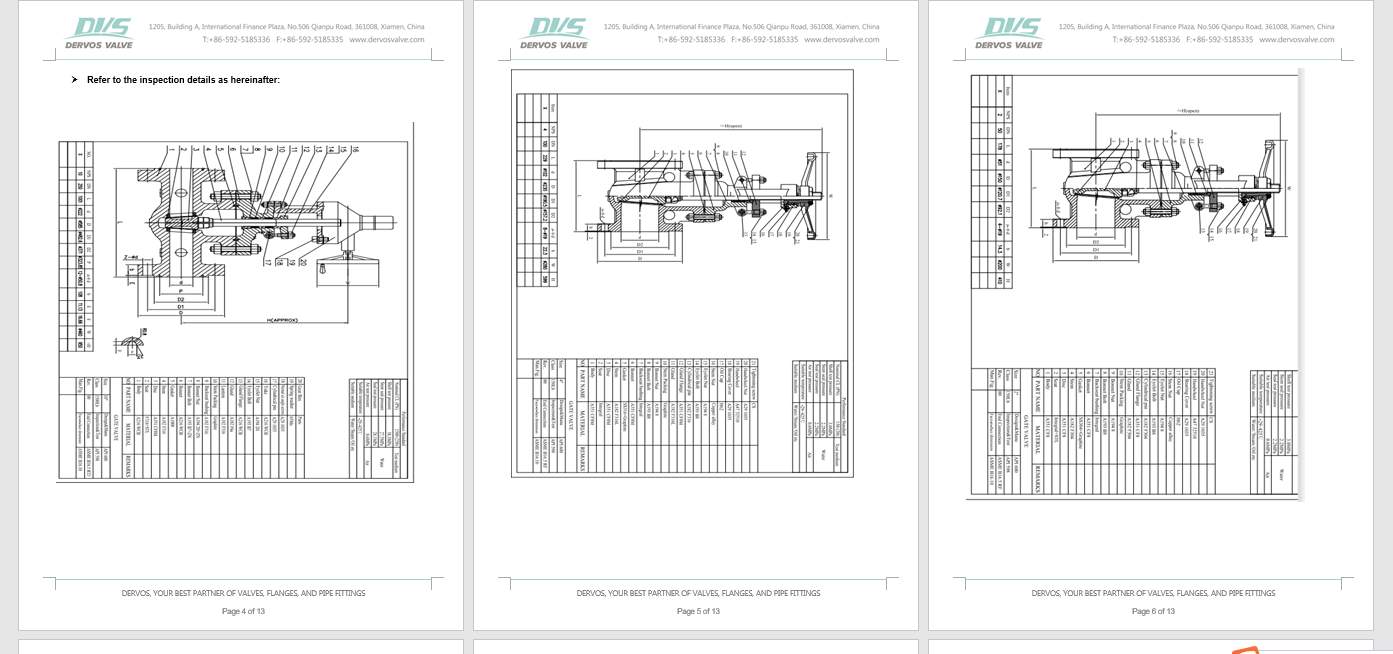

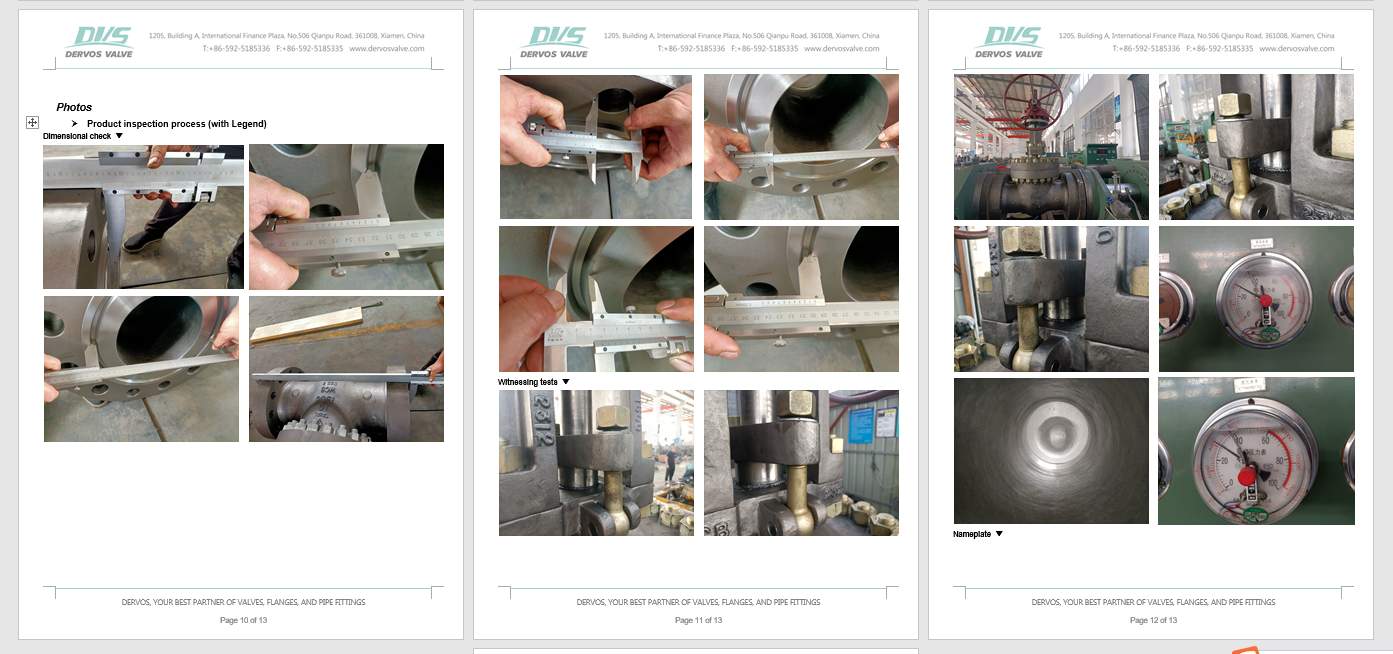

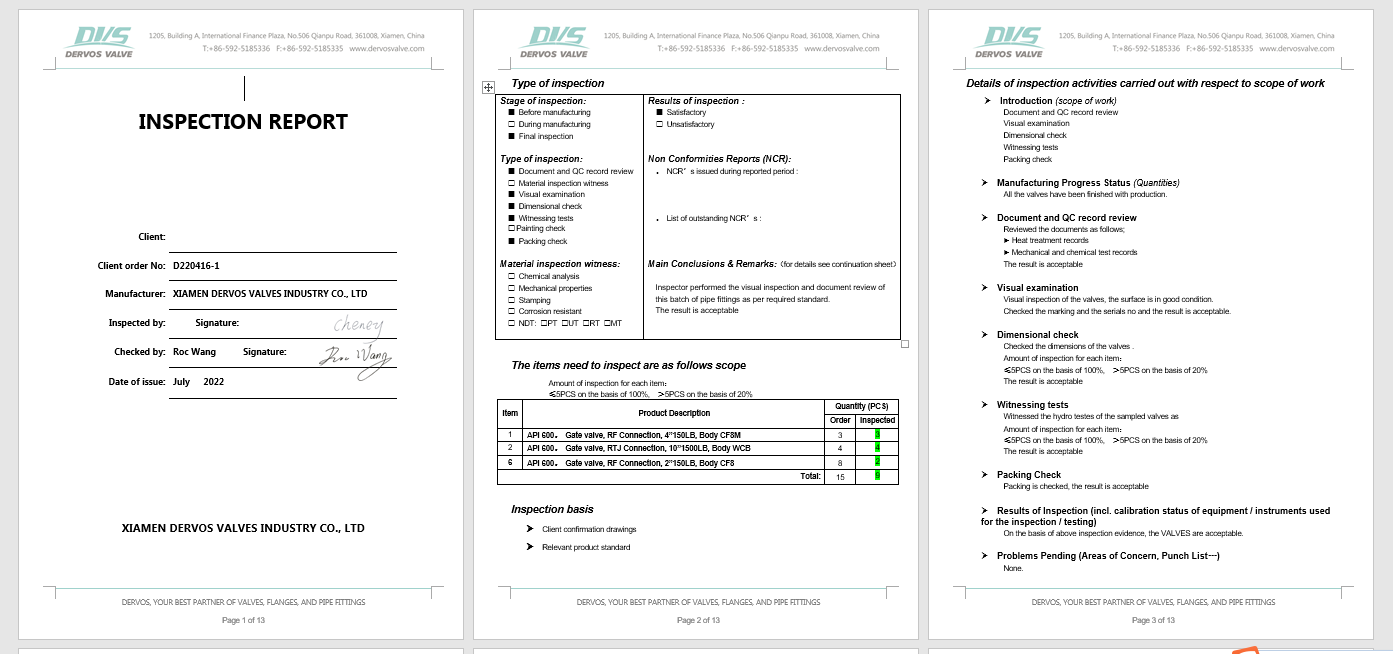

Inspection report
Features
1. Compact structure, reasonable design, smooth channel, and low flow resistance coefficient;
2. Reliable sealing, lightweight and flexible operation, and long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
