Key Specifications / Features
2 Inch 150 LB Y type strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Y-shaped. Its connection mode is RF.
- Hits: 4
- Categories: Pipe Strainer
- Tags: Y Strainers , ASME B16.34 Strainer , 2 Inch Strainer
Detail Information
2 Inch 150 LB Y Type Strainer RF WCB ASME B16.34
Features
1. Easy to disassemble and clean. Regular inspection and cleaning of the filter screen can ensure the normal operation of the equipment and extend the service life of the filter;
2. Internally equipped with a filter screen or filter element, used to capture solid particles, impurities, or other unwanted substances in the fluid. This helps to protect subsequent equipment, pipelines, and valves from particle damage.

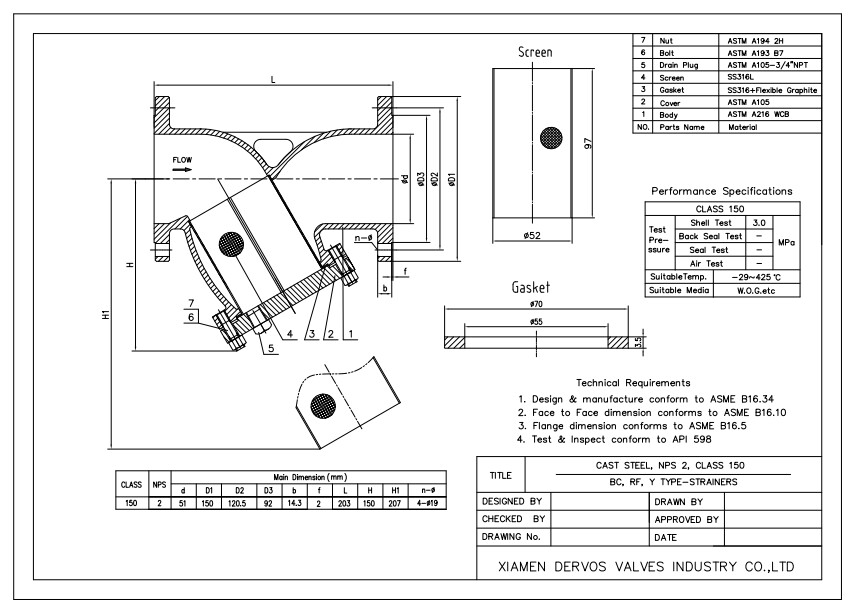

Technical Drawing

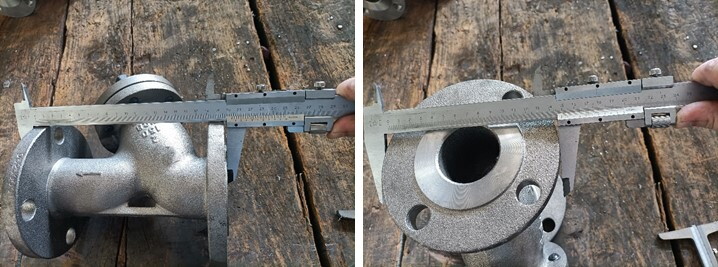

Dimension Checking

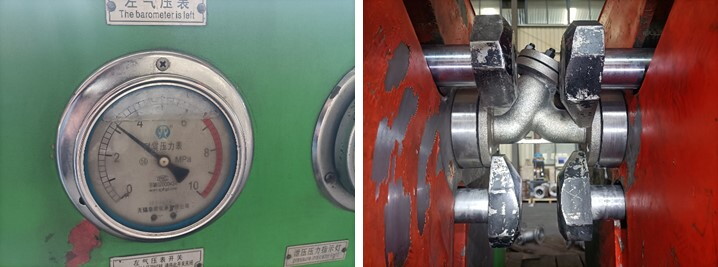

Pressure Testing

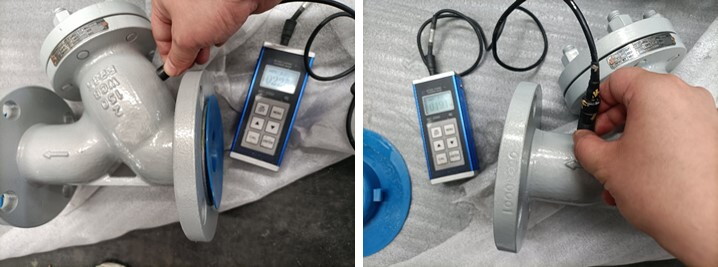

Painting
Nameplate & Packing

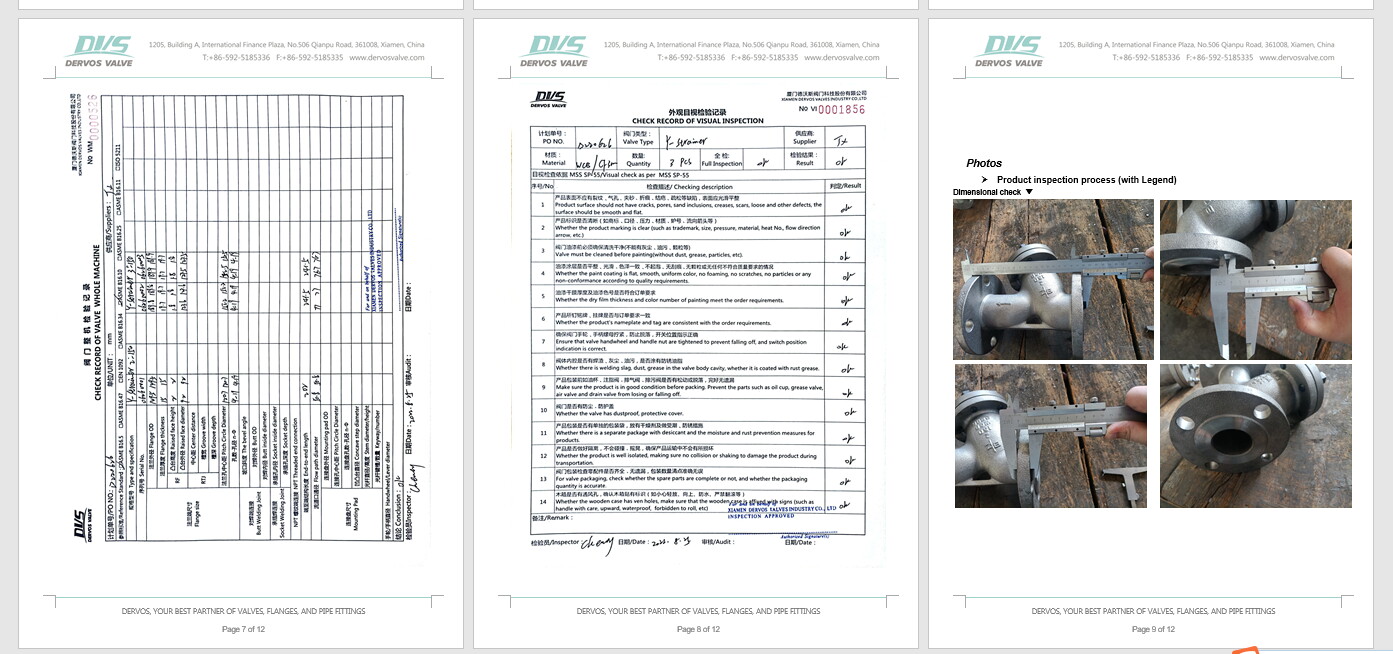

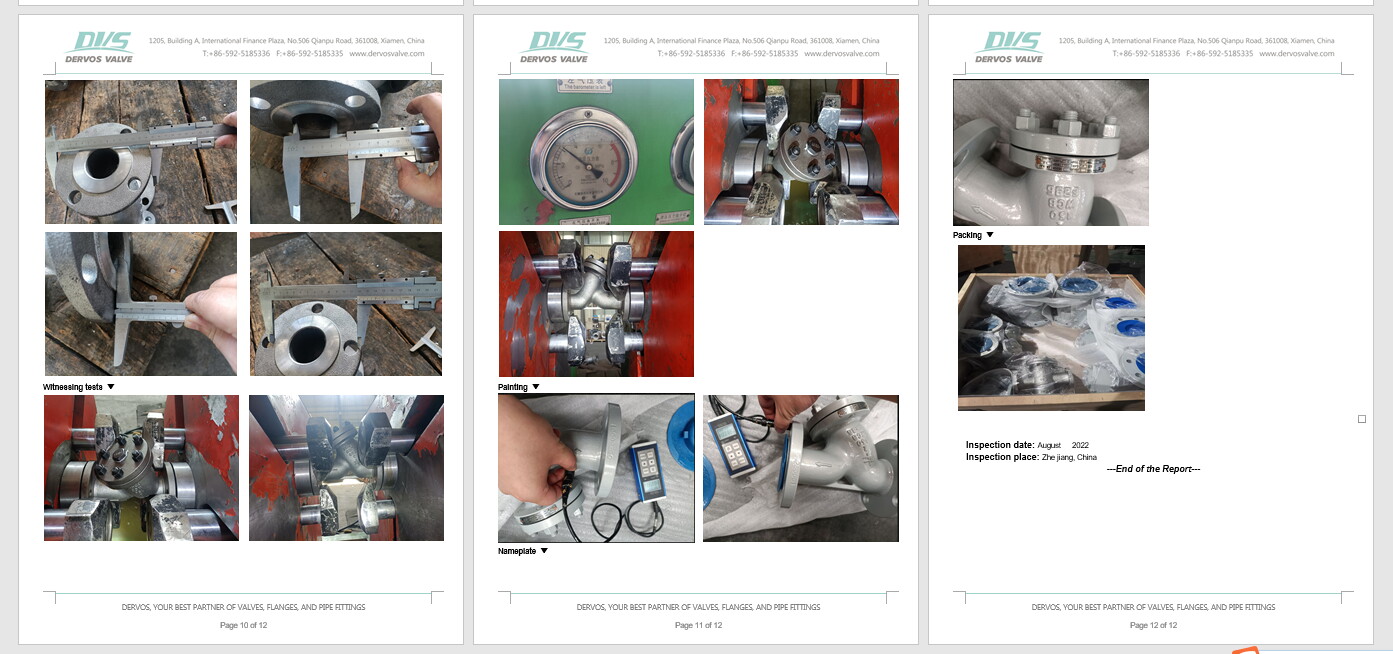

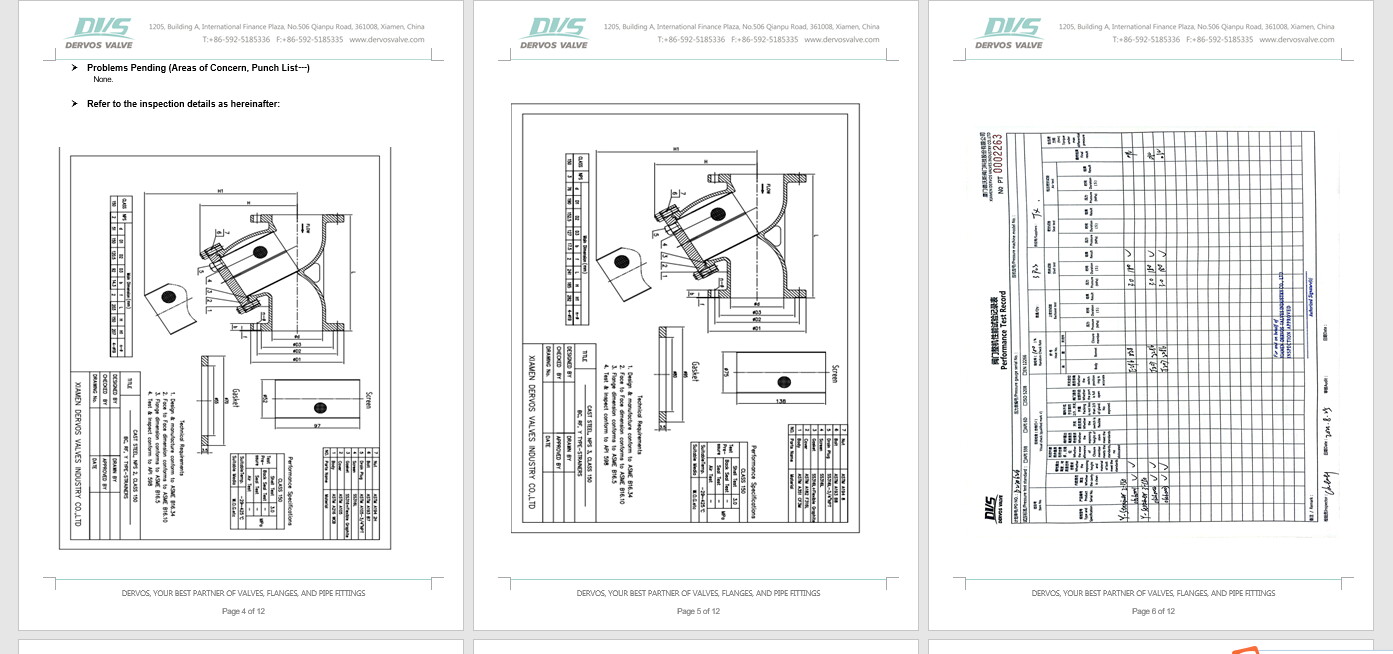

Inspection report
Features
1. Easy to disassemble and clean. Regular inspection and cleaning of the filter screen can ensure the normal operation of the equipment and extend the service life of the filter;
2. Internally equipped with a filter screen or filter element, used to capture solid particles, impurities, or other unwanted substances in the fluid. This helps to protect subsequent equipment, pipelines, and valves from particle damage.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
