ASTM A351 CF8M Basket Strainer, ASME B16.34, 2 Inch, 150 LB, RF
Key Specifications / Features
The 2-inch 150 LB basket strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of basket type and single cylinder. Its connection mode is RF.
- Hits: 12
- Categories: Pipe Strainer
- Tags: ASME B16.34 Strainer , 2 Inch Strainer , Class 150 LB Strainer
Detail Information
2 Inch 150 LB Basket Strainer RF CF8M ASME B16.34
Features
1. Large effective filtration area, low-pressure loss, and convenient maintenance;
2. Widely used in industries such as petroleum, chemical, pharmaceutical, food, and environmental protection.

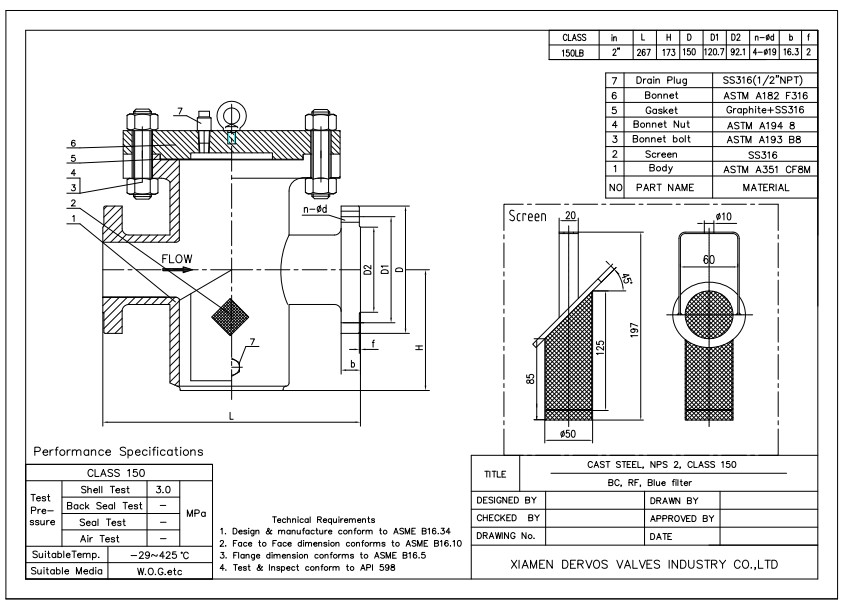

Technical Drawing

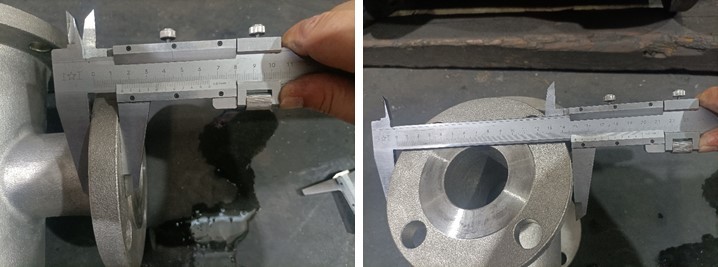

Dimension Checking

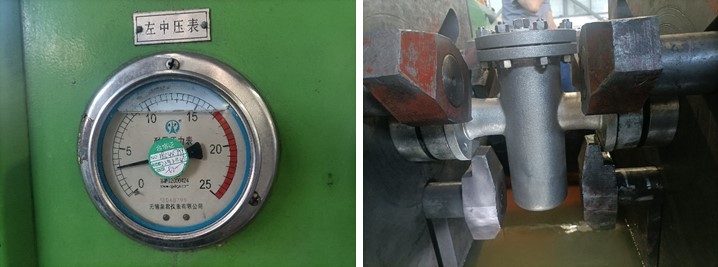

Pressure Testing

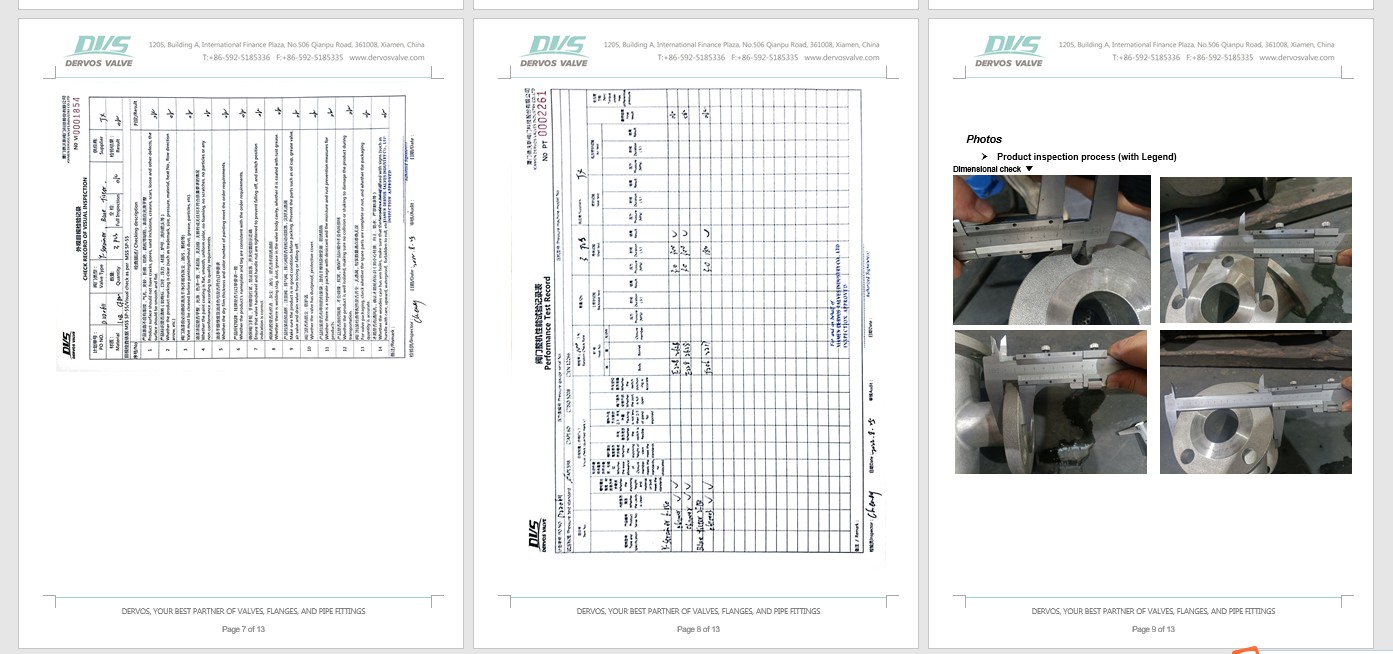

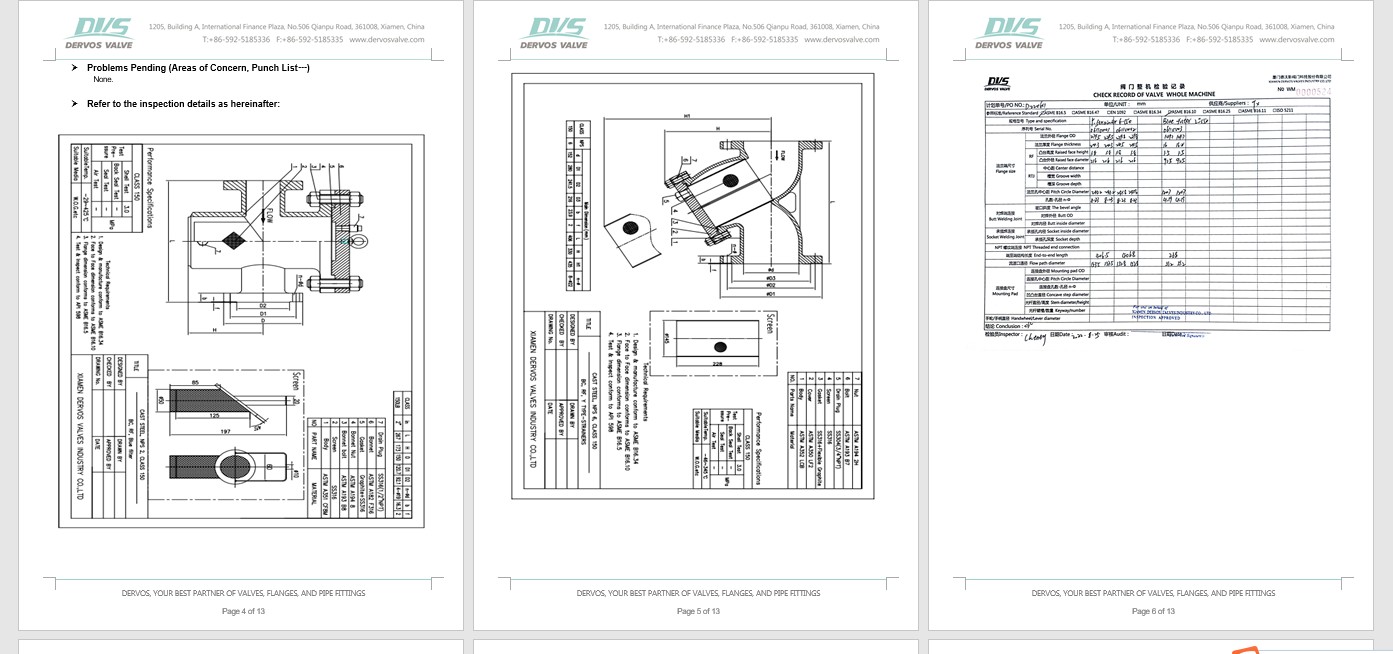

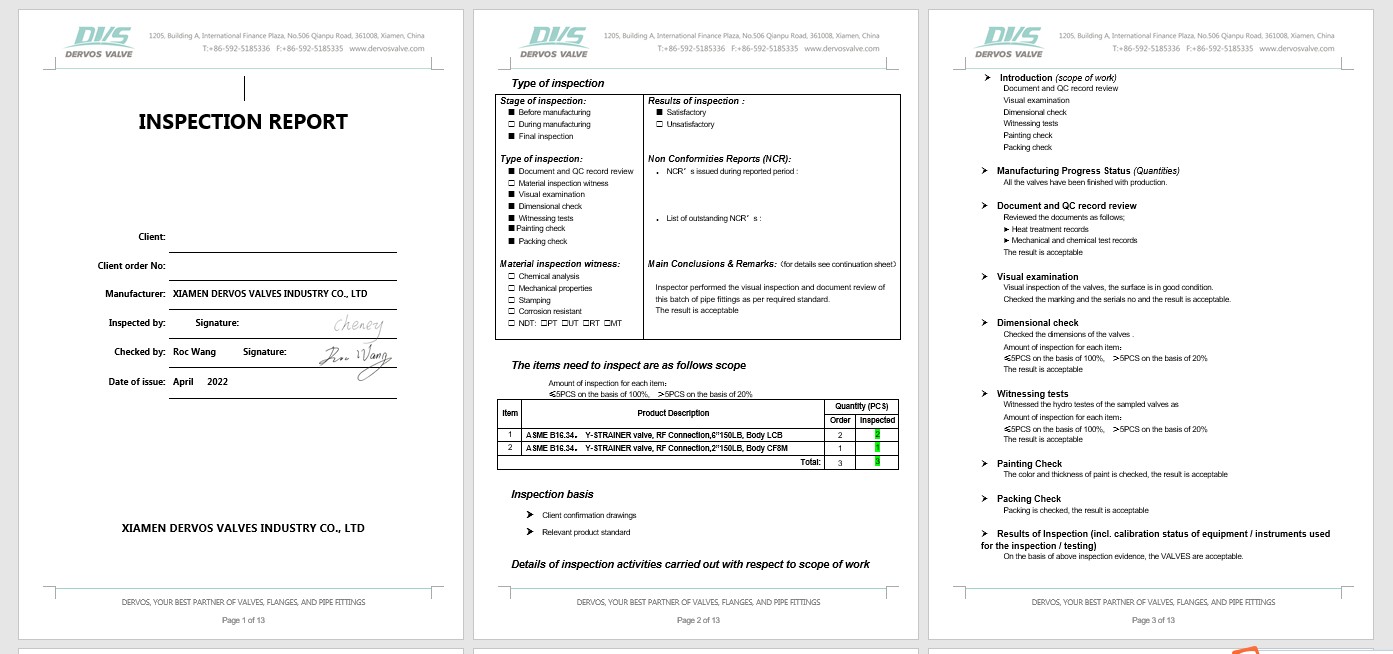

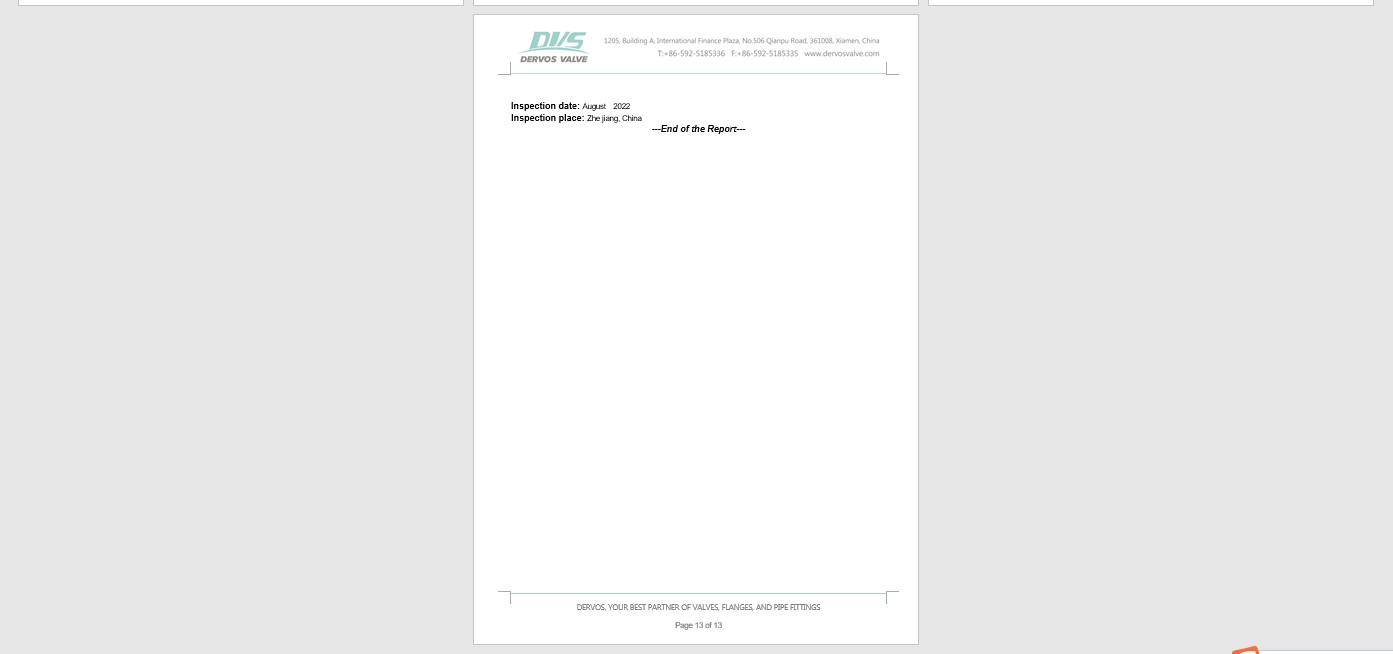

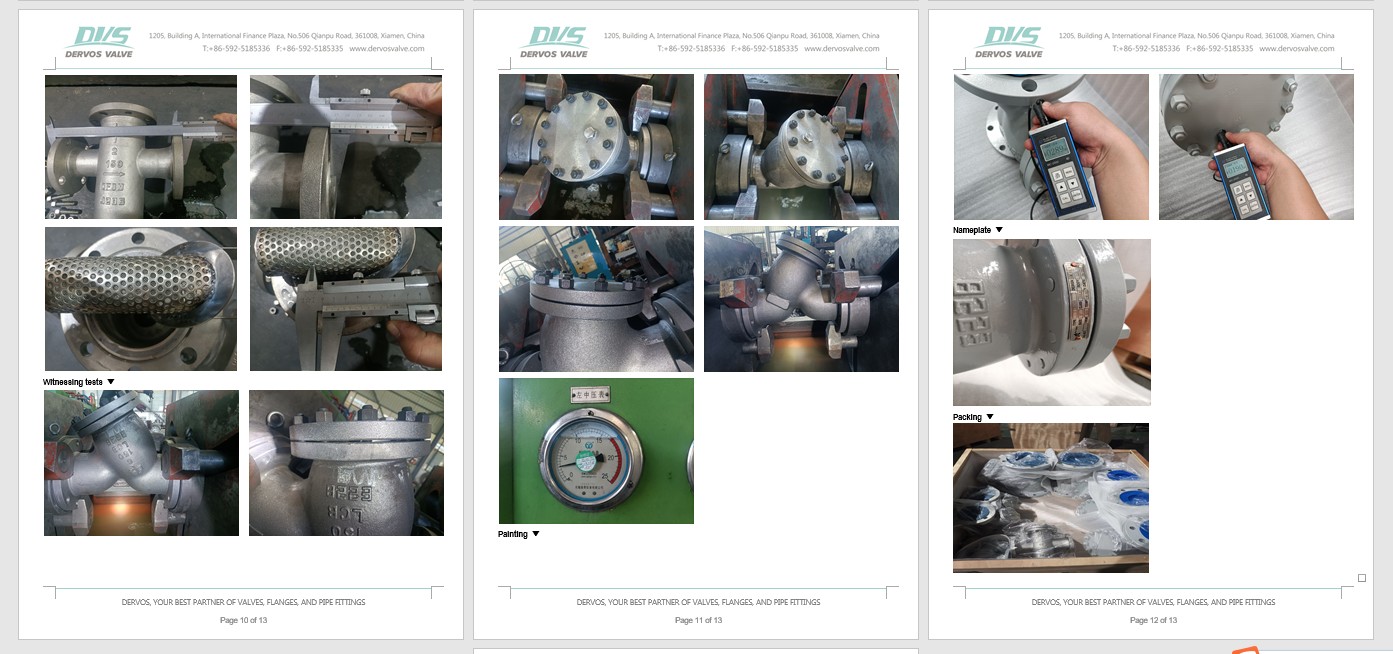

Inspection report
Features
1. Large effective filtration area, low-pressure loss, and convenient maintenance;
2. Widely used in industries such as petroleum, chemical, pharmaceutical, food, and environmental protection.
Technical Drawing
Dimension Checking
Pressure Testing
Inspection report
