Cast Steel Y Strainer, API ASME B16.34, 2 Inch, 600 LB, RF
Key Specifications / Features
API Cast Steel Y Strainer Factory: API ASME B16.34 Y-type Strainers, Cast Steel ASTM A216 WCB, 2 Inch, Class 600 LB, RF, Bolted Bonnet, ASME B16.34.
- Hits: 10
- Categories: Pipe Strainer
- Tags: Y Strainers , Cast Steel Strainer , ASME B16.34 Strainer
Detail Information
Y-type Strainer API Cast Steel 2" 600 LB BC RF
Introduction
2" 600 LB Y-type strainer is made according to ASME B16.34 standard. The valve body is made of WCB. It has the structural characteristics of a Y-type. It has the connection mode of RF.
Features
1. Convenient installation and small floor area;
2. Simple cleaning, low maintenance cost and large flow.

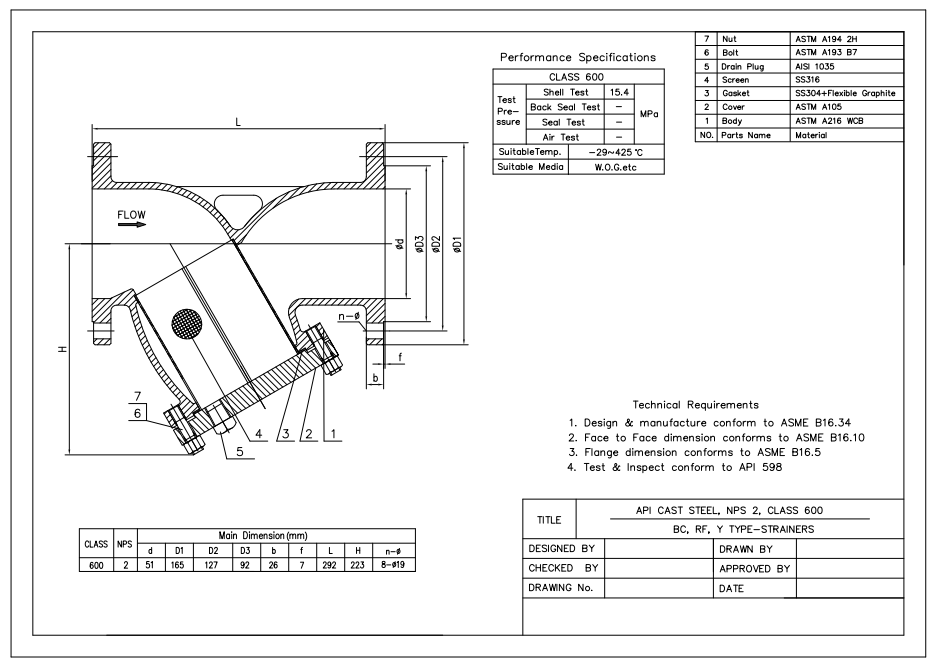

Technical Drawing

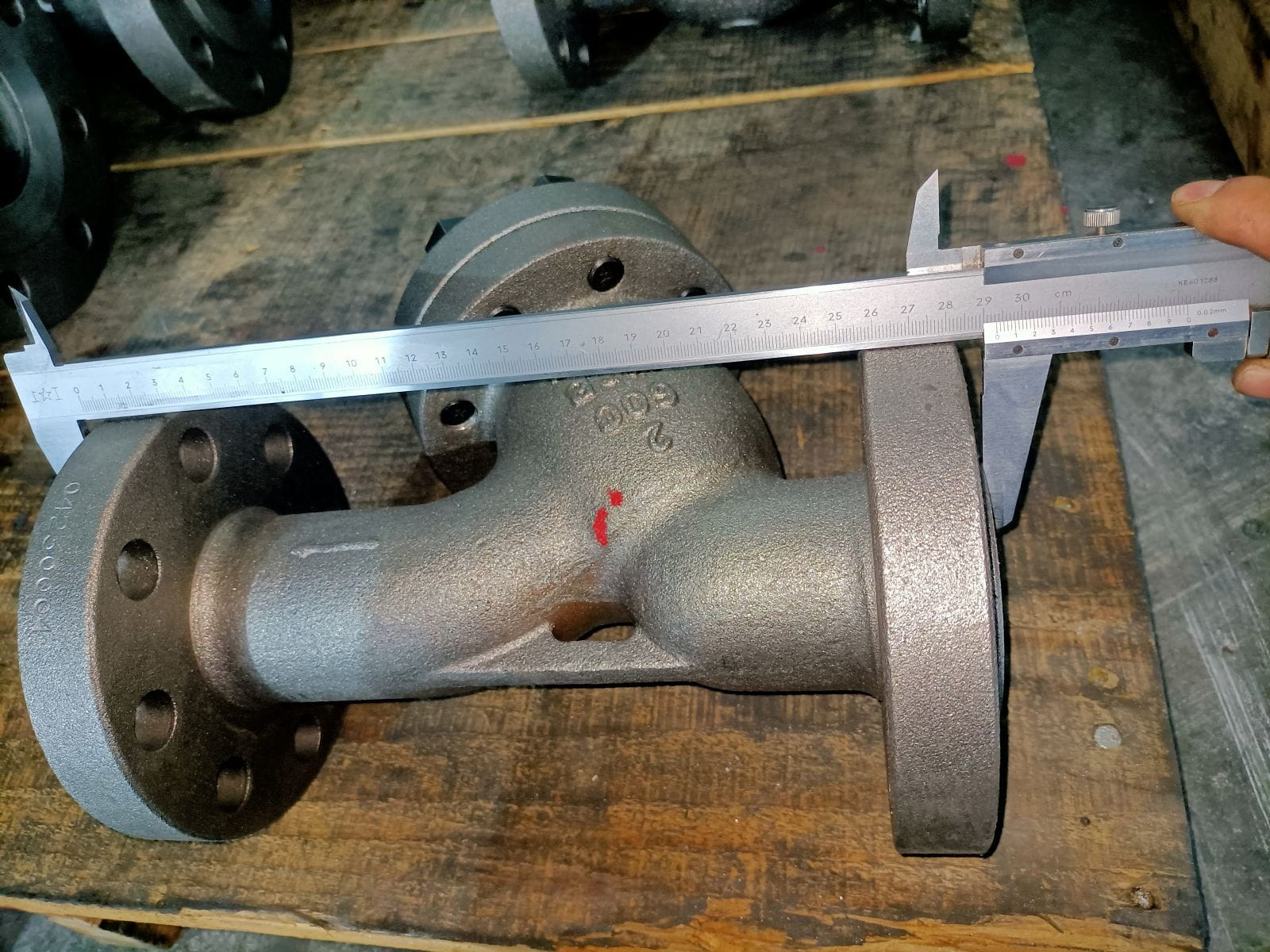

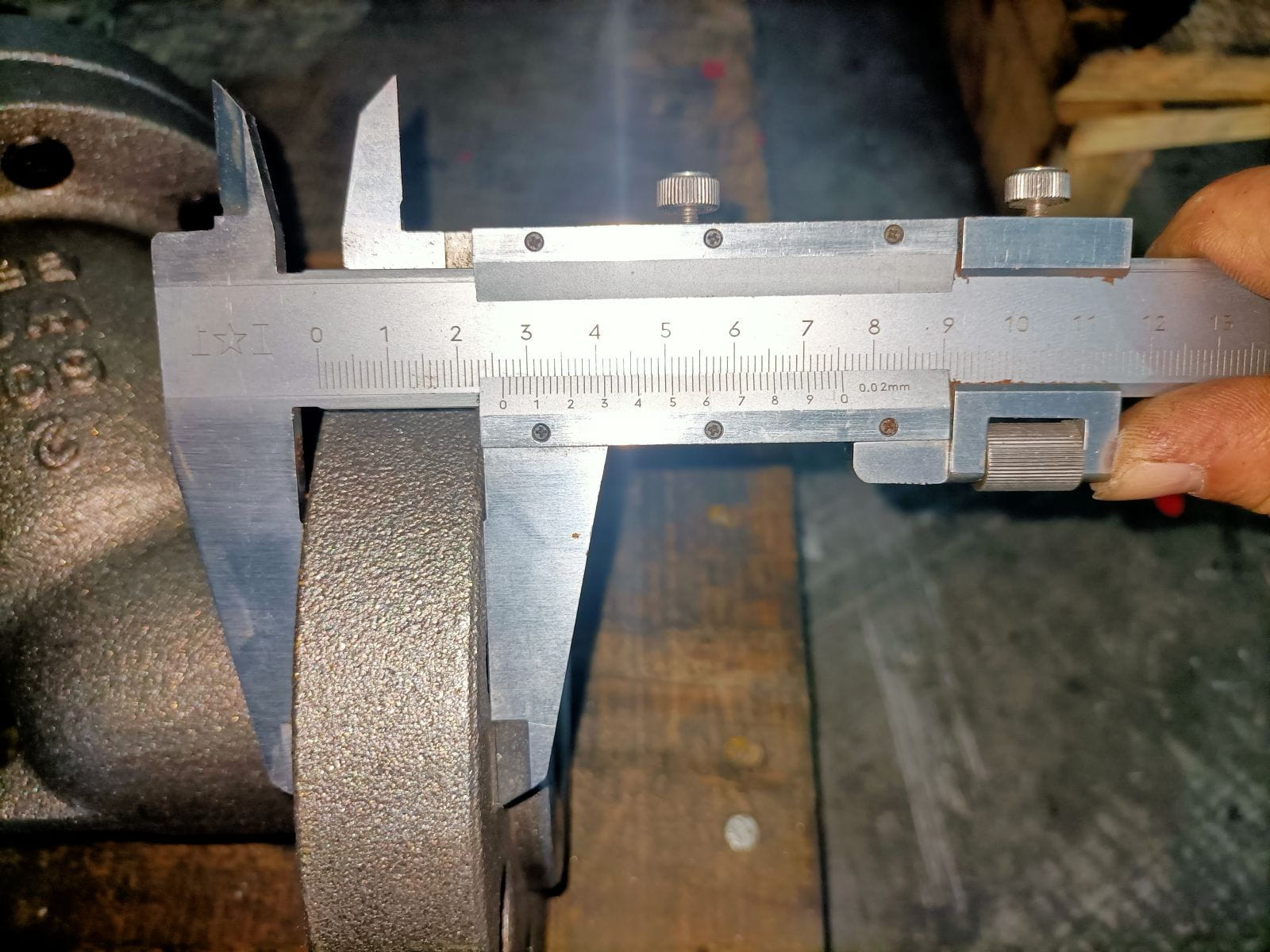

Dimension Checking

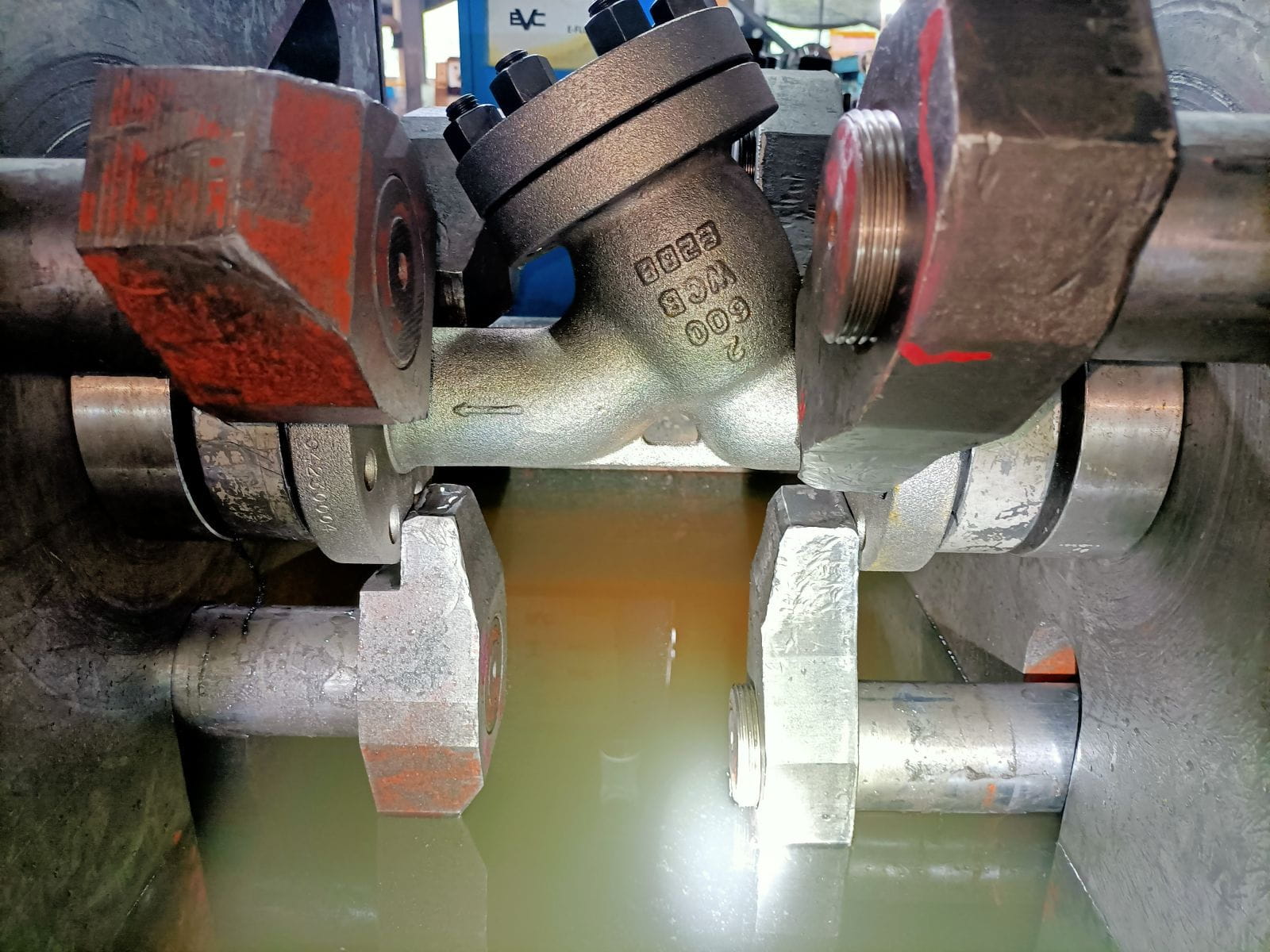

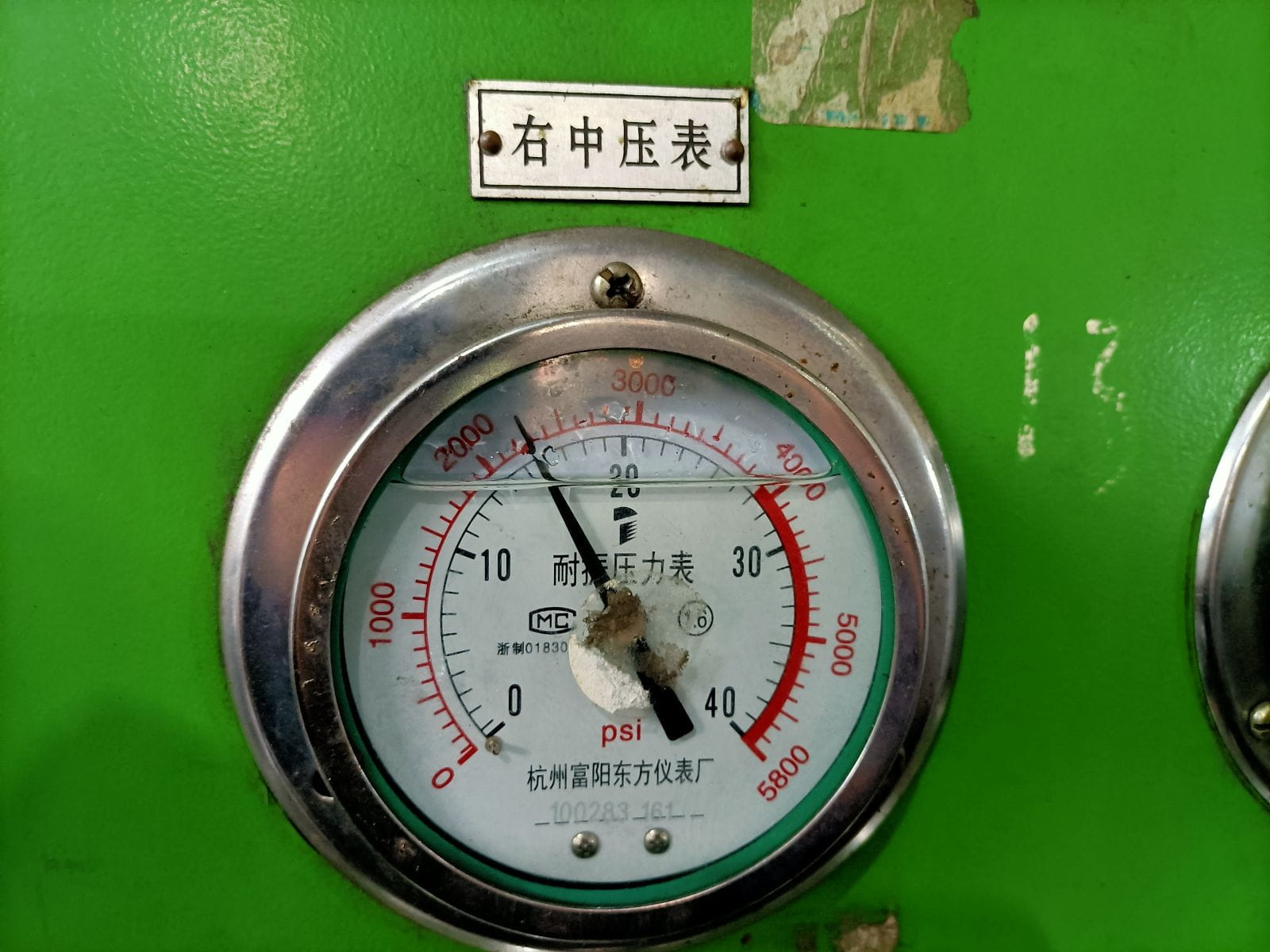

Pressure Testing

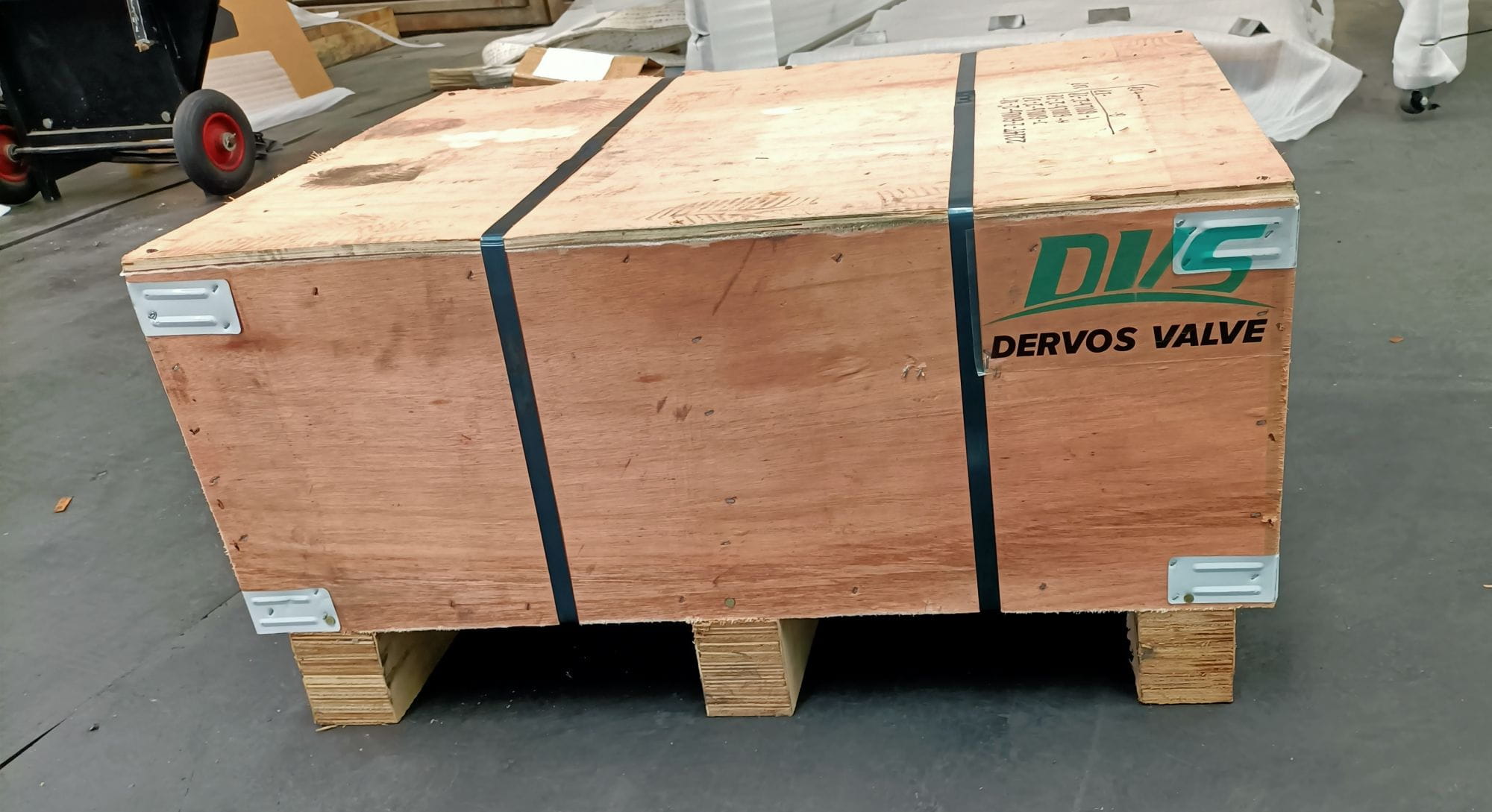

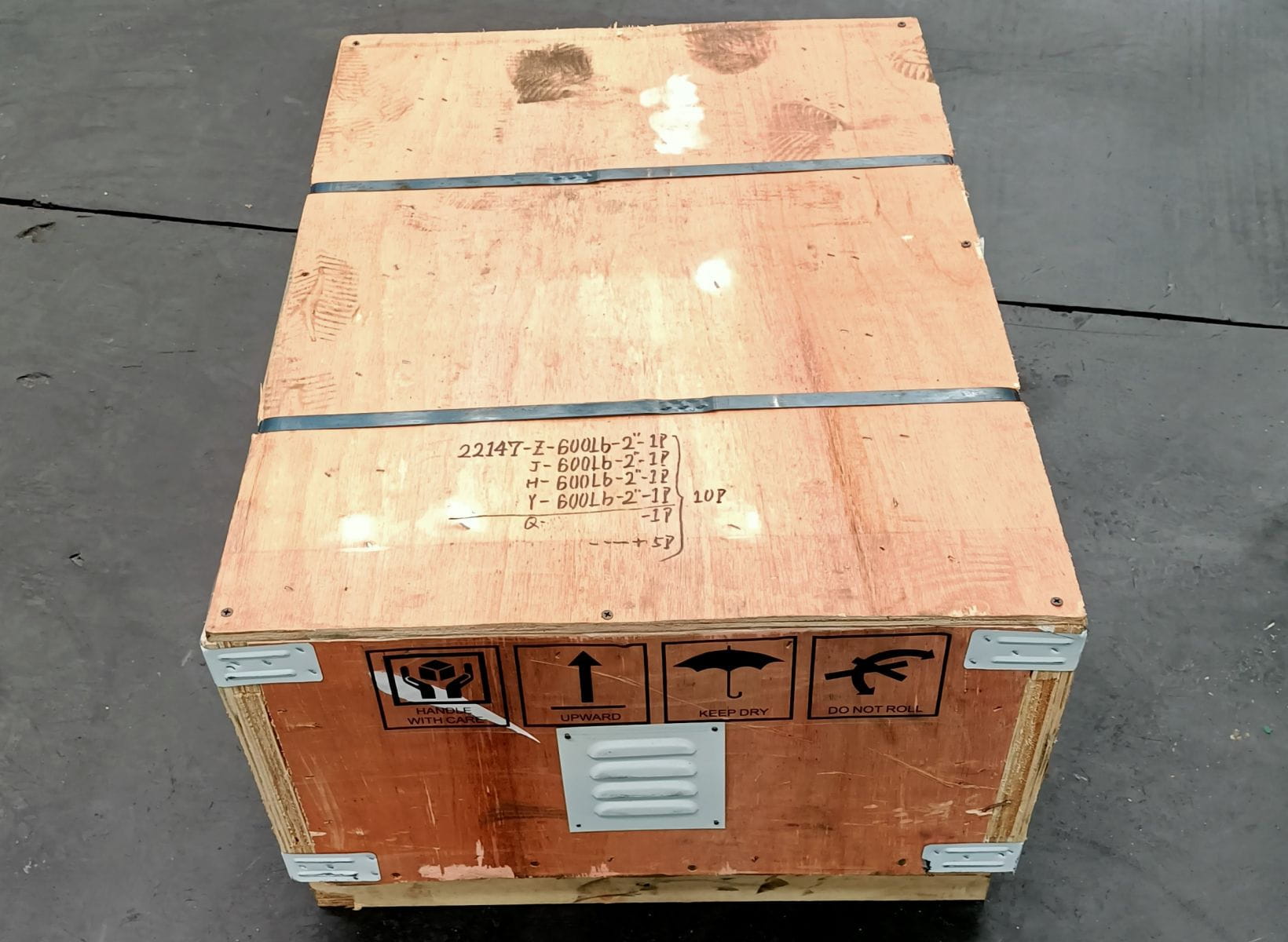

Packing

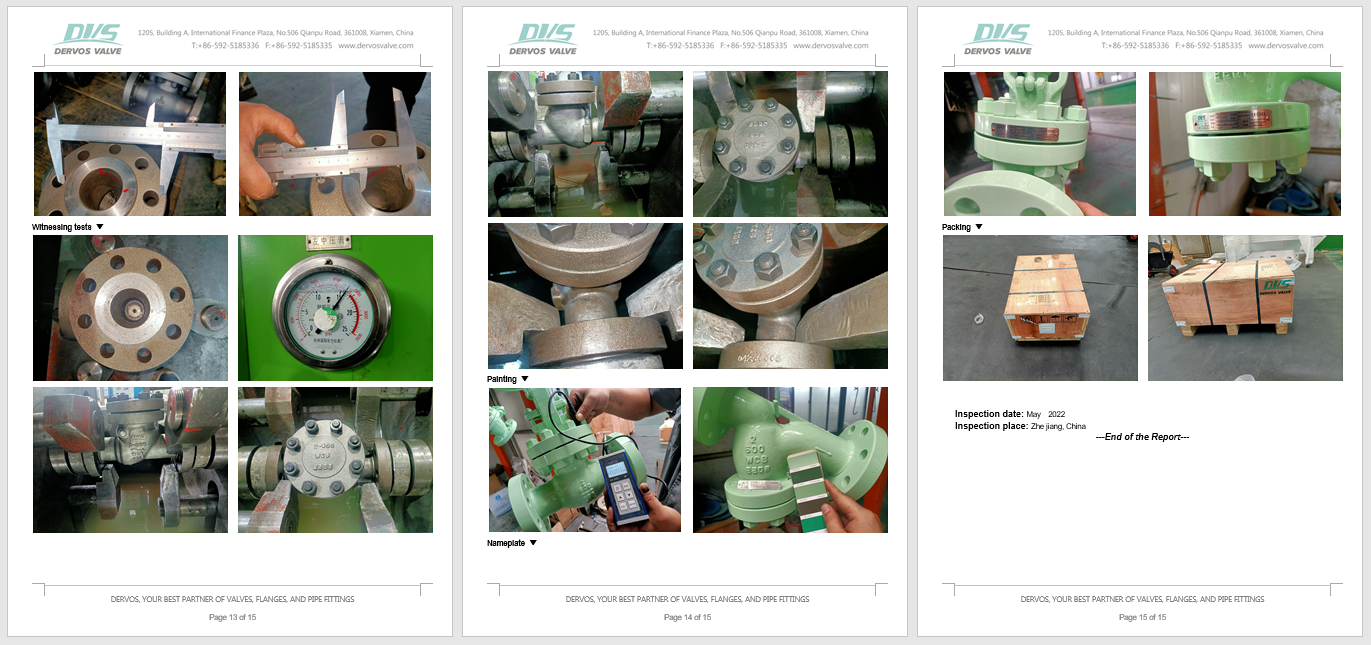

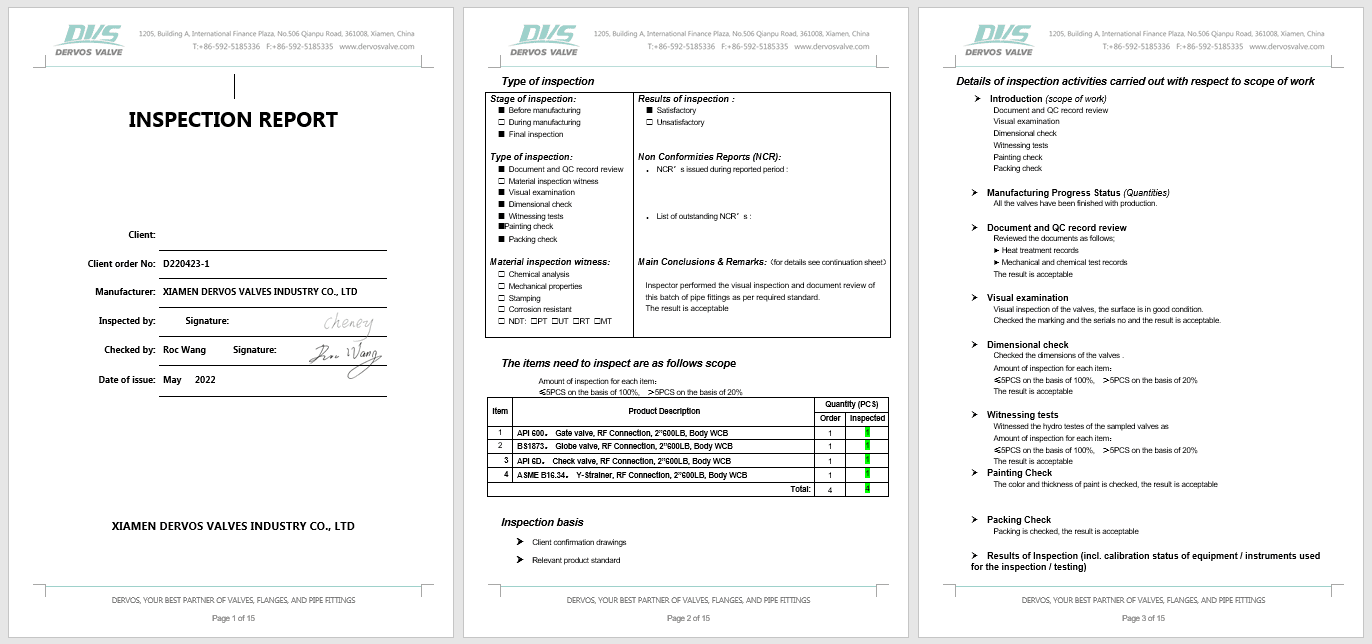

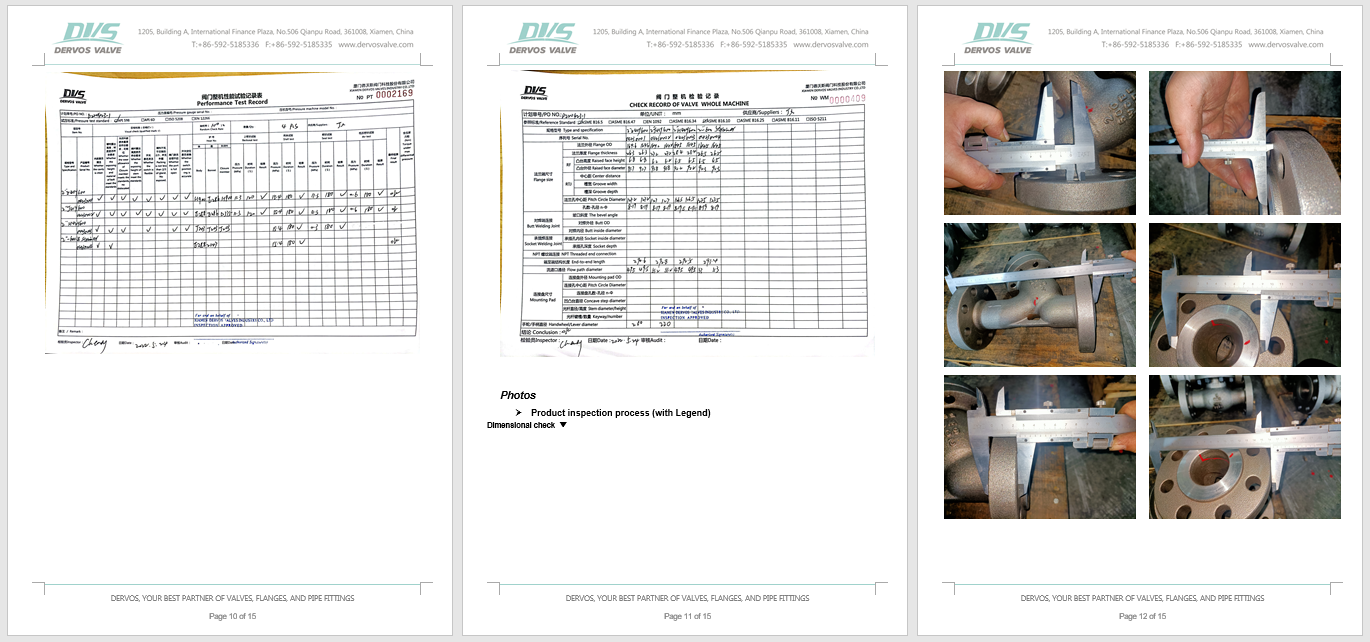

Inspection report
Introduction
2" 600 LB Y-type strainer is made according to ASME B16.34 standard. The valve body is made of WCB. It has the structural characteristics of a Y-type. It has the connection mode of RF.
Features
1. Convenient installation and small floor area;
2. Simple cleaning, low maintenance cost and large flow.
Technical Drawing
Dimension Checking
 |
 |
Pressure Testing
 |
 |
Packing
Inspection report
