3 Piece Reduced Port Floating Ball Valve, 1/2 Inch, 1500 WOG

Name: 1/2 Inch 1500WOG 3 piece Ball Valve, Floating Ball Lever. Reduced Port Ball Valve, Floating Ball valve, 3 pc Ball Valve, Chinese Ball Valve

Quick Detail
Features:

Fire Safe Design: Metal seat design provides a fire-safe shut off per API 607.

Anti-Static Device: Standard anti-static devices ensure electrical continuity between the ball, stem, and body, eliminating the possibility of sparks within the valve created by static electrical charges.

Open/Close Position Indication: Clear stamping on the outer diameter of the mounting flange identifies the open or closed position of the valve based on the stem key orientation.

Blowout Proof Stem Design: Valves are designed with stem/body connection preventing stem blowout under line pressure.

Lockout Device：These lockout devices clamp over the valve lever, thereby preventing the valve from being moved.

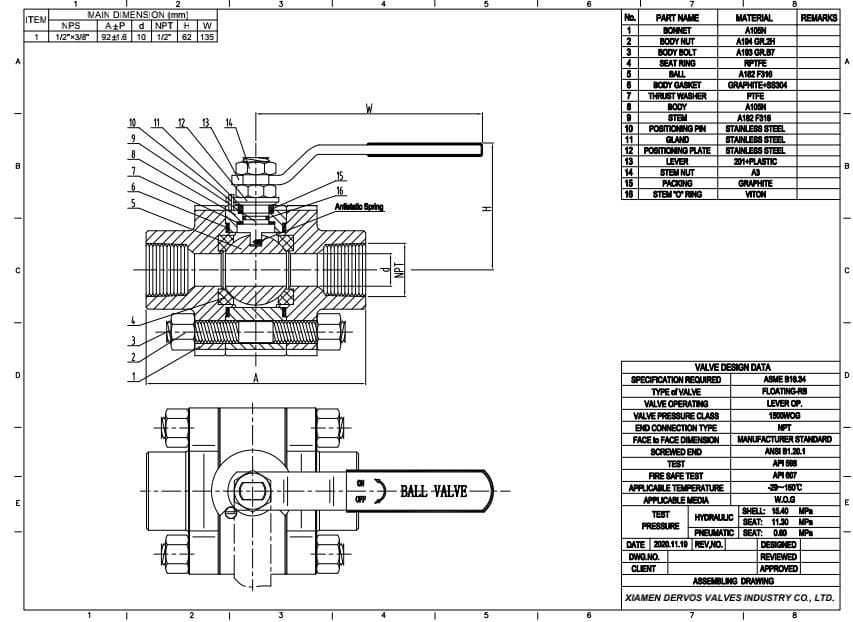

Technical Drawing

Dimension Check

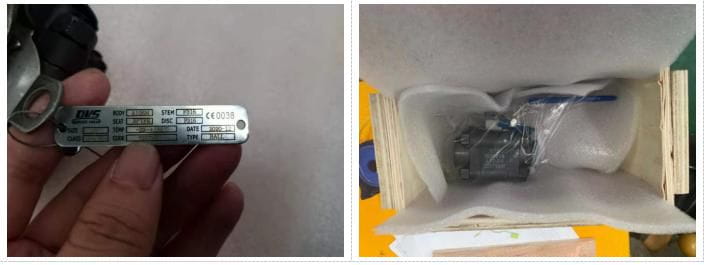

Nameplate&Packing

Q&A
1. Do you have your own foundry or forge shop?
No, but we have an approved list of foundries over the past decade of casting inspections, which can make sure that our castings are of good quality and all the raw materials are traceable.

2. Can you do NDE Capability radiography, MT, UT, LP?
Of course, we can do all these tests upon our clients, but there will be additional charge to these tests.

3. What kind of test will you do for each order?
After valve assembly, we will do hydraulic test for shell & sealing and air test. Plus, we will do dimension checking ( face to face dimension, flange dimension) as per assembly drawing and standards.
