3-Piece Floating Ball Valve, ASME B16.34, A105, DN15, PN350
Key Specifications / Features
The DN15 PN350 3-piece floating ball valve is manufactured in compliance with the ASME B16.34 standard. Constructed from ASTM A105, it features a floating ball design with full bore, ensuring optimal flow. This valve is fire-resistant and anti-static for enhanced safety. It connects via F-NPT threads and operates with a lever mechanism for easy control.
- Model No.: Kelly-BV-20241018-03
- Hits: 13
- Categories: Floating Ball Valve
- Tags: 3 Piece Ball Valve , ASME B16.34 Ball Valve , ASTM A105 Ball Valve
Detail Information
ASME B16.34 3-Piece Floating Ball Valves, ASTM A105, Lever Operation.
Features:
1. The floating ball design makes the valve compatible with various fluid media, including water, oil, gas, steam, and corrosive substances, making it ideal for industries like oil, natural gas, chemicals, and food processing.
2. When fully open, the valve allows unobstructed flow with minimal fluid resistance and virtually no pressure loss, making it perfect for piping systems requiring fast flow rates.

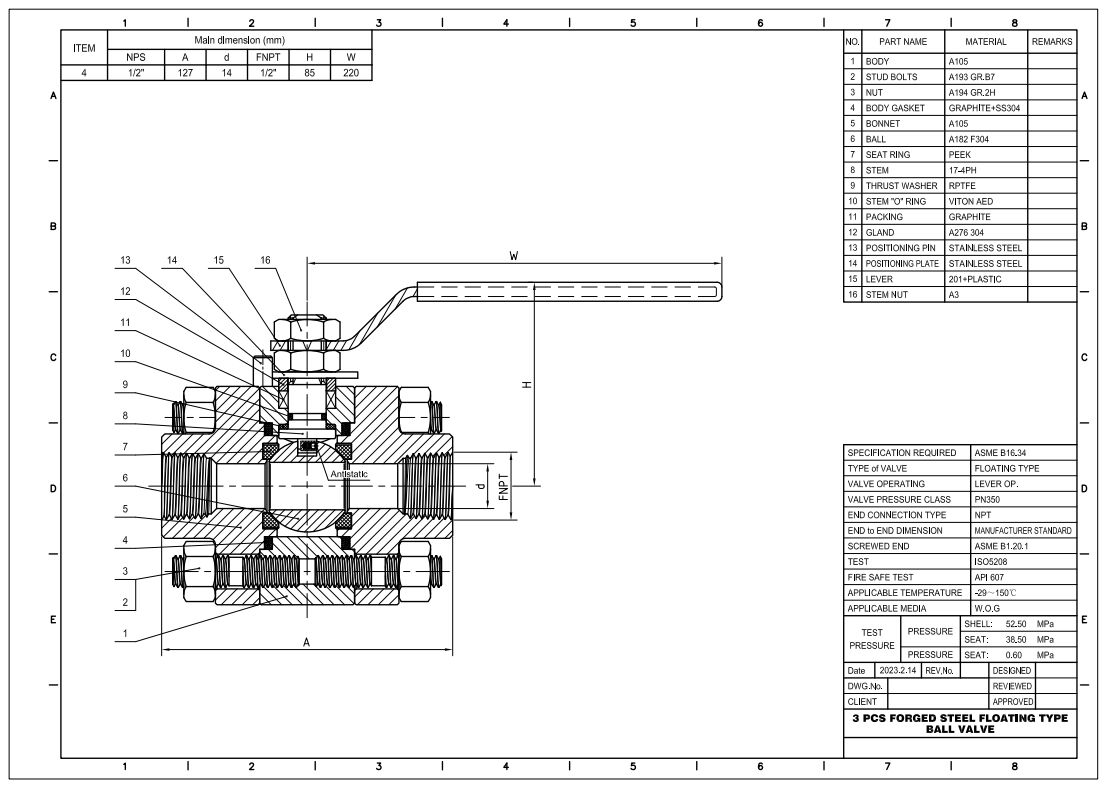

Technical Drawing
Dimension Checking

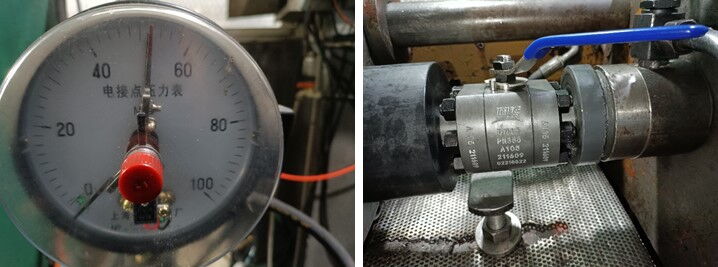

Pressure Testing

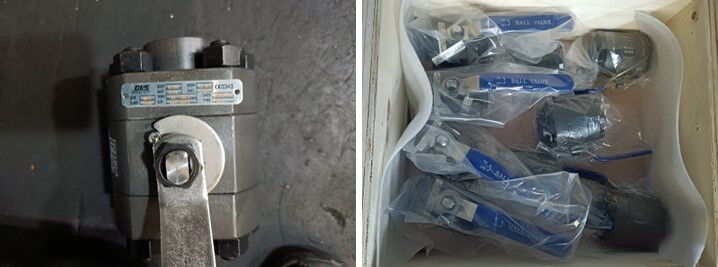

Nameplate & Packing
1. The floating ball design makes the valve compatible with various fluid media, including water, oil, gas, steam, and corrosive substances, making it ideal for industries like oil, natural gas, chemicals, and food processing.
2. When fully open, the valve allows unobstructed flow with minimal fluid resistance and virtually no pressure loss, making it perfect for piping systems requiring fast flow rates.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing

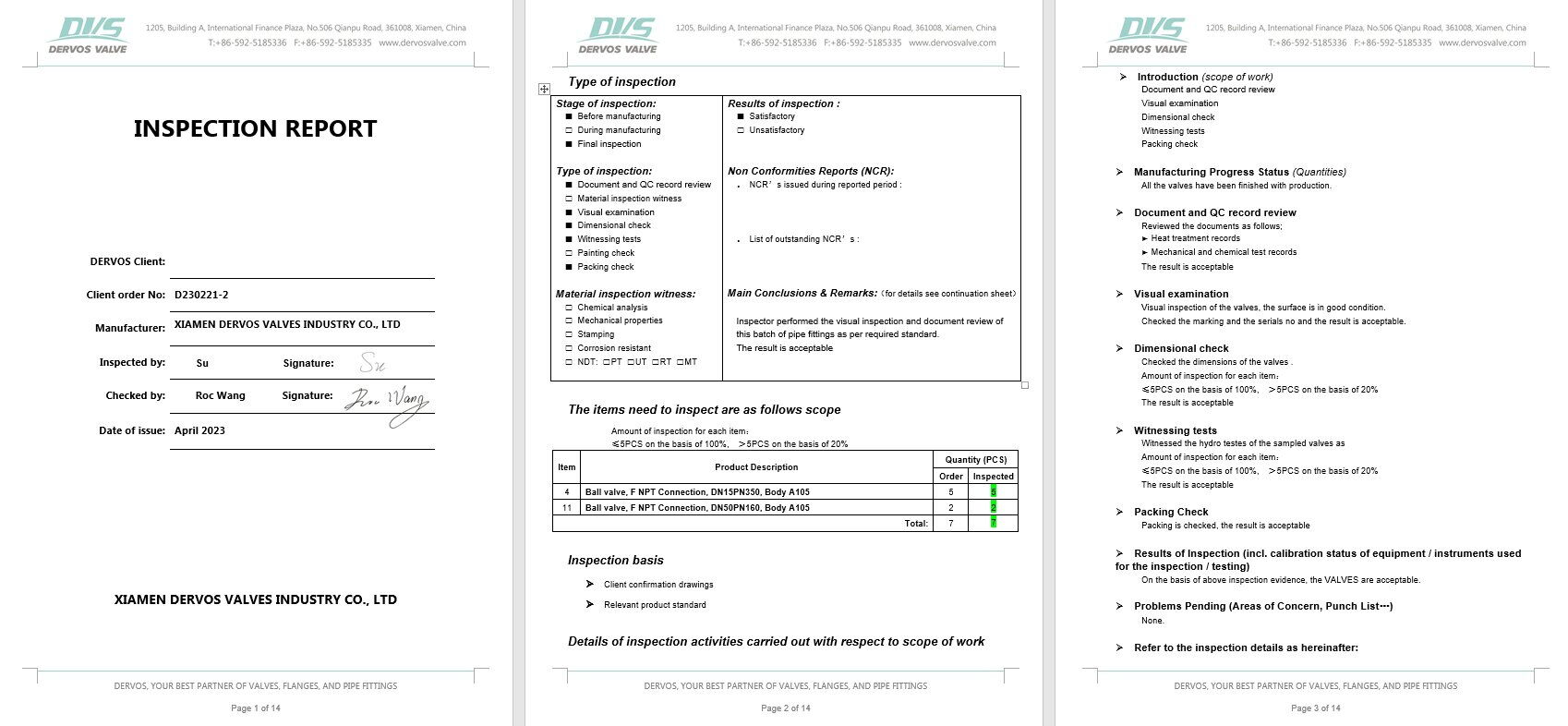

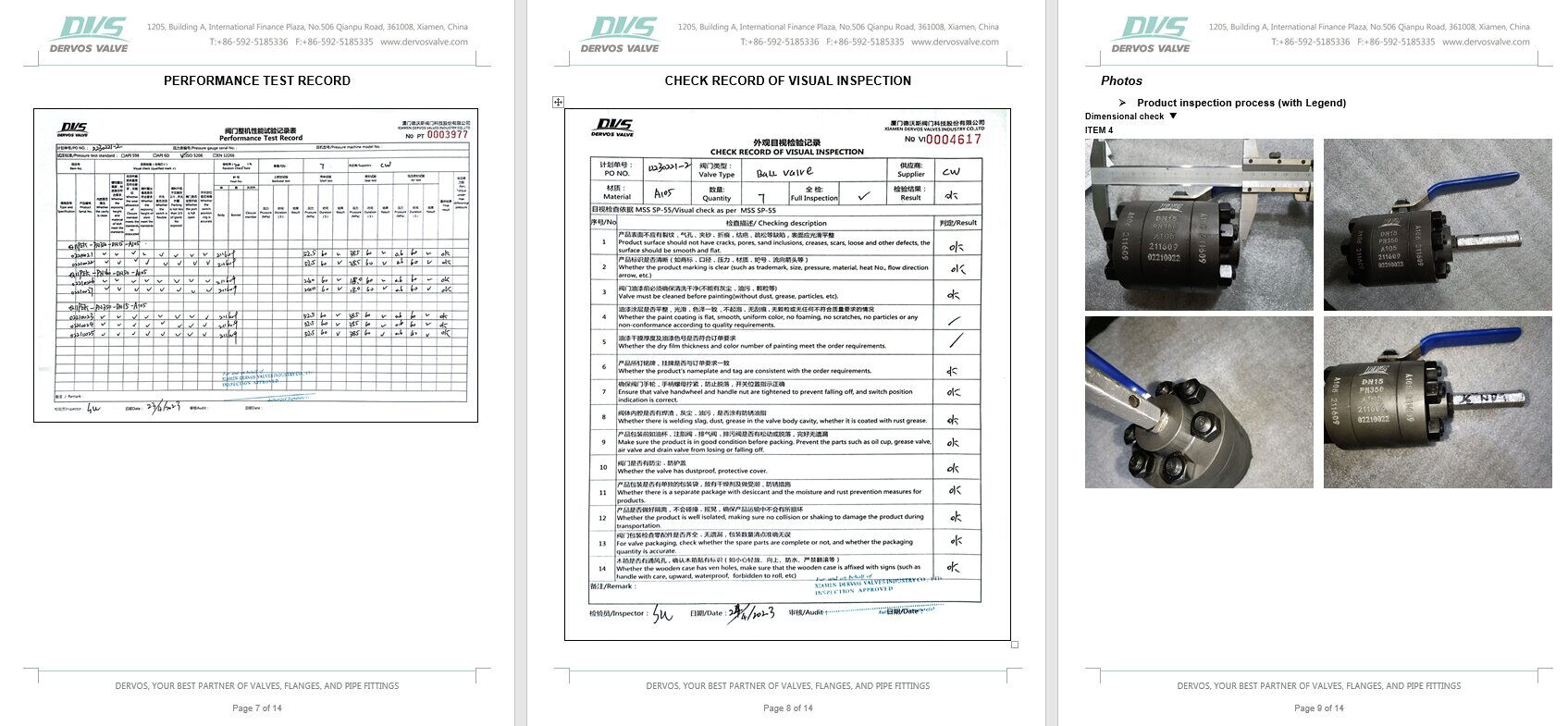

Inspection Report
