3PC Floating Ball Valve, A105N, AISI 316L, 1 Inch, 800 LB, SW
Key Specifications / Features
3PC Floating Ball Valve Maker: Three Piece Floating Ball Valve, Full Bore, Carbon Steel, ASTM A105N, AISI 316L, SW, 1 Inch, Class 800 LB, API 608.
- Hits: 10
- Categories: Forged Steel Ball Valve
- Tags: Three Piece Ball Valve , AISI 316L Ball Valve , 1 Inch Ball Valve
Detail Information
Quick Detail
Features:
·Three-piece
·Floating ball
·Full Bore
·Fire Safe Design
·Anti-static Device
·Anti-blowout Device
·Locking Device
·Connected by SW with 2xNipples L=200mm SCH 80
·Low Emission Valves
·Wide range of materials and sizes

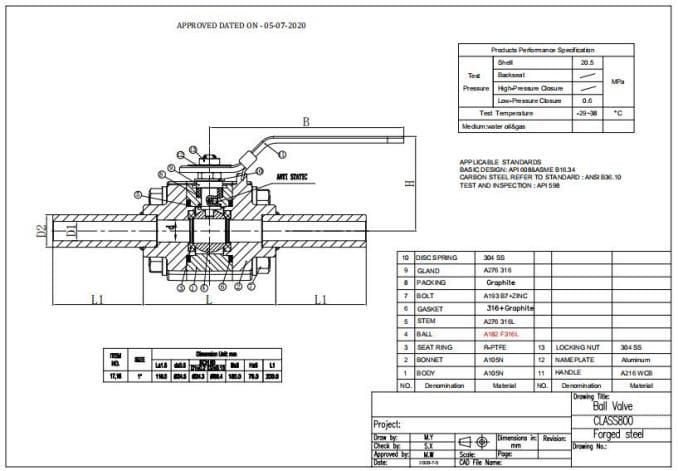

Technical Drawing

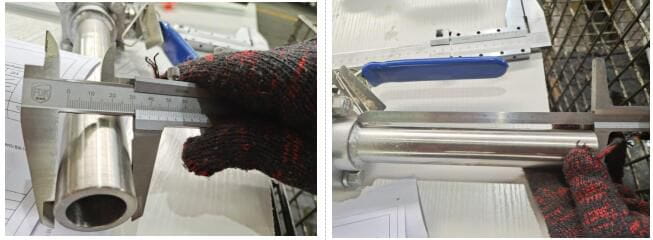

Dimension Check
Nameplate & Packing
Our Main Product Range
With a complete product range, Kelly product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve, wellhead valve and so on.
| Type | Ball Valve |
| Size | 1 Inch |
| Pressure | 800 LB |
| Construction | Three-Piece Body, Full Bore |
| Connection | SW with 2xNipples L=200mm, SCH 80 |
| Operation | Lever |
| Body Material | ASTM A105N |
| Ball Material | AISI 316L |
| Seat Material | RPTFE |
| Design Standard | API 608 |
| Operation | Lever |
| Test & Inspection | API 598 |
| Temperature Range | -29℃~38℃ |
| Media | Oil, Water, Gas |
Features:
·Three-piece
·Floating ball
·Full Bore
·Fire Safe Design
·Anti-static Device
·Anti-blowout Device
·Locking Device
·Connected by SW with 2xNipples L=200mm SCH 80
·Low Emission Valves
·Wide range of materials and sizes
Technical Drawing
Dimension Check
Nameplate & Packing
Our Main Product Range
With a complete product range, Kelly product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve, wellhead valve and so on.
