Three-piece Turbine Trunnion Mounted Ball Valve, 4 IN,900 LB
Key Specifications / Features
We Provide Three-piece Trunnion Mounted Ball Valves, 3PC Trunnion Ball Valves, Turbine Operation, 4 Inch, 900 LB, ASTM A105N+INCONEL 625 CLAD, API 6D, RF.
- Hits: 8
- Categories: Forged Steel Ball Valve
- Tags: 3 Piece Ball Valve , Trunnion Mounted Ball Valve , 4 Inch Ball Valve
Detail Information
4" 900LB Three-piece Trunnion Mounted Ball Valve API 6D Turbine
Introduction
4" 900LB ball valve is made according to API 6D standards. The valve body is made of A105N+INCONEL 625 CLAD(3mm). It has the structural characteristics of three-piece, side-mounted, reduced diameter, fixed ball, fireproof and anti-static, valve rod anti-flying, valve seat self-relief, two-way, with lock. Its connection mode is RF. And it has turbine operation mode.
Features
1. Simple structure, convenient maintenance, convenient operation, quick opening and closing;
2. During operation, all the forces generated by the fluid pressure in front of the valve on the ball are transmitted to the bearing, and the ball will not move toward the valve seat.
Technical Drawing

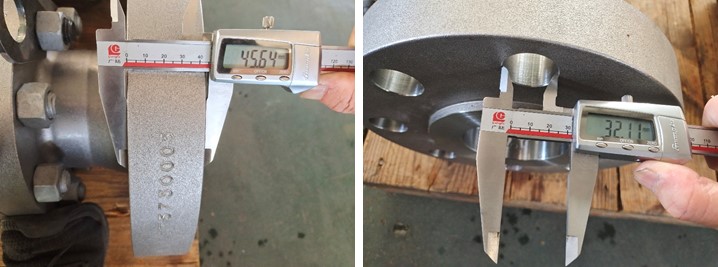

Dimension Checking

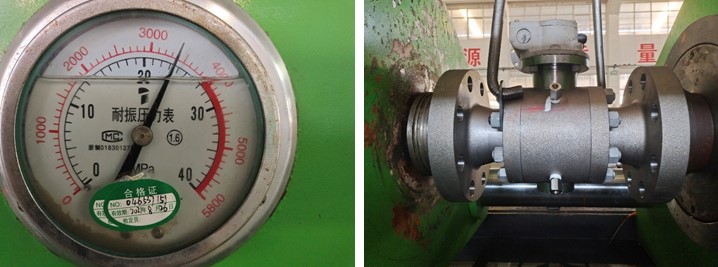

Pressure Testing

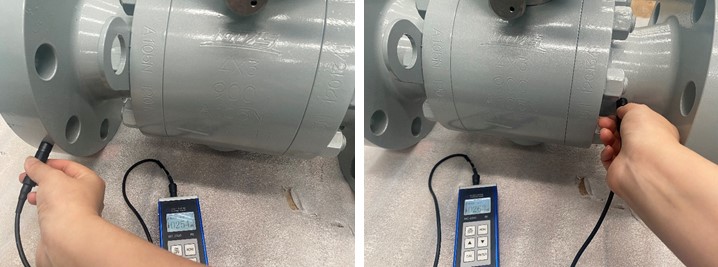

Painting

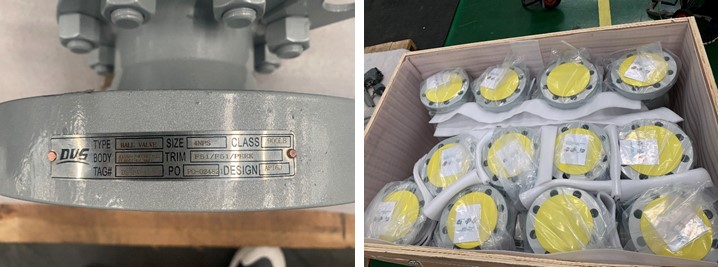

Nameplate & Packing
Introduction
4" 900LB ball valve is made according to API 6D standards. The valve body is made of A105N+INCONEL 625 CLAD(3mm). It has the structural characteristics of three-piece, side-mounted, reduced diameter, fixed ball, fireproof and anti-static, valve rod anti-flying, valve seat self-relief, two-way, with lock. Its connection mode is RF. And it has turbine operation mode.
Features
1. Simple structure, convenient maintenance, convenient operation, quick opening and closing;
2. During operation, all the forces generated by the fluid pressure in front of the valve on the ball are transmitted to the bearing, and the ball will not move toward the valve seat.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
