Wafer Type Butterfly Valve, PTFE Lining, GGG40, PN10, DN80
Key Specifications / Features
Wafer Type Butterfly Valve Supplier in China: Wafer Type Butterfly Valve, PTFE Lining, GGG40, PN10, DN80, API 609, Bare Stem, PTFE & EPDM Seated.
- Hits: 12
- Categories: Butterfly Valve
- Tags: Wafer Butterfly Valve , Ductile Iron GGG40 Butterfly Valve , PN10 Butterfly Valve
Detail Information
Name: Wafer Type Butterfly Valve, PTFE Lining, GGG40, PN10, DN80.
The PN10 DN 80 butterfly valve has excellent sealing performance and outstanding resistance to corrosion, thanks to its PTFE & EPDM - made seat and WCB & PTFE -made disc. This valve is bare stem, which means a actuator is retailed to operate the valve.
Quick Detail
Payment: 30% when order confirmed, 70% before shipment.
Product Origin: China.
Color: Customization.
Shipping Port: Shanghai, China.
Lead Time: 30-60 days Ex Works after order confirmation.

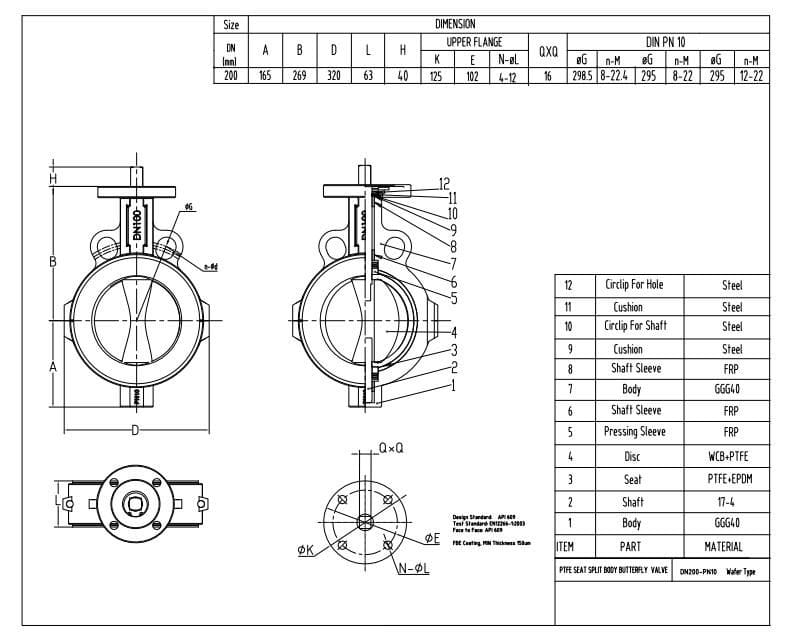

Technical Drawing：

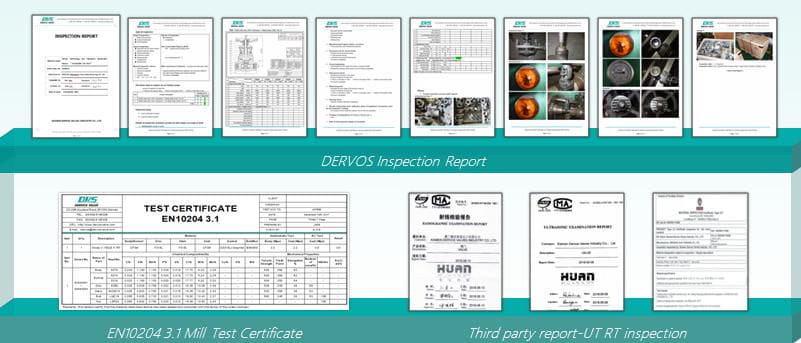

Reports
Along with each order, Kelly will provide inspection reports and material test reports free of charge after shipment. All these certificates will let you have a clear picture of inspection process and results. Plus, these reports can be used for traceability.
The PN10 DN 80 butterfly valve has excellent sealing performance and outstanding resistance to corrosion, thanks to its PTFE & EPDM - made seat and WCB & PTFE -made disc. This valve is bare stem, which means a actuator is retailed to operate the valve.
Quick Detail
| Type | Butterfly Valve |
| Nominal Diameter | DN80 |
| Nominal Pressure | PN10 |
| Connection | WAFER Type |
| Operation | Bare Stem |
| Design & Manufacture | API 609 |
| End to End | API 609 |
| Test & Inspection | EN12266-1:2003 |
| Temperature Range | -20℃~+180℃ |
| Body Material | GGG40 |
| Seat Material | PTFE+EPDM |
| Disc Material | WCB+PTFE |
| Media | W.O.G. |
Payment: 30% when order confirmed, 70% before shipment.
Product Origin: China.
Color: Customization.
Shipping Port: Shanghai, China.
Lead Time: 30-60 days Ex Works after order confirmation.
Technical Drawing：
Reports
Along with each order, Kelly will provide inspection reports and material test reports free of charge after shipment. All these certificates will let you have a clear picture of inspection process and results. Plus, these reports can be used for traceability.
