API 609 Concentric Butterfly Valve, DN350, PN10, EN 593
Key Specifications / Features
API 609 Concentric Butterfly Valve Supplier: Concentric Butterfly Valve, API 609, DN350, PN10, EN 593, Lug Type, ASTM A216 WCB, Gearbox Operated.
- Hits: 8
- Categories: Butterfly Valve
- Tags: API 609 Butterfly Valve , DN350 Butterfly Valve , PN10 Butterfly Valve
Detail Information
On this page
Concentric Butterfly Valves, Lug type, Lug Butterfly Valve
Quick Detail
Features
• Symmetric disc design ensures favorable flow characteristics and low-pressure drop
• Concentric shaft ensures low operating torque
• Lining gives good protection to the valve body and acts as a flange gasket
- Shaft penetrates the valve seat
- Limited choice of seating materials(Elastomer, only)

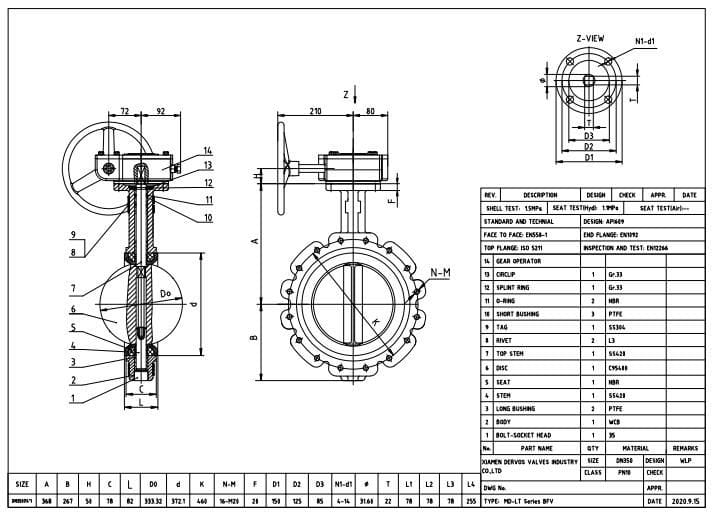

Technical Drawing

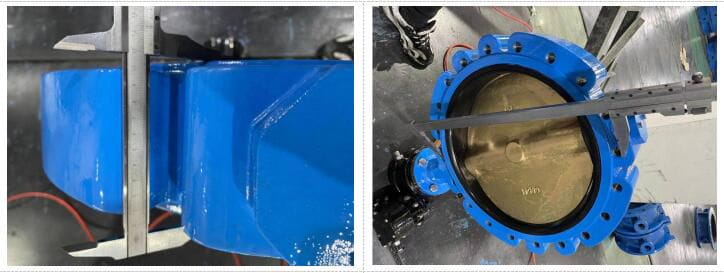

Dimension Check

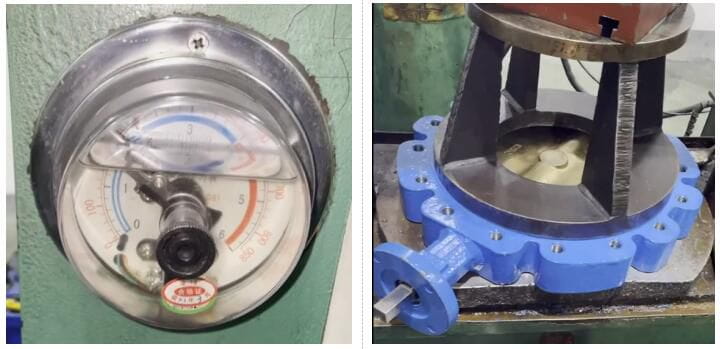

Witnessing Tests
FAQ
1. Can the orders always be delivered on time?
Our purchasing team follows up very closely with each order to make sure on-time delivery for most of the orders. In 2018, more than 90% of orders were delivered on time, and we are dedicated to doing better.
2. What's the normal delivery lead time?
For normal material, usually, the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.
3. Do you have different price levels for us?
With our numerous suppliers, different price levels are available with us, so we are able to help you win more customers from different markets requesting high, medium and low prices.
Quick Detail
| Type | Butterfly Valve |
| Size | DN350 |
| Pressure | PN10 |
| Structure | Concentric, Soft Seated |
| Connection Type | Lug Type |
| Operation | Gearbox Operated |
| Design Code | EN 593 |
| Face to Face | AEN558-1 |
| End Flange | EN 1092 |
| Test & Inspection | EN 12266 |
| Body Material | ASTM A216 WCB |
| Seat Material | NBR |
| Application | Water, Oil, Gas |
Features
• Symmetric disc design ensures favorable flow characteristics and low-pressure drop
• Concentric shaft ensures low operating torque
• Lining gives good protection to the valve body and acts as a flange gasket
- Shaft penetrates the valve seat
- Limited choice of seating materials(Elastomer, only)
Technical Drawing
Dimension Check
Witnessing Tests
FAQ
1. Can the orders always be delivered on time?
Our purchasing team follows up very closely with each order to make sure on-time delivery for most of the orders. In 2018, more than 90% of orders were delivered on time, and we are dedicated to doing better.
2. What's the normal delivery lead time?
For normal material, usually, the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders.
3. Do you have different price levels for us?
With our numerous suppliers, different price levels are available with us, so we are able to help you win more customers from different markets requesting high, medium and low prices.
