Soft Seal Wafer Butterfly Valve, 14 Inch, 150 LB, API 609
Key Specifications / Features
Soft Seal Wafer Butterfly Valve Fabricator: Triple-offset Soft-seal Wafer Butterfly Valves, ASTM A216 WCB, 14 Inch, Class 150 LB, API 609, Triple-eccentric, Wafer Type, Gearbox Operation.
- Hits: 17
- Categories: Butterfly Valve
- Tags: 14 Inch Butterfly Valve , Class 150 LB Butterfly Valve , API 609 Butterfly Valve
Detail Information

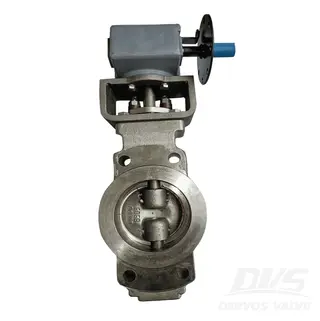

14 Inch 150LB Triple-offset butterfly valve, Wafer Type
The 14 inch 150 LB butterfly is triple offset or triple eccentric type, and wafer type. The soft-seated butterfly valve with a gearbox operator, made according to API609 and tested under API 598, has a WCB body, disc and yoke.
Type: Butterfly Valve.
Nominal Diameter: 14 Inch.
Nominal Pressure: Class 150 LB.
Construction: Triple Offset, Triple Eccentric.
Connection Type: Wafer Type.
Operation: Gearbox Operation.
Design Code: API 609.
Face to Face: API 609.
End Connection: ASME B16.5.
Test & Inspection: API 598.
Body Material: ASTM A216 WCB.
Seal Material: PTFE.
Temperature Range: -29℃ - 150℃.
Application: Water, Oil, Gas.
The 14 inch 150 LB butterfly is triple offset or triple eccentric type, and wafer type. The soft-seated butterfly valve with a gearbox operator, made according to API609 and tested under API 598, has a WCB body, disc and yoke.
Type: Butterfly Valve.
Nominal Diameter: 14 Inch.
Nominal Pressure: Class 150 LB.
Construction: Triple Offset, Triple Eccentric.
Connection Type: Wafer Type.
Operation: Gearbox Operation.
Design Code: API 609.
Face to Face: API 609.
End Connection: ASME B16.5.
Test & Inspection: API 598.
Body Material: ASTM A216 WCB.
Seal Material: PTFE.
Temperature Range: -29℃ - 150℃.
Application: Water, Oil, Gas.
