Key Specifications / Features
Double Offset Butterfly Valve Manufacturer: High-performance Double Eccentric Butterfly Valves, Double Offset, 12 Inch, 300 LB, ASTM A216 WCB, API 609.
- Hits: 0
- Categories: Butterfly Valve
- Tags: Double Offset Butterfly Valve , Double Eccentric Butterfly Valve , High Performance Butterfly Valve
Detail Information
Features
-Resilient-seated
-Double offset butterfly valve to
-Lug-type with threaded holes
-Tight in both flow directions
-Anti-blowout shafts
-Fire-proof device
-Anti-static device

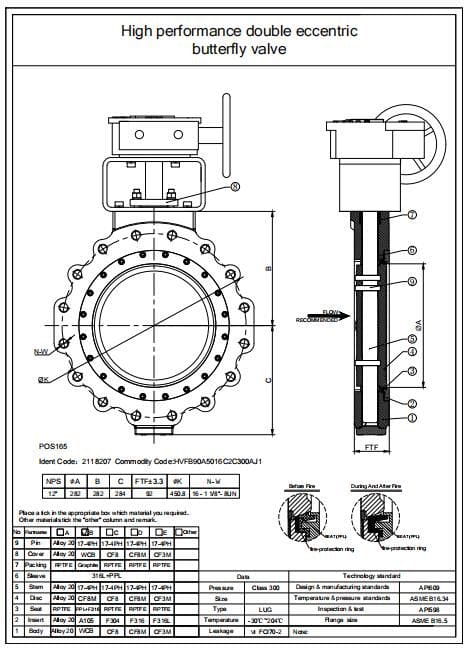

Technical Drawing

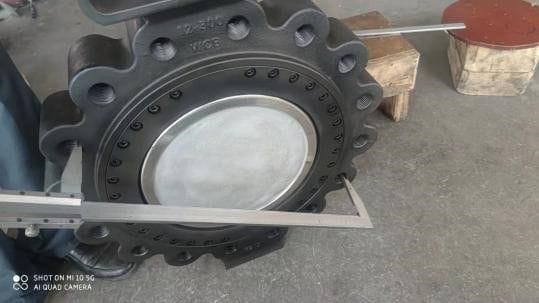

Dimension Check

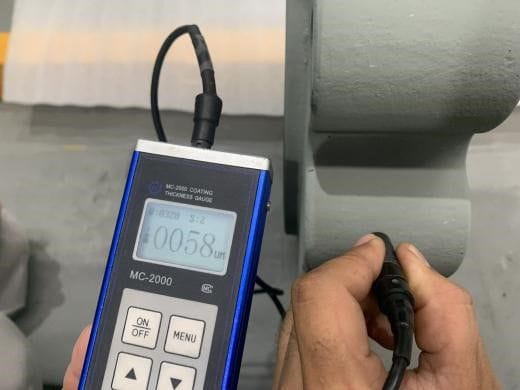

Coat Thickness Tests
-Resilient-seated
-Double offset butterfly valve to
-Lug-type with threaded holes
-Tight in both flow directions
-Anti-blowout shafts
-Fire-proof device
-Anti-static device
| Type | Butterfly Valve |
| Nominal Diameter | 12 Inch |
| Nominal Pressure | 300LB |
| Construction | Double Eccentric; Double Offset |
| Connection | Lug Type; RF |
| Operation | Gear Box |
| Design & Manufacture | API609 |
| Flange Dimension | ASME B16.34 |
| Test & Inspection | API598 |
| Body Material | ASTM A216 WCB |
| Plate Material | ASTM A351 CF8M |
| Temperature | -30~204℃ |
| Media | W.O.G |
Technical Drawing
Dimension Check
Coat Thickness Tests
