Key Specifications / Features
We Provide ASTM A216 WCB Concentric Butterfly Valves, ASTM A216 WCB Butterfly Valves, Concentric Type, Wafer Ends, 14 Inch, Class 150 LB, DN350, PN20, API 609.
- Hits: 1
- Categories: Butterfly Valve
- Tags: ASTM A216 WCB Butterfly Valve , Concentric Butterfly Valve , 14 Inch Butterfly Valve
Detail Information

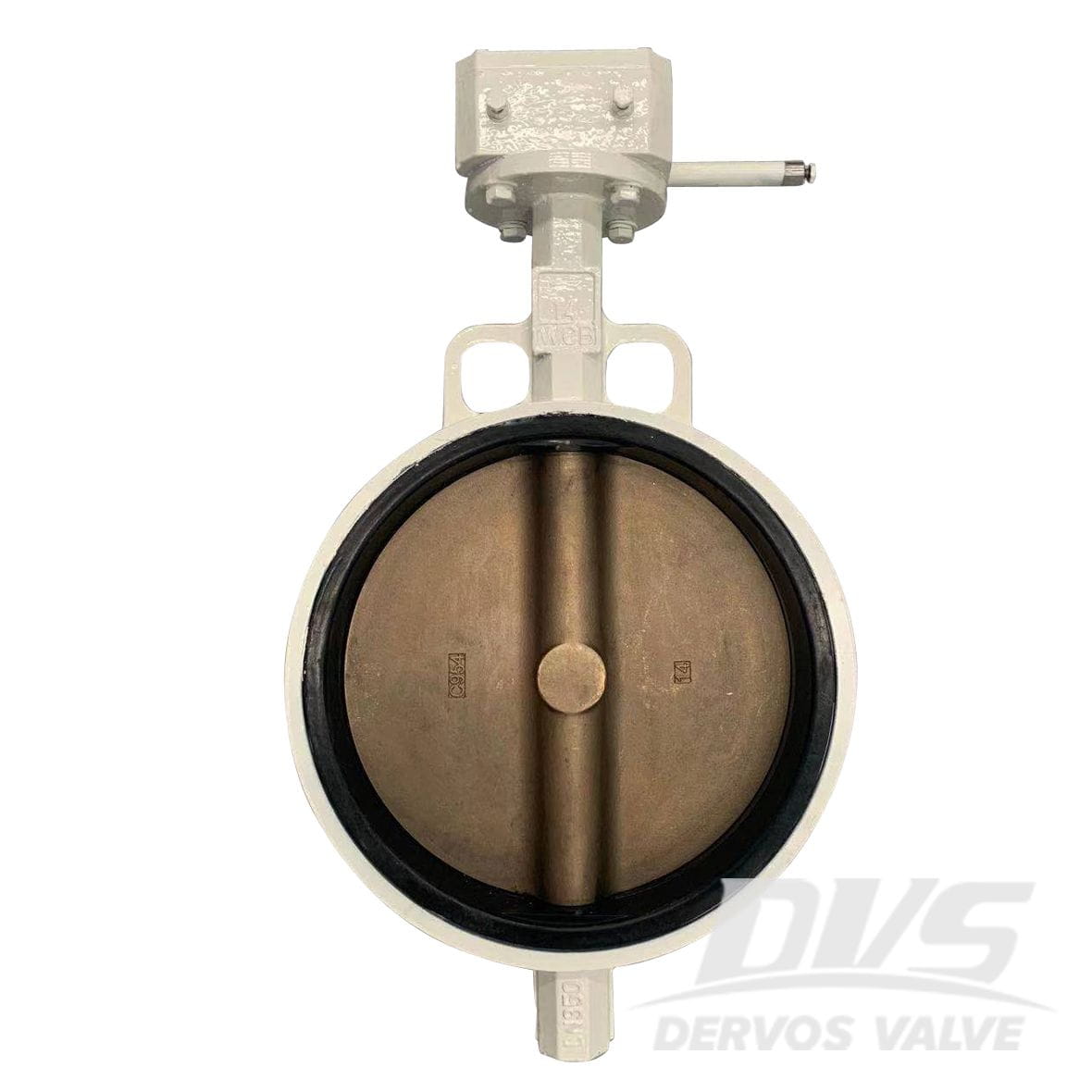

14" 150 LB Concentric Butterfly Valve WCB API 609 Wafer
Introduction
14" 150LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of the Concentric type. It has a wafer connection code and turbine operation code.
Features
1. The valve stem axis, butterfly plate center and body center are at the same position;
2. Simple structure and convenient manufacture.

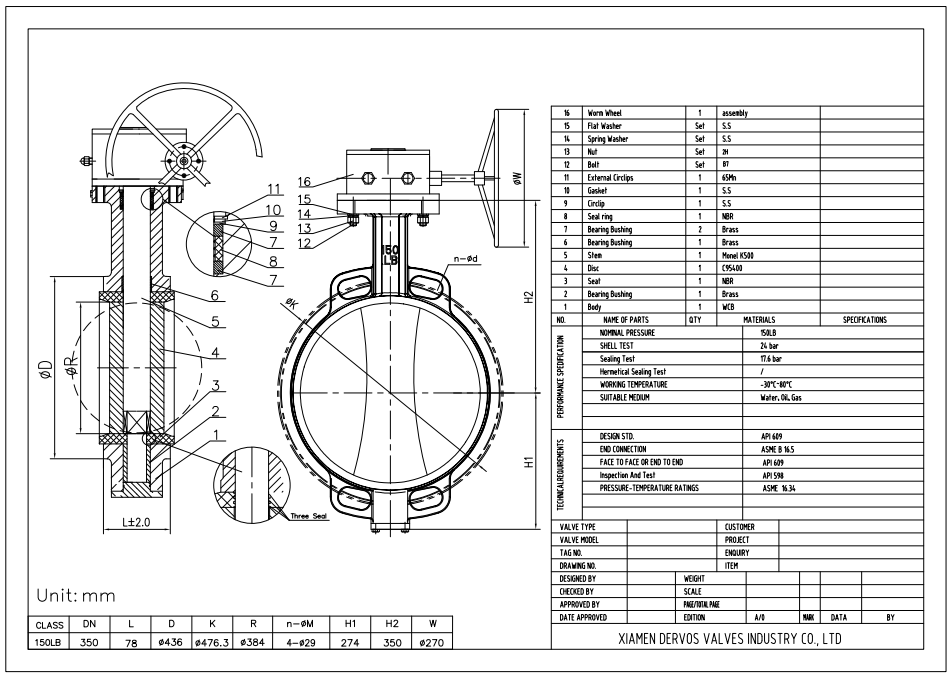

Technical Drawing

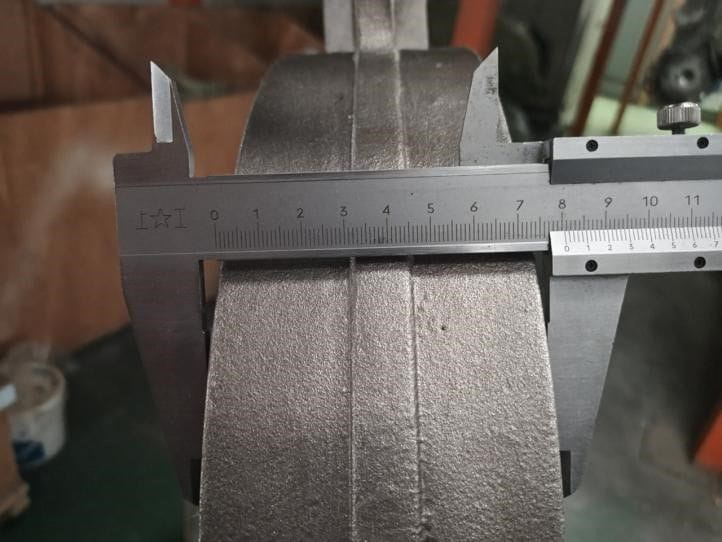

Dimension Checking

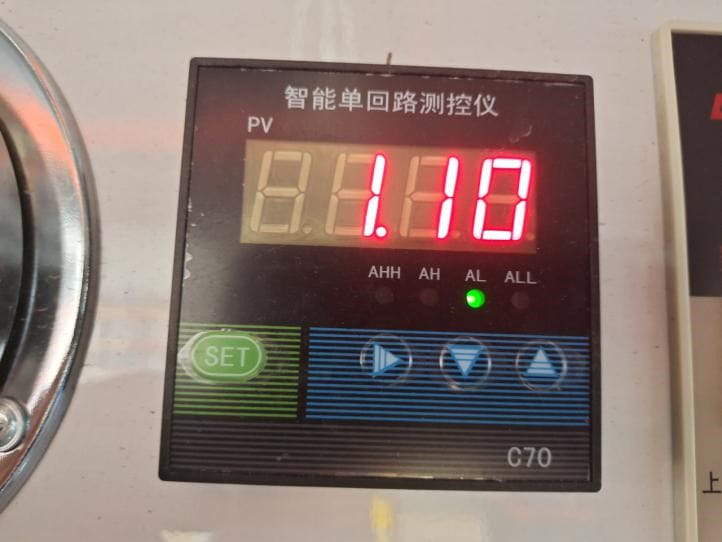

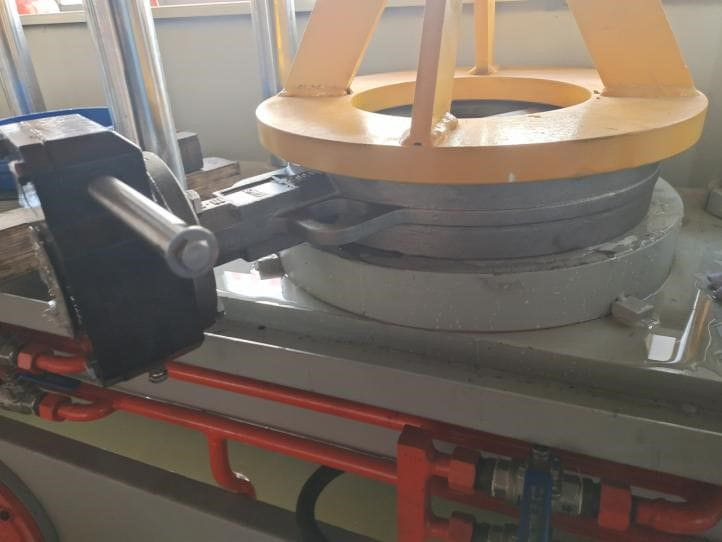

Pressure Testing

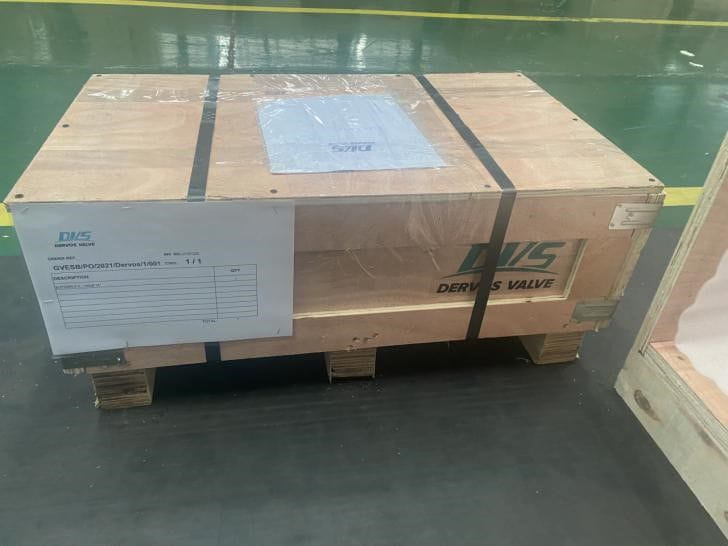

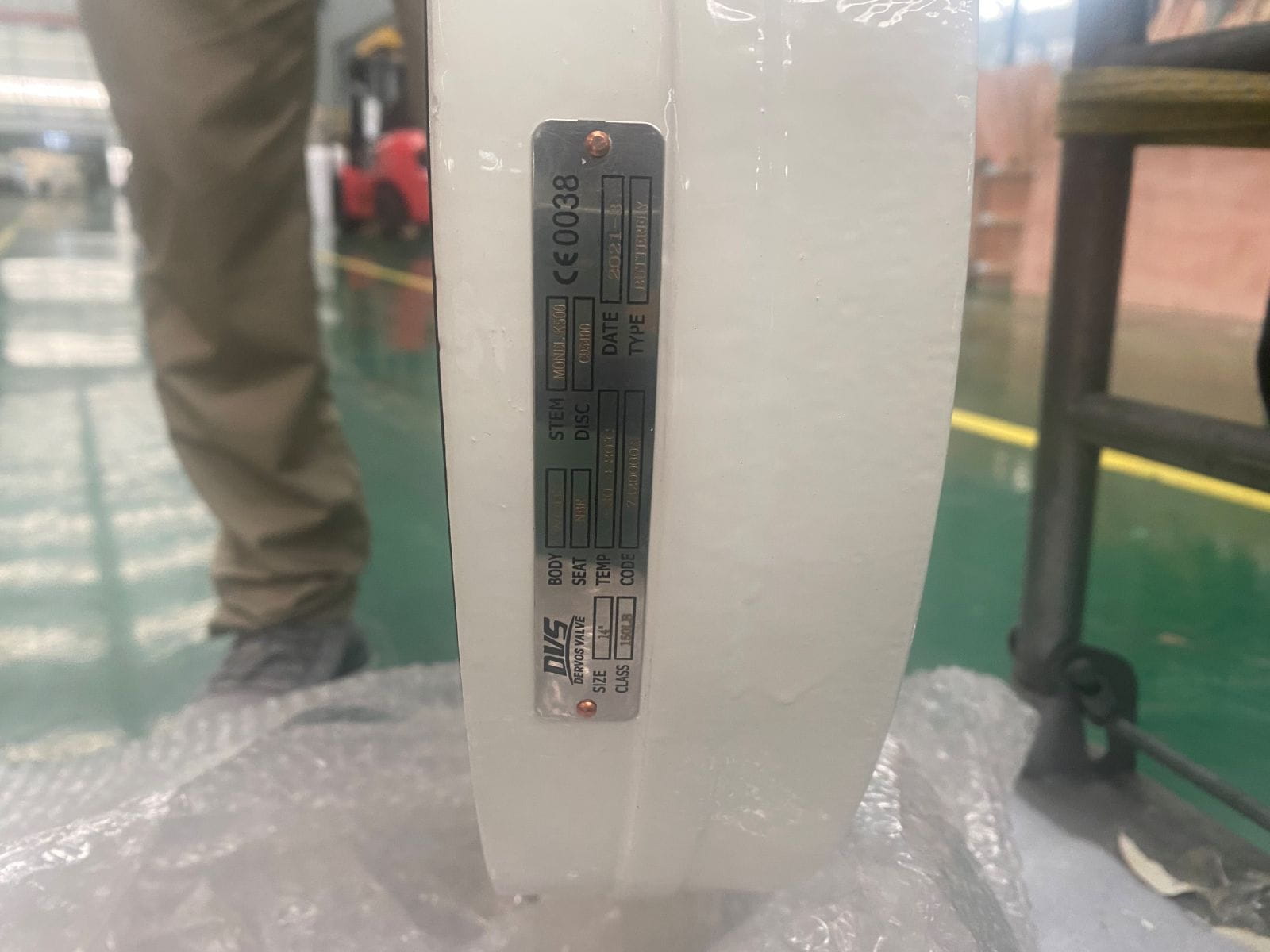

Nameplate & Packing

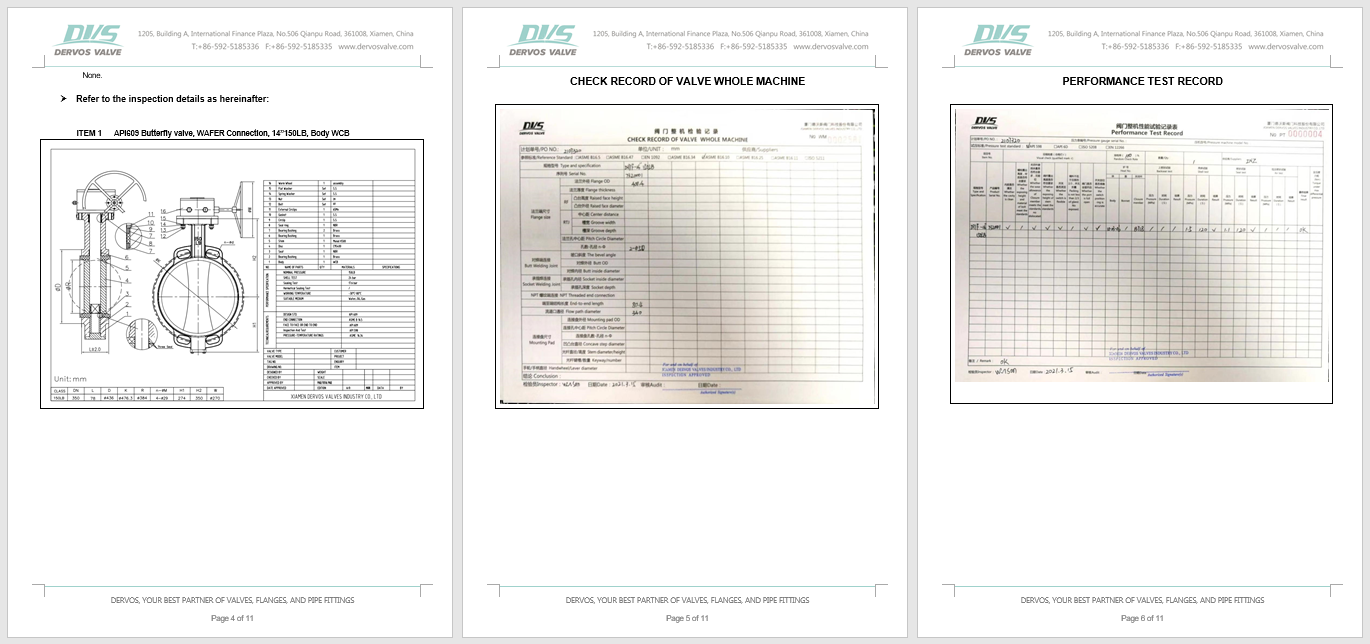

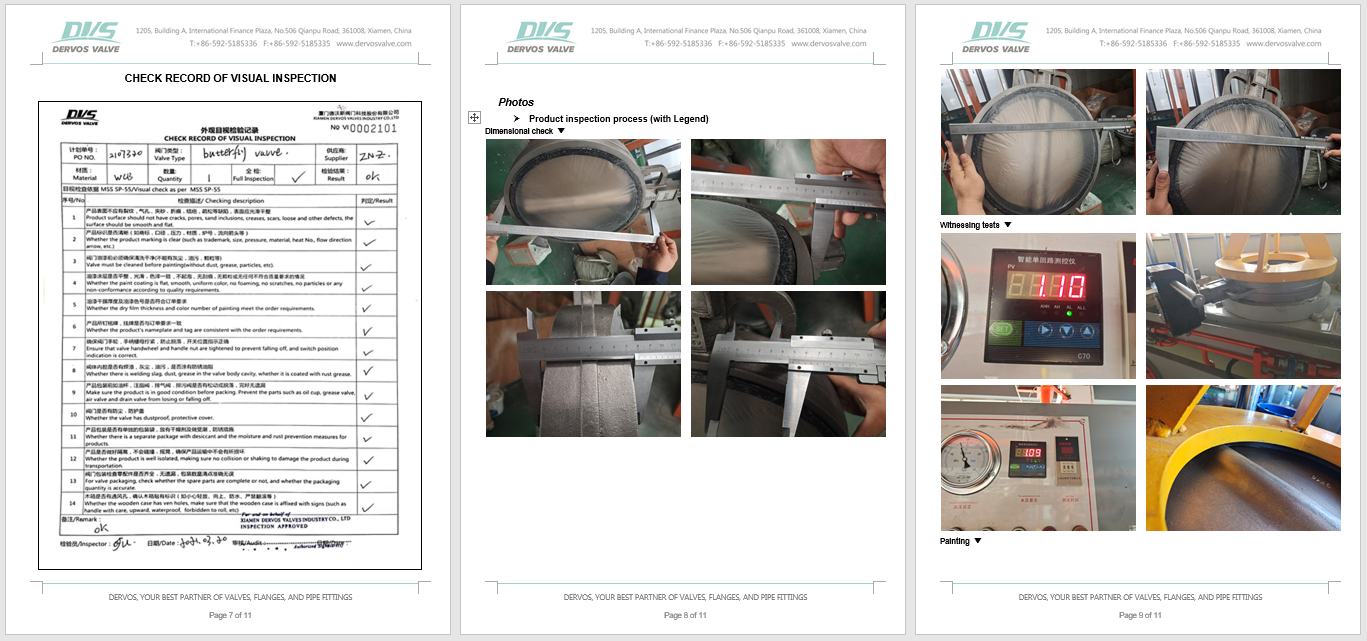

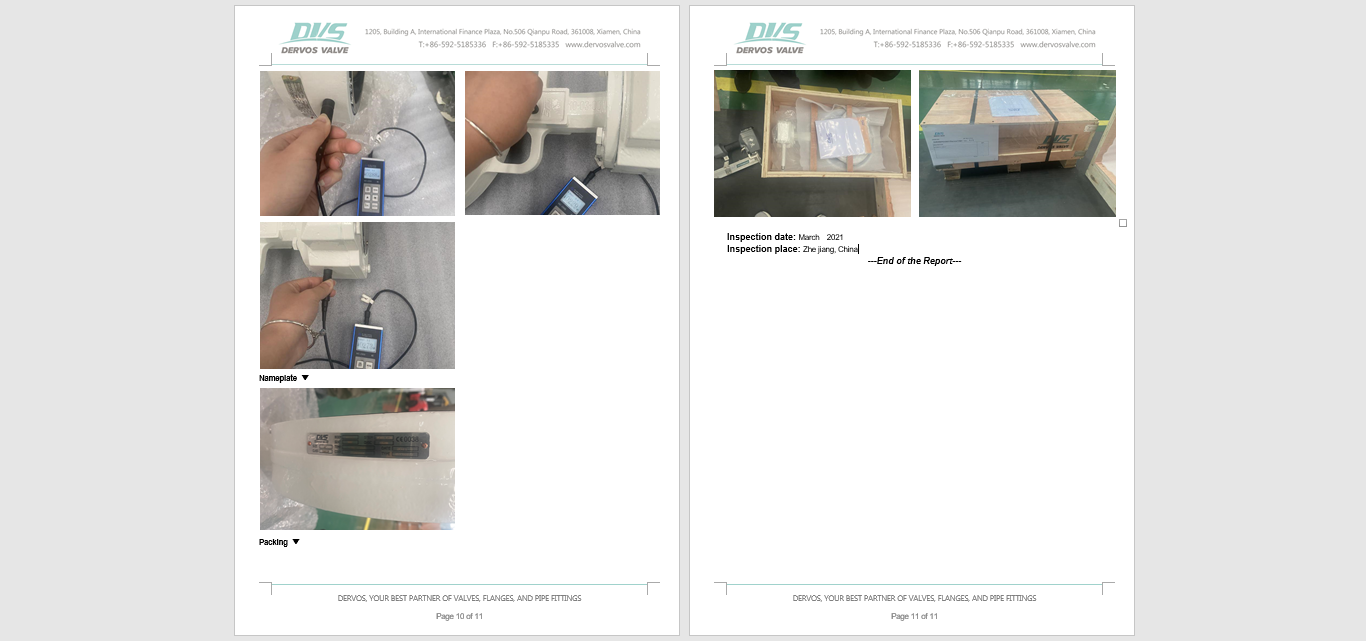

Inspection report
Introduction
14" 150LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of the Concentric type. It has a wafer connection code and turbine operation code.
Features
1. The valve stem axis, butterfly plate center and body center are at the same position;
2. Simple structure and convenient manufacture.
Technical Drawing
Dimension Checking
 |
 |
Pressure Testing
Nameplate & Packing
Inspection report
