Rigid Wedge Gate Valve, API 602, A105, 3/4 Inch, 800 LB, SW
Key Specifications / Features
3/4 Inch 800 LB gate valve is made according to API 602 standard. The valve body is made of A105. It has the structural characteristics of rigid wedge and bolt cover. Its connection mode is SW. And it has hand wheel operation mode.
- Hits: 7
- Categories: Gate Valve
- Tags: Forged Steel Gate Valve , 3/4 Inch Gate Valve , Class 800 LB Gate Valve
Detail Information
ASTM A105 Rigid Wedge Gate Valve 3/4 Inch 800 LB SW
Product Description
Features
1. Low fluid resistance, simple product structure, small volume, and light weight;
2. It has good sealing performance and has been widely used in vacuum systems；
3. Simple structure and convenient disassembly and replacement.
Technical Drawing

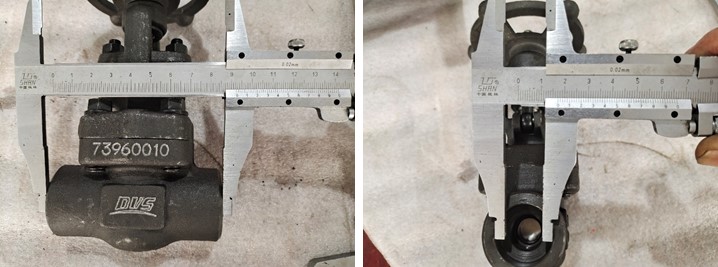

Dimension Checking

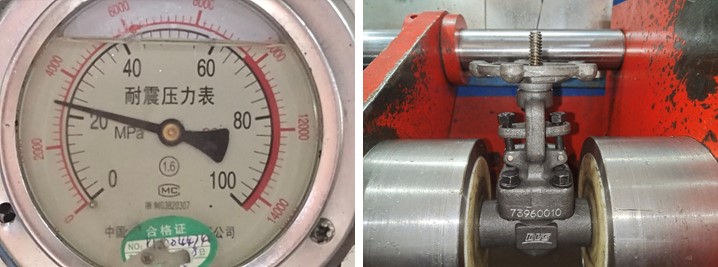

Pressure Testing

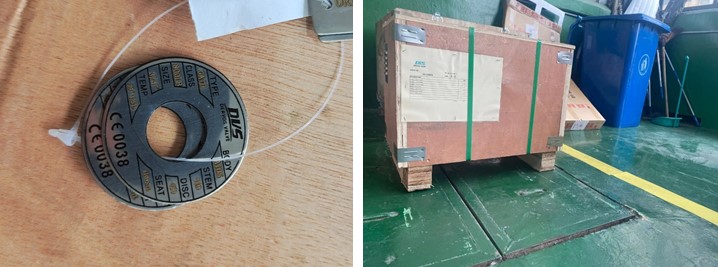

Nameplate & Packing
Product Application
Oil & Gas Industry
Kelly valves are fully involved in refining, oil and gas industries to handle very tough working environments.
Petrochemical Industry
We could also provide all kinds of valves in various materials, like stainless steel, Monel, titanium, and hastelloy to meet requirements of chemical industry.
Power Station Industry
Kelly could provide valves suitable for power station use with high pressure and temperature requirements.
Product Description
| Type | Gate Valve |
| Size | 3/4 Inch |
| Pressure | 800LB |
| Connection | SW |
| Operation | Hand Wheel |
| Body Material | A105 |
| Design Norm | API 602 |
| Socket Welded Dimension | ANSI B16.11 |
| Materials | AISI/ASTM |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Features
1. Low fluid resistance, simple product structure, small volume, and light weight;
2. It has good sealing performance and has been widely used in vacuum systems；
3. Simple structure and convenient disassembly and replacement.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Product Application
Oil & Gas Industry
Kelly valves are fully involved in refining, oil and gas industries to handle very tough working environments.
Petrochemical Industry
We could also provide all kinds of valves in various materials, like stainless steel, Monel, titanium, and hastelloy to meet requirements of chemical industry.
Power Station Industry
Kelly could provide valves suitable for power station use with high pressure and temperature requirements.
