ASTM A182 F304L Gate Valve, 3/4 Inch, 800 LB, API 602
Key Specifications / Features
Shop the finest quality 3/4 inch forged steel gate valve from a trusted manufacturer. This Class 800 LB valve, designed according to API 602 standards, features a bolt cover and rigid wedge for enhanced durability. With a DN20 size and SW end connection, it offers reliable performance. The hand wheel operation ensures convenient control. Order now for reliable, high-quality gate valves that meet industry standards.
- Hits: 11
- Categories: Gate Valve
- Tags: 3/4 Inch Gate Valve , Class 800 LB Gate Valve , API 602 Gate Valve
Detail Information
3/4 Inch 800 LB Forged Steel Gate Valve SW F304L API602 Hand Wheel
Introduction
3/4 Inch 800 LB gate valve is made according to API 602 standard. The valve body is made of ASTM A182 F304L. It has the structural characteristics of a bolt cover and rigid wedge. Its connection mode is SW. And it has hand wheel operation mode.
Features
1. Low fluid resistance, sealing surface not subject to erosion when fully open;
2. Simple structure, small size, lightweight, tight and reliable.

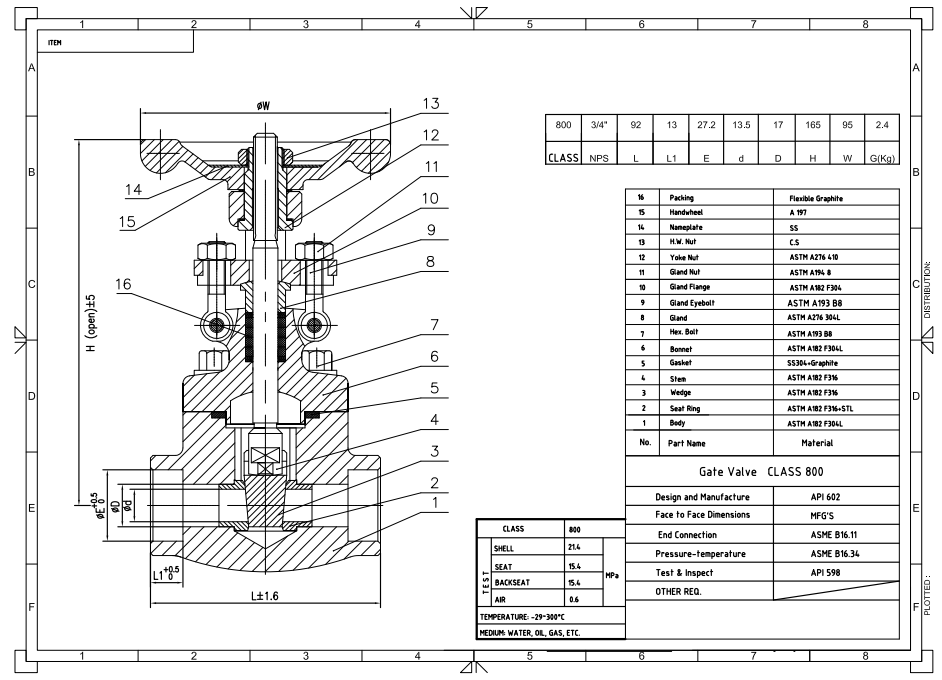

Technical Drawing

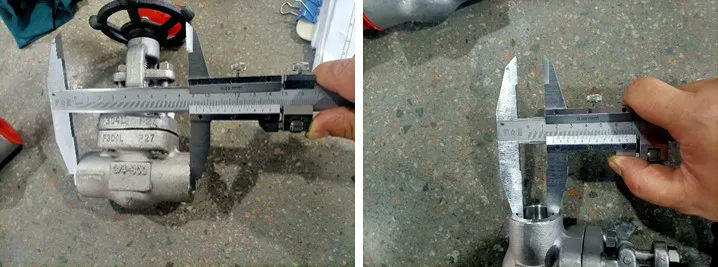

Dimension Checking
Pressure Testing

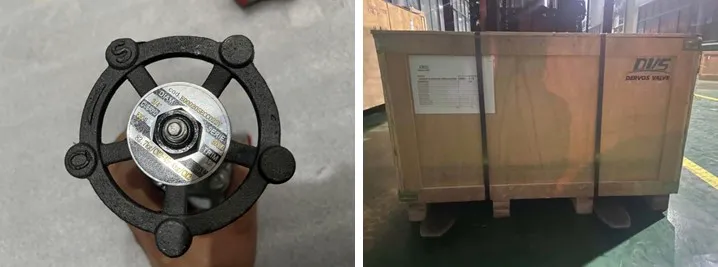

Nameplate & Packing

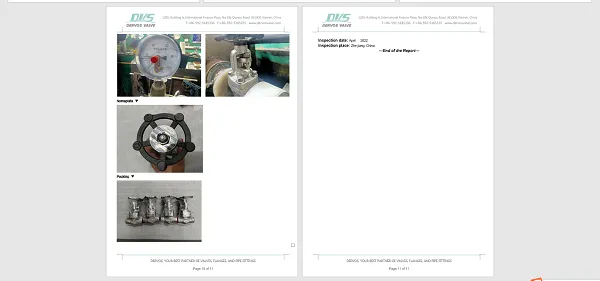

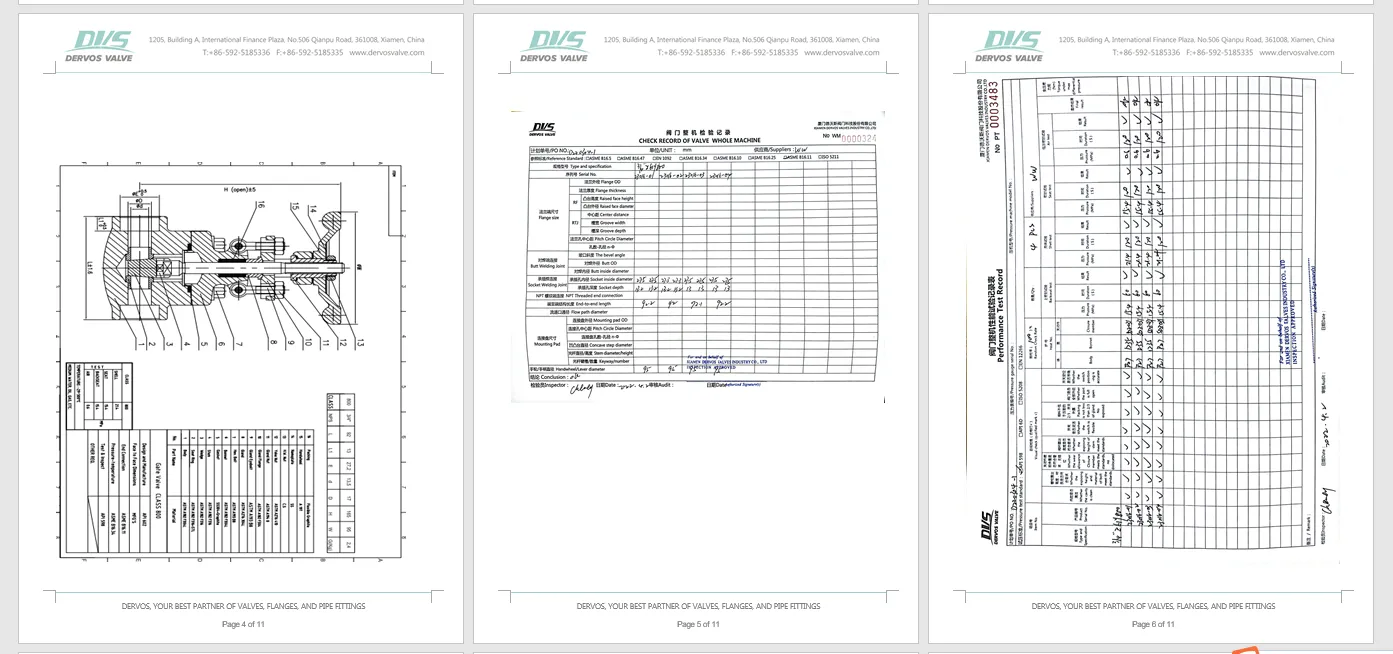

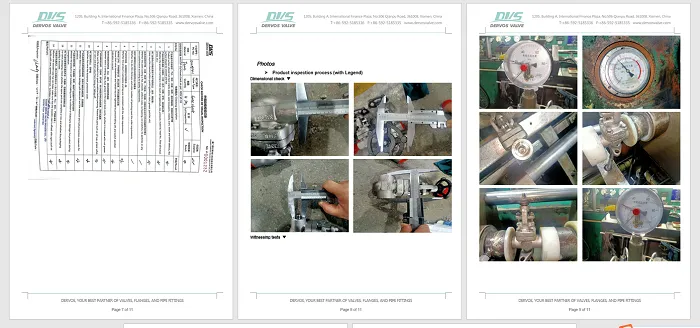

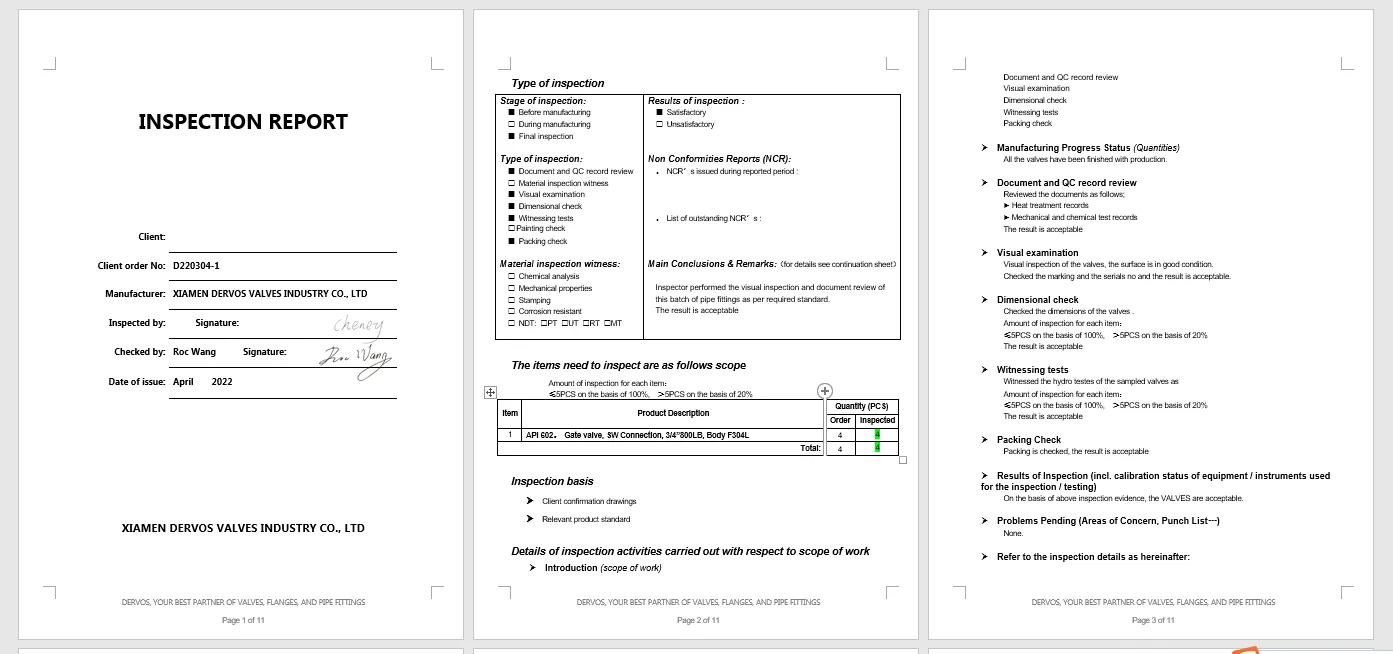

Inspection report
Introduction
3/4 Inch 800 LB gate valve is made according to API 602 standard. The valve body is made of ASTM A182 F304L. It has the structural characteristics of a bolt cover and rigid wedge. Its connection mode is SW. And it has hand wheel operation mode.
Features
1. Low fluid resistance, sealing surface not subject to erosion when fully open;
2. Simple structure, small size, lightweight, tight and reliable.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
