API 602 Gate Valve, 1-1/2 Inch, 800 LB, ASTM A105N, SW
Key Specifications / Features
1.5 Inch 800 LB gate valve is made according to API 602 standard. The valve body is made of A105N. It has the structural characteristics of a bolt cover, rising stem, bracket, and structural length of 120mm. Its connection mode is SW. And it has hand wheel operation mode.
- Hits: 4
- Categories: Gate Valve
- Tags: Class 800 LB Gate Valve , ASTM A105N Gate Valve , SW Gate Valve
Detail Information
1.5 Inch 800 LB Forged Steel Gate Valve SW A105N API 602 Handwheel
Features
1. Tight and reliable, widely used in vacuum systems;
2. Compact structure, stable operation, capable of effectively controlling fluid pressure and flow rate, improving industrial production efficiency and safety.

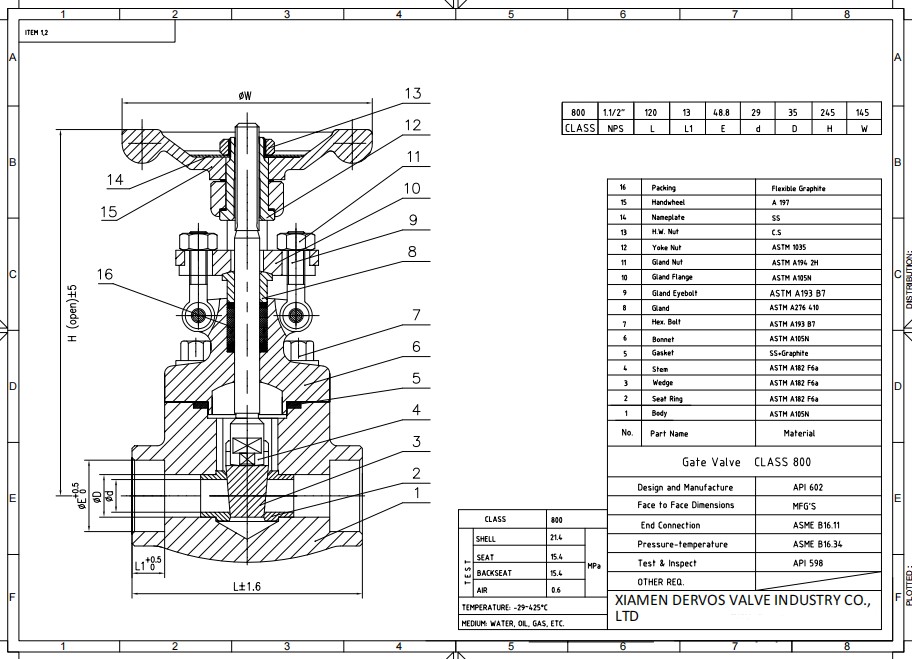

Technical Drawing

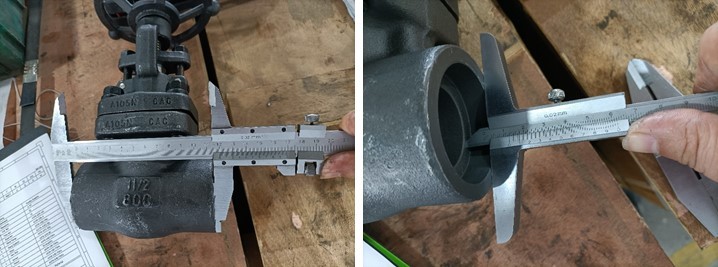

Dimension Checking

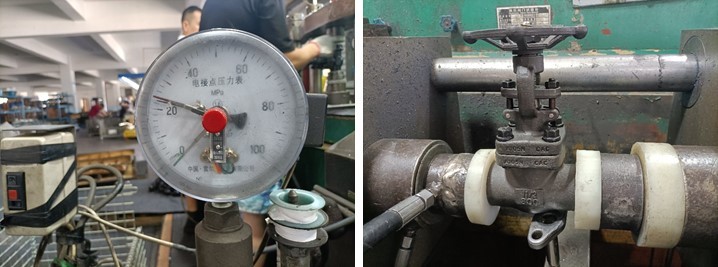

Pressure Testing
Nameplate & Packing

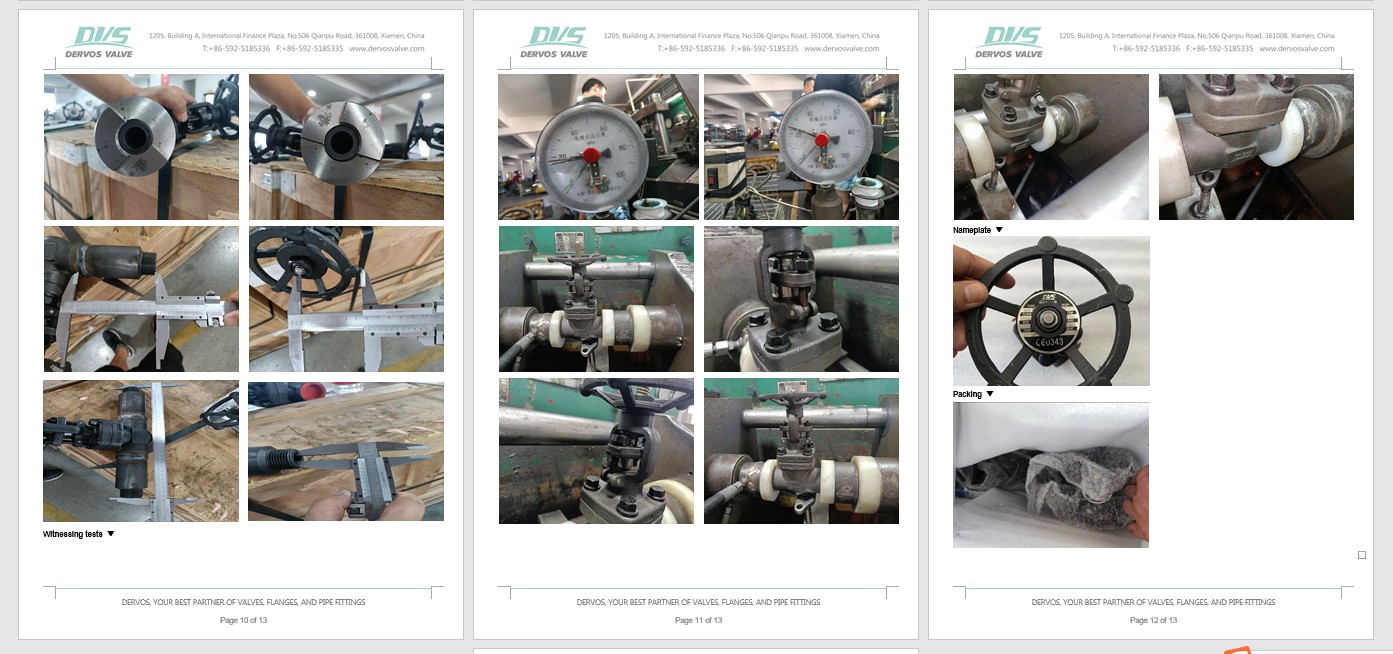

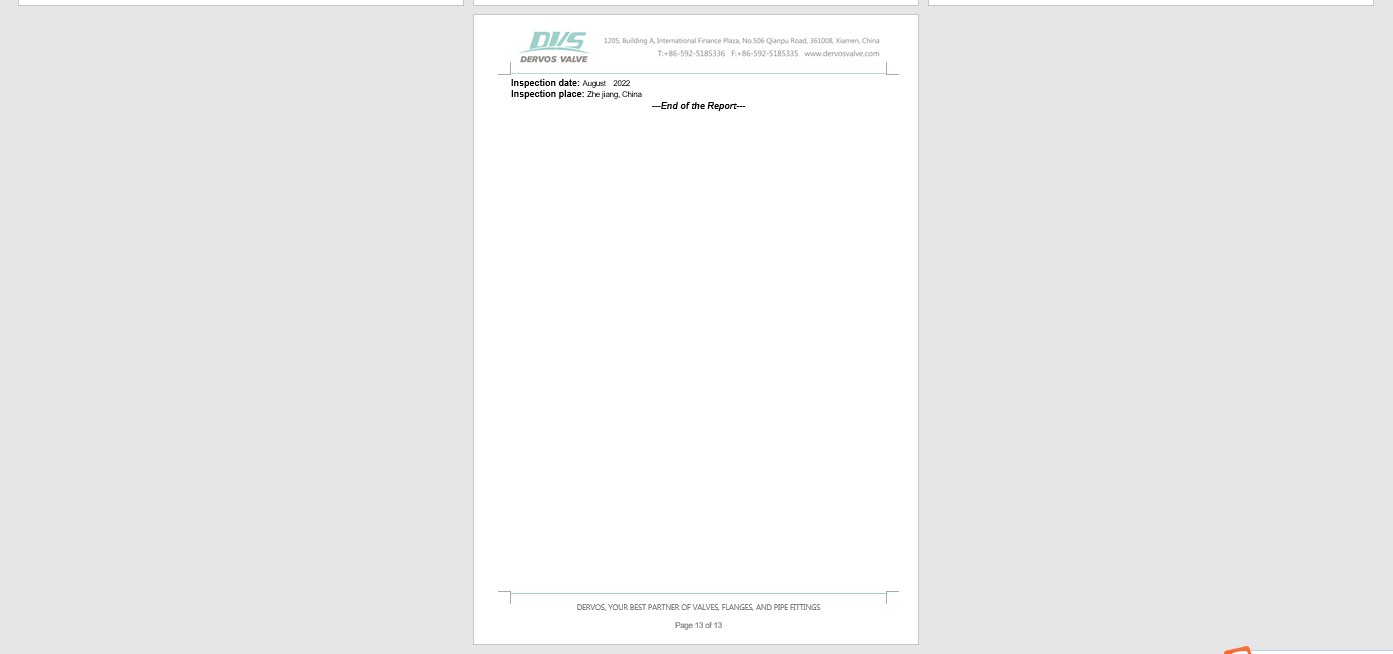

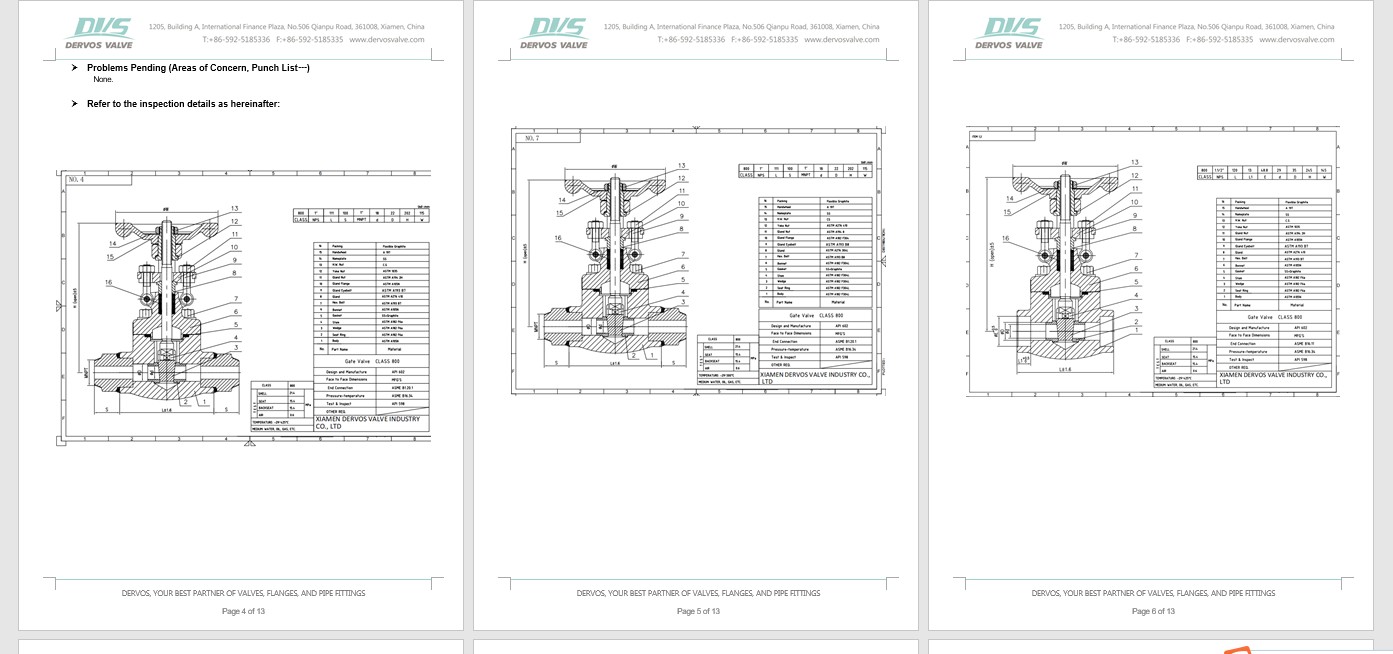

Inspection report
Features
1. Tight and reliable, widely used in vacuum systems;
2. Compact structure, stable operation, capable of effectively controlling fluid pressure and flow rate, improving industrial production efficiency and safety.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
