Lubricated Plug Valve, 4 Inch, 600 LB, WCB, API 6D, RF
Key Specifications / Features
We Provide Lubricated Plug Valves, Inverted Pressure Balance Plug Valves, 4 Inch, 600 LB, ASTM A216 WCB, API 6D, RF, Handle Operation, and API 598.
- Hits: 8
- Categories: Plug Valve
- Tags: Lubricated Plug Valve , 4 Inch Plug Valve , Class 600 LB Plug Valve
Detail Information
API 4" 600LB Inverted Pressure Balance Lubricated Plug Valve WCB
Introduction
4" 600LB plug valve is made according to API 6D standards. The valve body is made of WCB. It has the structural characteristics of the Inverted pressure balance type. Its connection mode is RF. And it has handle operation mode.
Features
1. Small fluid resistance, fast and convenient opening and closing, and good sealing performance;
2. Simple structure, small relative volume, lightweight and easy maintenance.

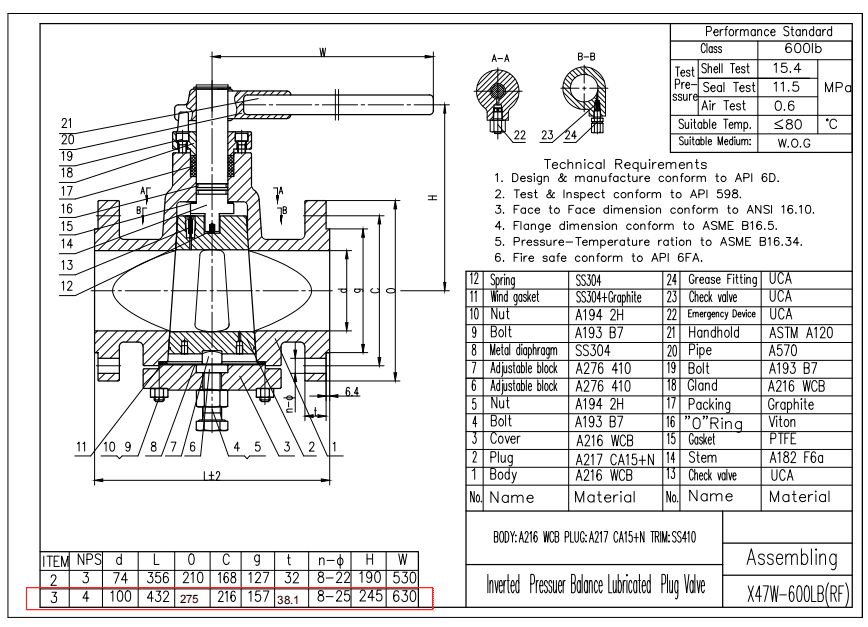

Technical Drawing

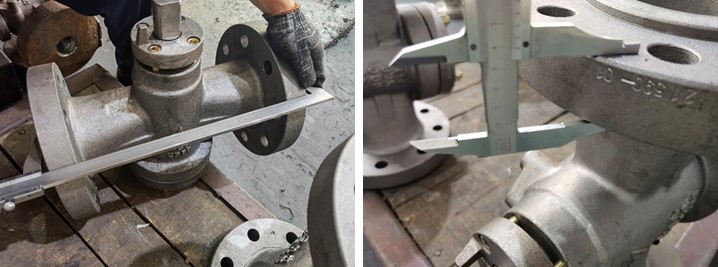

Dimension Checking

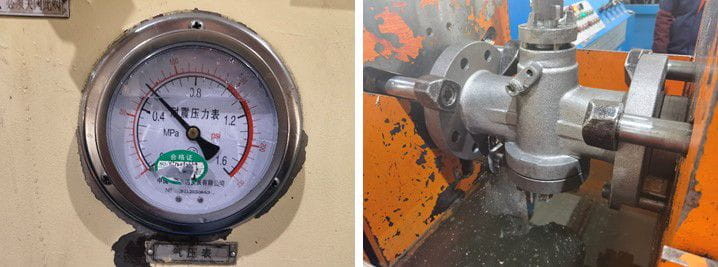

Pressure Testing

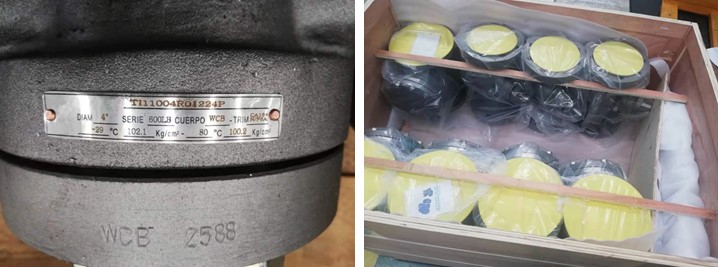

Nameplate & Packing

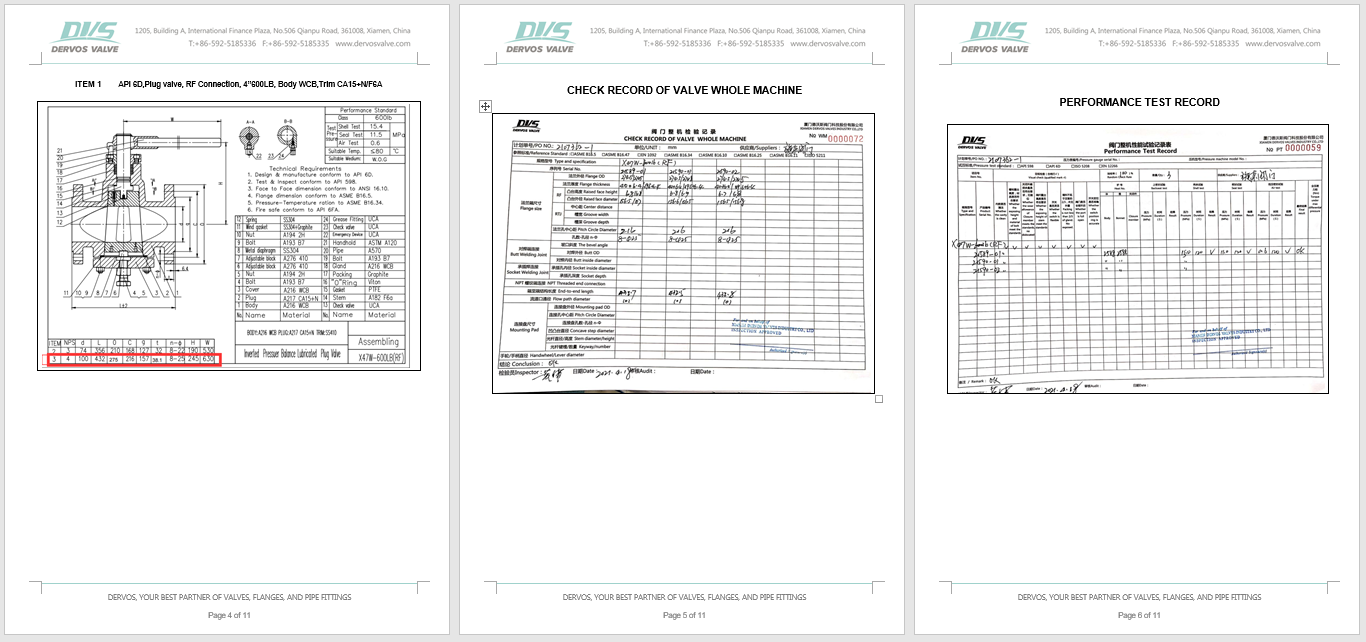

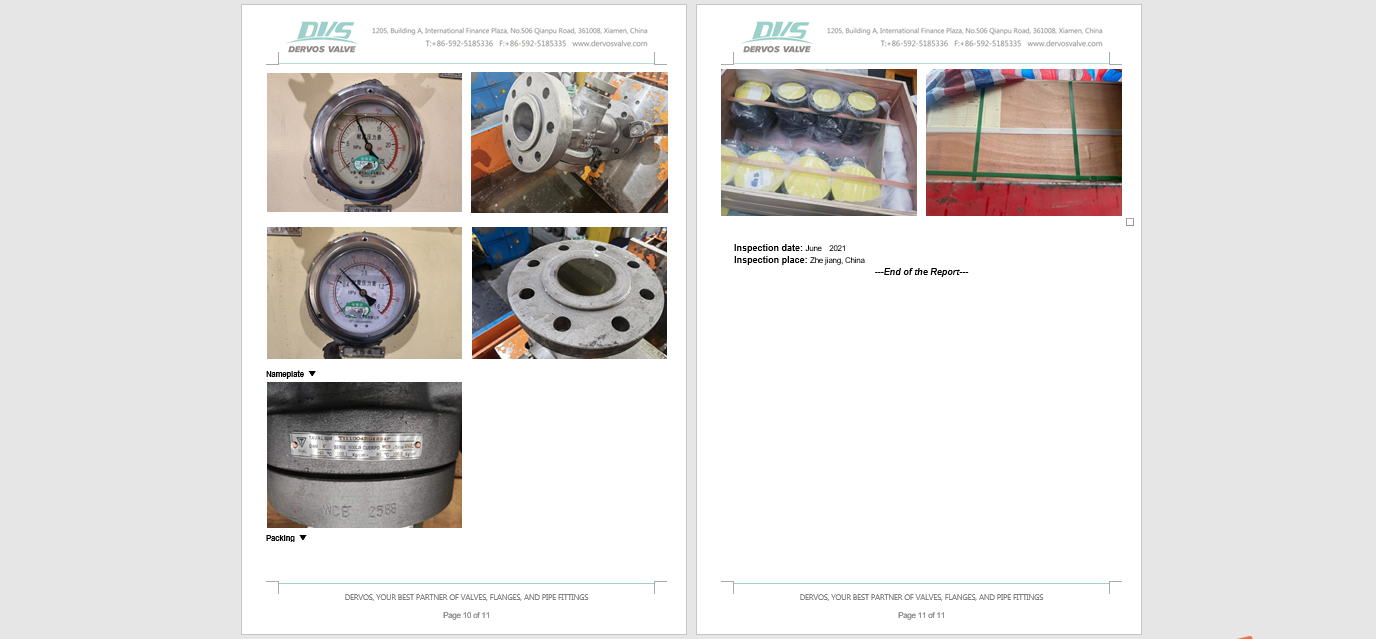

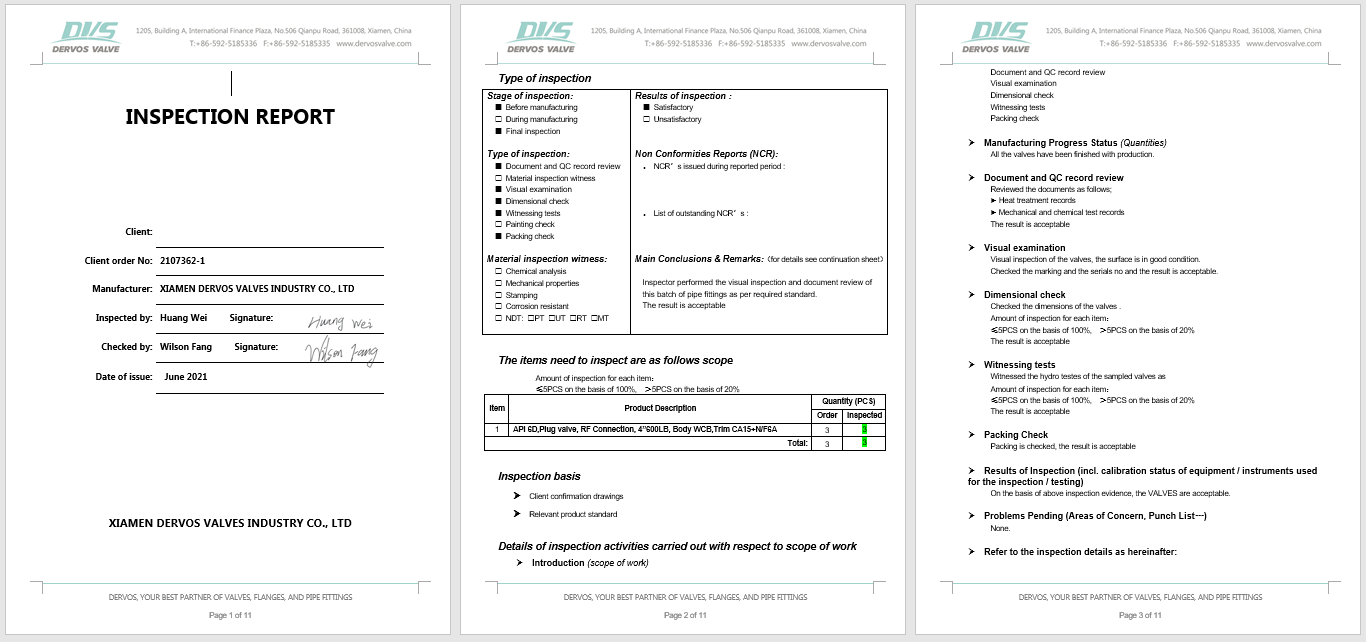

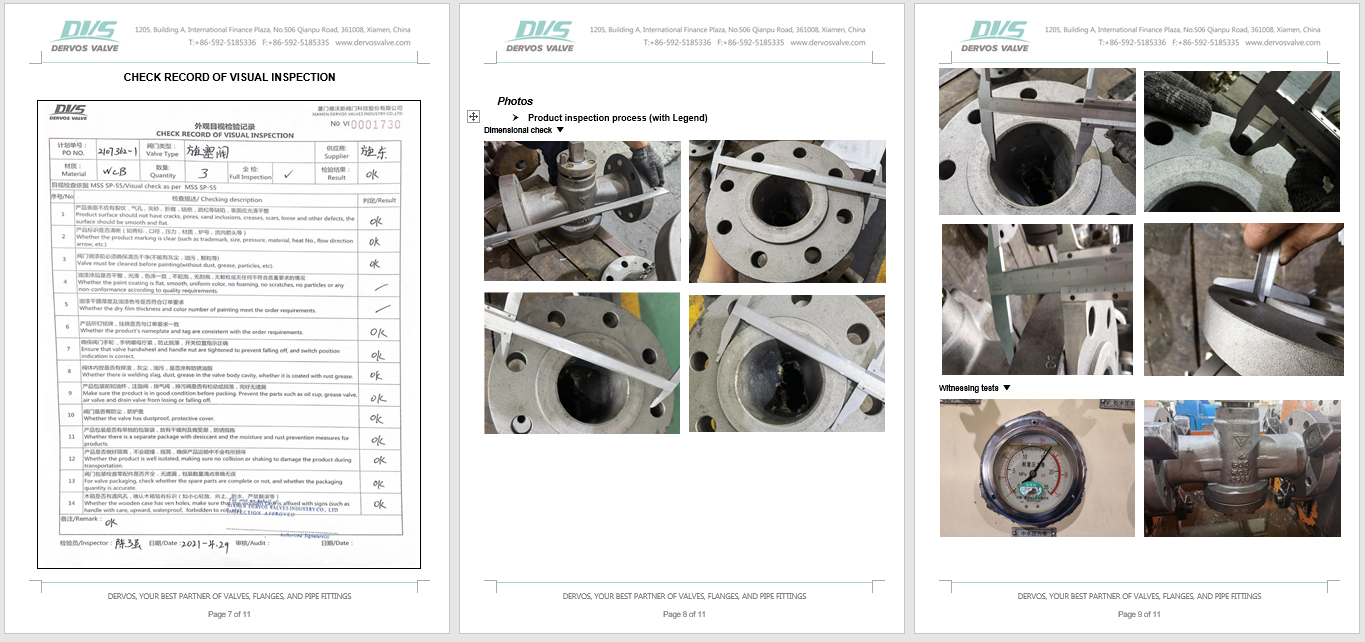

Inspection report
Introduction
4" 600LB plug valve is made according to API 6D standards. The valve body is made of WCB. It has the structural characteristics of the Inverted pressure balance type. Its connection mode is RF. And it has handle operation mode.
Features
1. Small fluid resistance, fast and convenient opening and closing, and good sealing performance;
2. Simple structure, small relative volume, lightweight and easy maintenance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
