ASTM A216 WCB Lubricated Plug Valve, 2 Inch, 600 LB, API 6D
Key Specifications / Features
2 Inch 600 LB plug valve is made according to API 6D standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of inverted pressure balance lubricated and fire safe conforming to API 6FA. Its connection mode is RF. It has a lever operation mode.
- Hits: 7
- Categories: Plug Valve
- Tags: Lubricated Plug Valve , ASTM A216 WCB Plug Valve , 2 Inch Plug Valve
Detail Information
2 Inch 600 LB Lubricated Plug Valve, Body WCB, RF Connection, API 6D
Features
1. Due to the use of oil sealing and pressure balancing design, the valve has excellent sealing performance, which can achieve zero leakage and ensure the safe operation of the pipeline system;
2. When the medium passes through, the fluid resistance is small, the pressure loss is low, and the efficiency of the system is improved.

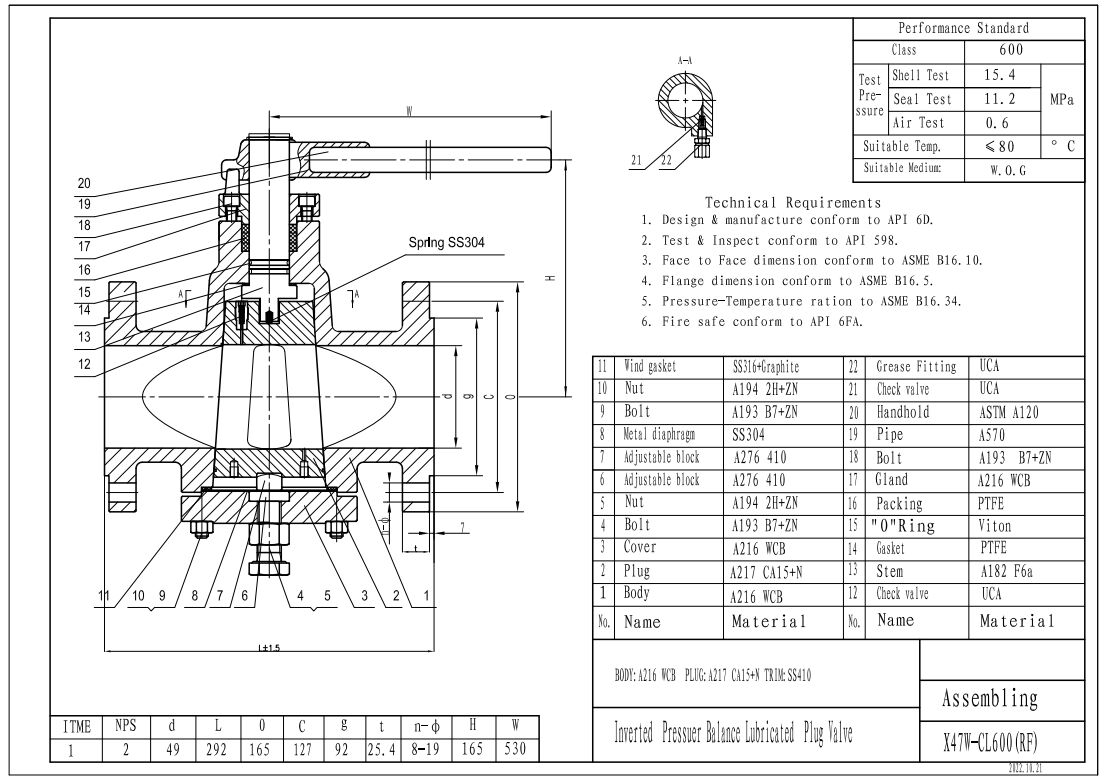

Technical Drawing

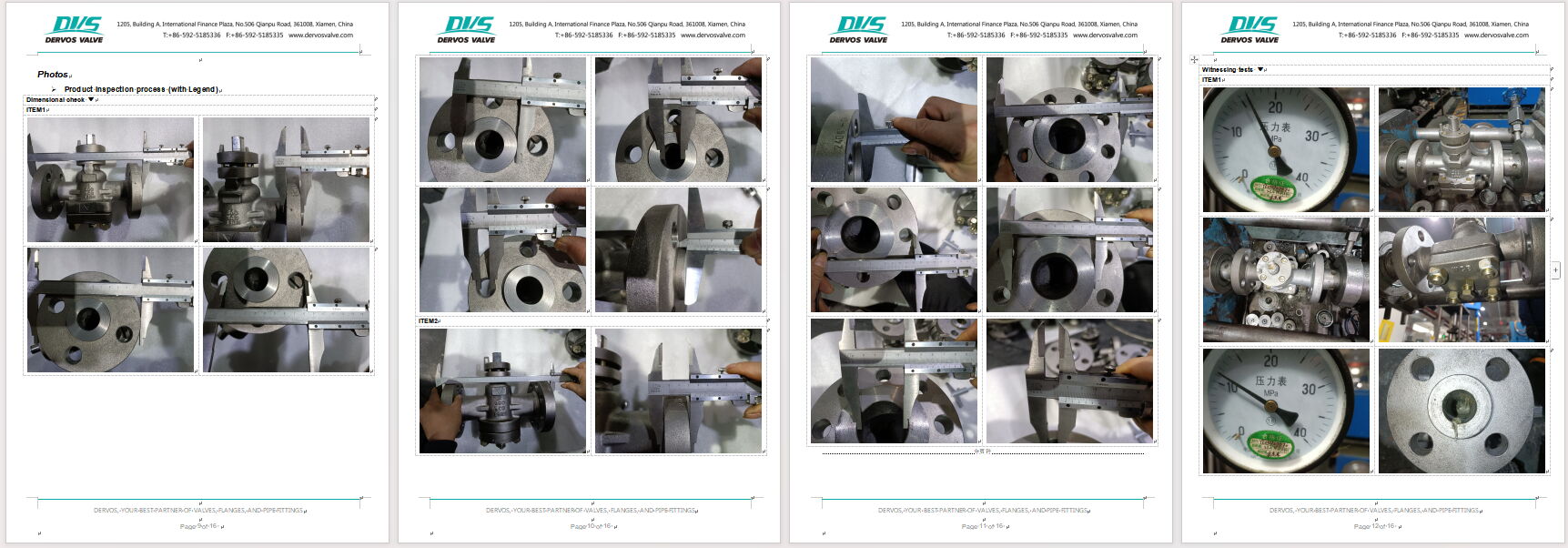

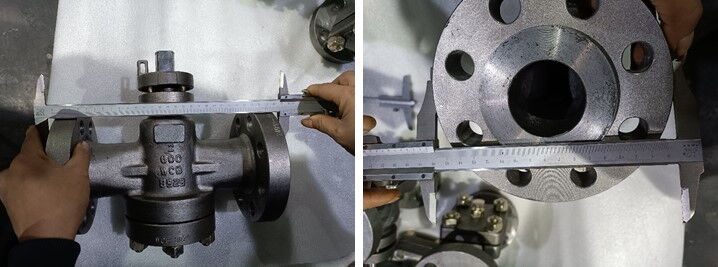

Dimension Checking

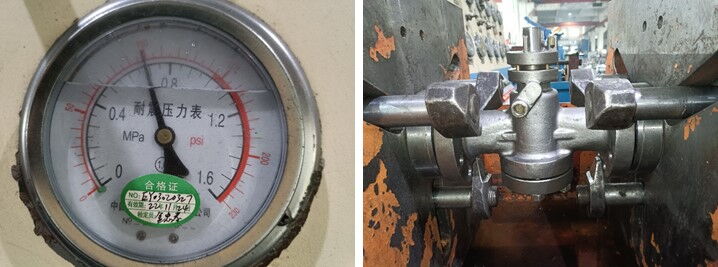

Pressure Testing

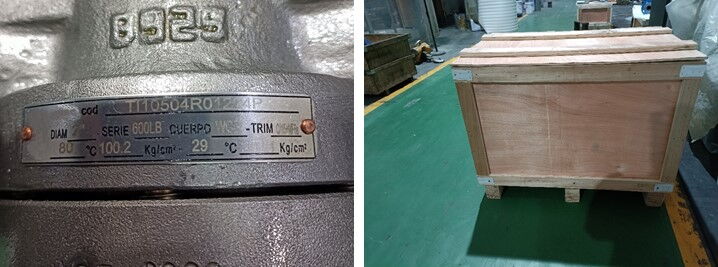

Nameplate & Packing

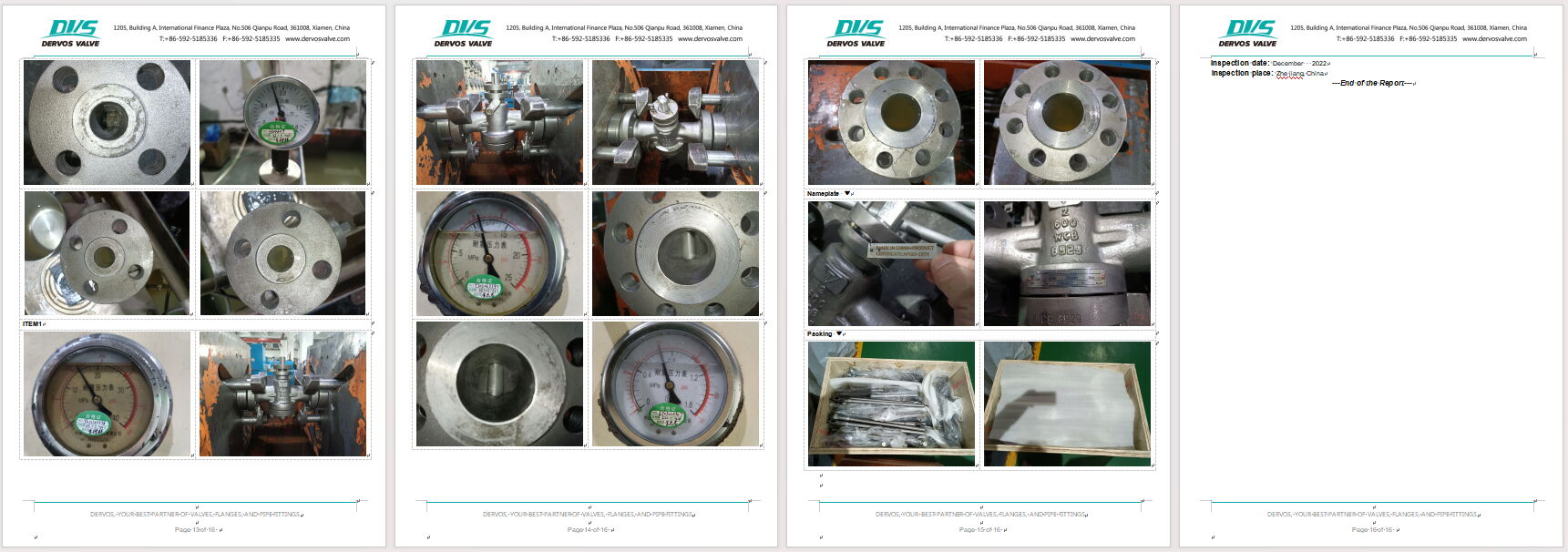

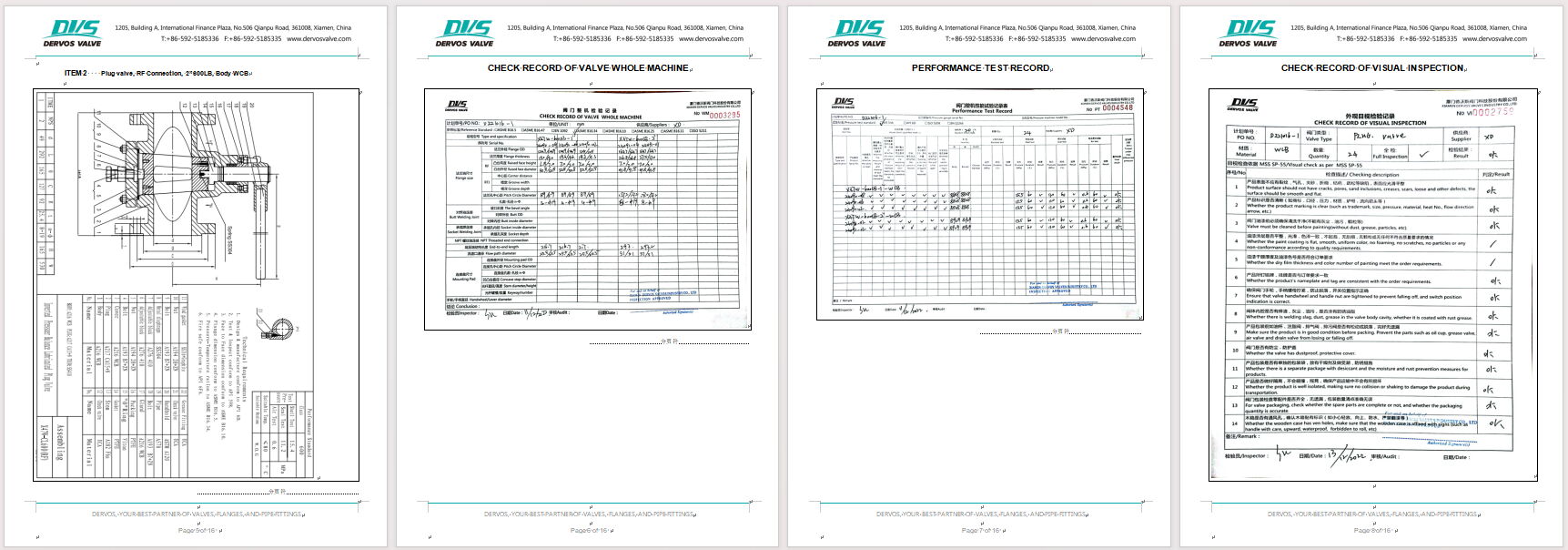

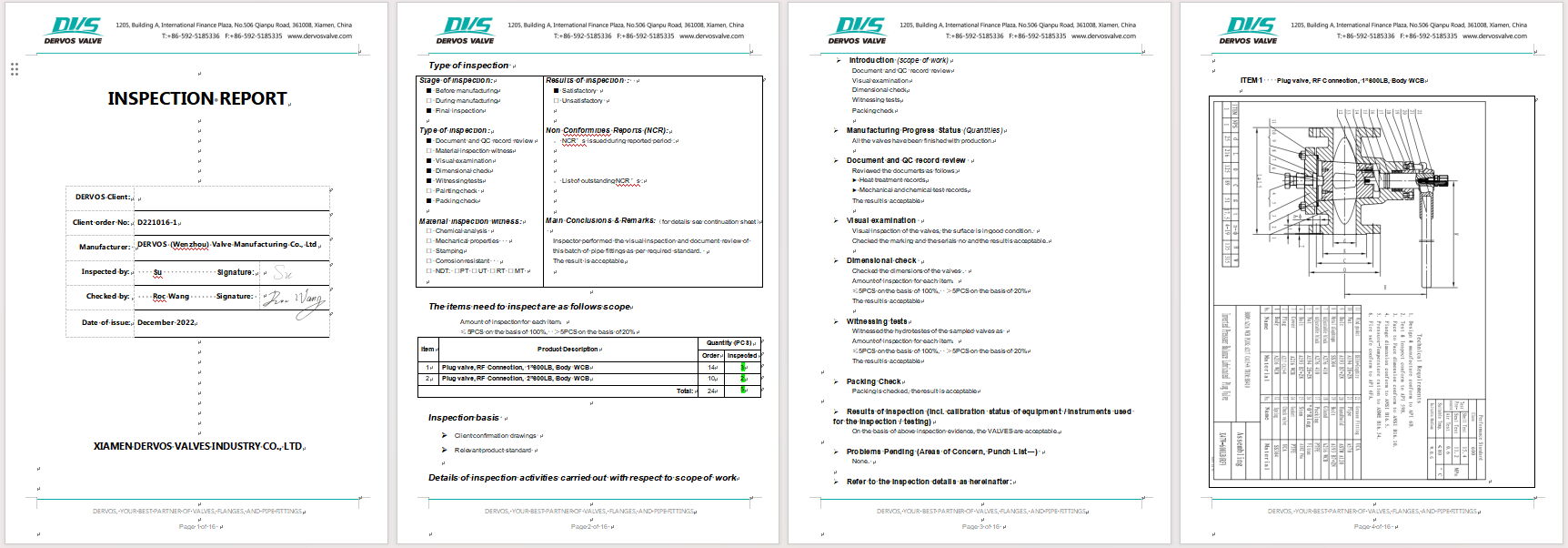

Inspection report
Features
1. Due to the use of oil sealing and pressure balancing design, the valve has excellent sealing performance, which can achieve zero leakage and ensure the safe operation of the pipeline system;
2. When the medium passes through, the fluid resistance is small, the pressure loss is low, and the efficiency of the system is improved.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
