ASTM A351 CN7M Sleeved Plug Valve, 2 Inch, 150 LB, API 599
Key Specifications / Features
We Provide ASTM A351 CN7M Plug Valves, ASTM A351 CN7M Sleeved Plug Valves, 2 Inch, Class 150 LB, API 599, DN50, PN20, FNPT End, Lever Operated, 178 mm.
- Hits: 4
- Categories: Plug Valve
- Tags: Sleeved Type Plug Valve , 2 Inch Plug Valve , Class 150 LB Plug Valve
Detail Information
2" 150 LB Sleeved Plug Valve API 599 CN7M FNPT
Introduction
2" 150LB plug valve is made according to API 599 standard. The valve body is made of A351 CN7M. It has the structural characteristics of the ferrule type, self-lubricating and structural length of 178 mm. It has FNPT connection mode and lever operation mode.
Features
1. Plug valve has small fluid resistance, quick opening and closing, and light;
2. Plug valve has good sealing performance, simple structure, lightweight and convenient maintenance;
3. Plug valve is not limited by the installation direction, and the flow direction of the medium can be arbitrary.

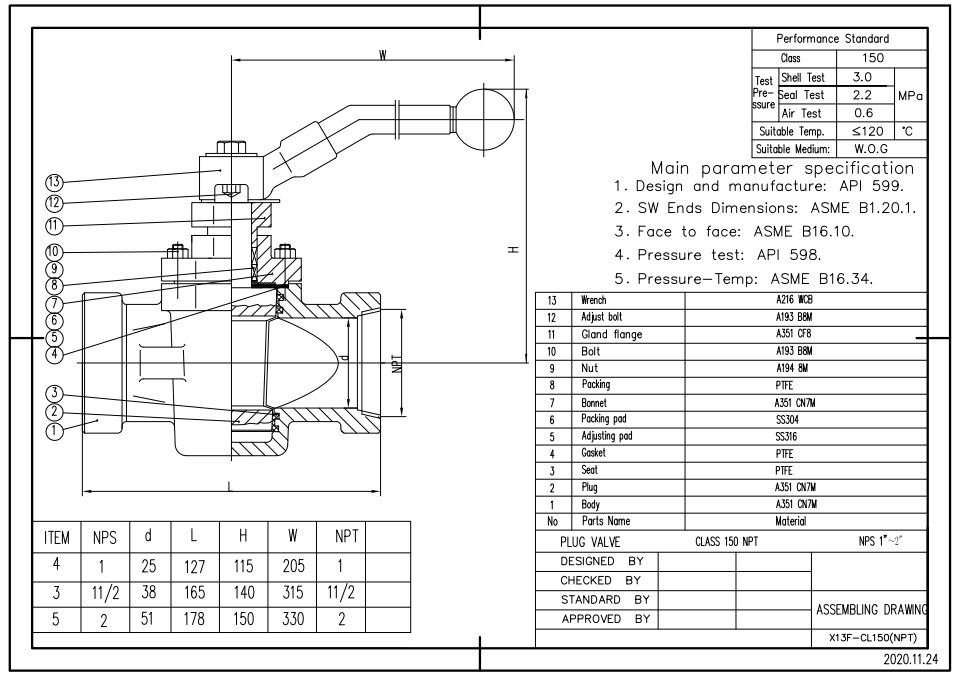

Technical Drawing

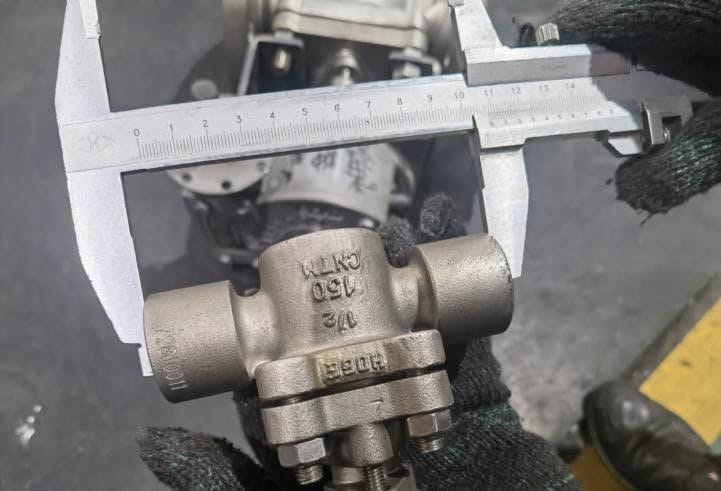

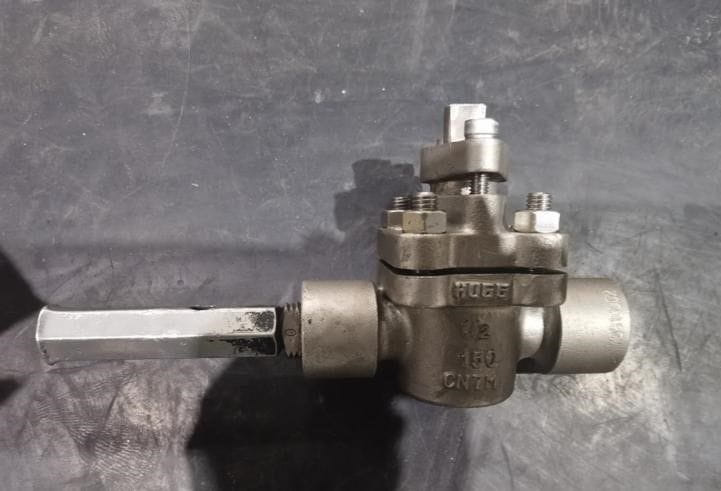

Dimension Checking

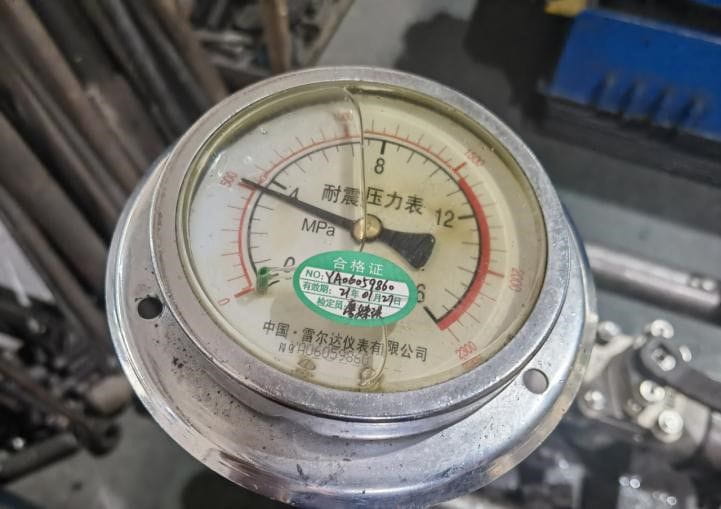

Pressure Testing

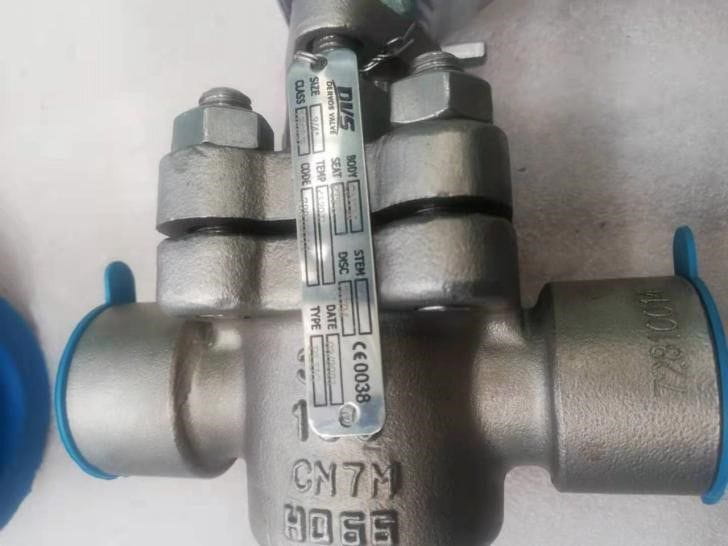

Nameplate & Packing

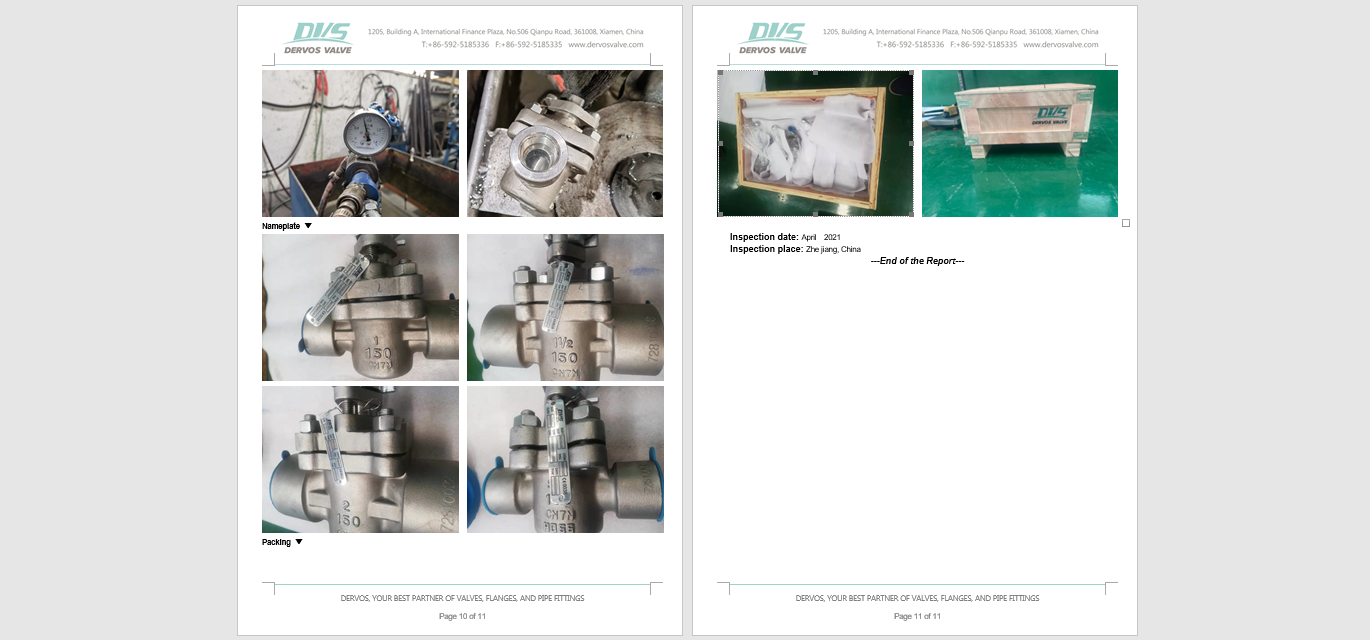

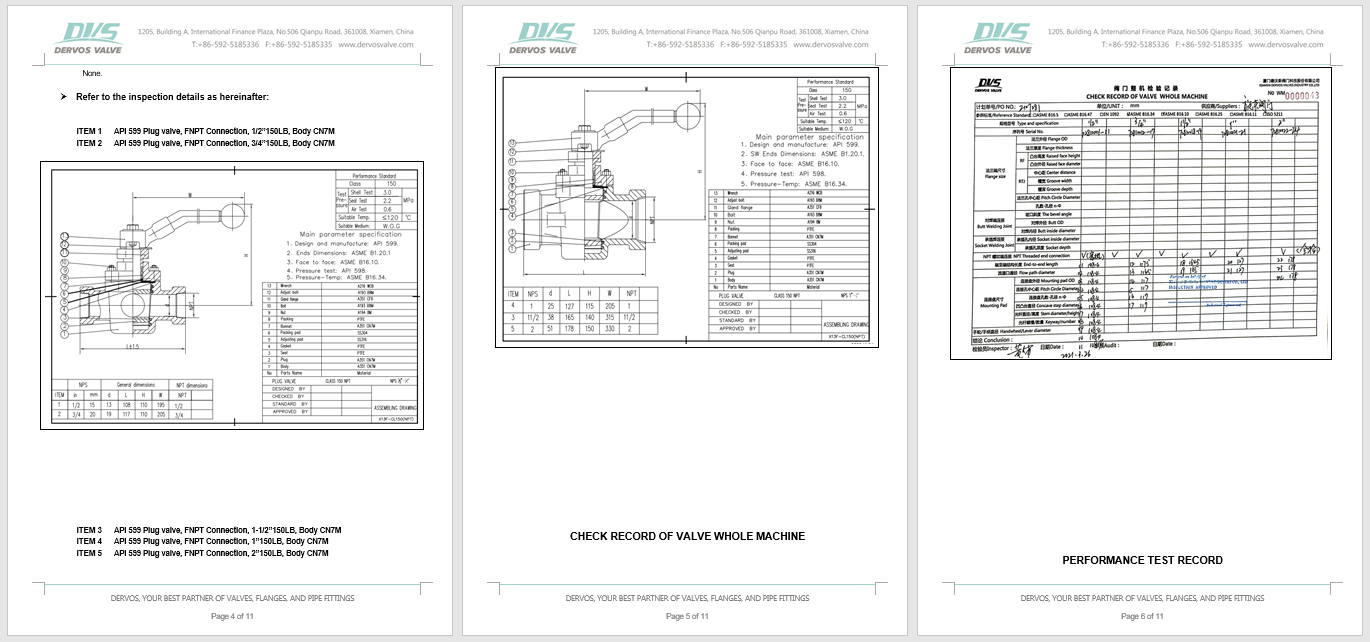

Inspection report
Introduction
2" 150LB plug valve is made according to API 599 standard. The valve body is made of A351 CN7M. It has the structural characteristics of the ferrule type, self-lubricating and structural length of 178 mm. It has FNPT connection mode and lever operation mode.
Features
1. Plug valve has small fluid resistance, quick opening and closing, and light;
2. Plug valve has good sealing performance, simple structure, lightweight and convenient maintenance;
3. Plug valve is not limited by the installation direction, and the flow direction of the medium can be arbitrary.
Technical Drawing
Dimension Checking
 |
 |
Pressure Testing
 |
 |
Nameplate & Packing
 |
 |
Inspection report
